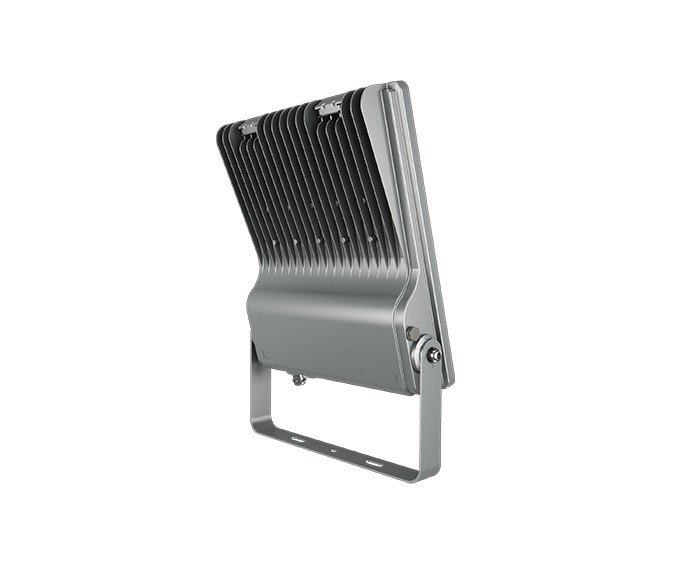

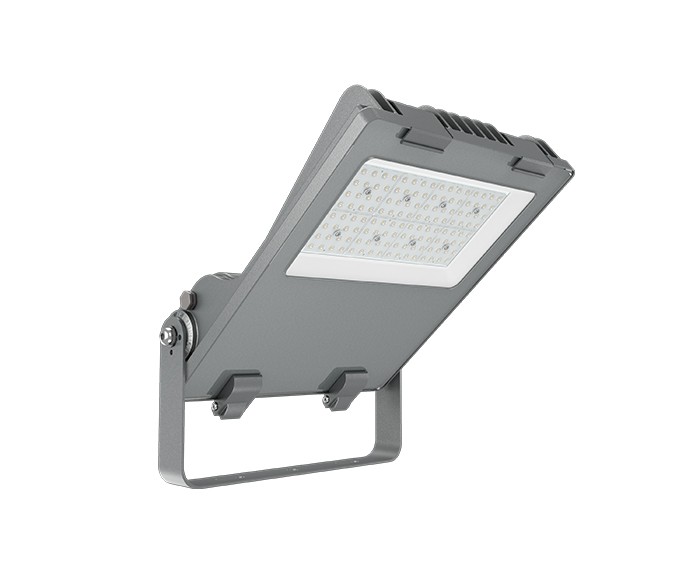

High Lumen Outdoor 180w Stadium Flood Light

30W-400W power, this is a stadium floodlight that can be used in outdoor courts. High-pressure die-cast aluminum lamp housing and tempered glass provide excellent protection. The waterproof rating of IP66 ensures safe outdoor use. Professional indoor and outdoor LED floodlights for sports facilities, road and highway tunnels, large areas, and industrial environments.



Key Features

1. Up to 100, 000hrs @ L70, low maintenance cost

2. World-class, approbated quality components (LEDs /Driver /etc.)

3. Equip with vent to avoid internal fogging and frosting

4. Wide choice of optics to suit more applications (asymmetrical and symmetrical)

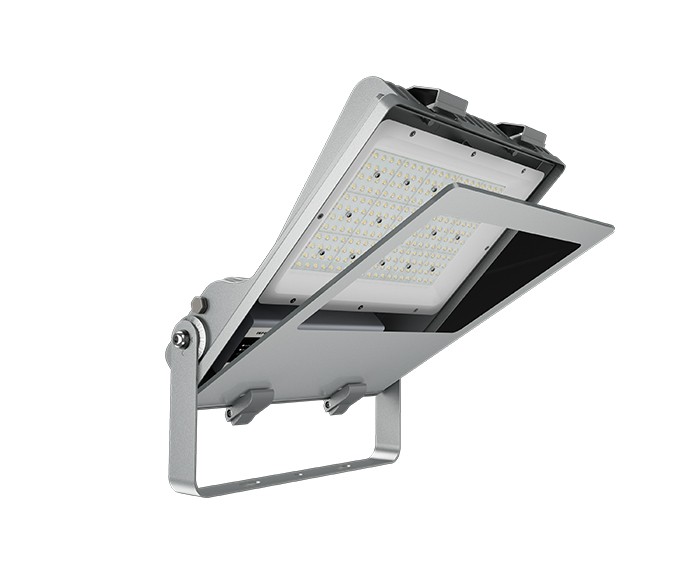

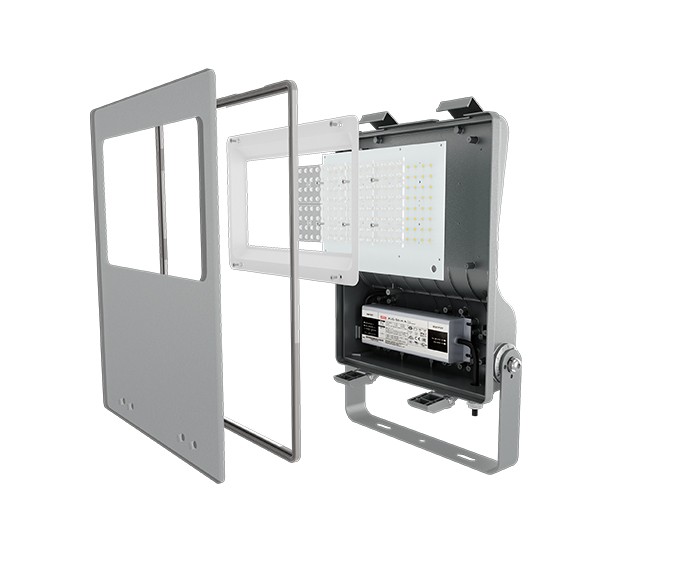

5. Buckle design makes it very easy for further maintenance

6. 5 years warranty


ModelZGSM-FL07-180L / ZGSM-FL07-180L+
LED BrandLUMILEDS 3030 or 5050
Driver BrandInventronics (Default) / Other brands on request
Normal Wattage180W
Input Voltage100-240/277VAC
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency150-165lm/w
Lamp Rated Lumen output27000-29700 lm (Lumen tolerance +/- 5%)
Color Rendering Index70 (80 is optional)
Color Temperature3000K, 4000K, 5000K, 5700K
Photometric Type25°, 60°, 90°, 120°, or Asymmetrical
Optimal Operating Temperature25
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C,   10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100,000 hours -L70, @25 ºC (77 ºF)
BodyHigh-pressure die-cast aluminum
CoverTempered glass
RatingIP66, IK09
Protection Class I (Default) /Class II
CertificationCE, RoHS, ENEC, CB, LM79, LM80, TM-21
Dimming Options1-10V Dimming (Default) /Timer Dimming
Control OptionsPhotocell, Motion sensor
Color OptionsGray (Default) /Black (available on request)
Warranty5 years


Where are commercial floodlights used?

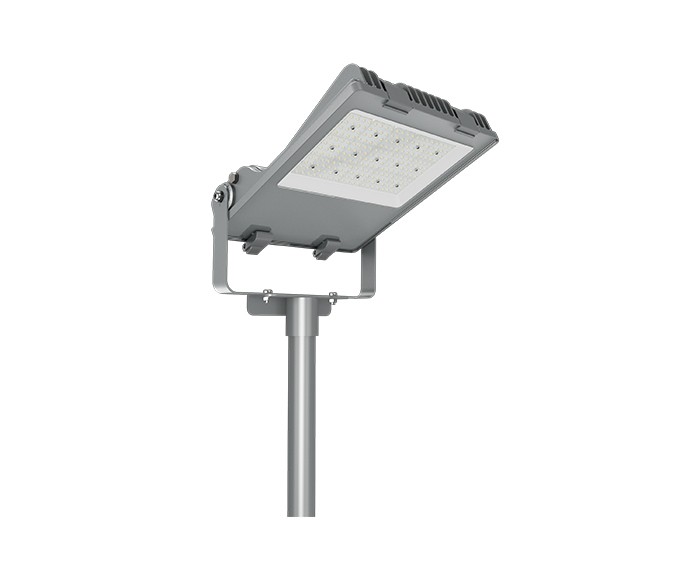

Floodlights have many uses. These lights can be very powerful, illuminating the exterior of buildings and outdoor playgrounds or smaller buildings, highlighting the exterior of the home or the garden. They can be installed on poles or roofs to illuminate sidewalks, streets, and parking lots. This helps keep the area safe and helps reduce accidents such as slips and falls. They can be located on the ground and glow on the sides of the structure to highlight the building's features. They can also be used in indoor, arena-to-stage applications.

What is the wattage of a floodlight?

If you want to illuminate your lawn with light, choose lighting that's suitable for 80 watts or more. Lights of 100 watts or higher are suitable for pedestrian areas, institutions, parking lots, or roads.
