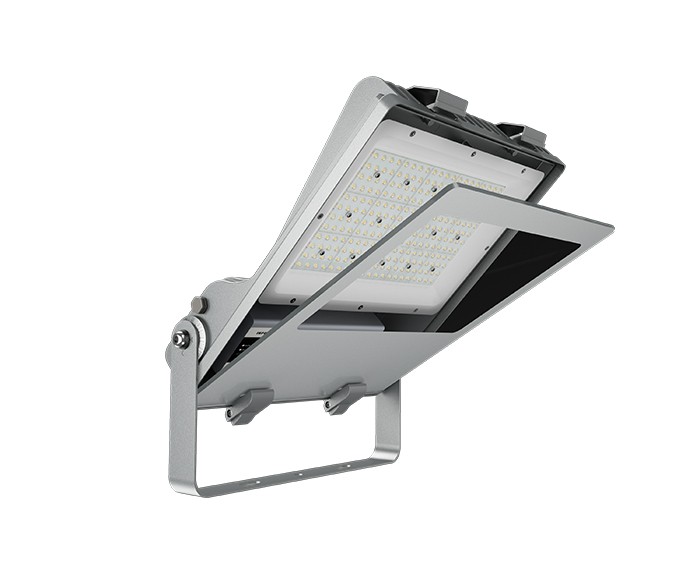

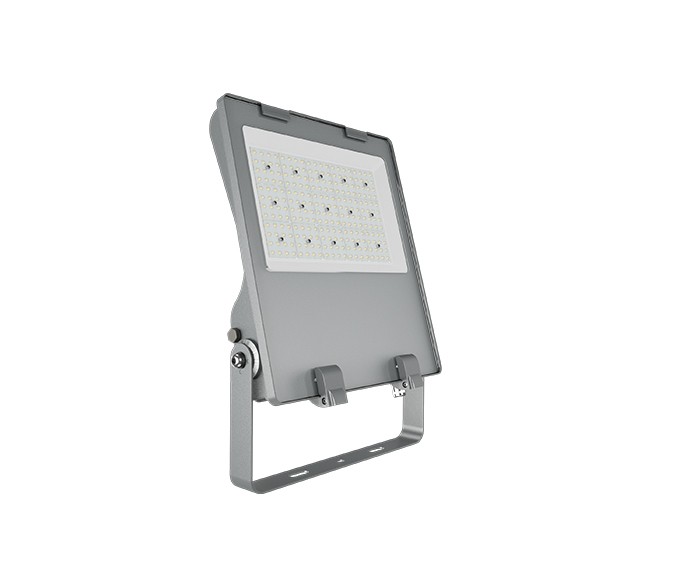

Outdoor Smart 80W Led Flood Light

This floodlight has a power of 30-400W and meets the power required in various places. High light efficiency brings you more ideal lighting. It is toolless and is easy to install and maintain. It can be installed in leisure sports venues, billboard lighting, accent lighting, parking lots, roundabouts, and outdoor sports venues

PRODUCT DESCRIPTION

Key Features

1. Up to 100, 000hrs @ L70, low maintenance cost

2. World-class, approbated quality components (LEDs /Driver /etc.)

3. Equip with vent to avoid internal fogging and frosting

4. Wide choice of optics to suit more applications (asymmetrical and symmetrical)

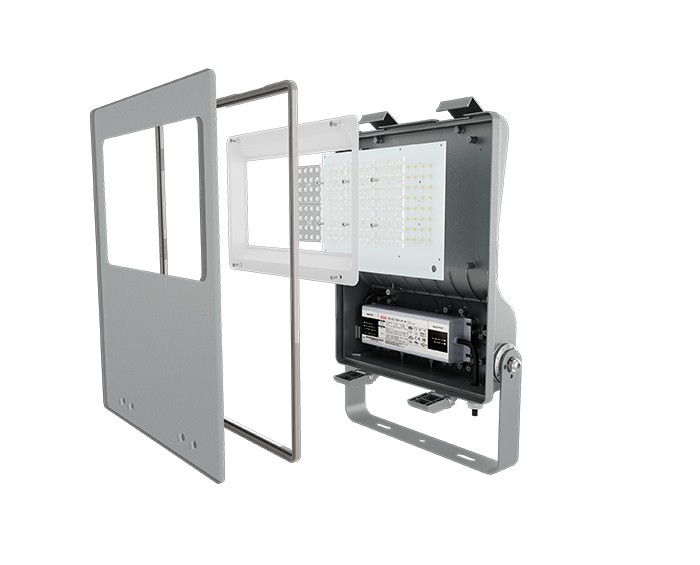

5. Buckle design makes it very easy for further maintenance

6. 5 years warranty

Specifications

ModelZGSM-FL07-80M /   ZGSM-FL07-80M+
LED BrandLUMILEDS   3030 OR 5050
Driver BrandInventronics   (Default) / Other brands on request
Norminal Wattage80W
Input Voltage100-240/277VAC
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency145-165lm/w
Lamp Rated Lumen output11600-13200   lm (Lumen tolerance +/- 5%)
Color Rendering Index70   (80 is optional)
Color Temperature3000K,   4000K, 5000K, 5700K
Photometric Type25°,   60°, 90°, 120° or Asymmetrical
Optimal Operating Temperature25℃
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C,   10%~90%RH
Total Harmonic Distortion<   10%
Lumen Maintenance>   100,000 hours -L70, @25 ºC (77 ºF)
BodyHigh   pressure die-cast aluminum
CoverTempered   glass
RatingIP66   IK09
Protection Class   I (Default) /Class II
CertificationCE, RoHS, ENEC, CB, LM79, LM80, TM-21
Dimming Options1-10V Dimming   (Default) /Timer Dimming
Control OptionsPhotocell,   Motion sensor
Color OptionsGray   (Default) /Black (available on request)
Warranty5   years


FAQ

Why did my LED floodlights dim?

LEDs are sensitive to a few things you need to be aware of. LED beads can lose their brightness due to premature aging, damage to internal components such as capacitors or LED arrays, or loose wiring. Heavy-duty appliances on the circuit can also cause the LED lights to dim.


Are LED floodlights cheaper to run?

LED beads consume more than 75% less energy than incandescent lamps. At low power levels, the difference is even greater. Bright LED floodlights use only 11 to 12 watts while producing a light output comparable to a 50-watt incandescent bulb.


Do LED floodlights get hot?

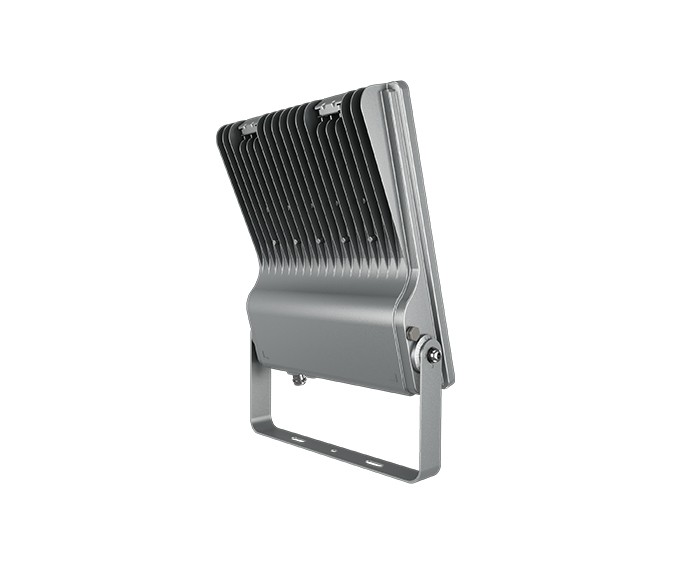

You may know that LED floodlights operate at much lower temperatures than their incandescent lamps, but that doesn't mean they don't generate heat. The LED floodlight does get hot, but the heat is carried away by the radiator at the bottom of the bead.
