LED Stadium Light

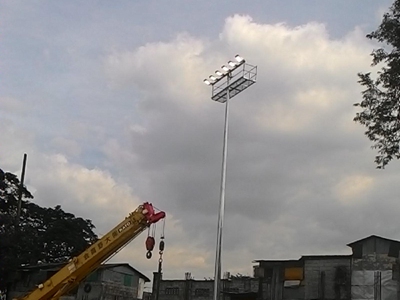

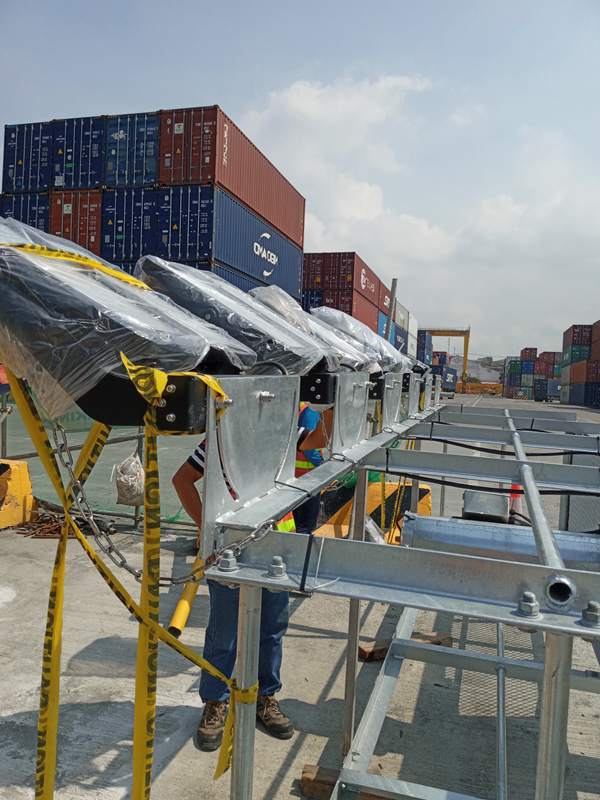

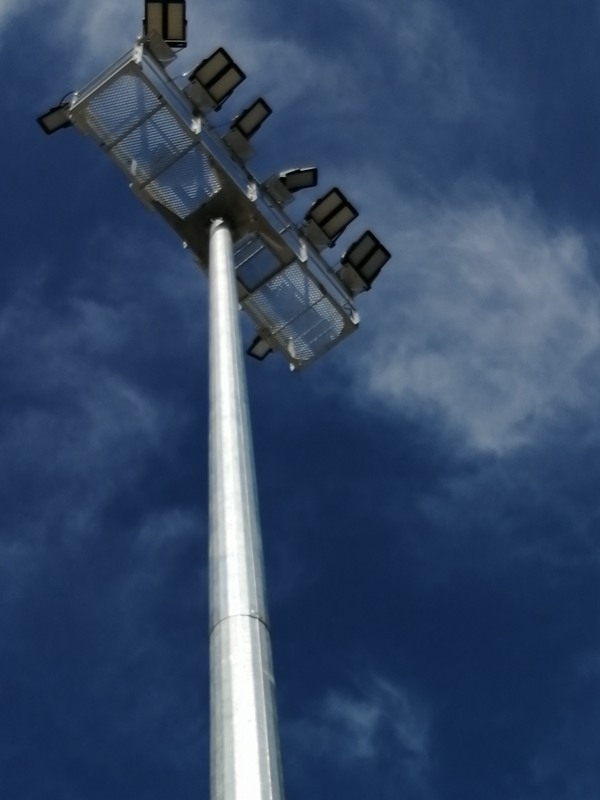

The port wharf lighting project In The Philippines was completed in 2020. It adopted 32 units of 280W and 44 units of 560W ZGSM M series stadium lights. As its power ranges from 280W to 1000W, M series LED stadium light is available to be applied to different kinds of outdoor lighting, such as football field lighting, industrial park lighting, square lighting, port lighting, and so on. After installing our M series LED stadium lights, the lighting conditions of this port wharf are greatly improved. It's safer for them to work here at night.

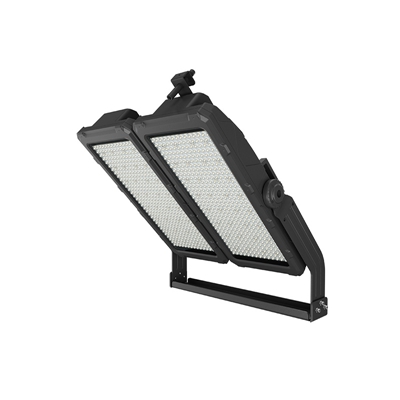

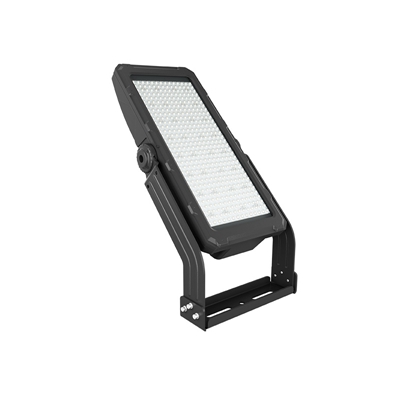

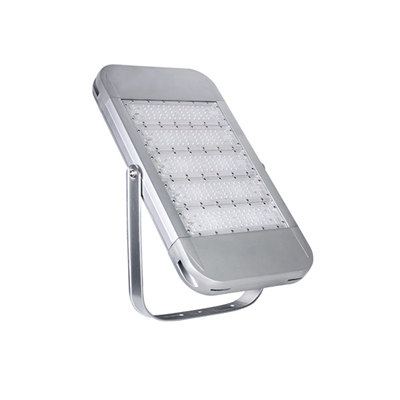

Products: 280W & 560W LED Stadium Lights
Model No.: ZGSM-TGD280M, ZGSM-TGD560M
LED: Lumileds 3030
Driver: Inventronics programmable drivers
CCT: 5000K
Optics: 60 Degrees
QTY: 44 Units
| Model | ZGSM-TGD560M |
| LED Brand | Philips Lumileds 3030 2D |
| Driver Brand | INVENTRONICS EUC Series |
| Normal Wattage | 560W |
| LED Quantity | 896 Pcs |
| Input Voltage | 100-240/277VAC, 50/60Hz |
| Power Efficiency | >90% |
| Power Factor | >0.95 |
| Lamp Rated Luminous Efficiency | >150lm/w |
| Lamp Rated Lumen output | 84000 lm (Lumen tolerance +/- 5%) |
| Color Rendering Index | Ra>70 |
| Color Temperature | 3000K, 4000K, 5000K, or 5700K |
| Photometric Type | 15, 30，45, 60 degrees |
| Optimal Operating Temperature | 25℃ |
| Storage Temperatures | ‘-40℃~+50℃ |
| Working Environment | Between-40°C~+50°C, 10%~90%RH |
| Total Harmonic Distortion | < 10% |
| Lumen Maintenance | > 100,000 hours -L70, @25 ºC (77 ºF) |
| Body and Shell Materials | Stretched Aluminium Alloy |
| IP Rating | IP66 with a test report |
| Certification | CE, ROHS |
| Optional Function | 1-10V DC Dimming |
| Warranty | 5 years |
Data Sheet_Stadium Light_M.pdf
 |  |  |

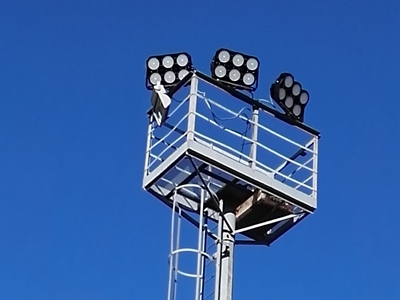

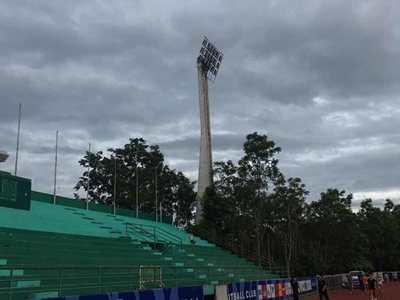

| LED Stadium Light Project In Thailand | LED Stadium Light Project In Italy | |
 |  |  |

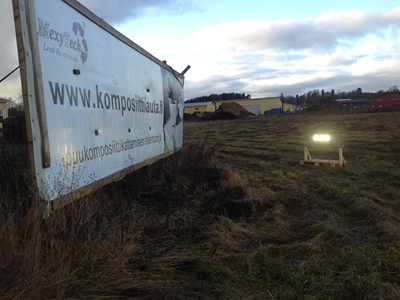

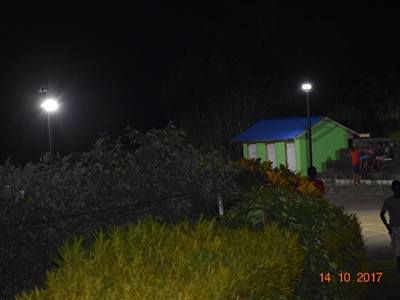

| LED Stadium Light Project In The Philippines | LED Projector Light Project In Malaysia | LED Projector Light Project In Finland |
 |  |  |
| LED Flood Light Features And Advantages |
When the color temperature is lower, the light appears "warmer"; when the color temperature is greater, the light appears "cooler" or more bluish. Color temperatures between 4000 and 6500 K are typically needed for sports lighting.
We have LED flood lights whose power range from 10W to 1000W.

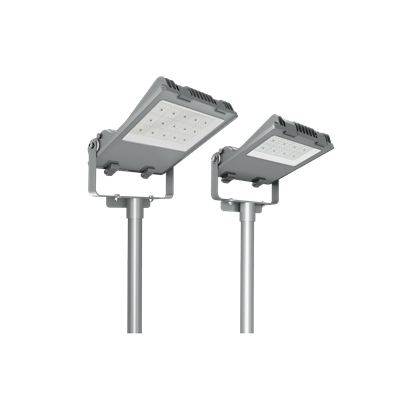

Integrated driver design Stellar series power range from 10W to 50W.
H&HB series and Zoom series LED flood lights' power range from 20W to 400W.

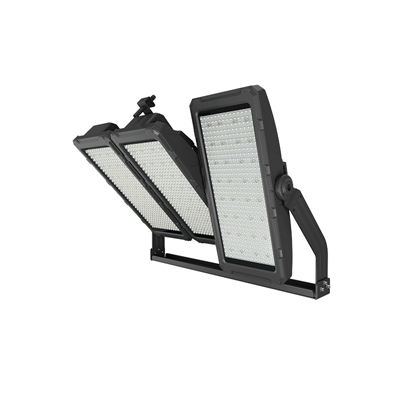

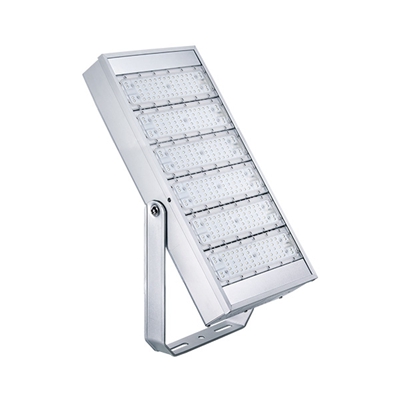

High power M series ranging from 280W to 1000W is designed for football fields or large squares.
For more details about our LED flood lights, pls check the products or contact us.
Spotlights are used to light up smaller regions or objects and have a tighter beam angle. Floodlights have a bigger beam and are used to illuminate larger regions.
