LED Stadium Light Project In The Philippines

The train station lighting project in the Philippines was finished in 2019. After several DIALux outdoor lighting designs and adjustments, we finally provide a solution that satisfied our customers. In this solution, there are 84 units of  ZGSM 840W M series LED stadium lights and 83 units of 240W H6 series LED Floodlights mounted at a height of 12.5m, which is bright, uniform, and no glare. Our M series SMD stadium led lights could be customized to as high as 1000W and the max power of modular design H series LED flood lights are 360W. These 2 models could be applied to different outdoor light projects with large areas.


Products Details

840W LED Stadium Lights, ZGSM-TGD840M: 3030LED, 5700K, 30°, 84 pcs in total;

240W LED Floodlights, ZGSM-FGD240H6: 3030LED, 5700K, 60°, 36 pcs in total;

240W LED Floodlights, ZGSM-FGD240H6: 3030LED, 5700K, 110°, 47 pcs in total.


Video

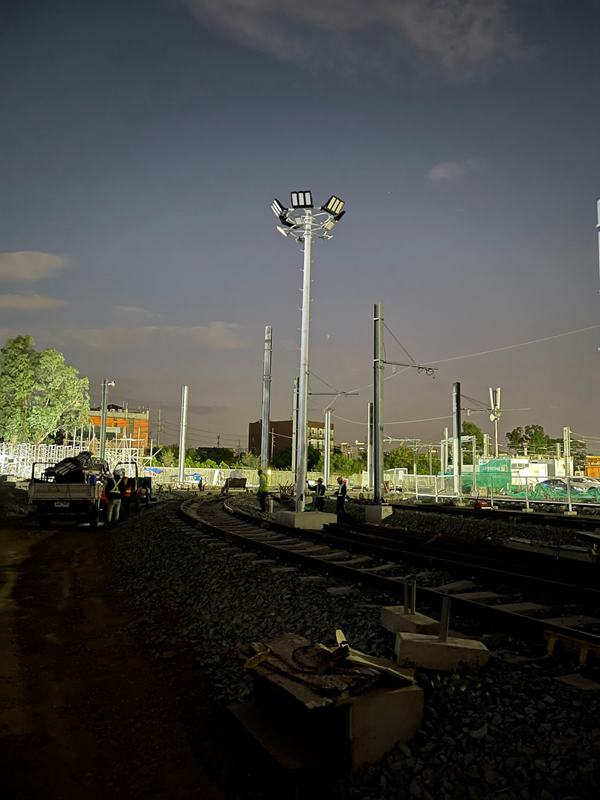

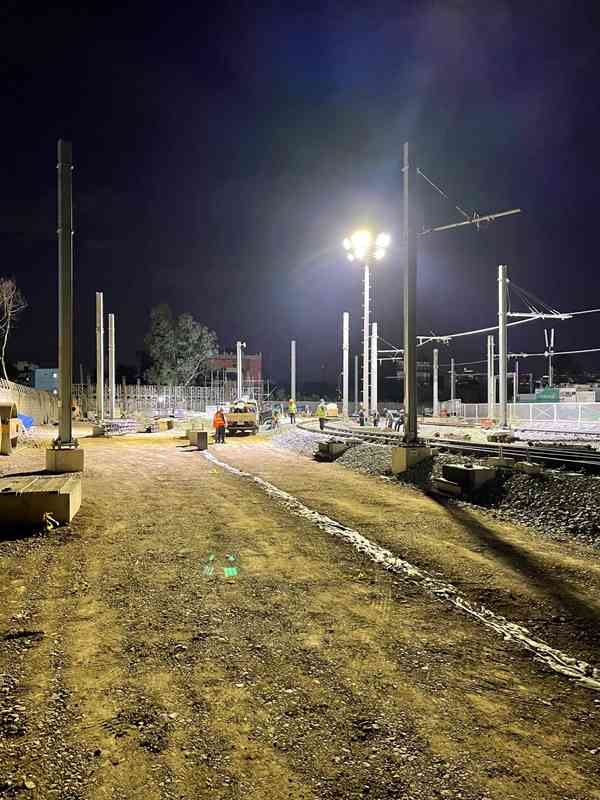

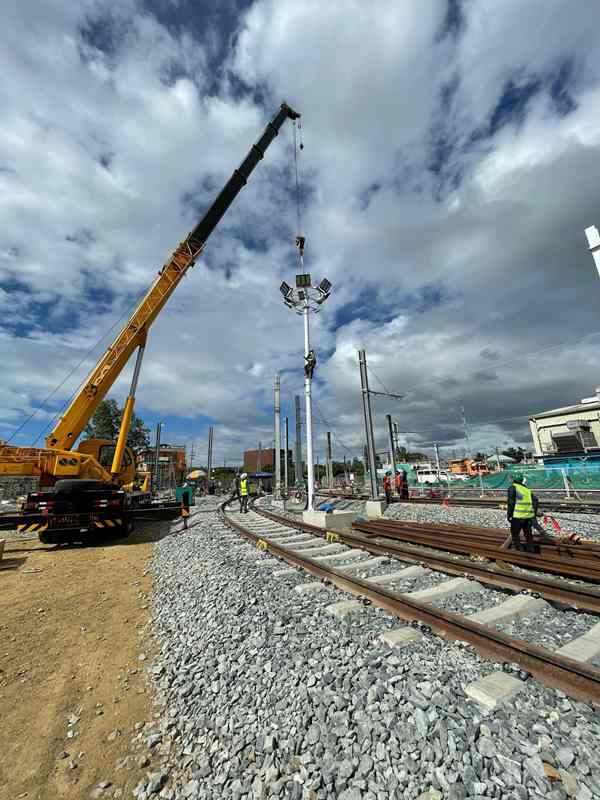

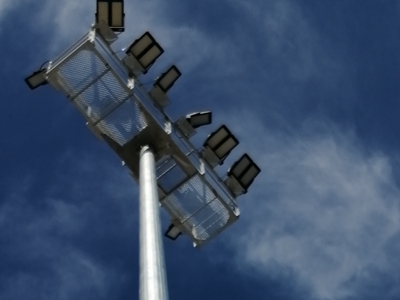

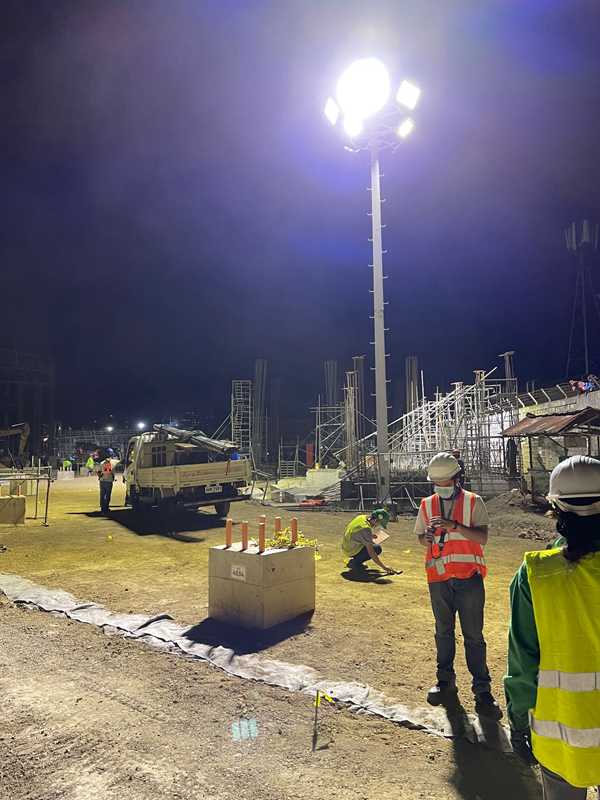

Project Photos


LED Stadium Light Project In The PhilippinesLED Stadium Light Project In The Philippines

LED Stadium Light Project In The PhilippinesLED Stadium Light Project In The Philippines


Specification


ModelZGSM-TGD840M
LED BrandPhilips Lumileds 3030 2D
Driver BrandINVENTRONICS EUC Series
Norminal Wattage840W
LED Quantity1334 Pcs
Input Voltage100-240/277VAC, 50/60Hz
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency>150lm/w
Lamp Rated Lumen output126000 lm (Lumen tolerance +/- 5%)
Color Rendering IndexRa>70
Color Temperature3000K, 4000K, 5000K or 5700K
Photometric Type15, 30,45, 60 degrees
Optimal Operating Temperature25℃
Storage Temperatures‘-40℃~+50℃
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100,000 hours -L70, @25 ºC (77 ºF)
Body and Shell MaterialsStretched Aluminium Alloy
IP RatingIP66 with test report
CertificationCE,ROHS
Optional Function1-10V DC Dimming
Warranty5 years


ModelZGSM-FGD240H6
LED BrandLumileds LUXEON 3030/5050
Driver BrandMeanwell HLG series
Normal Wattage240W
LED Module Quantity4 modules
Input Voltage100-240/277/347/480VAC
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency125-155 lm/w
Lamp Rated Lumen output30000-37200 lm (Lumen tolerance +/- 5%)
Color Rendering Index70 (80 is optional)
Color Temperature3000K, 4000K, 5000K, or 5700K
Photometric Type60,90,110 degrees
Optimal Operating Temperature25℃
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100,000 hours -L70, @25 ºC (77 ºF)
BodyDie-cast Aluminum Housing
CoverPC lens
RatingIP66 IK10
Protection Class I ( Class II optional)
CertificationCE, ROHS, LM80
Dimming Options1-10V or DALI or PWM or Timer
Control OptionsMotion sensor or Smart control
Color OptionsSilver
Warranty7 years


Download


Installation Manual_ProjectorLight_M.pdf

Data Sheet_Stadium Light_M.pdf

Installation Manual_HighBay&Flood&TunnelLight_H.pdf

Data Sheet_HighBay&Flood&TunnelLight_H.pdf


Related Products


LED Stadium Light Project In The PhilippinesLED Stadium Light Project In The PhilippinesLED Stadium Light Project In The Philippines

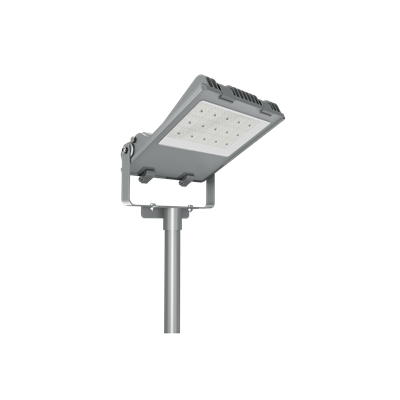

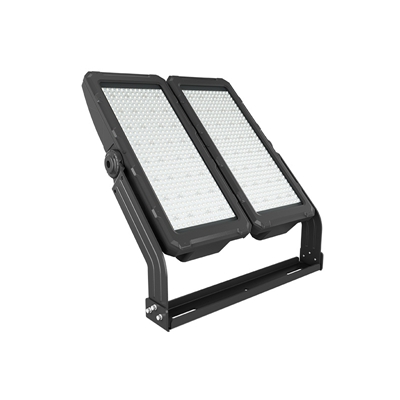

280W High Mast LED Stadium Light560w LED Sports Light for Outdoor Sports840W High Mast Football Lights
LED Stadium Light Project In The PhilippinesLED Stadium Light Project In The PhilippinesLED Stadium Light Project In The Philippines

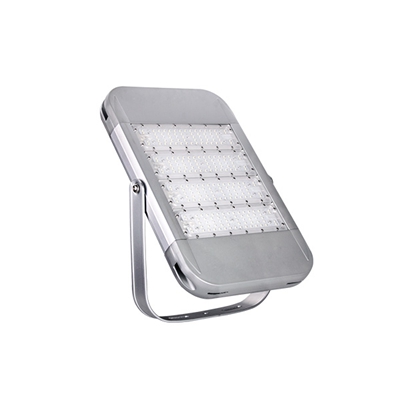

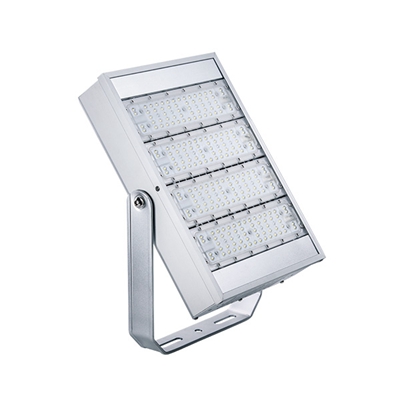

Tennis Court Lights 240WEconomical 240w IP66 Warehouse LED Flood LightHigh Lumen Outdoor 180w Stadium Flood Light


Related Projects


LED Stadium Light Project In The PhilippinesLED Stadium Light Project In The PhilippinesLED Stadium Light Project In The Philippines

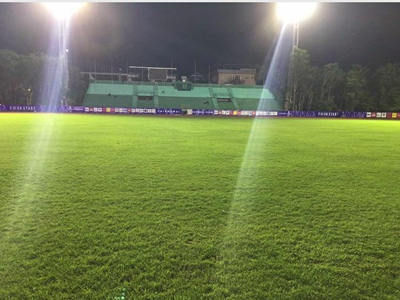

LED Stadium Light Project In Thailand

LED Stadium Light Project In ItalyLED Stadium Light Project In The Philippines
LED Stadium Light Project In The PhilippinesLED Stadium Light Project In The PhilippinesLED Stadium Light Project In The Philippines

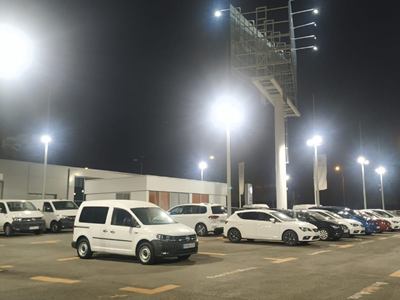

LED Floodlights Project In The PhilippinesLED Floodlights Project In IndonesiaLED Floodlights Project In Spain


Related Blogs


LED Stadium Light Project In The PhilippinesLED Stadium Light Project In The PhilippinesLED Stadium Light Project In The Philippines

The Difference Between

LED Projector Light and LED Flood Light

Why Are LED Flood Light Popular In The Market?

What Are The Main Application Areas

 Of LED Flood Light?


People Also Ask


  1.  What is a LED stadium light?

    LED stadium lights are extremely high power sports lights that are positioned at great heights and have narrow beam angles that typically range from 12 to 60 degrees. Smaller beam angles increase the light intensity inside that angle, allowing strong light to descend from higher elevations.


  2. Why do Metal Halide stadium lights take long to turn on?

    The interior salts evaporate when the light warms up, altering the output's quality. This takes time to reach its maximum power (thus the warm-up period). While LED stadium lights do not have this problem, they reach the maximum brightness as soon as they are turned on. Compared with metal halide lamps, LED stadium lights are more energy-saving and environmentally friendly. This is why more and more metal halide lamps are now being replaced by LED stadium lights.


  3. What are your warranty policies for LED Stadium lights and floodlights?

    We provide 3-7 years warranty to our LED lights.

    The warranty of M series LED stadium lights is 5 years.

    The warranty of H series LED flood lights is 7 years.

    More details about warranty policies, pls check our page WARRANTY TERM.

    If you need warranty more than 7 years, pls contact us to confirm.
