LED Flood Light

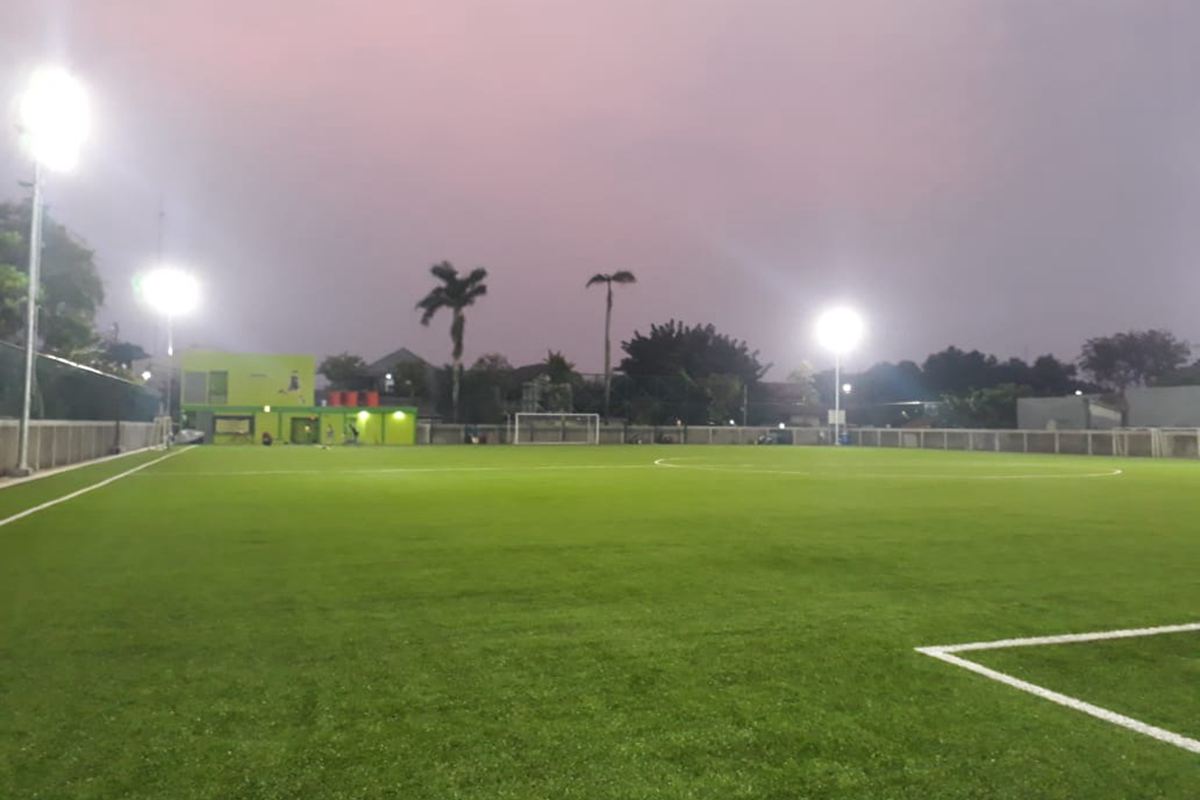

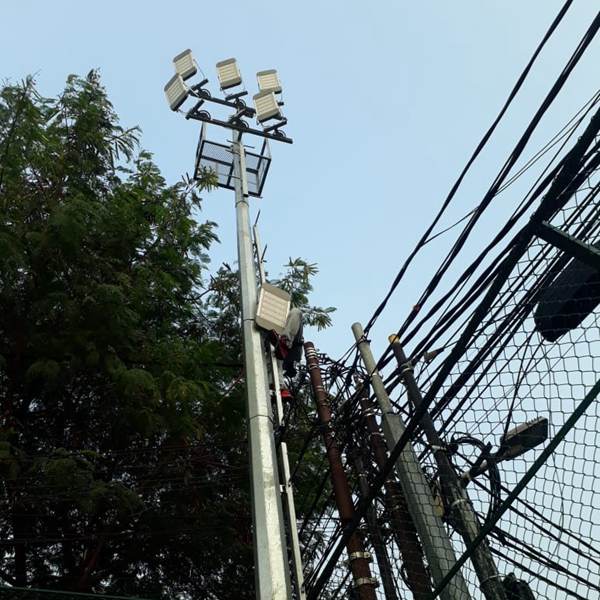

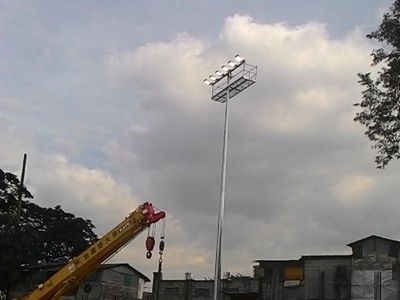

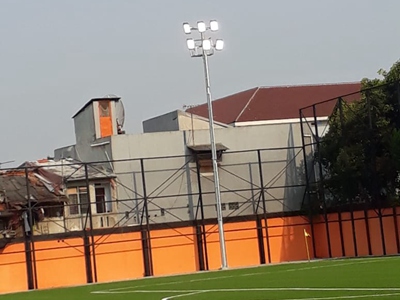

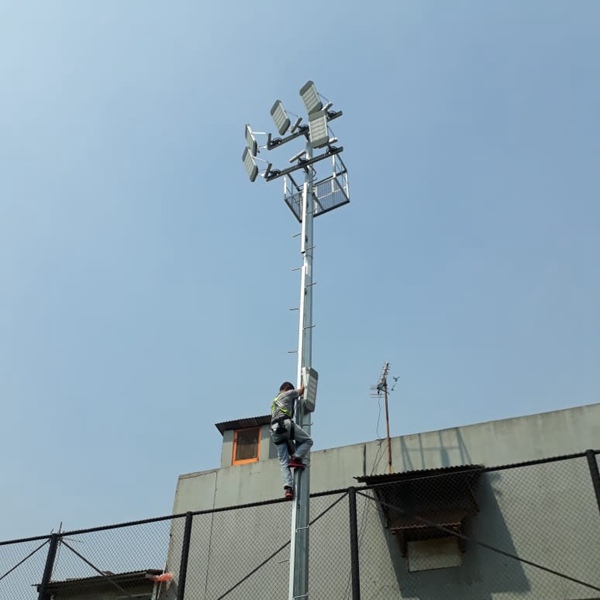

The football field lighting project in Indonesia was finished in 2020. As this football field is only for training, doesn't need the same high requirements as fields for official games. So we only recommend 240W H5 Series LED Floodlight. The IP66 waterproof design allows our H5 series LED flood lights to work in outdoor lighting projects, no need to worry about the rain. The CCT of 5000K is also called cool white, very close to the color of sunlight, which will make players look more natural. We chose 60-degree beam angle for this project because it will help the light to be focused on the area we need to illuminate without glare. Most of the football players highly praised the improvement of lighting conditions.

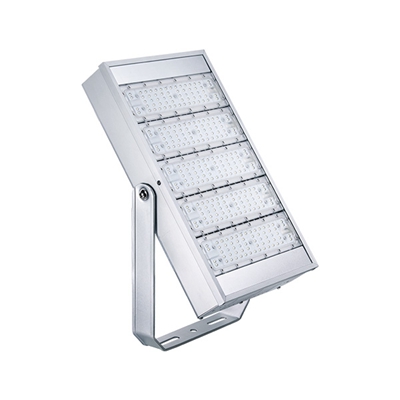

Product: 240W LED Flood Light,
Model No.: ZGSM-FGD240H5
LED: Lumileds 3030
Driver: MeanWell
CCT: 5000K
Optics: 60 degrees
QTY: 200 Units
| Model | ZGSM-FGD240H5 |
| LED Brand | Lumileds LUXEON 3030/5050 |
| Driver Brand | Meanwell |
| Norminal Wattage | 240W |
| LED Module Quantity | 5 modules |
| Input Voltage | 100-240/277/347/480VAC |
| Power Efficiency | >90% |
| Power Factor | >0.95 |
| Lamp Rated Luminous Efficiency | 130-160 lm/w |
| Lamp Rated Lumen output | 31200-38400 lm (Lumen tolerance +/- 5%) |
| Color Rendering Index | 70 (80 is optional) |
| Color Temperature | 3000K, 4000K, 5000K or 5700K |
| Photometric Type | 60,90,110 degrees |
| Optimal Operating Temperature | 25℃ |
| Storage Temperatures | -40°C~50°C |
| Working Environment | Between-40°C~+50°C, 10%~90%RH |
| Total Harmonic Distortion | < 10% |
| Lumen Maintenance | > 100,000 hours -L70, @25 ºC (77 ºF) |
| Body | Die-cast aluminum Housing |
| Cover | PC lens |
| Rating | IP66 IK10 |
| Protection | Class I ( Class II optional) |
| Certification | CE,ROHS,LM80 |
| Dimming Options | 1-10V or DALI or PWM or Timer |
| Control Options | Motion sensor or Smart control |
| Color Options | Silver |
| Warranty | 7 years |
Installation Manual_HighBay&Flood&TunnelLight_H.pdf
Data Sheet_HighBay&Flood&TunnelLight_H.pdf
 |  |  |
| What Is LED Flood Light? | The Features Of LED Flood Light | The Main Application Areas Of LED Flood Light |
 |  |  |
Our LED Floodlights have 360° degree adjustable mounting bracket. You could adjust the mounting angle to light the area you need to illuminate.
We have LED flood lights whose power range from 10W to 1000W.

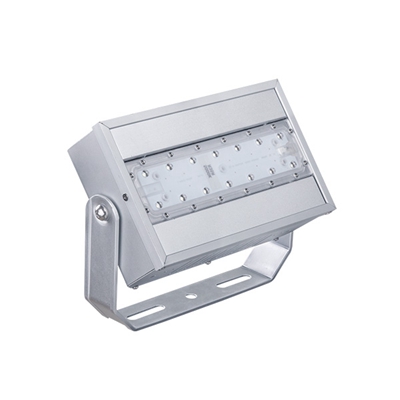

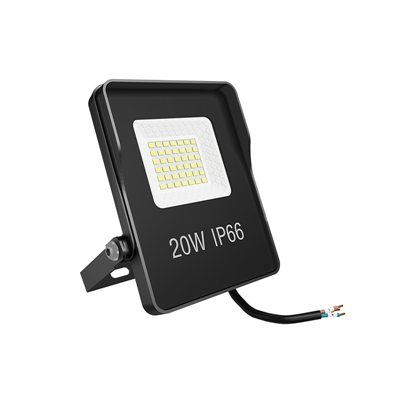

Integrated driver design Stellar series power range from 10W to 50W.
H&HB series and Zoom series LED flood lights' power range from 20W to 400W.

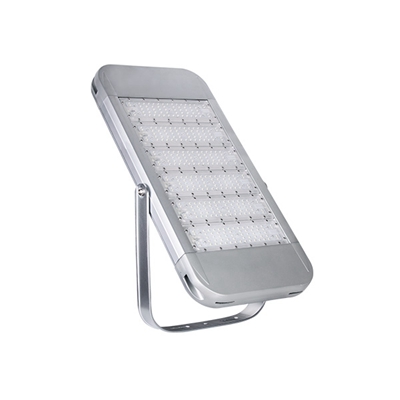

High power M series ranging from 280W to 1000W is designed for football fields or large squares.
For more details about our LED flood lights, pls check the products or contact us.
Yes, LED flood lights could choose drivers with a function of timer control. The drivers could control the outdoor flood lights to turn to different powers automatically at set working hours.
