LED Flood Light Project in Indonesia

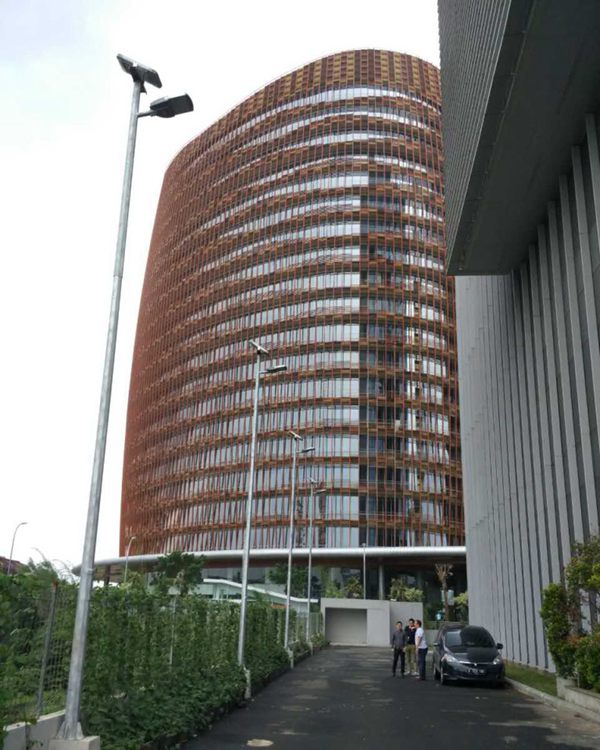

Office building outdoor lighting project in Indonesia, which was finished in 2016. We provided a solution of using both H series LED flood lights and H series LED Street Lights. 160W LED flood lights are installed upwards to illuminate the exterior of the office building, and 120W LED street lights are used for lighting the roads around the office building. It could not only make the building look nicer, but also guarantee the safety of persons going on and off work. We provide up to 7 years warranty to both H Series floodlights and H Series road light.


Product Details

160W LED Flood Lamp, Model: ZGSM-FGD160H4, 5000K,110degrees,100pcs+

120W LED Street Lamp, Model: ZGSM-LD120H4, 5000K, 2M, 100PCS+


Video

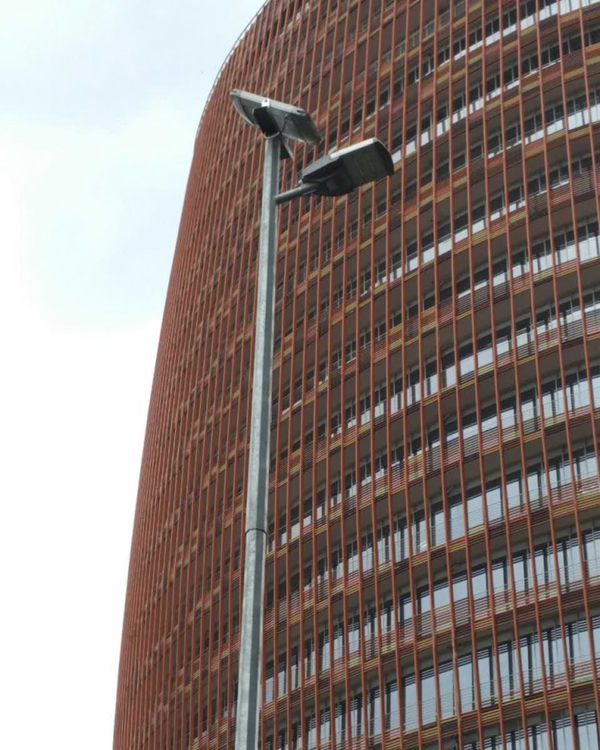

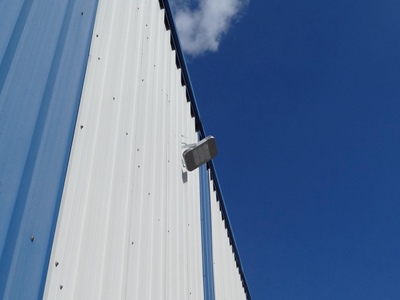

Project Photos


LED Flood Light Project in IndonesiaLED Flood Light Project in Indonesia


Specification


ModelZGSM-FGD160H4
LED BrandLumileds LUXEON 3030/5050
Driver BrandMeanwell HLG series
Norminal Wattage160W
LED Module Quantity4 modules
Input Voltage100-240/277/347/480VAC
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency140-165 lm/w
Lamp Rated Lumen output22400-26400 lm (Lumen tolerance +/- 5%)
Color Rendering Index70 (80 is optional)
Color Temperature3000K, 4000K, 5000K or 5700K
Photometric Type60,90,110 degrees
Optimal Operating Temperature25℃
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100,000 hours -L70, @25 ºC (77 ºF)
BodyDie-cast aluminum Housing
CoverPC lens
RatingIP66 IK10
Protection Class I ( Class II optional)
CertificationCE,ROHS,LM80
Dimming Options1-10V or DALI or PWM or Timer
Control OptionsMotion sensor or Smart control
Color OptionsSilver
Warranty7 years


Download


Installation Manual_HighBay&Flood&TunnelLight_H.pdf

Data Sheet_HighBay&Flood&TunnelLight_H.pdf

Installation Manual_StreetLight_H.pdf

Data Sheet_StreetLight_H.pdf


Related Products


LED Flood Light Project in IndonesiaLED Flood Light Project in IndonesiaLED Flood Light Project in Indonesia

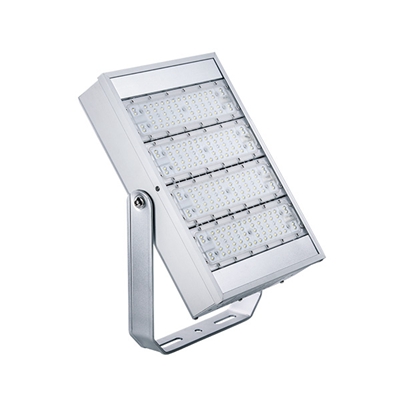

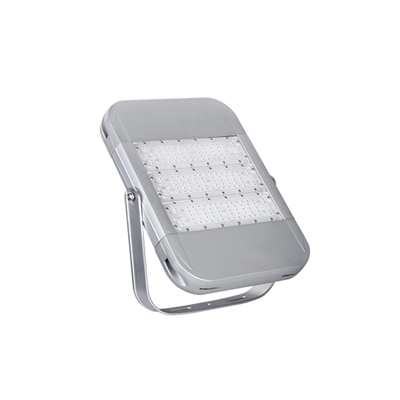

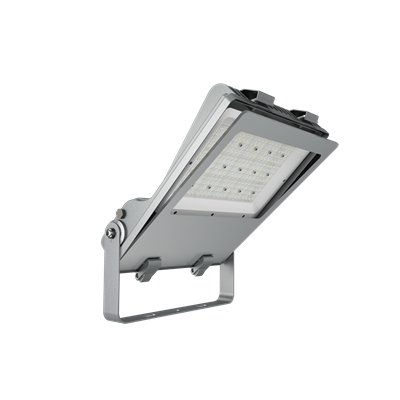

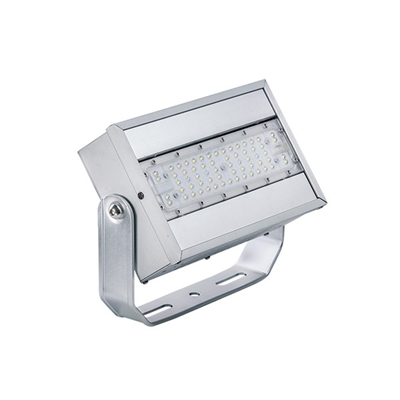

180W Modular Design Outdoor Flood LightsHigh Lumen 240W Waterproof LED Flood Lights170lm/W LED 60W Outside Flood Lights
LED Flood Light Project in IndonesiaLED Flood Light Project in IndonesiaLED Flood Light Project in Indonesia

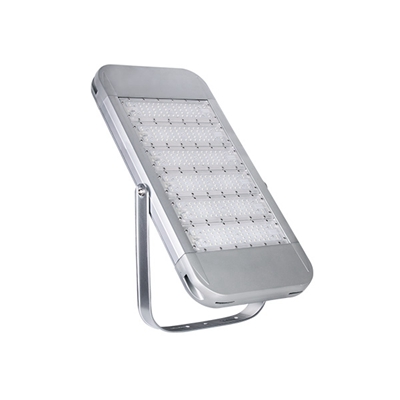

50W IP66 Outdoor LED Flood LightsOutdoor 200W IP66 Flood Lights200w Flood Light for Indoor and Outdoor Courts


Related Projects



LED Flood Light Project in IndonesiaLED Flood Light Project in IndonesiaLED Flood Light Project in Indonesia

LED Flood Light Project In Czech

LED Flood Light Project In IsraelLED Flood Light Project In Greece
LED Flood Light Project in IndonesiaLED Flood Light Project in IndonesiaLED Flood Light Project in Indonesia
LED Flood Light Project In SpainLED Flood Light Project In Indonesia
LED Flood Light Project In The Philippines



Related Blogs


LED Flood Light Project in IndonesiaLED Flood Light Project in IndonesiaLED Flood Light Project in Indonesia
LED Flood Light Features And AdvantagesWhat Is LED Flood Light?The Main Application Areas Of LED Flood Light
LED Flood Light Project in IndonesiaLED Flood Light Project in IndonesiaLED Flood Light Project in Indonesia

What Is The Difference Between Installing

LED Floodlights And Fluorescent Lamps?

Those Little Things You Didn't Know

about Led Street Lights

Correct Installation And Use

Of Led Street Lights


People Also Ask


1. How to choose the Color Temperature for LED Flood Lights?

We could provide 3000K, 4000K, 5000K, 5700K and 6500K for your options. The color you choose is influenced by your personal preferences, but it is mostly determined by the purpose for which it will be utilized. The color temperature we sold most are these 3 kinds as below:

3000K: It is a warm color that is often used in restaurants and residences.

4000K: It is a natural color that works well in workplaces and conference rooms.

5000K: It is the most common color, which provides a cool white color close to sunshine. It works best in large spaces or outdoors.


2. Am I able to track my order for LED flood lights?

Yes, our international sales will keep you informed of the latest production state of your order after you finish the payment.


3. What are your warranty policies for flood light orders?

We provide 3-7 years warranty to our LED flood lights.

More details about warranty policies, pls check our page WARRANTY TERM.

If you need warranty more than 7 years, pls contact us to confirm.
