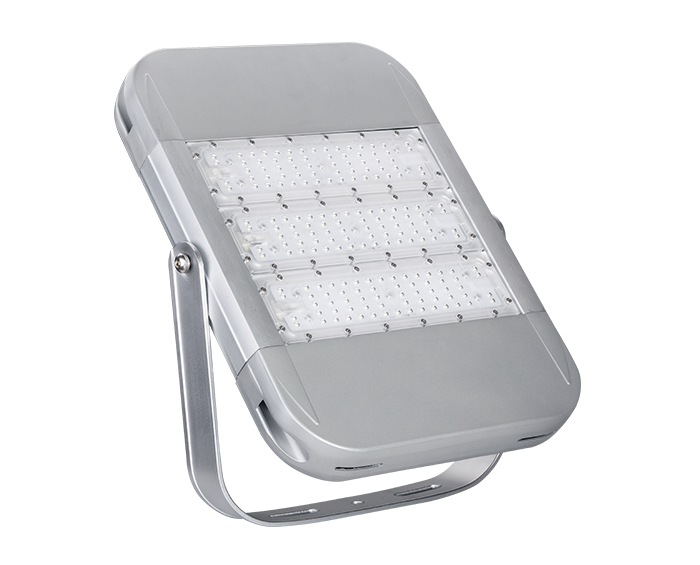

IP66 IK10 Modular Design LED Flood Light 150w

IP66 IK10 Modular Design LED Flood Light square shoe box design, superior performance. They are the perfect solution for metal halide, halogen, and sodium floodlights, replacing traditional floodlights from 40W to 360W. IP66 IK10 rating to meet your needs in a harsh environment.

PRODUCT DESCRIPTION

Key Features

1. Wide power range: 40W~360W.

2. Special circuit design, single LED damage won't affect others' normal work.

3. High Lumen output up to 165lm/ w with high-quality LED chips.

4. Various applications with different mounting Accessories.

5. Multiple lighting control options are available, e.g. DALI, 1-10V, and motion sensor.

6. Designed to last at least 100, 000 hours at L70.

7. Multiple lighting distributions are available.


Specifications

ModelZGSM-FGD150H5
LED BrandLumileds LUXEON 3030/5050
Driver BrandMeanwell HLG series
Normal Wattage150W

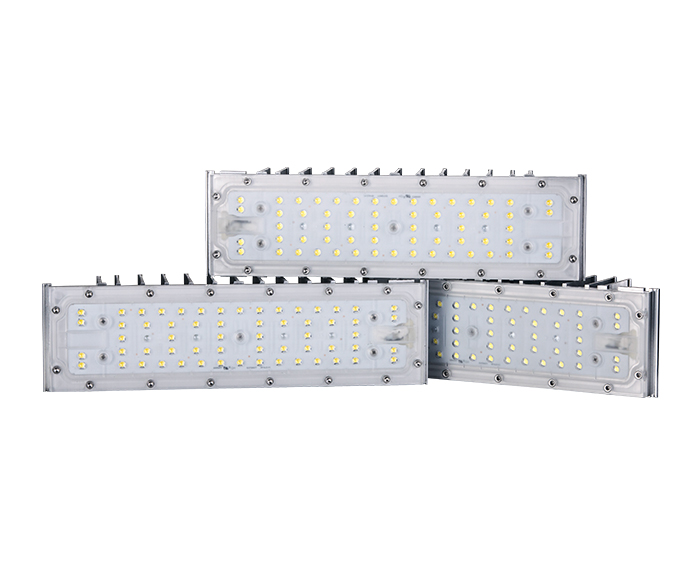

LED Module Quantity3 modules
Input Voltage100-240/277/347/480VAC
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency130-160 lm/w
Lamp Rated Lumen output19500-24000 lm (Lumen tolerance +/- 5%)
Color Rendering Index70 (80 is optional)
Color Temperature3000K, 4000K, 5000K, or 5700K
Photometric Type60,90,110 degrees
Optimal Operating Temperature25℃
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100,000 hours -L70, @25 ºC (77 ºF)
BodyDie-cast Aluminum Housing
CoverPC lens
RatingIP66 IK10
Protection Class I ( Class II optional)
CertificationCE, ROHS, LM80
Dimming Options1-10V or DALI or PWM or Timer
Control OptionsMotion sensor or Smart control
Color OptionsSilver
Warranty7 years

FAQ

What are IP and IK?

The first number describes the protection of the solid, while the second number describes the protection of the liquid. As for the IK standards, they are used to describe the protection of objects from mechanical impact.


What is IP66 for LED Lights?

For IP66 certified luminaires, such as impermeable LED luminaires, this means that the luminaire is dust-proof, there will be no foreign objects ingressing for 2 to 8 hours, and the luminaire is resistant to rough seas or strong water sprays.


What is the IK10 standard?

Impact resistance IK10 is defined in the standard EN62262. There are 12 intensity levels in the standard, ranging from the lowest grade of IK00 to the highest grade of IK11. The IK10 corresponds to a shock resistance of 20 joules or a 5.0 kg impact element falling from a height of 0.4 m.
