LED Flood Light Project in the Philippines

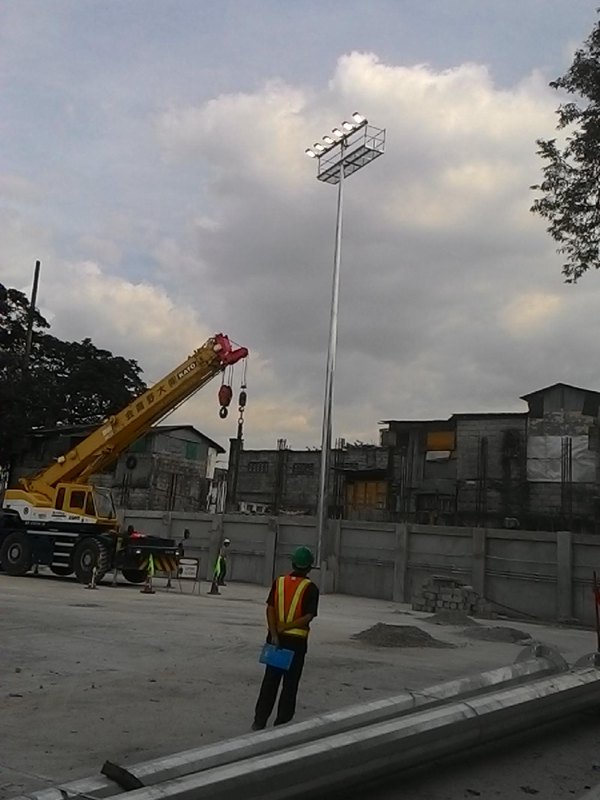

The container warehouse expansion area lighting project in the Philippines was finished in 2018. There are 30 units of 200W H5 outdoor LED Flood lights to be mounted on 5pcs of 18-meter height high masts. The long bracket of H5 series LED flood lights makes it easy to be installed on the high mast without any extra accessories. The beam angle of 110 degrees makes the floodlights could illuminate the area we need from a height of 18 meters, and the uniformity of the illumination is still very good. What's more, the housing surface anti-corrosion treatment of the H5 series Flood LED Lights makes it no problem to work in the lighting project at the seaside, no need to worry about the damage of seawater.


Products Details


Product: 200W H5 LED Flood Light

Model No.: ZGSM-FGD200H5

LED: Lumileds 5050

Driver: MeanWell

Optics: 110 degrees

QTY: 30 Units

Height of Mast Pole: 18 meters

Number of Fixtures Per Mast: 6 Units


Video





Project Photos


LED Flood Light Project in the PhilippinesLED Flood Light Project in the Philippines


Specification


ModelZGSM-FGD200H5
LED BrandLumileds LUXEON 3030/5050
Driver BrandMeanwell HLG series
Norminal Wattage200W
LED Module Quantity4 modules
Input Voltage100-240/277/347/480VAC
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency130-160 lm/w
Lamp Rated Lumen output26000-32000 lm (Lumen tolerance +/- 5%)
Color Rendering Index70 (80 is optional)
Color Temperature3000K, 4000K, 5000K or 5700K
Photometric Type60,90,110 degrees
Optimal Operating Temperature25℃
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100,000 hours -L70, @25 ºC (77 ºF)
BodyDie-cast aluminum Housing
CoverPC lens
RatingIP66 IK10
Protection Class I ( Class II optional)
CertificationCE,ROHS,LM80
Dimming Options1-10V or DALI or PWM or Timer
Control OptionsMotion sensor or Smart control
Color OptionsSilver
Warranty7 years


Download


Installation Manual_HighBay&Flood&TunnelLight_H.pdf

Data Sheet_HighBay&Flood&TunnelLight_H.pdf


Related Products


LED Flood Light Project in the PhilippinesLED Flood Light Project in the PhilippinesLED Flood Light Project in the Philippines

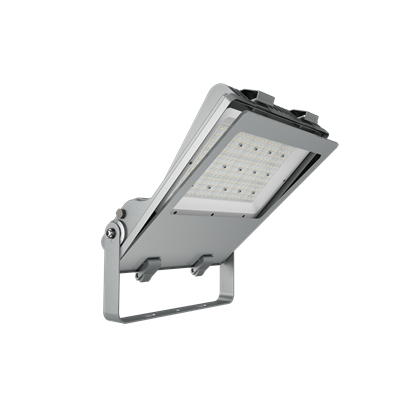

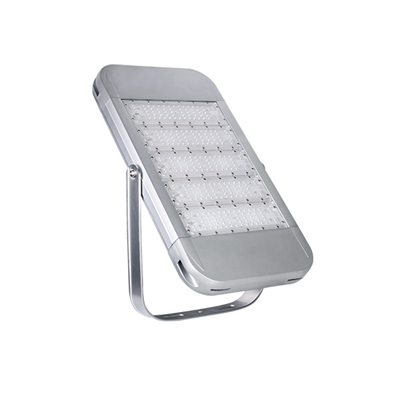

100 Watt LED Flood LightIP66 IK10 240W LED Flood Lights Outdoor50W IP66 Outdoor LED Flood Lights
LED Flood Light Project in the PhilippinesLED Flood Light Project in the PhilippinesLED Flood Light Project in the Philippines

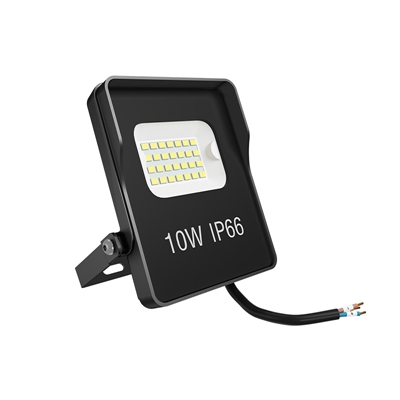

Outdoor Smart 80W LED Flood Light155lm Per Watt Waterproof LED Flood Light 100W10W CE LED Flood Light


Related Projects


LED Flood Light Project in the PhilippinesLED Flood Light Project in the PhilippinesLED Flood Light Project in the Philippines
LED Flood Light Project in CzechLED Flood Light Project in IndonesiaLED Flood Light Project in Israel
LED Flood Light Project in the PhilippinesLED Flood Light Project in the PhilippinesLED Flood Light Project in the Philippines
LED Flood Light Project in EcuadorLED Flood Light Project in SpainLED Flood Light Project in Greece


Related Blogs


LED Flood Light Project in the PhilippinesLED Flood Light Project in the PhilippinesLED Flood Light Project in the Philippines
What Is LED Flood Light?The Features Of LED Flood LightThe Main Application Areas Of LED Flood Light
LED Flood Light Project in the PhilippinesLED Flood Light Project in the PhilippinesLED Flood Light Project in the Philippines

The Difference Between LED Projector Light

and LED Flood Light

Why Are LED Flood Light Popular In The Market?

What Is The Difference Between Installing

 LED Floodlights And Fluorescent Lamps?


People Also Ask


  1. What is the LED replacement for 400 watts of HID?

    Wide-angle LED flood lights are made to "flood" an area with light and cover a sizable space. These lights are available in a wide range of designs and serve a number of applications thanks to efficient LED technology. recessed can PAR-type led light bulbs, wall-mounted lighting, parking lot flood lights, and more.

    Replacing an HPS or metal halide light

    Here are some recommendations for those looking to replace HID lights who are either new to purchasing LED flood lights or don't have much experience. High-intensity discharge, sometimes known as HID, is the most popular type of bigger light, usually made of metal halide or high pressure sodium.

    Use a 150 watt LED Flood Light to replace a 400 watt metal halide lamp.

    Usually, a 40 watt LED flood light is enough to replace a 125 watt HPS floodlight. If you're unsure whether the lamp will be the best LED replacement for your metal halide, HPS, or other forms of lighting, consult a professional.


  2. Which is brighter 3000K or 5000K?

    The letters K, which stand for Kelvin and indicate the actual temperatures as determined by the Kelvin scale, stand for Warm White and Cool White. Cool White is closer to 5000k than Warm White, which is roughly 3000k. On a scale, warmer values fall lower and cooler values higher.


  3. Where can floodlights be applied to?

    Floodlights are utilized in a variety of locations, although they are most commonly employed for outdoor lighting. They are used for home and business security, to emphasize building design or landscapes, in retail to highlight the sign or name of the company, and in sporting stadiums and car parks to light up the field, court, and surrounding area.
