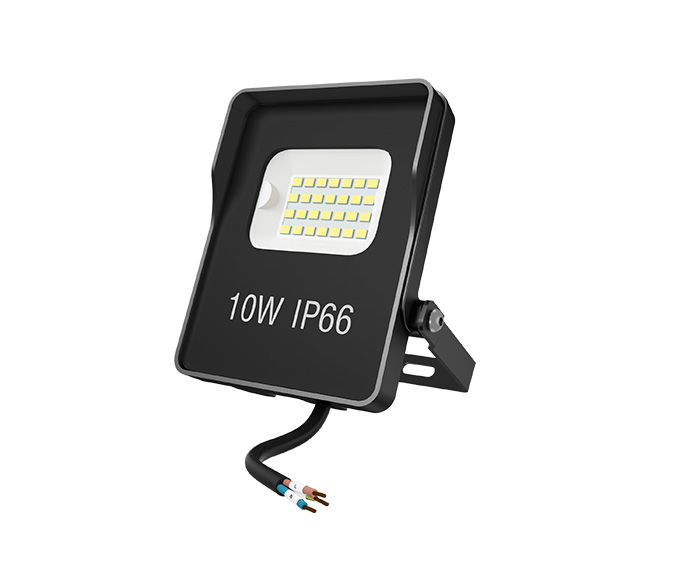

10W Floodlights with PIR

The 10W Floodlights with PIR are compact small floodlights for a variety of applications that require floodlighting and beautiful lighting effects in private gardens.  When the PIR sensor detects an infrared wave moving in its field of view, it automatically triggers the light to come on.

PRODUCT DESCRIPTION

Key Features

1. Wide power range: 10W~50W

2. Ideal for retro-fit of existing halogen fixtures

3. No upper light output ratio (ULOR 0%) when mounted at 0° tilt

4. Optimized weight and size due to compact design

5. Energy savings of up to 90 % compared to halogen flood lights

6. No mercury or other hazardous materials

7. 2 years warranty

8. Multiple lighting distributions available

9. CE/ RoHS/ IK08/IP66


Specifications

ModelZGSM-FL07-10
LED BrandSMD 2835
Driver BrandIntegrated Driver
Normal Wattage10W
Input Voltage220-240VAC
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency120lm/w
Lamp Rated Lumen output1200 lm (Lumen tolerance +/- 5%)
Color Rendering Index70 (80 is optional)
Color Temperature4000K or 5000K
Photometric Type120 degrees
Optimal Operating Temperature25℃
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C,   10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100,000 hours -L70, @25 ºC (77 ºF)
BodyDie casting aluminum
CoverToughened   glass
RatingIP66  IK08
Protection Class  I
CertificationCE, ROHS, LM80
Dimming OptionsNon-dimming
Control OptionsPIR  sensor
Color OptionsBlack
Warranty2 years


FAQ

What is driverless flood light?

Driverless LEDs use high-voltage integrated circuits with adjustment and change chips to cleverly change the number of LEDs in the string during the cable cycle so that the voltage of the LED string matches the instantaneous cable voltage.


What is a PIR floodlight?

When the built-in PIR sensor detects motion, the PIR floodlight is activated, providing additional security for the property with bright and wide beams of light.


How do driverless LEDs work?

Driverless LED lights are powered by an AC LED light engine that converts electrical energy into lumens of light. These AC LED light engines can be circuit boards with LED chips mounted, making it easy to secure them to an AC socket.


How do PIR floodlights work?

PIR (Passive Infrared) sensors detect infrared waves, which are heat waves that radiate from moving objects such as humans and animals, as well as from warm objects such as cars. When the sensor detects these infrared waves moving in its field of view, it automatically triggers the light to light up.
