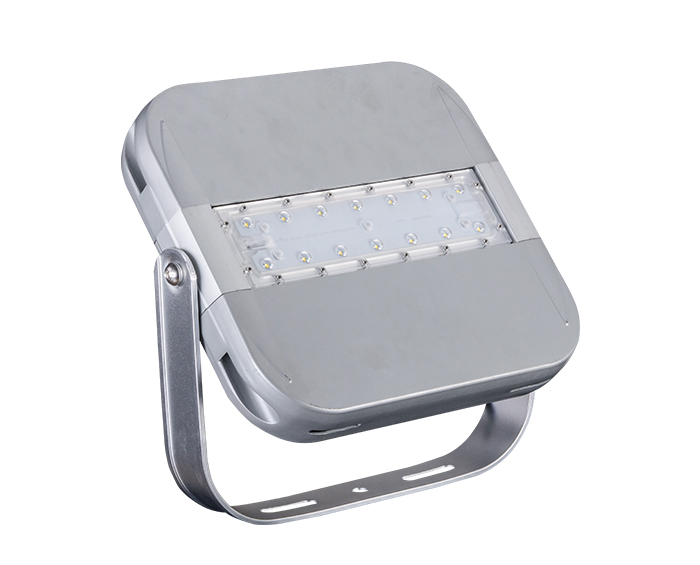

UL Standard 40w Modular Design Backyard Flood Light

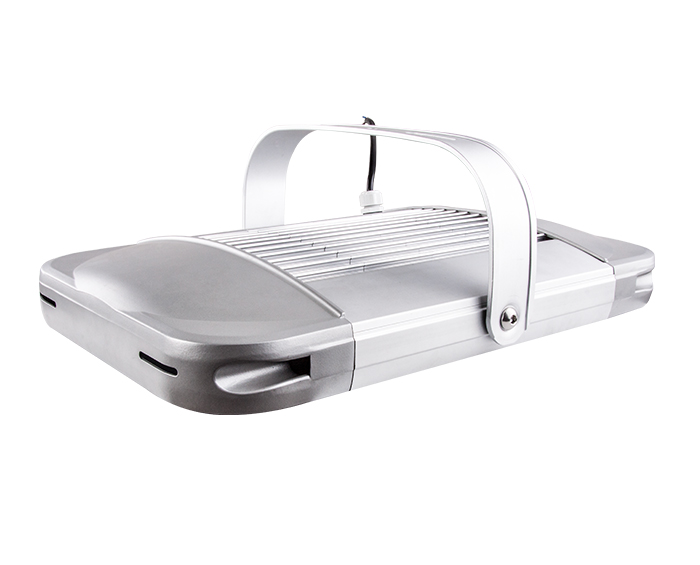

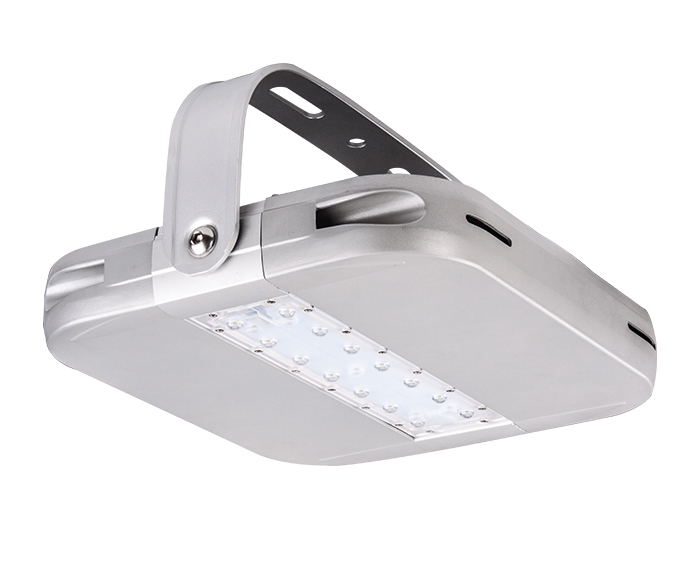

LED floodlights are used for outdoor lighting, facades, and buildings, and this 40w Modular Design Backyard Flood Light is ideal for all external areas of your home. Flexible bracket mounting and ultra-high waterproof rating, not only as an outdoor floodlight but also can be installed indoors as a high bay light.

INQUIRY NOW

PRODUCT DESCRIPTION

Key Features

1. Wide power range: 40W~360W.

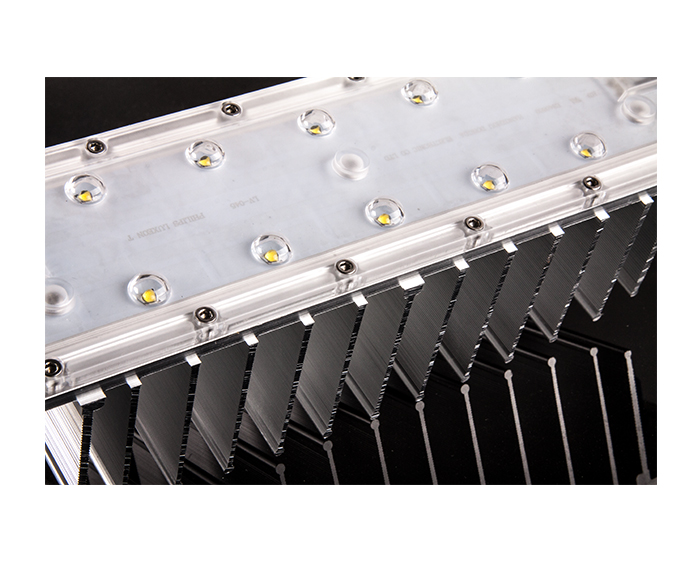

2. Special circuit design, single LED damage won't affect others' normal work.

3. High Lumen output up to 165lm/ w with high-quality LED chips.

4. Various applications with different mounting Accessories.

5. Multiple lighting control options are available, e.g. DALI, 1-10V, and motion sensor.

6. Designed to last at least 100, 000 hours at L70.

7. Multiple lighting distributions are available.


Specifications

ModelZGSM-FGD40H
LED BrandLumileds LUXEON® TX

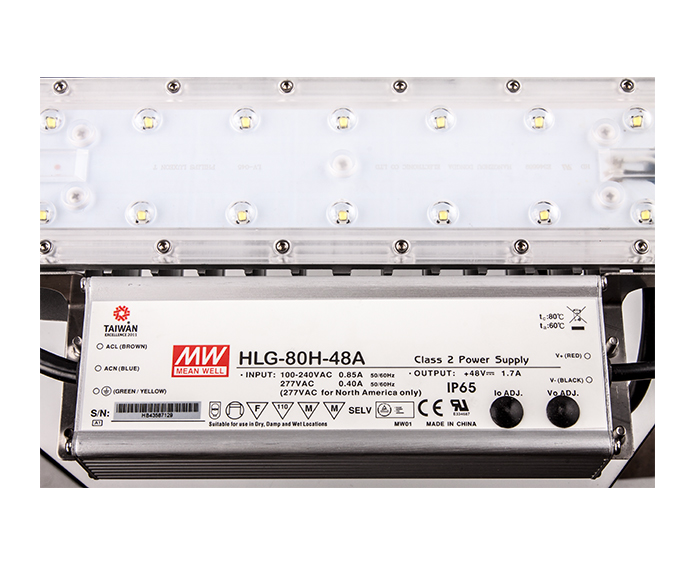

Driver BrandMeanwell HLG series
Normal Wattage40W
LED Module Quantity1 module
Input Voltage100-240/277/347/480VAC
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency>110 lm/w
Lamp Rated Lumen output4400 lm (Lumen tolerance +/- 5%)
Color Rendering IndexRa>70
Color Temperature3000K, 4000K, 5000K, or 5700K
Photometric Type60,90,110 degrees
Optimal Operating Temperature25℃
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100,000 hours -L70, @25 ºC (77 ºF)
BodyDie-cast Aluminum Housing
CoverPC lens
RatingIP66 IK10
Protection Class I ( Class II optional)
CertificationCE,ROHS,GS,CB,UL,cUL,DLC,LM-79,LM80,SAA
Dimming Options1-10V or DALI or PWM or Timer
Control OptionsMotion sensor or Smart control
Color OptionsSilver
Warranty7 years

FAQ

How bright should the garden floodlights be?

You want them to look beautiful and bright, so floodlights typically require 700 lumens or more. Just make sure your floodlights aren't aimed at your neighbor's windows. Garden access requires 100 to 200 lumens, depending on your taste.


How much area can a floodlight cover?

10W LED floodlights cover an area of 10 x 10 meters. A 30W LED floodlight covers an area of 20 x 20 meters. A 50W LED floodlight covers an area of 30 x 30 meters. 100W LED floodlight covers an area of 50 x 50 meters.
