Modular Design LED Flood Light

Home  /  Products / LED Flood Light / Modular Design LED Flood Light
  • 360w Outside Stadium Floodlights
  • 360w Outside Stadium Floodlights
  • 360w Outside Stadium Floodlights
  • 360w Outside Stadium Floodlights
  • 360w Outside Stadium Floodlights

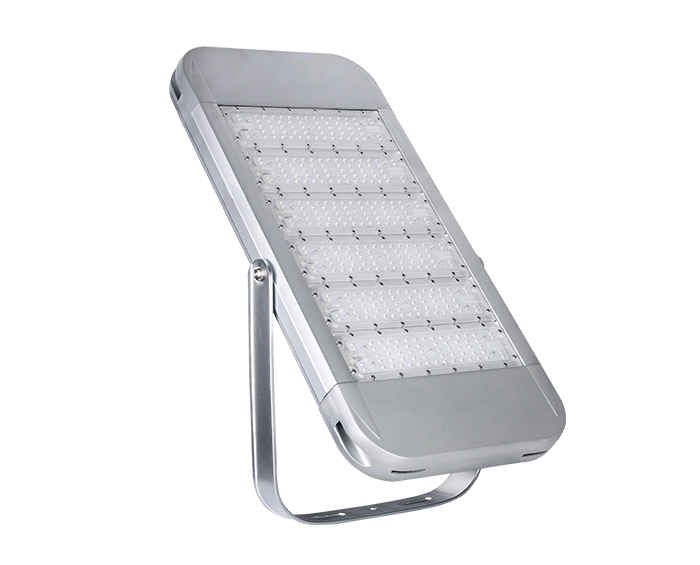

360w Outside Stadium Floodlights

A floodlight is a wide-beam, high-intensity artificial light. They are often used to illuminate outdoor sports fields in outdoor sports events. Outdoor IP66 Stadium Floodlights are suitable for Stadiums, Swimming pools, and Parking lots and Can work in the rain, sleet, heavy snow, and high-temperature environments.



Key Features

1. Wide power range: 40W~360W.

2. Special circuit design, single LED damage won't affect others' normal work.

3. High Lumen output up to 165lm/ w with high-quality LED chips.

4. Various applications with different mounting Accessories.

5. Multiple lighting control options are available, e.g. DALI, 1-10V, and motion sensor.

6. Designed to last at least 100, 000 hours at L70.

7. Multiple lighting distributions are available.


LED BrandLumileds LUXEON 3030/5050
Driver BrandMeanwell HLG series
Normal Wattage360W

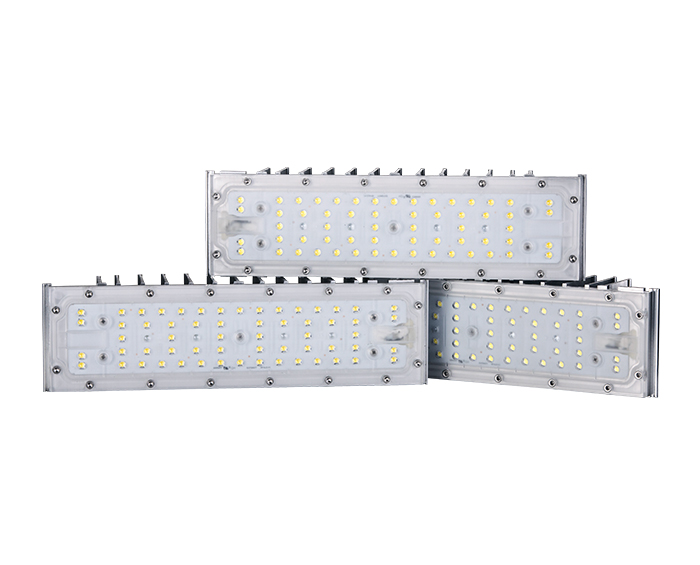

LED Module Quantity6 modules
Input Voltage100-240/277/347/480VAC
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency125-155 lm/w
Lamp Rated Lumen output45000-55800 lm (Lumen tolerance +/- 5%)
Color Rendering Index70 (80 is optional)
Color Temperature3000K, 4000K, 5000K, or 5700K
Photometric Type60,90,110 degrees
Optimal Operating Temperature25℃
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100,000 hours -L70, @25 ºC (77 ºF)
BodyDie-cast Aluminum Housing
CoverPC lens
RatingIP66 IK10
Protection Class I ( Class II optional)
CertificationCE, ROHS, LM80
Dimming Options1-10V or DALI or PWM or Timer
Control OptionsMotion sensor or Smart control
Color OptionsSilver
Warranty7 years


What lighting should you use on the football field?

LED lighting

LED lighting provides the best lighting solution for football fields and stadiums. LED lights provide a consistent level of illumination, ensuring fun and safety for players and viewers. LEDs closely mimic daylight color temperature, making soccer balls, lines, and players clearly visible.

How much does a floodlight on a soccer field cost?

According to the brand and source of LED sports lighting fixtures, the product price cannot be unified. However, for a classic high school soccer/soccer field, the total cost is between $35,000 and $120,000.
