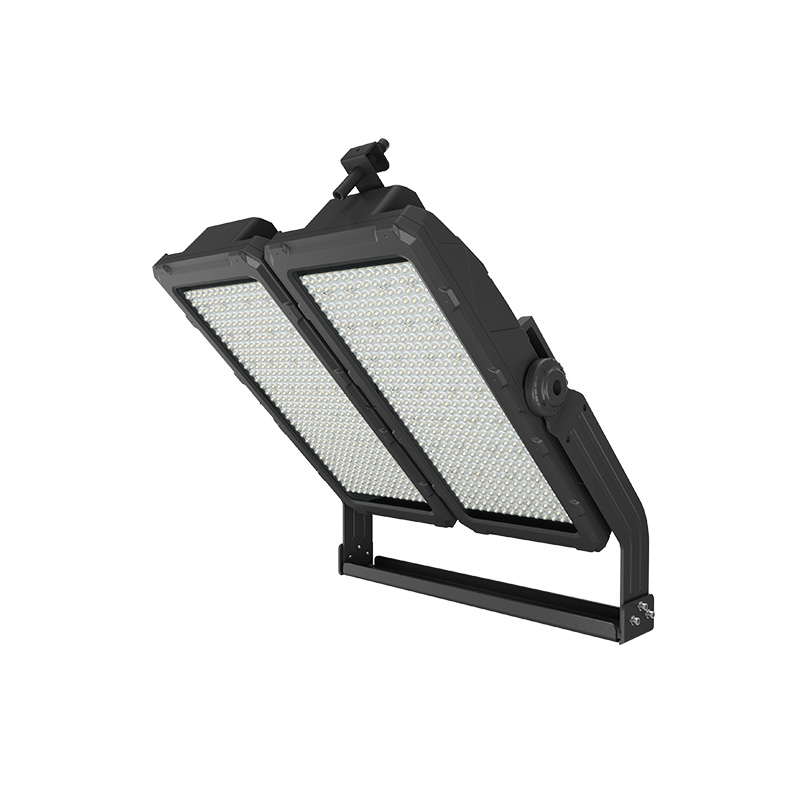

560w LED Sports Light for Outdoor Sports

LED sports light, whether indoors or outdoors, needs to be as close to actual daylight as possible, even when playing at night. With superior outdoor and indoor solutions, ZGSM LED sports lighting is designed to meet the specific needs of venues, stadiums, and arenas.

PRODUCT DESCRIPTION

Key Features

1. Up to 840W, max lumens is 94, 000lm.

2. Special circuit design, single LED damage won't affect others' normal work.

3. Modular design for easy installation, replacement, and maintenance.

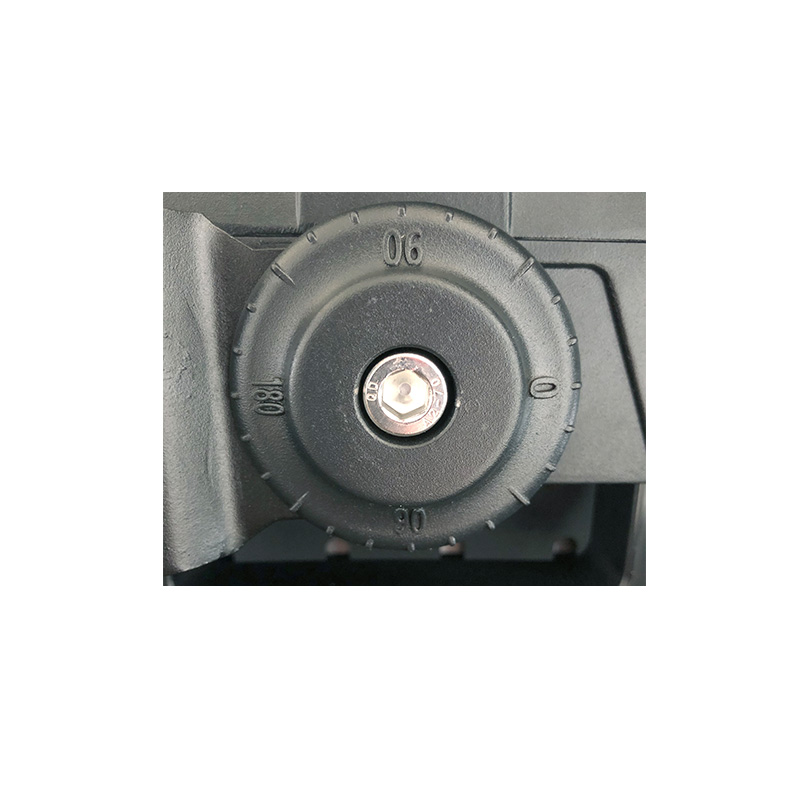

4. Mounting bracket for 360-degree adjustment.

5. Multiple lighting control options are available, e.g. DALI, 1-10V.

6. Designed to last at least 100, 000 hours at L70.

7. Multiple lighting distributions are available.


Specifications

ModelZGSM-TGD560M
LED BrandPhilips Lumileds 3030 2D
Driver BrandINVENTRONICS EUC Series
Normal Wattage560W
LED Quantity896 Pcs
Input Voltage100-240/277VAC, 50/60Hz
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency>150lm/w
Lamp Rated Lumen output84000 lm (Lumen tolerance +/- 5%)
Color Rendering IndexRa>70
Color Temperature3000K, 4000K, 5000K, or 5700K
Photometric Type15, 30,45, 60 degrees
Optimal Operating Temperature25℃
Storage Temperatures‘-40℃~+50℃
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100,000 hours -L70, @25 ºC (77 ºF)
Body and Shell MaterialsStretched Aluminium Alloy
IP RatingIP66 with a test report
CertificationCE, ROHS
Optional Function1-10V DC Dimming
Warranty5 years

FAQ

What kind of lighting equipment is used for outdoor sports?

For outdoor sports and court lighting, LEDs have clear advantages. LEDs have a high color rendering index, which means that the clarity of light is better than other light sources. The colors are properly illuminated and everything is bright and clear.


How many lumens is a playing field?

According to basketball lighting standards, non-TV events require 200 lux. On average, the standard size of a basketball court is 4700 square feet. So, in this way, you'll light up the outdoor basketball court with 200 x 437 = 87,400 lumens for entertainment or backyard activities.


What kind of lights are used on the cricket court?

LED cricket courts and stadium lighting. The most common type is led floodlights, which emit bright white light, and most cricket pitch lighting options are 5000k or 5700K.
