LED Stadium Light Project In Thailand

The school football field lighting project in Thailand was finished in 2017. After DIALux simulation, we provided a solution of 60pcs 840W J series LED Stadium Lights mounted on the 30-meter high mast pole. With 5700K CCT and 30 degree beam angle, the light is white & bright, focusing on the football field we need to illuminate, and no glare. This project not only helps this school to save more than 60% of energy but provides better lighting for students when they are doing sports. Both the teachers and students are satisfied with the result after replacing old lamps with LED Stadium Lights.


Product Details

840W LED Projector Light,  Model: ZGSM-TGD840J, 30degrees, 5700K,

Pole height=30m, 60pcs in total.

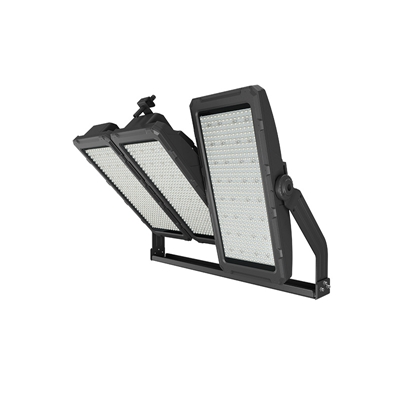

As we have stopped producing and supplying J series LED Stadium lights, here below we will introduce our new M series LED stadium lamps, which is the upgraded version of J series.


Video

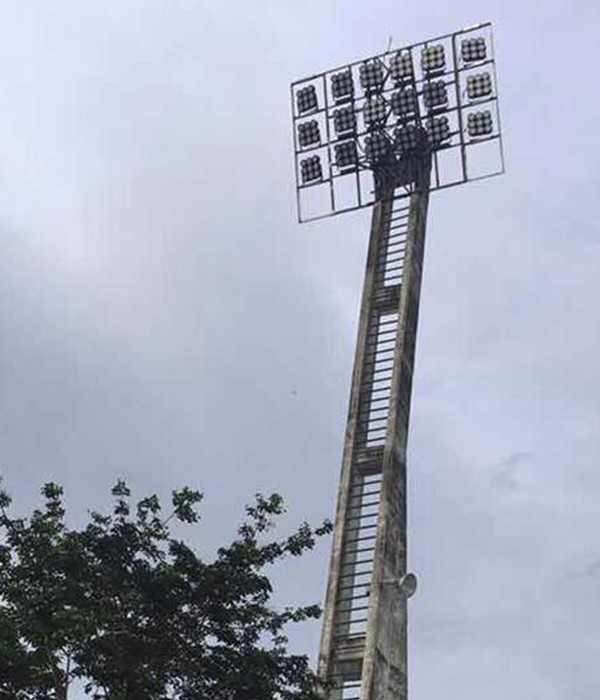

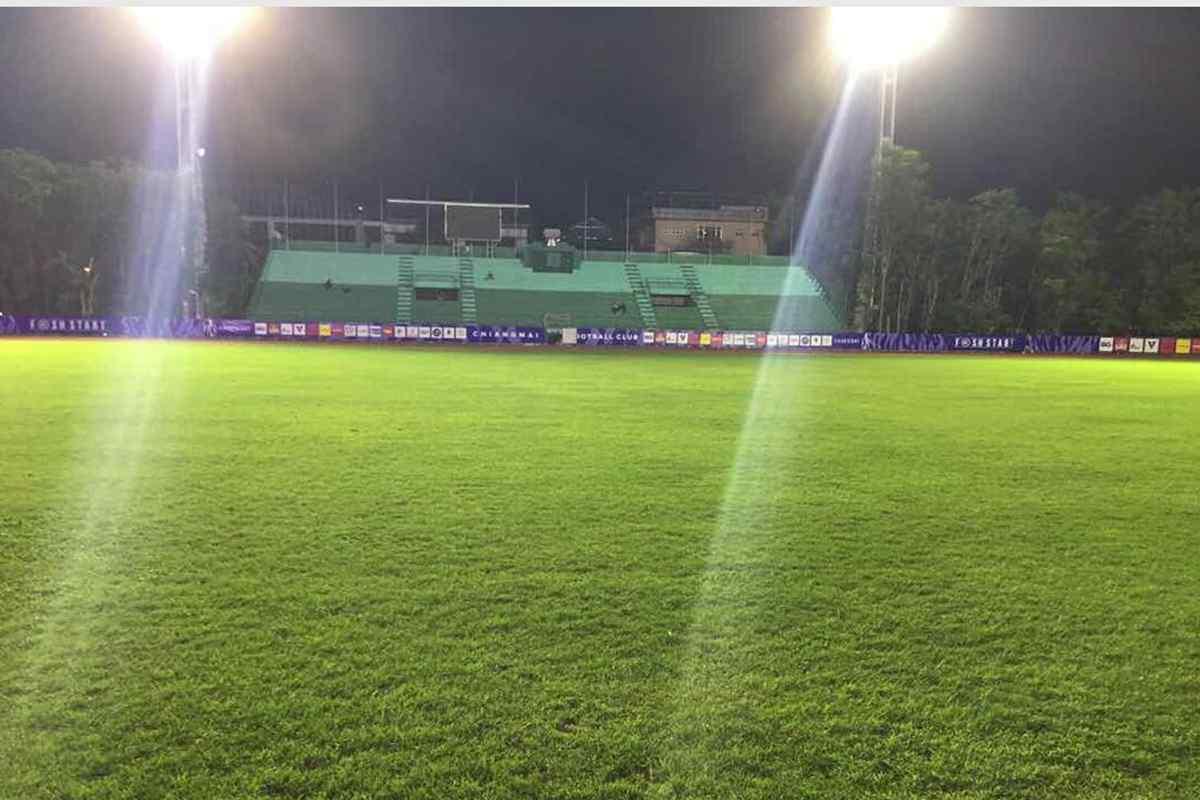

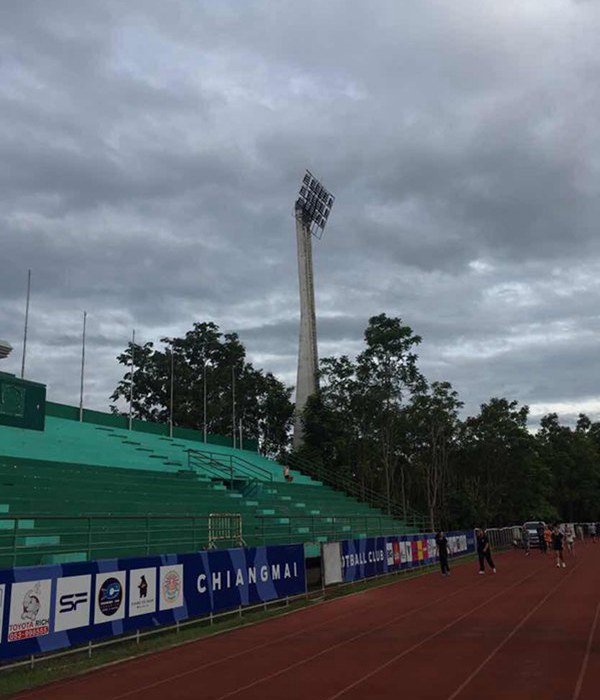

Project Photos


LED Stadium Light Project In ThailandLED Stadium Light Project In Thailand

LED Stadium Light Project In Thailand


Specification


ModelZGSM-TGD840M
LED BrandPhilips Lumileds 3030 2D
Driver BrandINVENTRONICS EUC Series
Norminal Wattage840W
LED Quantity1334 Pcs
Input Voltage100-240/277VAC, 50/60Hz
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency>150lm/w
Lamp Rated Lumen output126000 lm (Lumen tolerance +/- 5%)
Color Rendering IndexRa>70
Color Temperature3000K, 4000K, 5000K or 5700K
Photometric Type15, 30,45, 60 degrees
Optimal Operating Temperature25℃
Storage Temperatures‘-40℃~+50℃
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100,000 hours -L70, @25 ºC (77 ºF)
Body and Shell MaterialsStretched Aluminium Alloy
IP RatingIP66 with test report
CertificationCE,ROHS
Optional Function1-10V DC Dimming
Warranty5 years


Download


Manual_ProjectorLight_M.pdf

Data Sheet_Stadium Light_M.pdf


Related Products


LED Stadium Light Project In ThailandLED Stadium Light Project In ThailandLED Stadium Light Project In Thailand

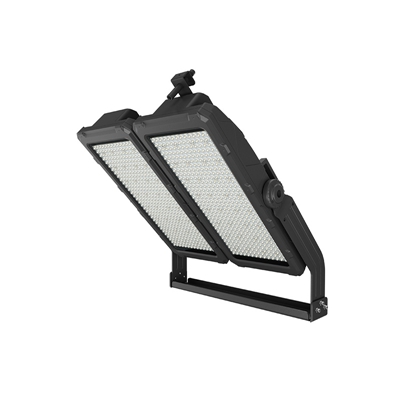

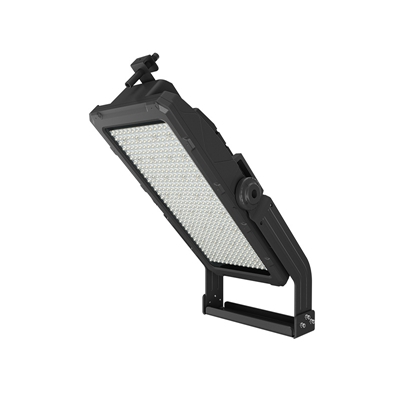

280W High Mast LED Stadium Light560w LED Sports Light for Outdoor Sports
840W High Mast Football Lights
LED Stadium Light Project In ThailandLED Stadium Light Project In ThailandLED Stadium Light Project In Thailand

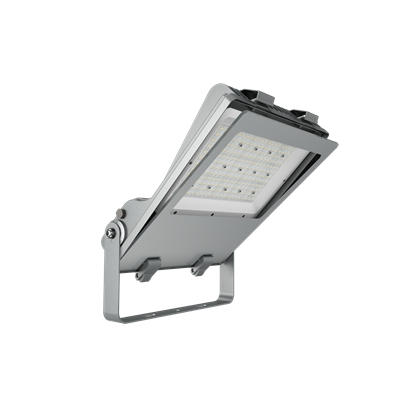

250W Outdoor Floodlight For Football FieldEconomical Modular Design 300w LED Flood Light360W IP66 Outdoor LED Floodlights


Related Projects



LED Stadium Light Project In Thailand

LED Stadium Light Project In ThailandLED Stadium Light Project In Thailand

LED Stadium Light Project In

Saint Vincent and the Grenadines

LED Stadium Light Project In The PhilippinesLED Stadium Light Project In Italy
LED Stadium Light Project In ThailandLED Stadium Light Project In ThailandLED Stadium Light Project In Thailand
LED Projector Light Project In MexicoLED Projector Light Project In FinlandLED Projector Light Project In Malaysia



Related Blogs


LED Stadium Light Project In ThailandLED Stadium Light Project In ThailandLED Stadium Light Project In Thailand

The Difference Between

LED Projector Light and LED Flood Light

Why Are LED Flood Light Popular In The Market?What Are The Main Application Areas Of LED Flood Light?


People Also Ask


  1. How to choose the Color Temperature for LED Flood Lights?

    We could provide 3000K, 4000K, 5000K, 5700K and 6500K for your options. The color you choose is influenced by your personal preferences, but it is mostly determined by the purpose for which it will be utilized. The color temperature we sold most are these 3 kinds as below:

    3000K: It is a warm color that is often used in restaurants and residences.

    4000K: It is a natural color that works well in workplaces and conference rooms.

    5000K: It is the most common color, which provides a cool white color close to sunshine. It works best in large spaces or outdoors.


  2. What are your warranty policies for stadium light orders?

    We provide 3-7 years warranty to our LED flood lights.

    More details about warranty policies, pls check our page WARRANTY TERM.

    If you need warranty more than 7 years, pls contact us to confirm.
