LED Projector Light Project In Mexico

The tennis court lighting project in Mexico was completed in 2019. After DIALux calculation, the client accepted our advised solution of using 8pcs 840W M series LED projector lights to illuminate this tennis court of 20*40m. These LED projector lights are installed on 4pcs of 12-meter height poles, with 2 lights on each pole. The 30-degree beam angle helps to focus the light on the tennis court area we need lighting. We chose the CCT of 5000K, which is also known as the color similar to daylight, for our LED projector lights. This makes the athletes feel as bright as the daytime when they play at night. The audience and event organizers are very pleased with the lighting condition of this tennis court.


Product Details


840W M Series LED Projector Lights, ZGSM-TGD840M, 30°, 5000K,  8PCS in total.

Mounting Height: 12 meter.


Video

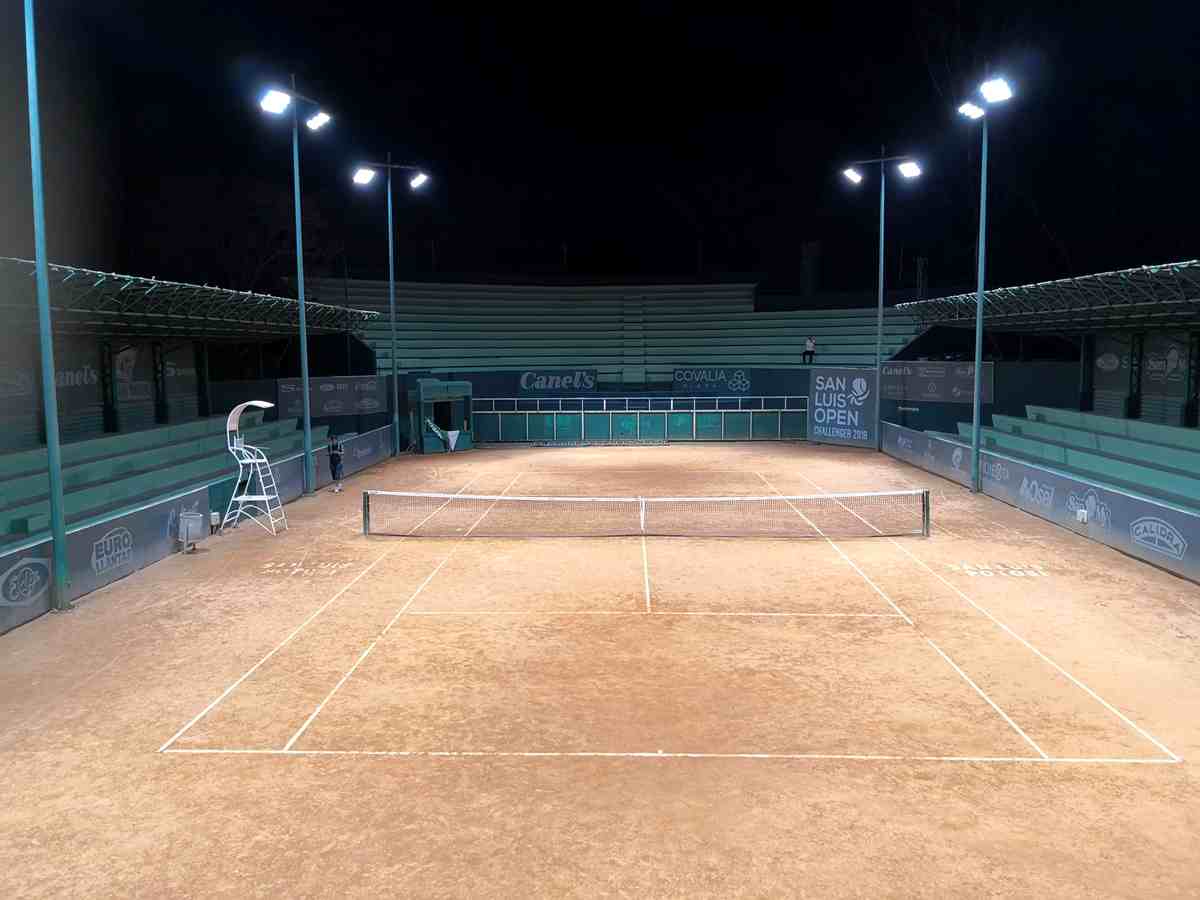

Project Photos


LED Projector Light Project In Mexico


Specification


ModelZGSM-TGD840M
LED BrandPhilips Lumileds 3030 2D
Driver BrandINVENTRONICS EUC Series
Norminal Wattage840W
LED Quantity1334 Pcs
Input Voltage100-240/277VAC, 50/60Hz
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency>150lm/w
Lamp Rated Lumen output126000 lm (Lumen tolerance +/- 5%)
Color Rendering IndexRa>70
Color Temperature3000K, 4000K, 5000K or 5700K
Photometric Type15, 30,45, 60 degrees
Optimal Operating Temperature25℃
Storage Temperatures‘-40℃~+50℃
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100,000 hours -L70, @25 ºC (77 ºF)
Body and Shell MaterialsStretched Aluminium Alloy
IP RatingIP66 with test report
CertificationCE,ROHS
Optional Function1-10V DC Dimming
Warranty5 years


Download


Installation Manual_ProjectorLight_M.pdf

Data Sheet_Stadium Light_M.pdf


Related Products


LED Projector Light Project In MexicoLED Projector Light Project In MexicoLED Projector Light Project In Mexico

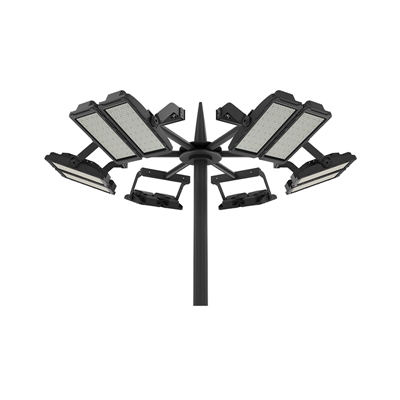

280W LED High Mast Light560w High Tower Stadium LED Projector Light
840w High Mast Light for Area lighting
LED Projector Light Project In MexicoLED Projector Light Project In MexicoLED Projector Light Project In Mexico

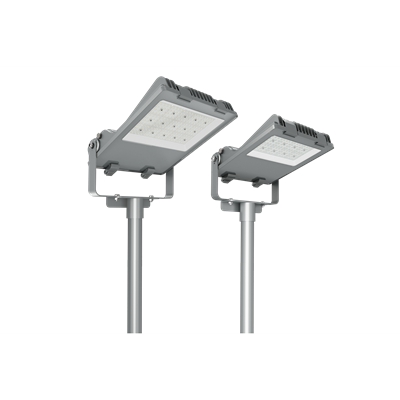

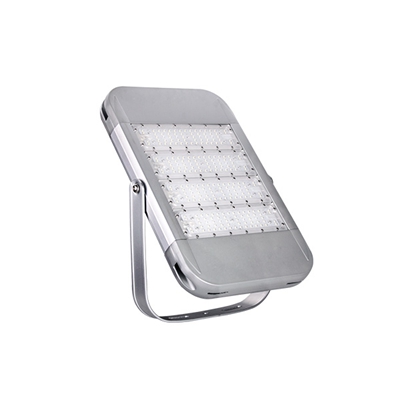

300W High Lumen Outdoor Light ProjectorTennis Court Lights 240W200W LED Flood Light For Outdoor Courts


Related Projects


LED Projector Light Project In MexicoLED Projector Light Project In MexicoLED Projector Light Project In Mexico

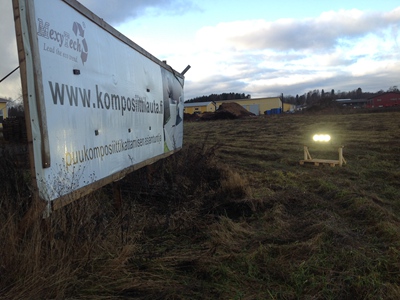

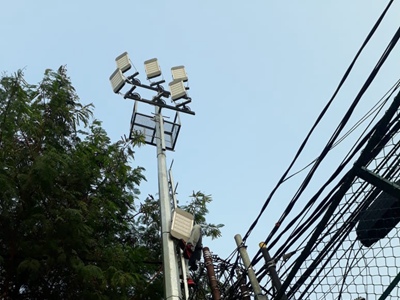

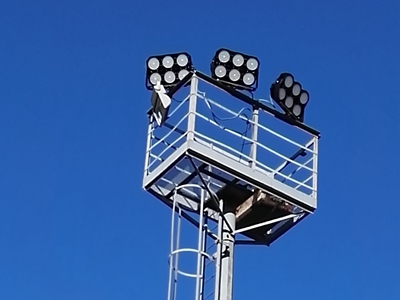

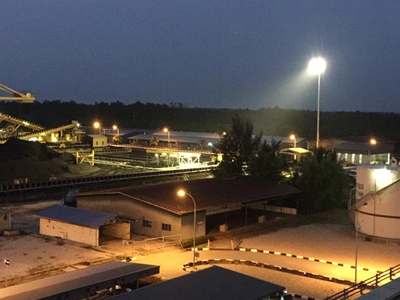

LED Projector Light Project In FinlandLED Projector Light Project In MalaysiaLED Stadium Light Project In Thailand
LED Projector Light Project In MexicoLED Projector Light Project In MexicoLED Projector Light Project In Mexico

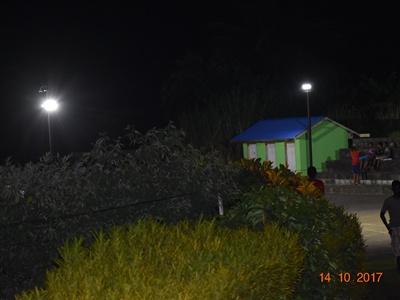

LED Stadium Light Project In The PhilippinesLED Stadium Light Project In Italy
