  • 300w High Lumen outdoor Sports Field Lighting
  • 300w High Lumen outdoor Sports Field Lighting
  • 300w High Lumen outdoor Sports Field Lighting
  • 300w High Lumen outdoor Sports Field Lighting
  • 300w High Lumen outdoor Sports Field Lighting

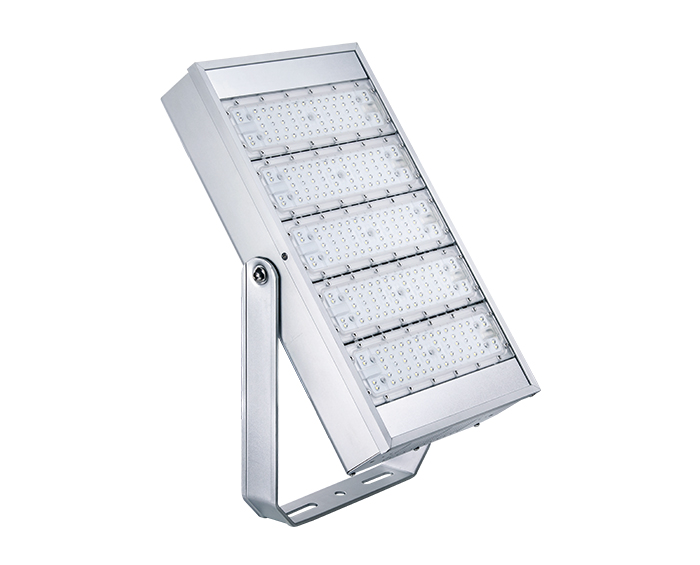

300w High Lumen outdoor Sports Field Lighting

Larger outdoor areas – such as storage and logistics areas, parking lots, and sports facilities – place high demands on lighting solutions. The required high illumination levels and duration, energy efficiency, and service life are critical. In the long run, Sports Field Lighting must also withstand the test of wind and weather. As a professional LED lamp manufacturer, ZGSM is worthy of your trust in quality.



Key Features

1. Wide power range: 40W~360W.

2. Special circuit design, single LED’s damage won't affect others' normal work.

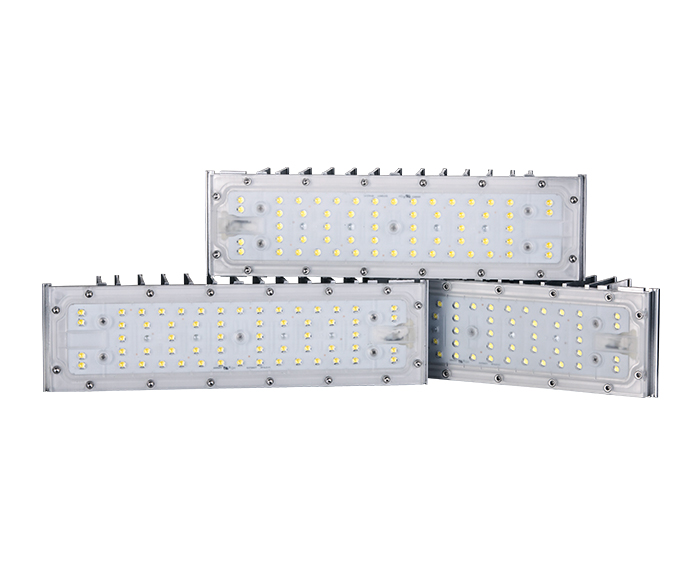

3. Modular design for easy installation, replacement and maintenance.

4.High Lumen output up to 165lm/ w with high quality LED chips.

5. Various applications with different mounting Accessories.

6. Multiple lighting control options are available, e.g. DALI, 1-10V, motion sensor.

7. Designed to last at least 100, 000 hours at L70.

8. Multiple lighting distributions are available.


LED BrandLumileds LUXEON 3030/5050
Driver BrandMeanwell HLG series
Norminal Wattage300W
LED Module Quantity5 modules
Input Voltage100-240/277/347/480VAC
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency125-155 lm/w
Lamp Rated Lumen output37500-46500 lm (Lumen tolerance +/- 5%)
Color Rendering Index70 (80 is optional)
Color Temperature3000K, 4000K, 5000K or 5700K
Photometric Type60,90,110 degrees
Optimal Operating Temperature25℃
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100,000 hours -L70, @25 ºC (77 ºF)
BodyStretching Aluminum
CoverPC lens
RatingIP66 IK10
Protection Class I ( Class II optional)
CertificationCE, ROHS, LM80
Dimming Options1-10V or DALI or PWM or Timer
Control OptionsMotion sensor or Smart control
Color OptionsSilver
Warranty7 years


What lighting is used for outdoor sports?

For outdoor sports and court lighting, LEDs have clear advantages. LEDs have a high color rendering index, which means that the clarity of light is better than other light sources. The colors are properly illuminated and everything is bright and clear.

What is a sports light?

Outdoor sports lighting is a live luminaire that is often used to illuminate large sports events or other large outdoor events, such as concerts. Sport luminaires are typically mounted on poles 40 to 100 feet tall, with 1-12 luminaires mounted on each pole.
