High Lumen LED Projector Light

Home  /  Products / LED Projector Light / High Lumen LED Projector Light
  • 360w High Lumen LED sports Lights
  • 360w High Lumen LED sports Lights
  • 360w High Lumen LED sports Lights
  • 360w High Lumen LED sports Lights
  • 360w High Lumen LED sports Lights

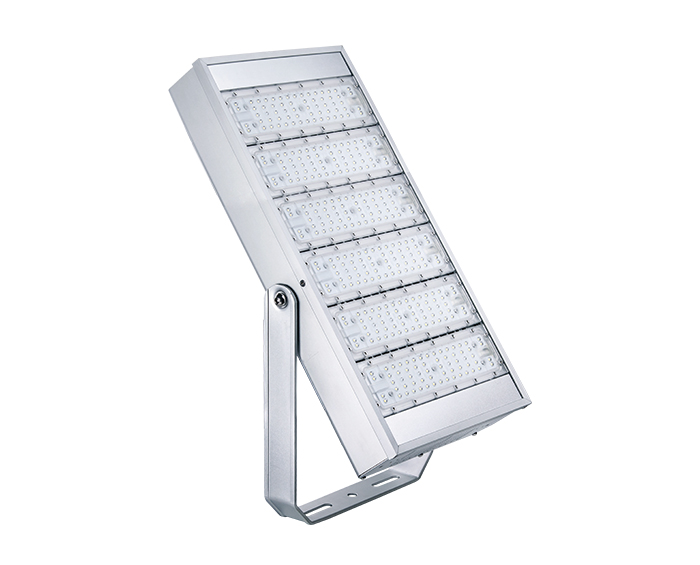

360w High Lumen LED sports Lights

360w High Lumen LED sports Lights are designed to keep the venue bright for any sports application.

Whether it's a school stadium, recreational facility, major league venue, or baseball field, ZGSM can customize and install lighting solutions for any venue.



Key Features

1. Wide power range: 40W~360W.

2. Special circuit design, single LED damage won't affect others' normal work.

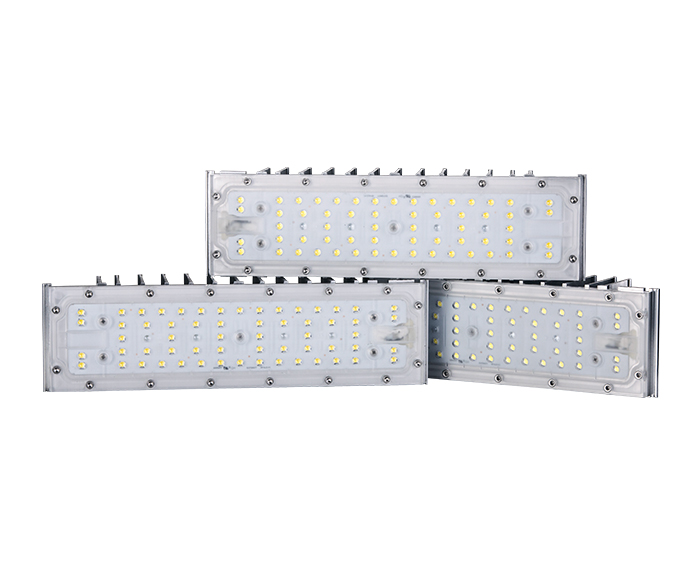

3. Modular design for easy installation, replacement, and maintenance.

4. High Lumen output up to 165lm/ w with high-quality LED chips.

5. Various applications with different mounting Accessories.

6. Multiple lighting control options are available, e.g. DALI, 1-10V, and motion sensor.

7. Designed to last at least 100, 000 hours at L70.

8. Multiple lighting distributions are available.


LED BrandLumileds LUXEON 3030/5050
Driver BrandMeanwell HLG series
Normal Wattage360W
LED Module Quantity6 modules
Input Voltage100-240/277/347/480VAC
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency125-155 lm/w
Lamp Rated Lumen output45000-55800 lm (Lumen tolerance +/- 5%)
Color Rendering Index70 (80 is optional)
Color Temperature3000K, 4000K, 5000K, or 5700K
Photometric Type60,90,110 degrees
Optimal Operating Temperature25℃
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100,000 hours -L70, @25 ºC (77 ºF)
BodyStretching Aluminum
CoverPC lens
RatingIP66 IK10
Protection Class I ( Class II optional)
CertificationCE, ROHS, LM80
Dimming Options1-10V or DALI or PWM or Timer
Control OptionsMotion sensor or Smart control
Color OptionsSilver
Warranty7 years


What is a sports light?

Outdoor sports lighting is a live luminaire that is often used to illuminate large sports events or other large outdoor events, such as concerts. Sport luminaires are typically mounted on poles 40 to 100 feet tall, with 1-12 luminaires mounted on each pole.

What kind of lighting equipment is used for outdoor sports?

Compared with floodlights using halogen or fluorescent lamps, led floodlights have a longer service life and lower energy consumption. Outdoor floodlights are often used to point the light at fixed objects, such as monuments or flagpoles, or to illuminate large areas such as sports fields, parks, playgrounds, and parking lots.

Accent Lighting: Landscape lighting...

Application: Lighting type

Large area: floodlights

Focus area: Spotlight
