High Tower LED Projector Light
280w led high mast light is a high-power floodlight designed for large stadiums, airports, docks, and other large areas, with a luminous flux of up to 126,000 lm, with 4 different luminous angles to choose from, suitable for different heights and places.
1. Up to 840W, max lumens is 94, 000lm.
2. Special circuit design, single LED damage won't affect others' normal work.
3. Modular design for easy installation, replacement, and maintenance.

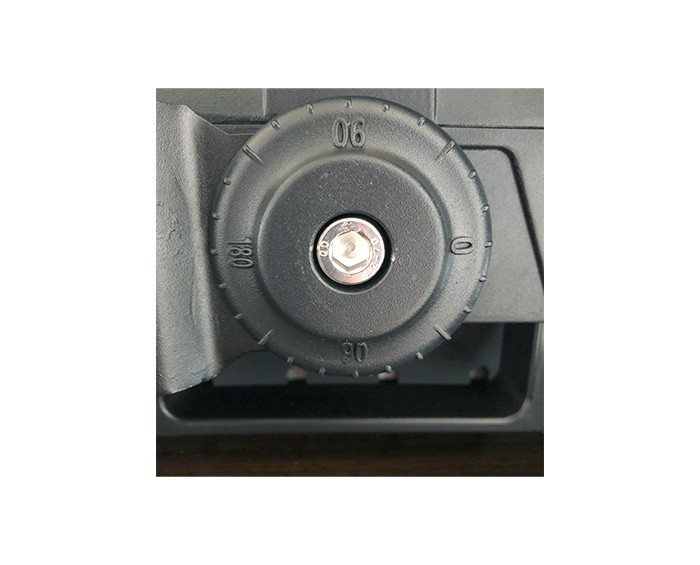

4. Mounting bracket for 360-degree adjustment.
5. Multiple lighting control options are available, e.g. DALI, 1-10V.
6. Designed to last at least 100, 000 hours at L70.
7. Multiple lighting distributions are available.
Model | ZGSM-TGD280M |
LED Brand | Philips Lumileds 3030 2D |
Driver Brand | INVENTRONICS EUC Series |
Normal Wattage | 280W |

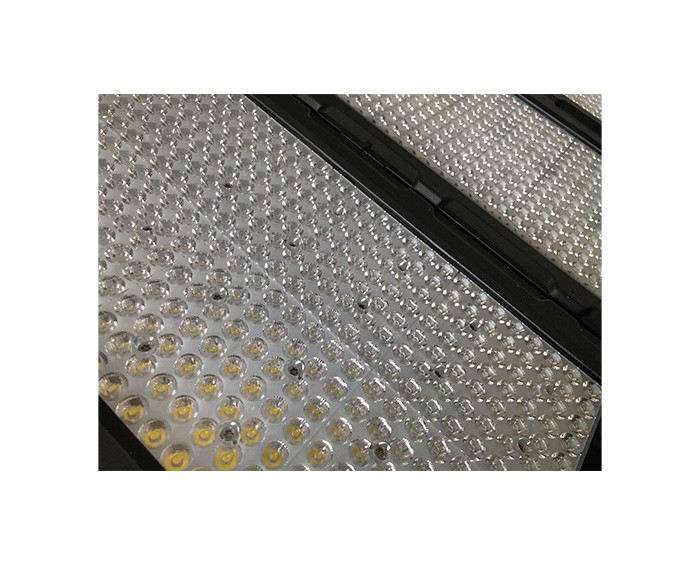

LED Quantity | 448 Pcs |
Input Voltage | 100-240/277VAC, 50/60Hz |
Power Efficiency | >90% |
Power Factor | >0.95 |
Lamp Rated Luminous Efficiency | >150lm/w |
Lamp Rated Lumen output | 42000 lm (Lumen tolerance +/- 5%) |
Color Rendering Index | Ra>70 |
Color Temperature | 3000K, 4000K, 5000K or 5700K |
Photometric Type | 15, 30, 45, 60 degrees |
Optimal Operating Temperature | 25℃ |
Storage Temperatures | ‘-40℃~+50℃ |
Working Environment | Between-40°C~+50°C, 10%~90%RH |
Total Harmonic Distortion | < 10% |
Lumen Maintenance | > 100,000 hours -L70, @25 ºC (77 ºF) |
Body and Shell Materials | Stretched Aluminium Alloy |
IP Rating | IP66, IK10 with the test report |
Certification | CE, ROHS |
Optional Function | 1-10V DC Dimming |
Warranty | 5 years |

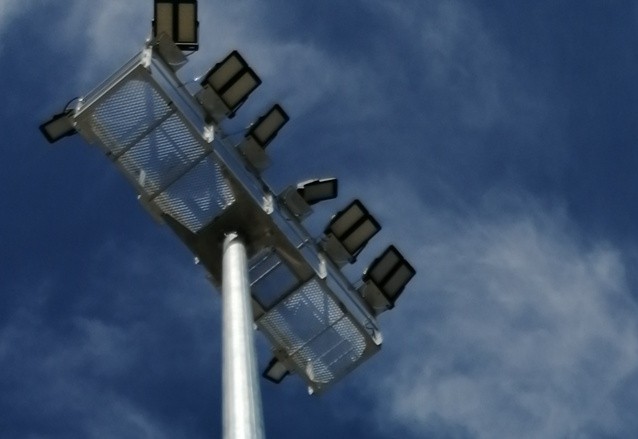

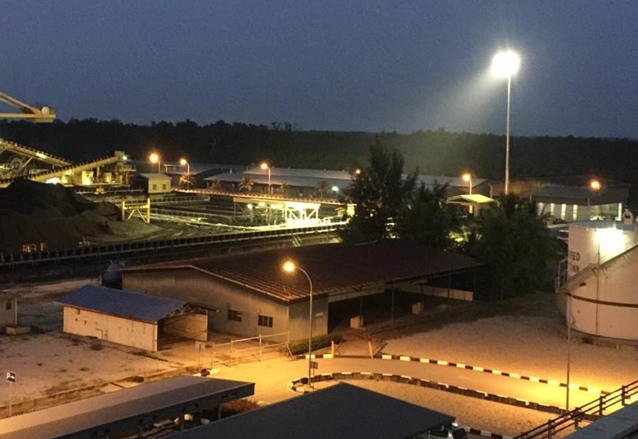

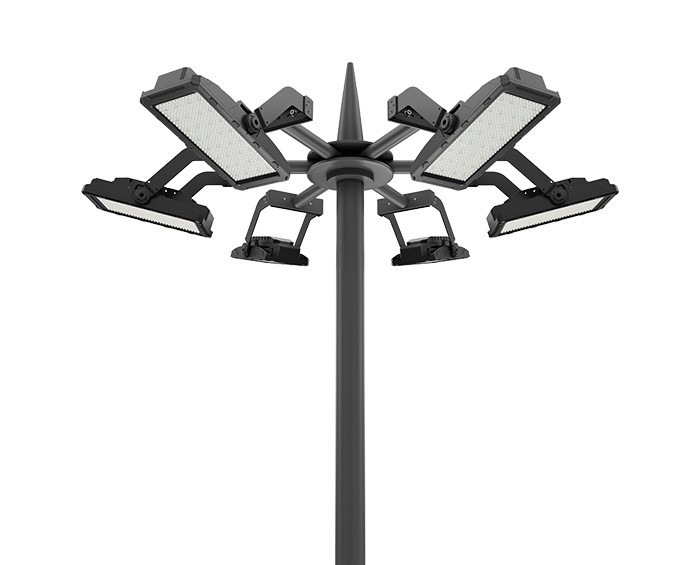

High mast lighting is a field luminaire typically used to illuminate large areas from very high installation heights for storage, transport, pedestrian use, and safety. High mast fixtures are typically mounted on poles 40 feet to 150 feet tall, with 4 to 16 fixtures mounted on each pole.

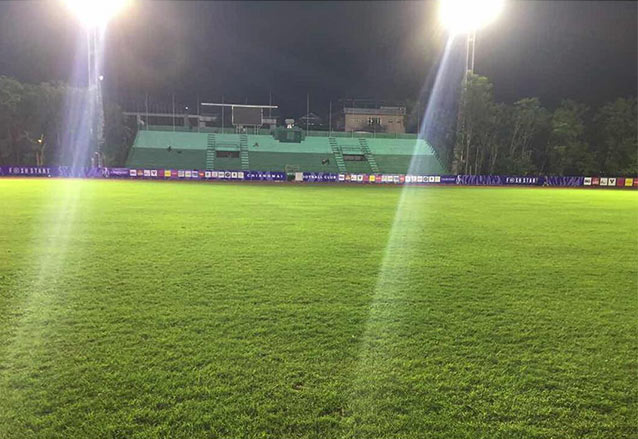

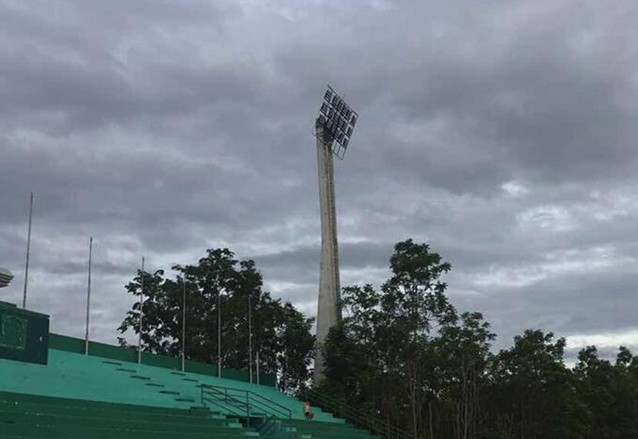

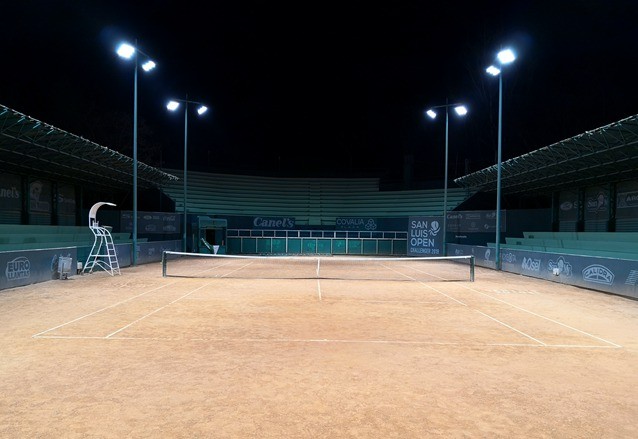

Stadium lights are very powerful sports lights, installed at high places, with a small beam angle, usually between 12-60 degrees. Using these smaller beam angles, the light intensity within that angle is higher, allowing bright light to reach the ground from a higher altitude.
240w High Lumen Tennis court LED Projector Light
360w High Power Sports Field Lighting
180w High Power led sports field lighting
120w High Power led stadium lighting
60w High Power LED Field Lights
280w led high mast light

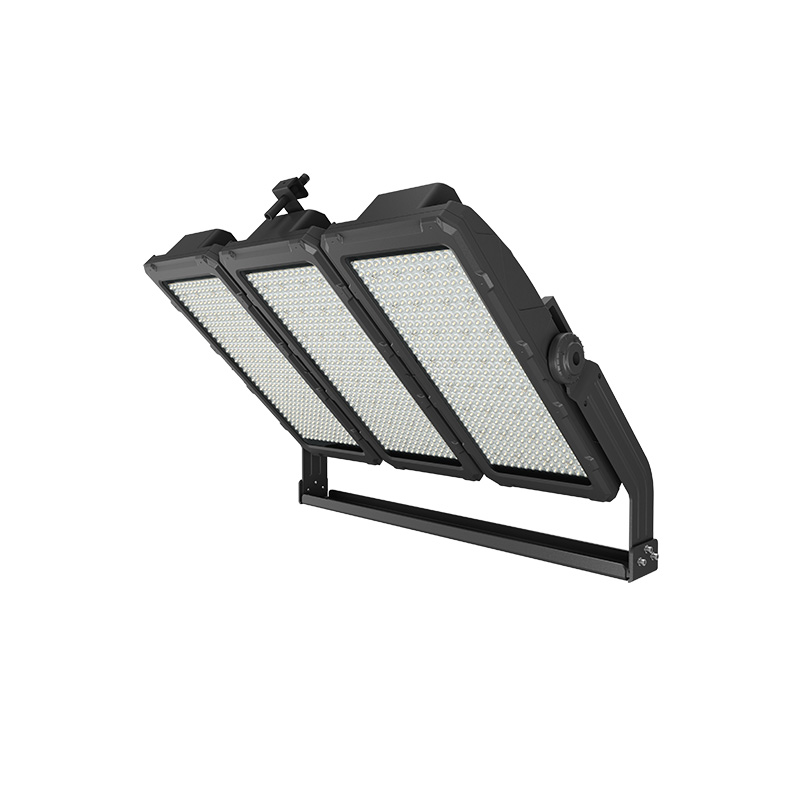

560w High Tower Stadium LED Projector Light
