High Tower LED Projector Light

Home  /  Products / LED Projector Light / High Tower LED Projector Light

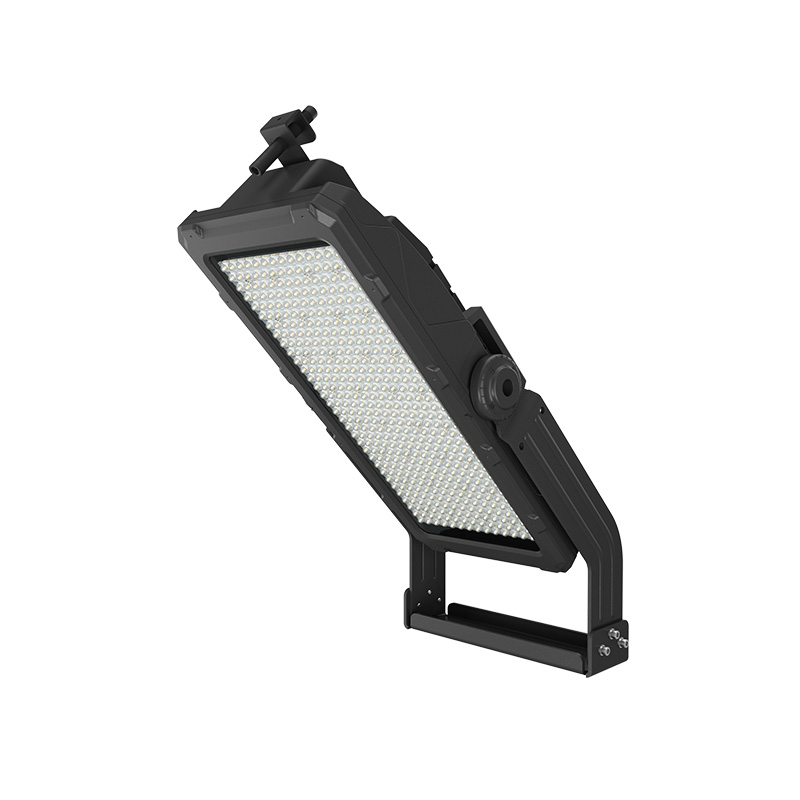

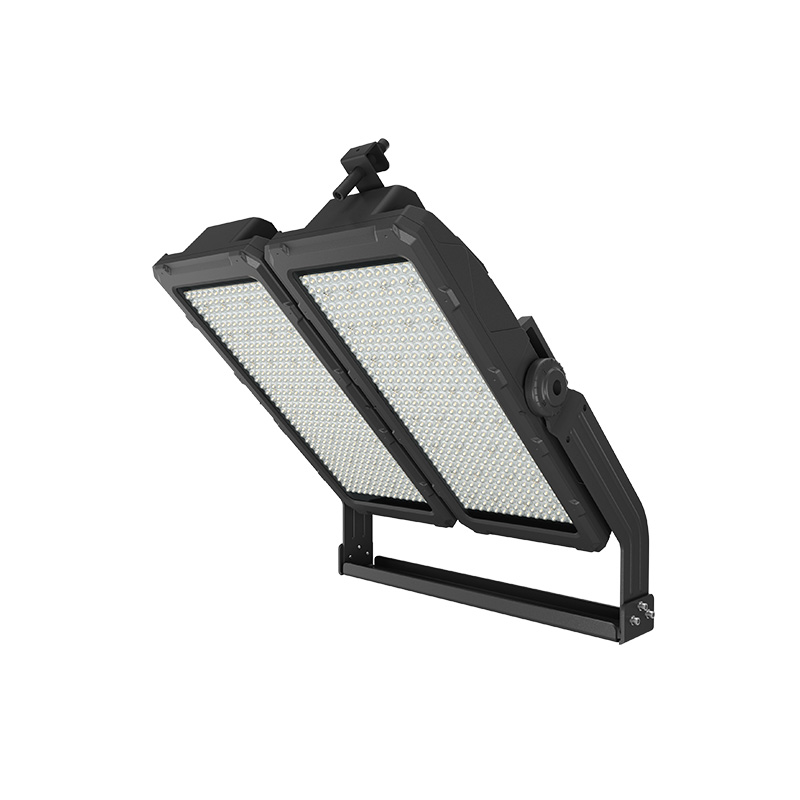

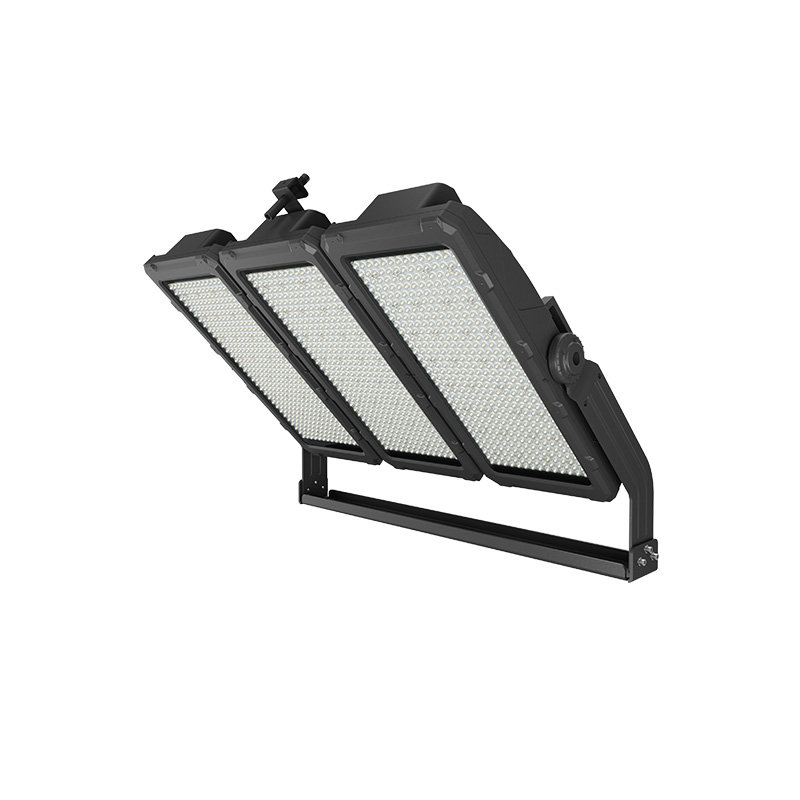

  • 840w High Mast Light for Area lighting
  • 840w High Mast Light for Area lighting
  • 840w High Mast Light for Area lighting
  • 840w High Mast Light for Area lighting
  • 840w High Mast Light for Area lighting

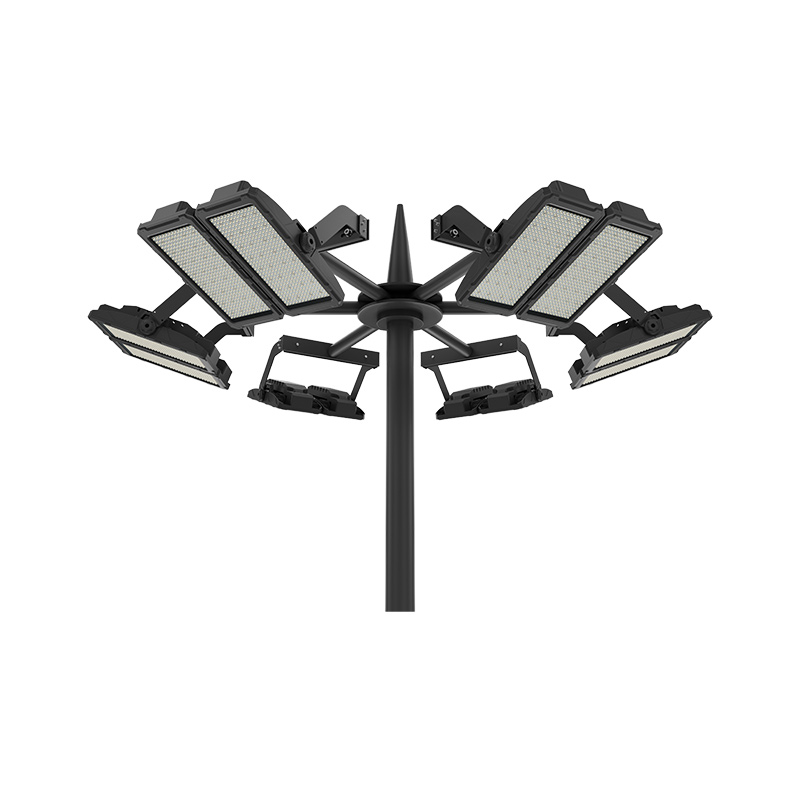

840w High Mast Light for Area lighting

An efficient lighting solution is the most preferred lighting method because it can achieve a high spatial height ratio. For large industries where open spaces must be illuminated, high masts light is the ideal solution. The high mast can be mounted at a fairly high height, thus providing uniform illumination of the entire area.

PRODUCT DESCRIPTION

Key Features

1. Up to 840W, max lumens is 94, 000lm.

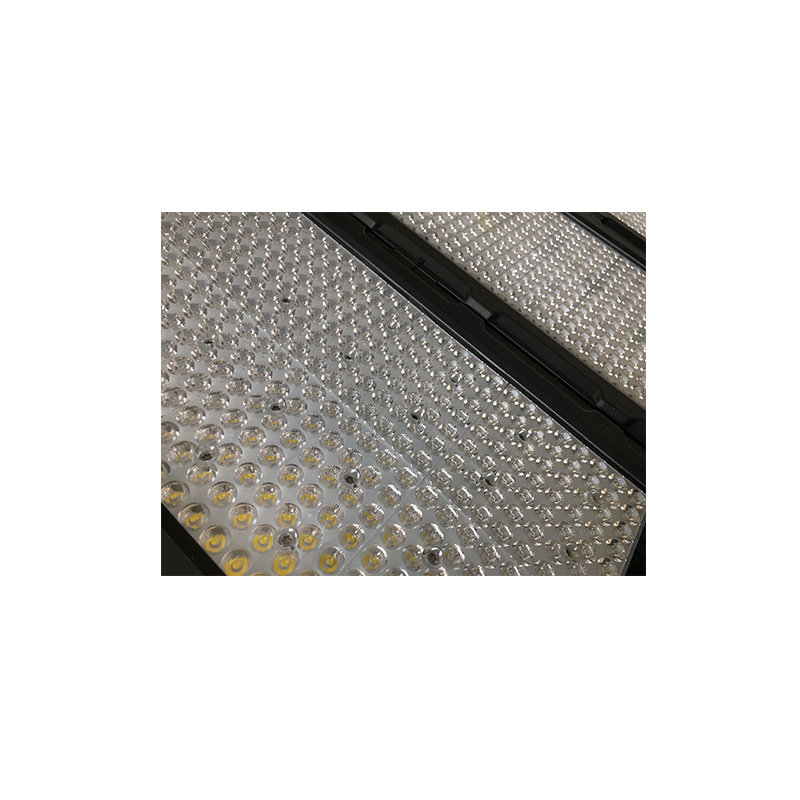

2. Special circuit design, single LED’s damage won't affect others' normal work.

3. Modular design for easy installation, replacement and maintenance.

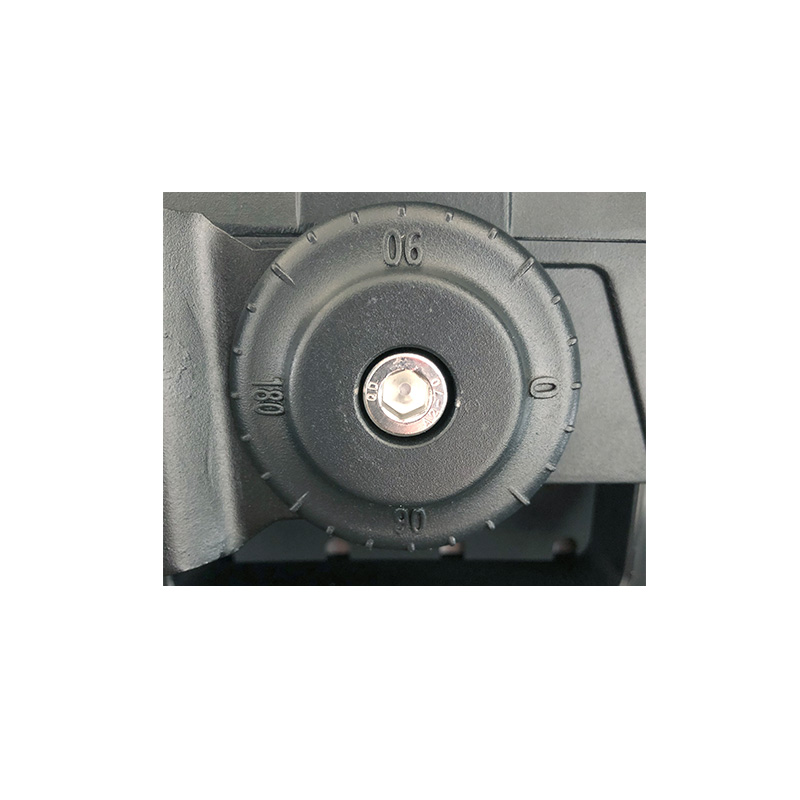

4. Mounting bracket for 360 degree adjustment.

5. Multiple lighting control options are available, e.g. DALI, 1-10V.

6. Designed to last at least 100, 000 hours at L70.

7. Multiple lighting distributions are available.


Specifications

ModelZGSM-TGD840M
LED BrandPhilips Lumileds 3030 2D
Driver BrandINVENTRONICS EUC Series
Normal Wattage840W
LED Quantity1334 Pcs
Input Voltage100-240/277VAC, 50/60Hz
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency>150lm/w
Lamp Rated Lumen output126000 lm (Lumen tolerance +/- 5%)
Color Rendering IndexRa>70
Color Temperature3000K, 4000K, 5000K, or 5700K
Photometric Type15, 30,45, 60 degrees
Optimal Operating Temperature25℃
Storage Temperatures-40℃~+50℃
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100,000 hours -L70, @25 ºC (77 ºF)
Body and Shell MaterialsStretched Aluminium Alloy
IP RatingIP66, IK10 with a test report
CertificationCE, ROHS
Optional Function1-10V DC Dimming
Warranty5 years

FAQ

What does high mast mean?

A high mast lighting is a high pole with the lighting at the top pointing to the ground, usually but not always used to illuminate highways or recreational places. It is used in places where large areas of lighting are required.


Is it the standard for a high mast?

The mast should be able to withstand wind speeds of 180 KMPH (50 m/sec) inland and 225 KMPH (62.5 m/sec) in coastal areas. The mast should be made of steel plate in accordance with BS EN 10025 or equivalent with a minimum yield strength of 355 N/Sq.


What is a high mast lighting system?

High mast lighting is a field luminaire typically used to illuminate large areas from very high installation heights for storage, transport, pedestrian use, and safety. High mast fixtures are typically mounted on poles 40 feet to 150 feet tall, with 4 to 16 fixtures mounted on each pole.
