Suspended Mounted LED Street Light

Home  /  Products / LED Street Light / Suspended Mounted LED Street Light
  • European style 56w Suspended Mounted led street lighting fixtures
  • European style 56w Suspended Mounted led street lighting fixtures
  • European style 56w Suspended Mounted led street lighting fixtures
  • European style 56w Suspended Mounted led street lighting fixtures
  • European style 56w Suspended Mounted led street lighting fixtures

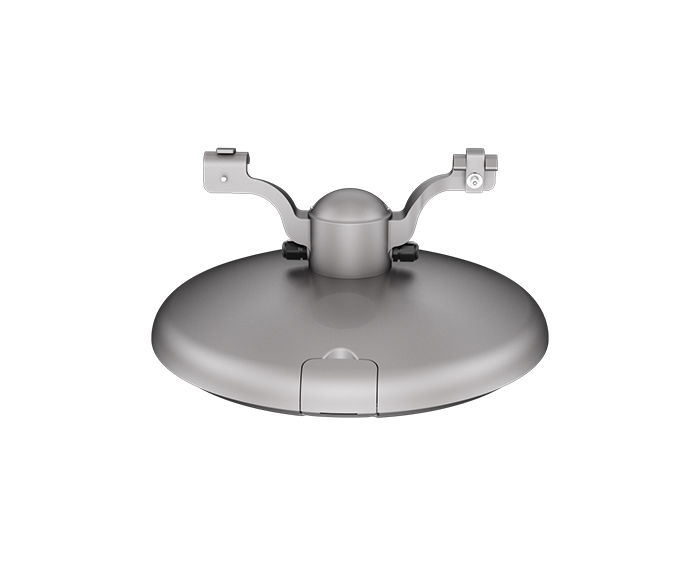

European style 56w Suspended Mounted led street lighting fixtures

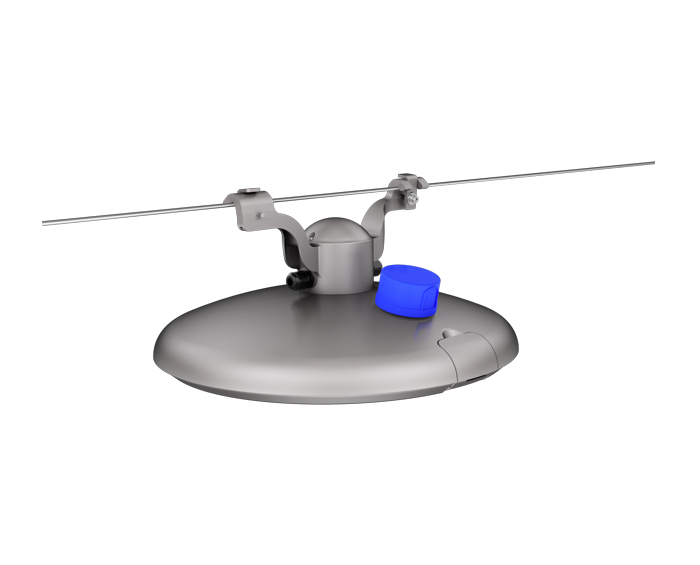

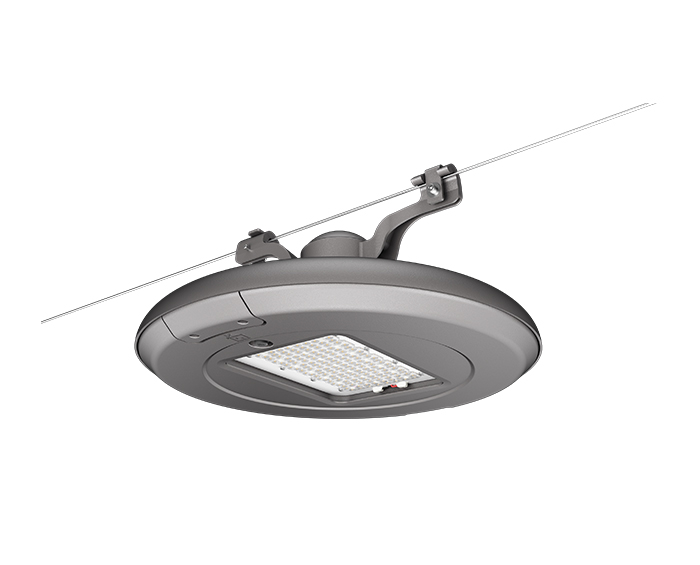

European style 56w LED street light, specially designed for Europe, the fixture usually hangs on the wire rope, design with toolless open, power-off protection, breather, smooth body, also supports post top, pendant, and side entry mounted, ENEC certified.

PRODUCT DESCRIPTION

Key Features

1. Wide power range: 27W~120W

2. Special circuit design, single LED's damage won't affect others' normal work

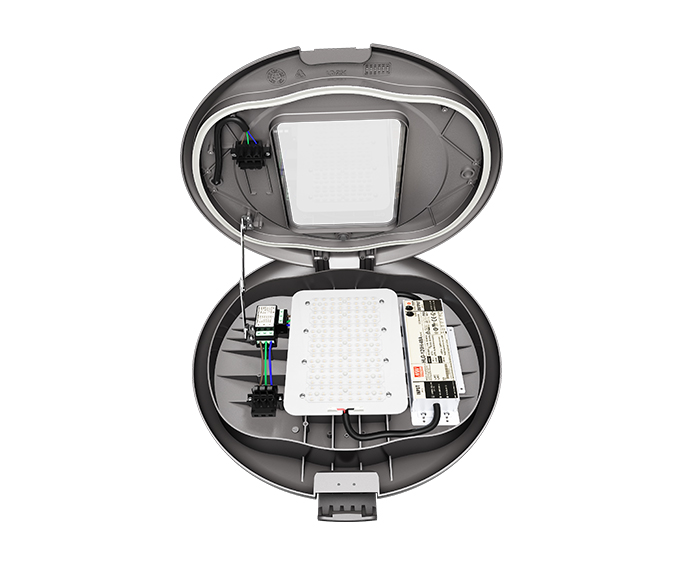

3. Tool-less open for easy installation, replacement, and maintenance.

4. Power-off protection makes the power automatically off when the fixture is opened

5. Smooth body would greatly diminish dust accumulation and bird droppings heap up.

6. Breather ensures air balance inside and outside of the lamp

7. High Lumen output up to 150lm/w with high quality LED chips

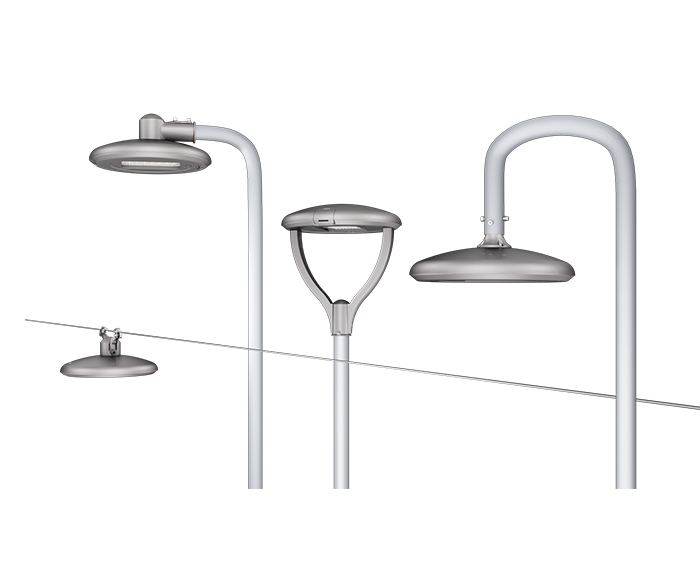

8. Post Top Mounted, Pendant Mounted, Side Entry Mounted, Suspended Mounted for optional.

9. Multiple lighting control options are available, e.g. DALI, 1-10V, photocell

10. Designed to last at least 100,000 hours at L70

11. Multiple lighting distributions are available

12. ENEC/ CB/ CE/ RoHS/ IK08 /IP66 /LM79

13. 7 years limited warranty available.

Specifications

ModelZGSM-LD56LMD
LED BrandLUMILEDS® LUXEON 3030 or 5050
Driver BrandMeanwell HLG series/ Inventronics
Norminal Wattage56W
LED Chip Quantity3030: 120pcs 5050: 60pcs
Input Voltage100-240/277VAC
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency130-150 lm /w
Lamp Rated Lumen output7280-8400 lm (Lumen tolerance +/- 5%)
Color Rendering Index70(80 optional)
Color Temperature3000 or 4000 or 5000 or 5700K
Photometric TypeType I Medium; Type II Medium; Type III Medium; TypeV, Short
Optimal Operating Temperature25℃
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100,000 hours -L70, @25 ºC (77 ºF)
Wind IndexForce 12
Body and Shell MaterialsDie-cast aluminum; Tempered Glass
Rope Diameter6-12mm
RatingIP66 IK08
Protection Class I ( Class II optional)
SPD10KV (20KV optional)
CertificationCE, ENEC,CB ROHS,LM80,LM79,IP66 IK08,ISTMT
Dimming Options1-10V or DALI or PWM or Timer
Control OptionsPhotocell or Motion sensor or Smart control
Color OptionsDeep grey
Warranty7 years

FAQ

1. How many lumens is a led street light?

If you're still used to measuring light output in watts, don't worry, because there are still plenty of people doing so. So, to help you get used to specifying the lumens needed for LED outdoor lighting, here's a memo list for your reference.

Types of LightingLumens Requirement
Garden Lights2,500-8,000 lumens
Floodlights4,000-60,000 lumens
Street Lights for residential areas3,500-7,000 lumens
Street Lights for roadways7,000-18,000 lumens
Street Lights for highways15,000-30,000 lumens
Street Lights for parking lot12,000-25,000 lumens

2. How much is the labor cost to install a led street light?

Installation costs depend on your city, but in general, the average labor cost to install a streetlight pole is $800. These costs are variable, but street light poles will be much more expensive than consumer poles because they are more complex to install and more extensive.

3. How much does it cost to install street light?

The cost of installing streetlights depends on the type of lighting and power source. For example, if you install a 100W LED equivalent street light, it will cost you at least $110 for the street light. The estimated cost of a standard street light pole is $2,000 to $3,000, and the cost of an electrician to install the street lights is up to $1,000! The final cost of each street light can range from approximately $5,000 to $8,000, depending on the particular style. If the project is a highway or bridge, the total cost of the street light will increase by more than 20%.
