Suspended Mounted LED Street Light

Home  /  Products / LED Street Light / Suspended Mounted LED Street Light
  • European style 27w Suspended Mounted road light
  • European style 27w Suspended Mounted road light
  • European style 27w Suspended Mounted road light
  • European style 27w Suspended Mounted road light
  • European style 27w Suspended Mounted road light

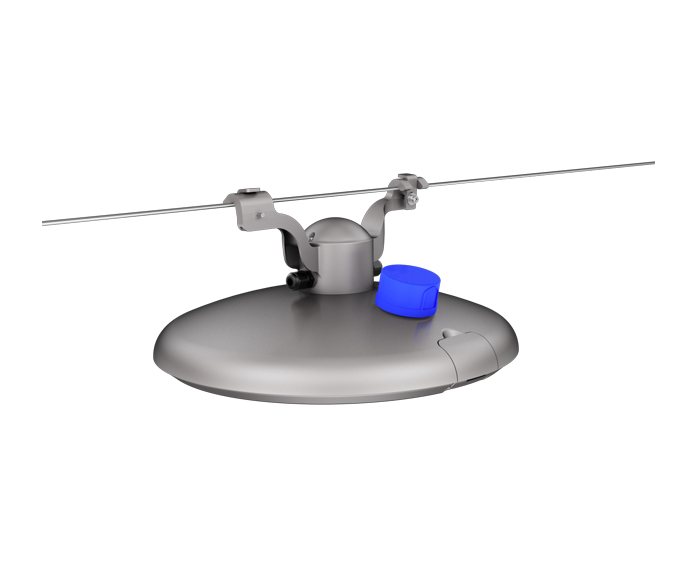

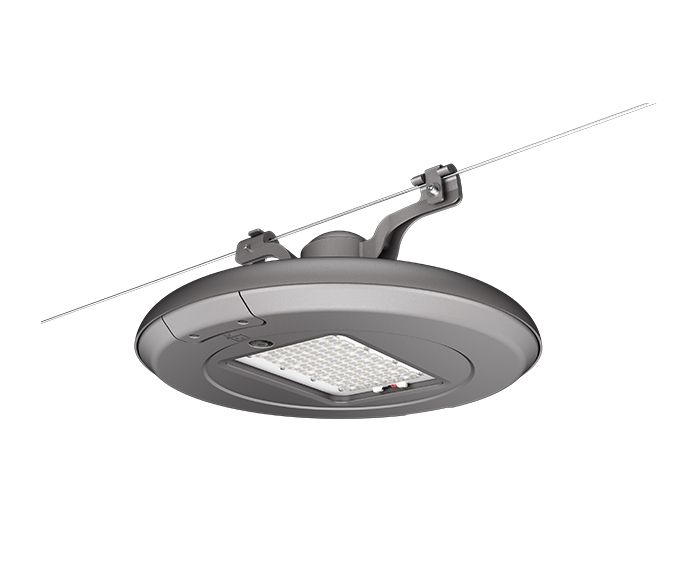

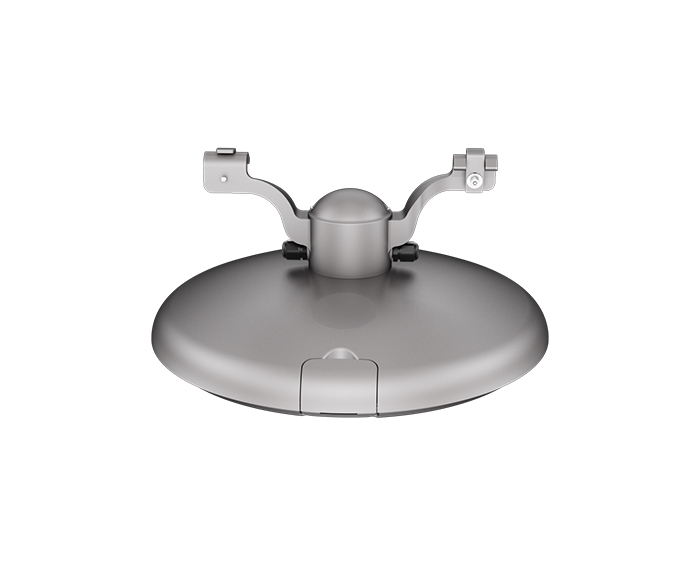

European style 27w Suspended Mounted road light

This is a multi-functional Outdoor LED Light with European style, Post Top Mounted, Pendant Mounted, Side Entry Mounted, and Suspended Mounted for optional. When used as hanging street lights, no pole is required, it can be hung on wires or wire ropes, symmetrical spectrum Light up the entire area.

PRODUCT DESCRIPTION

Key Features

1. Wide power range: 25W~120W

2. Special circuit design, single LED damage won't affect others' normal work

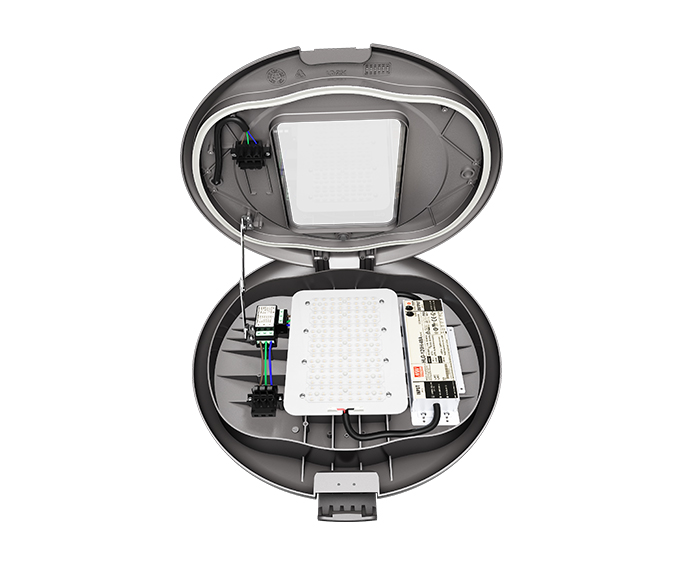

3. Tool-less open for easy installation, replacement, and maintenance.

4. Power-off protection makes the power automatically off when the fixture is opened

5. Smooth body would greatly diminish dust accumulation and bird droppings heap up.

6. Breather ensures air balance inside and outside of the lamp

7. High Lumen output up to 150lm/w with high quality LED chips

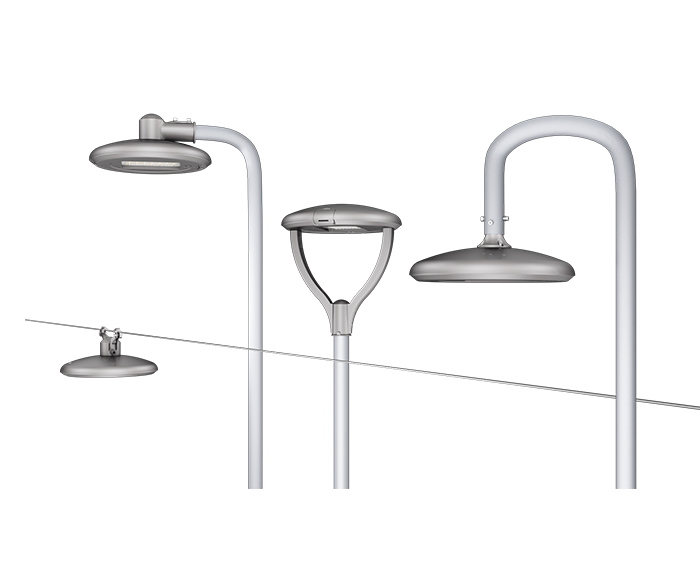

8. Post Top Mounted, Pendant Mounted, Side Entry Mounted, Suspended Mounted for optional.

9. Multiple lighting control options are available, e.g. DALI, 1-10V, photocell

10. Designed to last at least 100,000 hours at L70

11. Multiple lighting distributions are available

12. ENEC/ CB/ CE/ RoHS/ IK08 /IP66 /LM79

13. 7 years limited warranty available.


Specifications

ModelZGSM-LD27LMD
LED BrandLUMILEDS® LUXEON 3030 or 5050
Driver BrandMeanwell HLG series/ Inventronics
Normal Wattage27W
LED Chip Quantity3030: 72pcs 5050: 36pcs
Input Voltage100-240/277VAC
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency130-150 lm /w
Lamp Rated Lumen output3510-4050 lm (Lumen tolerance +/- 5%)
Color Rendering Index70(80 optional)
Color Temperature3000K or 4000K or 5000K or 5700K
Photometric TypeType I Medium; Type II Medium; Type III Medium; TypeV, Short
Optimal Operating Temperature25℃
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100,000 hours -L70, @25 ºC (77 ºF)
Wind IndexForce 12
Body and Shell MaterialsDie-cast aluminum; Tempered Glass
Rope Diameter6-12mm
RatingIP66 IK08
Protection Class I ( Class II optional)
SPD10KV (20KV optional)
CertificationCE, ENEC, CB, ROHS, LM80, LM79, IP66, IK08, ISTMT
Dimming Options1-10V or DALI or PWM or Timer
Control OptionsPhotocell or Motion sensor or Smart control
Color OptionsDeep grey
Warranty7 years


FAQ

How do photocell light sensors work?

A photocell cell or photoresistor is a sensor that changes its resistance when light is shining on it. The resistance generated depends on the light that hits his surface. High-intensity light incident to the surface leads to lower resistance, while light at lower intensity results in higher resistance.


What is a smart street lighting system?

Smart street lights are public lighting fixtures that combine technologies such as cameras, photosensitive photocells, and other sensors to introduce real-time monitoring capabilities.


What are the advantages of smart street lighting systems?

Smart street lights can help monitor traffic flow, parking, crosswalks, seismic activity, or changes in the atmosphere. They can be equipped with speakers to alert people to dangerous situations or conditions, or cameras to help police solve cases or verify garbage collection and other activities.
