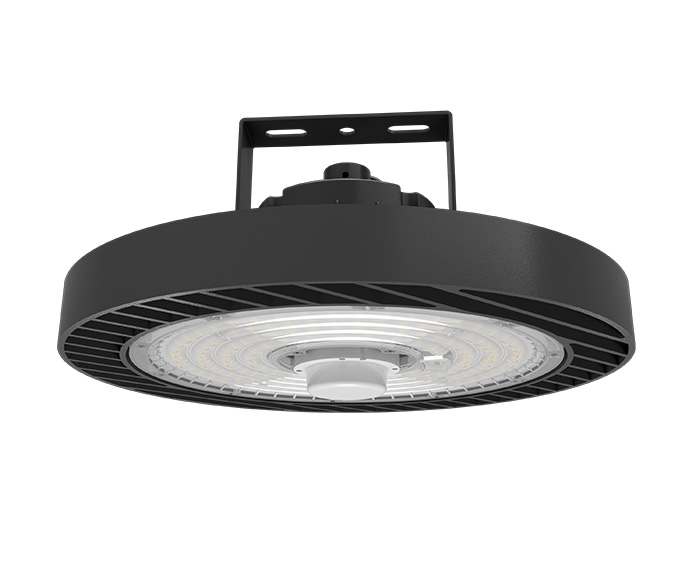

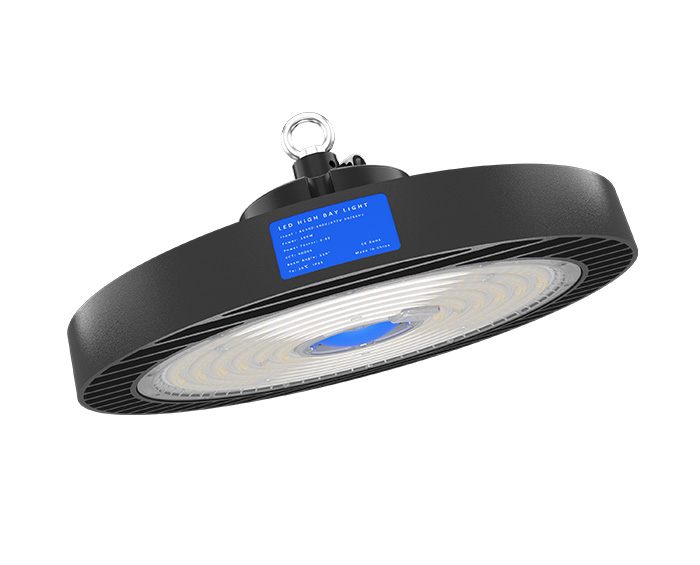

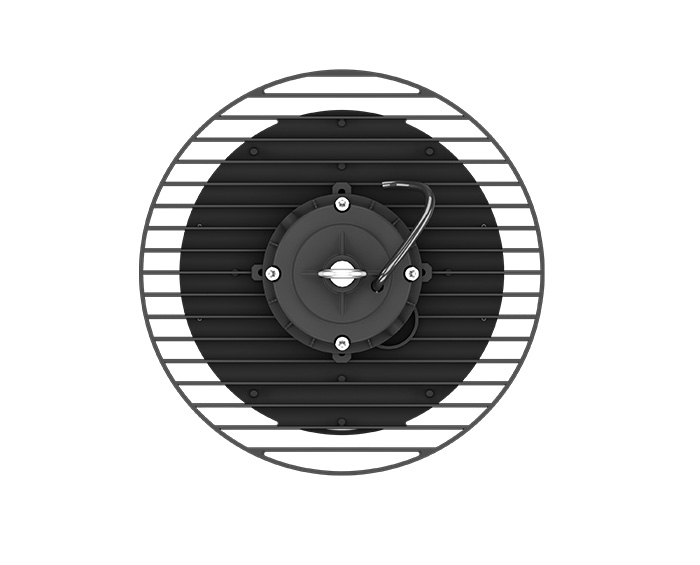

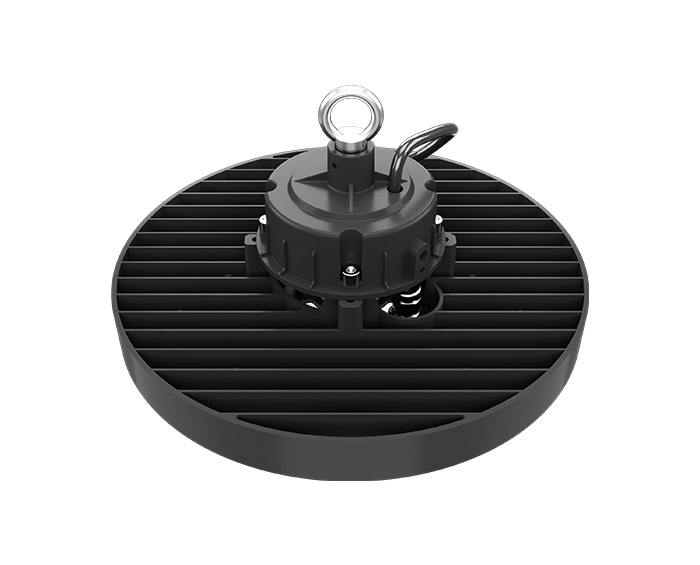

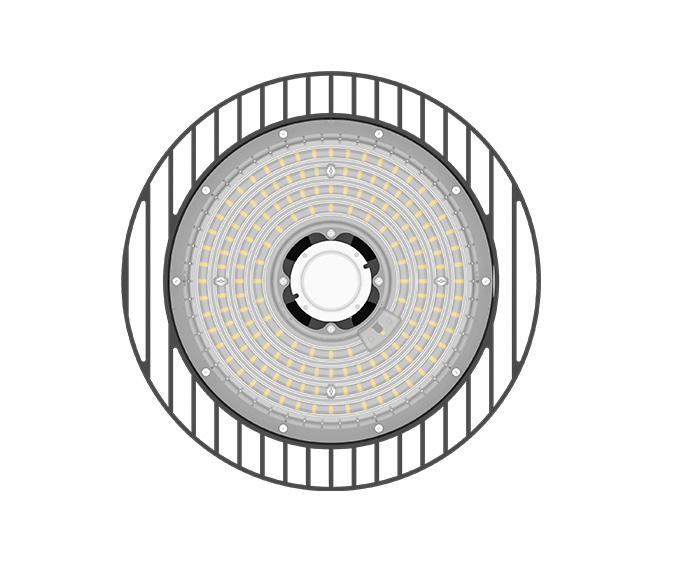

UFO High Bay 150w with Smart Motion Sensor

Our UFO High Bay 150w with Smart Motion Sensor is an ideal alternative to traditional lamps and has a service life of at least 3 times that of metal halide (HID) bulbs. More effective than metal halide or fluorescent lamp devices. Commercial LED miner's lamps can help save energy.

PRODUCT DESCRIPTION

Key Features

1. Wide power range: 100W~200W

2. Luminaire efficacy: Up to 190 lm /w

3. 70% energy saving, short ROI period

4. Up to 50, 000hrs @ L70, low maintenance cost

5. Durability, suitable for dry and wet applications

6. Versatile in mounting with wall-mounted, loop hanging, steel chain hanging

7. RoHS compliant, environmentally friendly, no mercury or lead, 100% recyclable

8. 5 years warranty

9. Multiple lighting distributions available

10. CE/ RoHS/ IK08/ IP66


Specifications

ModelZGSM-HB09-150M
LED BrandLUMILEDS 2835
Driver BrandMOSO Driver
Normal Wattage150W
Input Voltage100-240/277VAC
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency190lm /w
Lamp Rated Lumen output28500 lm (Lumen tolerance +/- 5%)
Color Rendering Index70 (80 is optional)
Color Temperature4000K, or 5000K
Photometric Type60, 90, or 110 degrees
Optimal Operating Temperature25℃
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100,000 hours -L70, @25 ºC (77 ºF)
BodyDie-casting aluminum
CoverPC LENS
RatingIP65, IK10
Protection Class I
CertificationCE, ROHS, LM80
Dimming OptionsNon-Dimming (Default) /0-10V /Zigbee Wireless Dimming
Control OptionsPIR /MOTION sensor
Color OptionsBlack
Warranty5 years


FAQ

What is a Microwave Motion Sensor?

What is a Microwave Motion Sensor? Microwave motion sensors use electromagnetic radiation. It emits waves that are then reflected back to the receiver. The receiver analyzes the wave that bounces back. If there is an object moving in the room, these waves will change.

When used in combination with 0-10V dimmable LED drivers, the sensors can achieve a 3-step dimming function, 100%---> low light --->off.

And the sensors have built-in adjustable daylight sensors, which are very easy to install and cost-effective.


How do microwave PIR sensors work?

These sensors detect heat. They did this by using multiple detection beams to measure the ambient temperature of the room. When one of the beams detects a temperature difference, the sensor is activated, turning on the light.
