UL certified LED High Bay Light

Home  /  Products / LED High Bay Light / UL certified LED High Bay Light
  • IP66 IK10 40w UL certified LED High Bay Fixtures
  • IP66 IK10 40w UL certified LED High Bay Fixtures
  • IP66 IK10 40w UL certified LED High Bay Fixtures
  • IP66 IK10 40w UL certified LED High Bay Fixtures
  • IP66 IK10 40w UL certified LED High Bay Fixtures

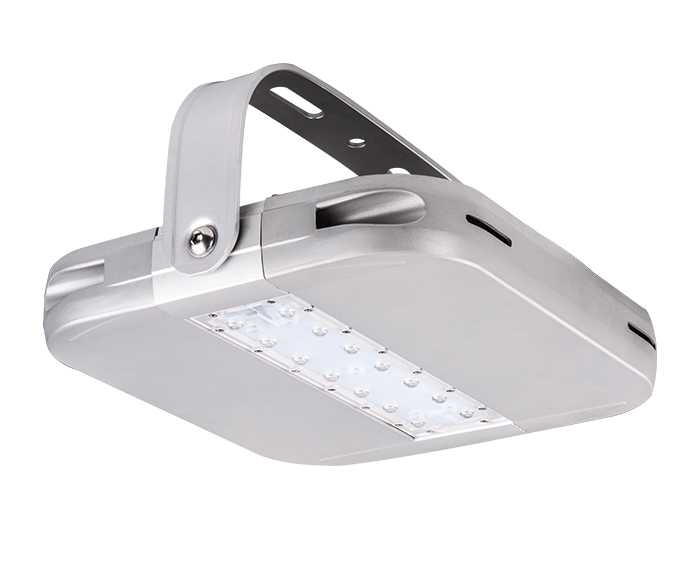

IP66 IK10 40w UL certified LED High Bay Fixtures

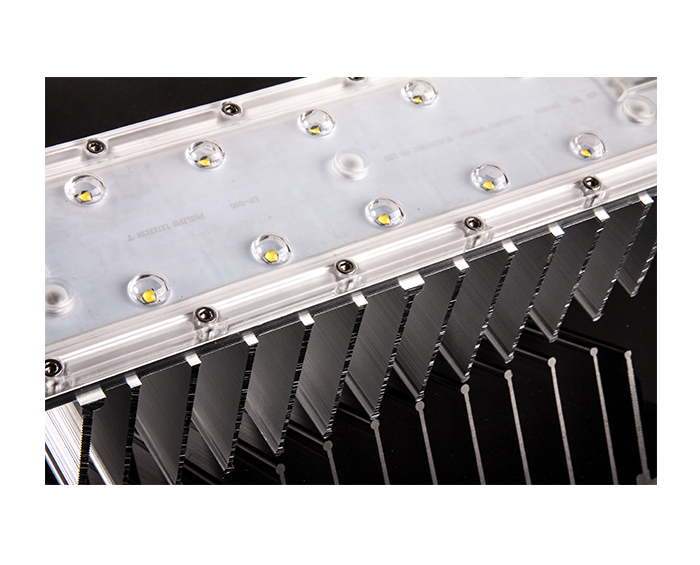

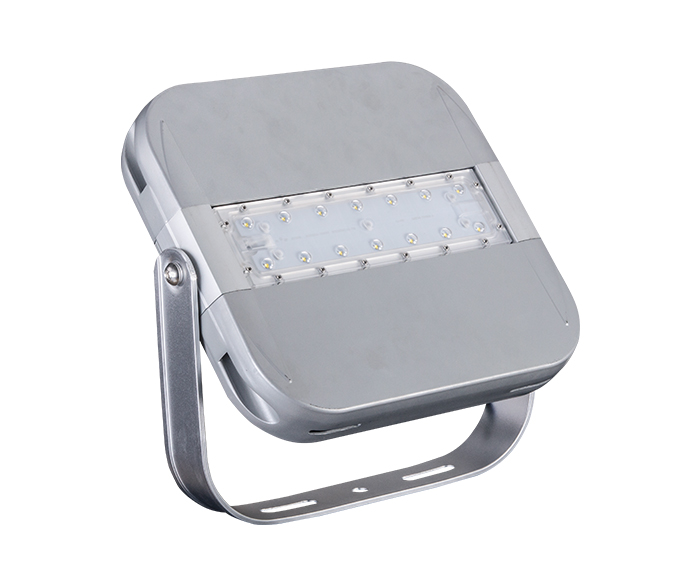

The LED High Bay Fixtures is UL certified and has passed the test of IP66 and IK10. This is a modular design high bay light, which can achieve Direct Mounting, Pendant Mounting, and Suspended Mounting. Replaced with a long bracket, it can be used as a flood light. Full aluminum made sufficient heat dissipation area also no corrosion worries.

PRODUCT DESCRIPTION

Key Features

1. Wide power range: 40W~360W.

2. Special circuit design, single LED damage won't affect others' normal work.

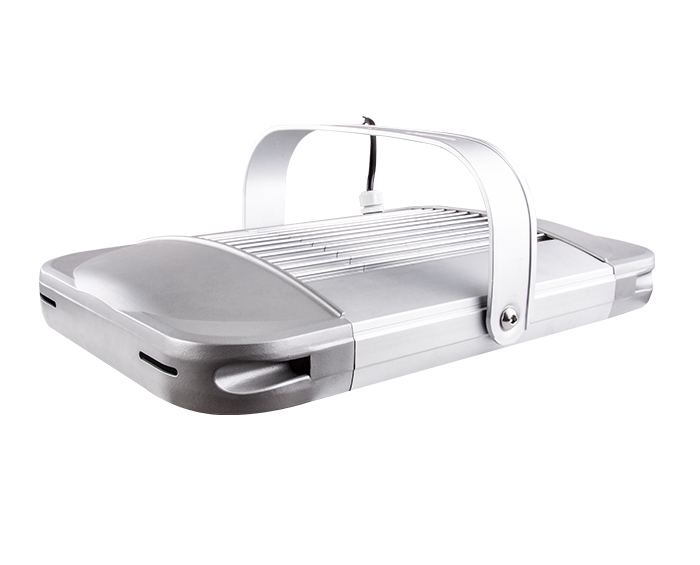

3. Modular design for easy installation, replacement, and maintenance.

4. High Lumen output up to 165lm/ w with high-quality LED chips.

5. Various applications with different mounting Accessories.

6. Multiple lighting control options are available, e.g. DALI, 1-10V, and motion sensor.

7. Designed to last at least 100, 000 hours at L70.

8. Multiple lighting distributions are available.


Specifications

ModelZGSM-GCD40H
LED BrandLumileds LUXEON® TX

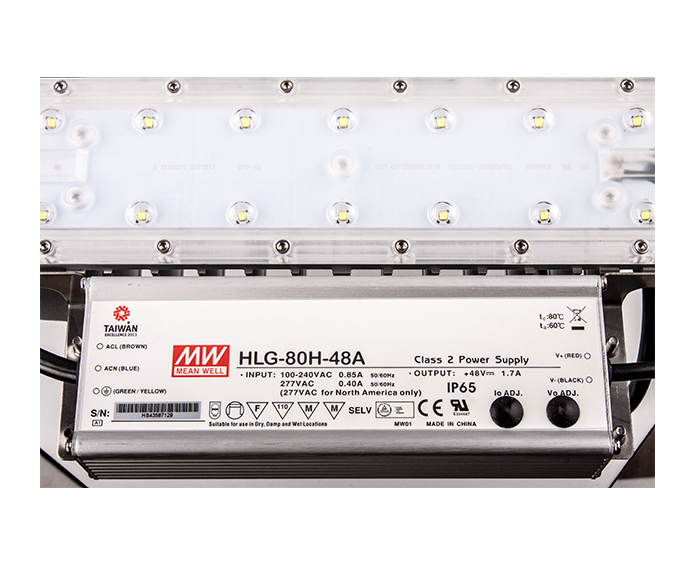

Driver BrandMeanwell HLG series
Normal Wattage40W
LED Module Quantity1 module
Input Voltage100-240/277/347/480VAC
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency>110 lm/w
Lamp Rated Lumen output4400 lm (Lumen tolerance +/- 5%)
Color Rendering IndexRa>70
Color Temperature3000K, 4000K, 5000K, or 5700K
Photometric Type60,90,110 degrees
Optimal Operating Temperature25℃
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100,000 hours -L70, @25 ºC (77 ºF)
BodyDie-cast Aluminum Housing
CoverPC lens
RatingIP66 IK10
Protection Class I ( Class II optional)
CertificationCE,ROHS,GS,CB,UL,cUL,DLC,LM-79,LM80,SAA
Dimming Options1-10V or DALI or PWM or Timer
Control OptionsMotion sensor or Smart control
Color OptionsSilver
Warranty7 years

FAQ

How many LED high bay lights do I need?

Use 100 watts of high bay light and separate them every 8-14 feet (8 for high brightness and 14 for plenty). For example, 6x3 mode is 18 lights for basic lighting or 7x3 (or 6x4/8x3 depending on cabling) for 21-24 lights for medium brightness levels. 32 of 8x4 will be very high brightness.


How to choose industrial LED high bay lights?

You can easily choose one according to the height of the high bay lamps installed. Different heights have different wattages: 10-15 feet – this height is ideal for lamps from 10,000 to 15,000 lumens. 15-20 feet – This height is ideal for lamps from 16,000 to 20,000 lumens.
