240w Industrial LED Linear High Bay

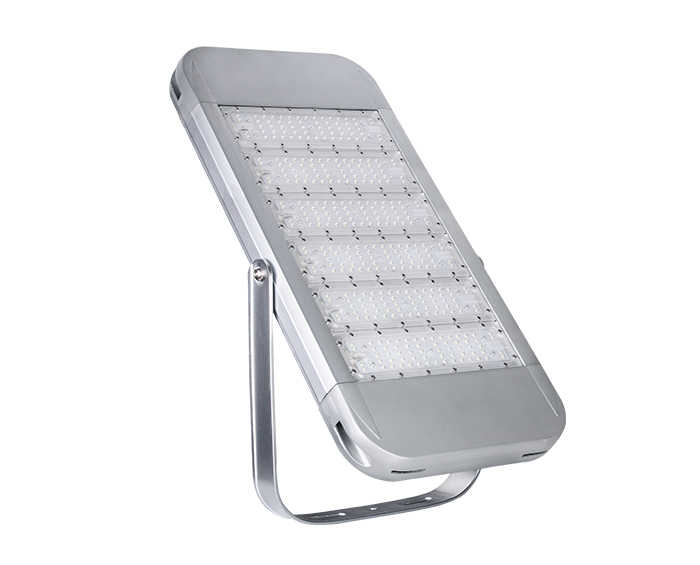

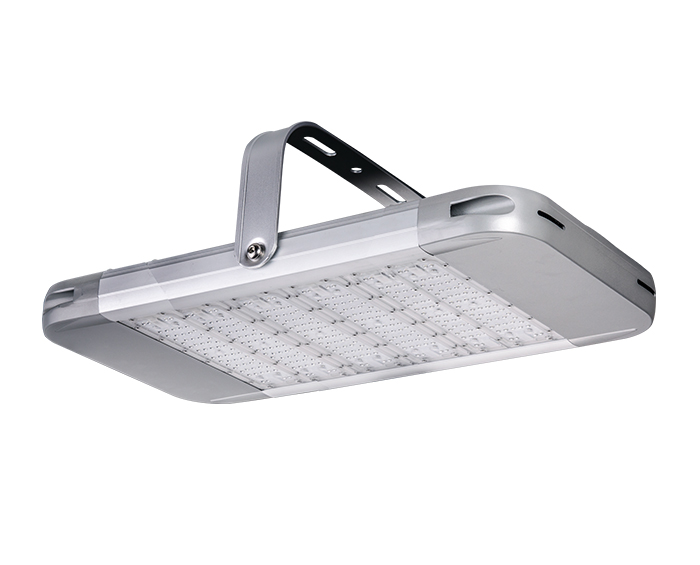

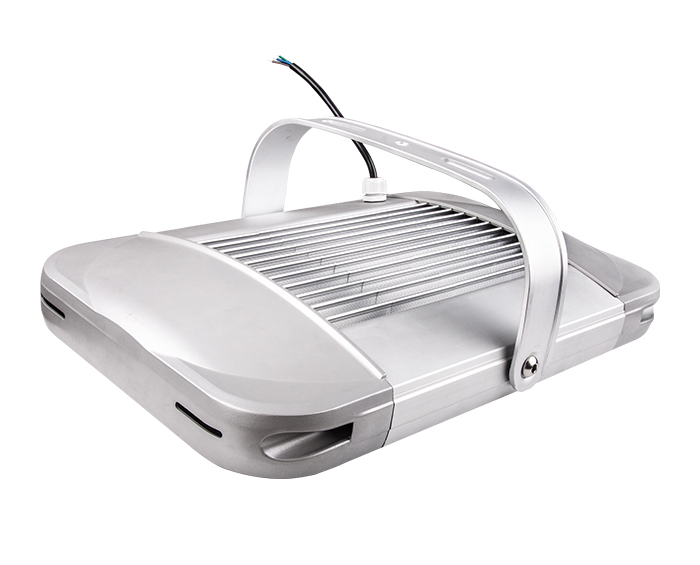

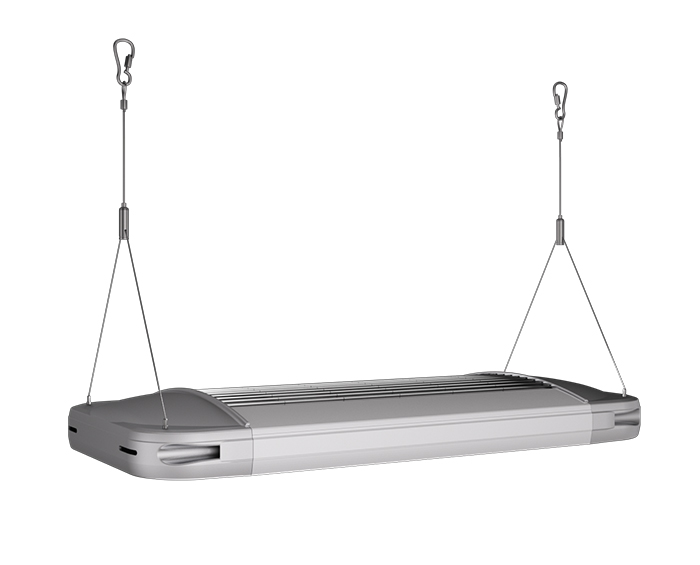

LED Linear High Bay is best suited for large open spaces such as warehouses, gyms, shops, and other commercial areas with high ceilings. These LED high bay lights can be hung from the ceiling of a room to provide plenty of light to the floor space. Our luminaire can also be mounted using a bracket and the mounting angle can be adjusted. This luminaire will help you easily install LED mining lamps.



Key Features

1. Wide power range: 40W~360W.

2. Special circuit design, single LED damage won't affect others' normal work.

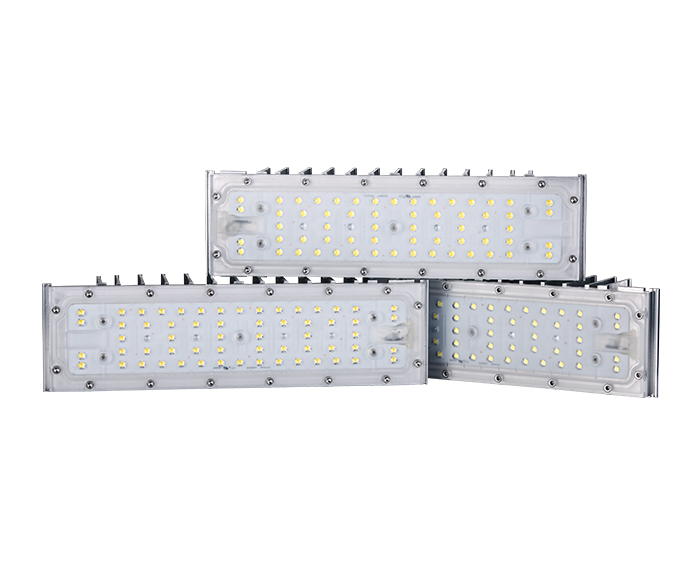

3. Modular design for easy installation, replacement, and maintenance.

4. High Lumen output up to 165lm/ w with high-quality LED chips.

5. Various applications with different mounting Accessories.

6. Multiple lighting control options are available, e.g. DALI, 1-10V, and motion sensor.

7. Designed to last at least 100, 000 hours at L70.

8. Multiple lighting distributions are available.


LED BrandLumileds LUXEON 3030/5050
Driver BrandMeanwell HLG series
Normal Wattage240W
LED Module Quantity6 modules
Input Voltage100-240/277/347/480VAC
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency140-165 lm/w
Lamp Rated Lumen output33600-39600 lm (Lumen tolerance +/- 5%)
Color Rendering Index70 (80 is optional)
Color Temperature3000K, 4000K, 5000K, or 5700K
Photometric Type60,90,110 degrees
Optimal Operating Temperature25℃
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100,000 hours -L70, @25 ºC (77 ºF)
BodyDie-cast Aluminum Housing
CoverPC lens
RatingIP66 IK10
Protection Class I ( Class II optional)
CertificationCE, ROHS, LM80
Dimming Options1-10V or DALI or PWM or Timer
Control OptionsMotion sensor or Smart control
Color OptionsSilver
Warranty7 years


What are linear high bay lights?

Linear high-bay luminaires are used to illuminate large indoor areas with higher ceilings (typically 20 to 45 feet from the floor). The large space between the ceiling and the floor requires linear high bay light to provide high lumen output, and light needs to be focused downward from the luminaire.

Can you dim high bay LED lights?

LED high bay light can use conventional 1-10V or 0-10V dimmers to adjust brightness from 10% to 100% and connect specially designated dimming pairs to compatible low-voltage LED dimming switches.

What is a luminaire mounting bracket?

Typically, the mounting bracket is screwed onto the fixture box and then the fixture is attached to the bracket, either through machine screws or, more commonly, chandeliers, screwed into the threaded hole in the mounting center through a threaded column bracket.
