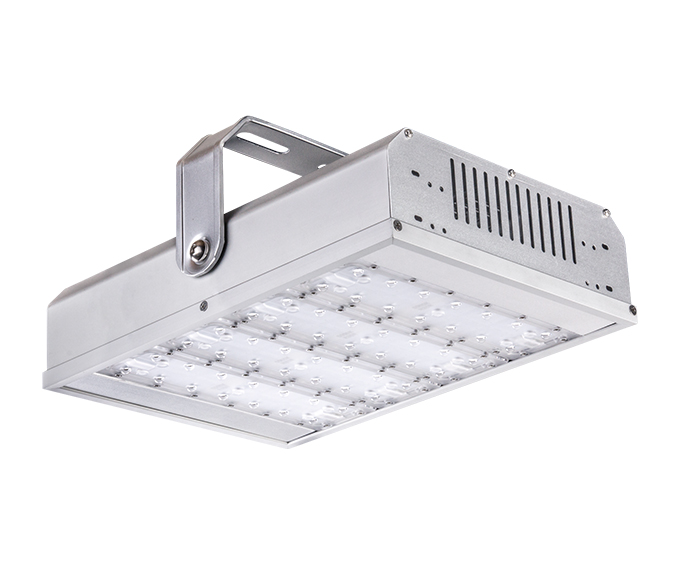

160w LED Factory Lights

 The 160w LED Factory Lights are suitable for high-performance, energy-efficient LED lighting in factories and manufacturing plants, including LED high bay lights, low bay lights, and flood lightsFactory lighting is used to improve worker visibility and safety to optimize productivity while switching to LEDs can significantly reduce energy and save costs.



Key Features

1. Wide power range: 40W~360W.

2. Special circuit design, single LED damage won't affect others' normal work.

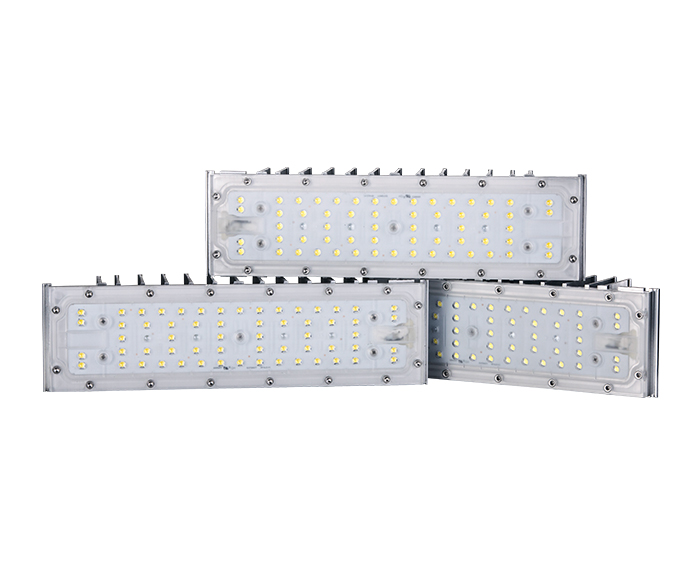

3. Modular design for easy installation, replacement, and maintenance.

4. High Lumen output up to 165lm/ w with high-quality LED chips.

5. Various applications with different mounting Accessories.

6. Multiple lighting control options are available, e.g. DALI, 1-10V, and motion sensor.

7. Designed to last at least 100, 000 hours at L70.

8. Multiple lighting distributions are available.


LED BrandLumileds LUXEON® TX
Driver BrandMeanwell HLG series
Normal Wattage160W
LED Module Quantity4 modules
Input Voltage100-240/277/347/480VAC
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency>110 lm/w
Lamp Rated Lumen output17,600 lm (Lumen tolerance +/- 5%)
Color Rendering IndexRa>70
Color Temperature3000K, 4000K, 5000K, or 5700K
Photometric Type60, 90, 110 degrees
Optimal Operating Temperature25℃
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100,000 hours -L70, @25 ºC (77 ºF)
BodyStretching Aluminum
CoverPC lens
RatingIP66 IK10
Protection Class I ( Class II optional)
CertificationCE, ROHS, GS, CB, UL, cUL, DLC, LM-79
Dimming Options1-10V or DALI or PWM or Timer
Control OptionsMotion sensor or Smart control
Color OptionsSilver
Warranty7 years


What type of lighting is best for factory use?

LED lights are superior to HID lamps for a number of reasons, such as high-pressure sodium lights and metal halide lamps. These benefits are: LED lights are a more efficient choice for industrial lighting. LEDs use half the energy of an HID bulb to provide the same amount of light.

How many Luxex is a factory?

The measurement of 1 lux is equal to the illuminance of a one-meter square surface one meter from a candle.

—— Lux's definition.

EnvironmentTypical Lux
Factory, Workshop750
Office, Show Rooms, Laboratories, Kitchens500

warehouse Loading Bays

300 to 400

School Classroom, University Lecture Hall
