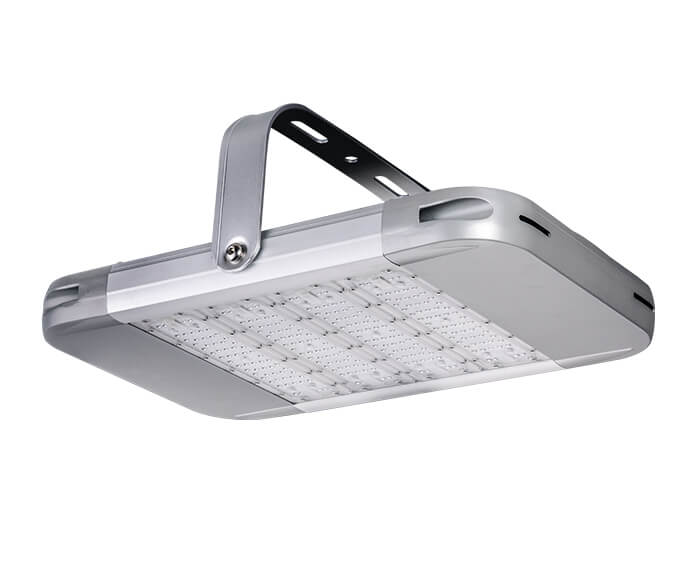

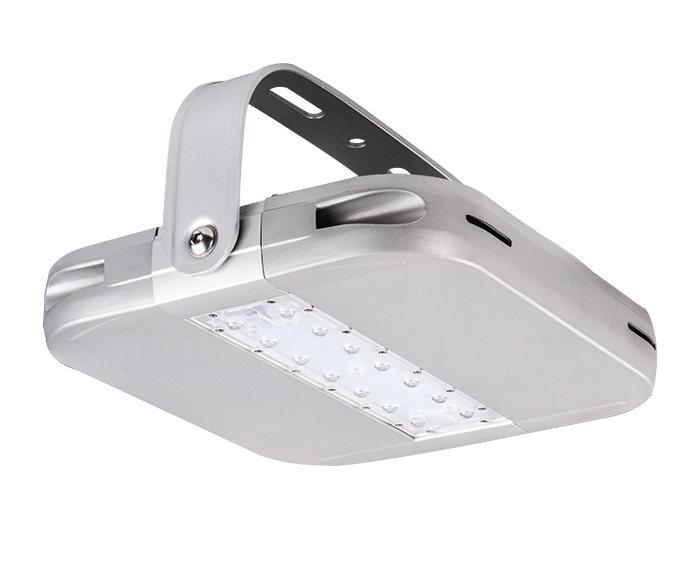

180w Modular design LED Warehouse Lighting

180w Modular design LED Warehouse Lighting, The most versatile and energy-efficient option for lighting your warehouse is LED light fixtures. They use less energy than any other light source and emit comparable or even better lumen outputs.

PRODUCT DESCRIPTION

Key Features

1. Wide power range: 40W~360W.

2. Special circuit design, single LED damage won't affect others' normal work.

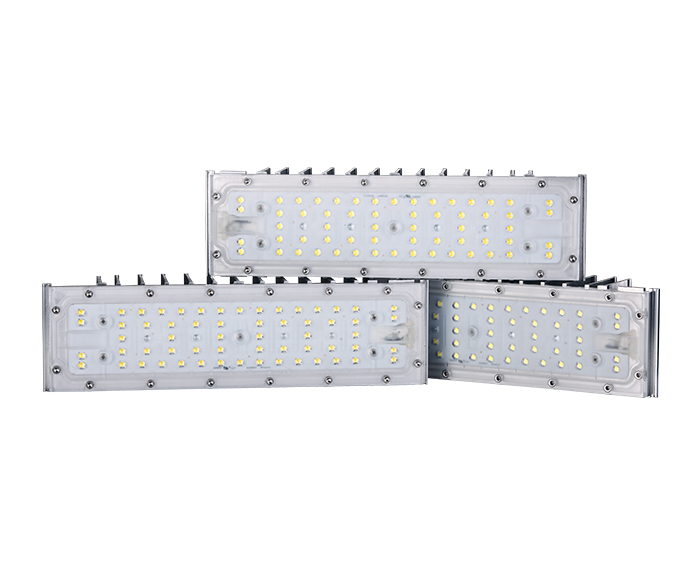

3. Modular design for easy installation, replacement, and maintenance.

4. High Lumen output up to 165lm/ w with high-quality LED chips.

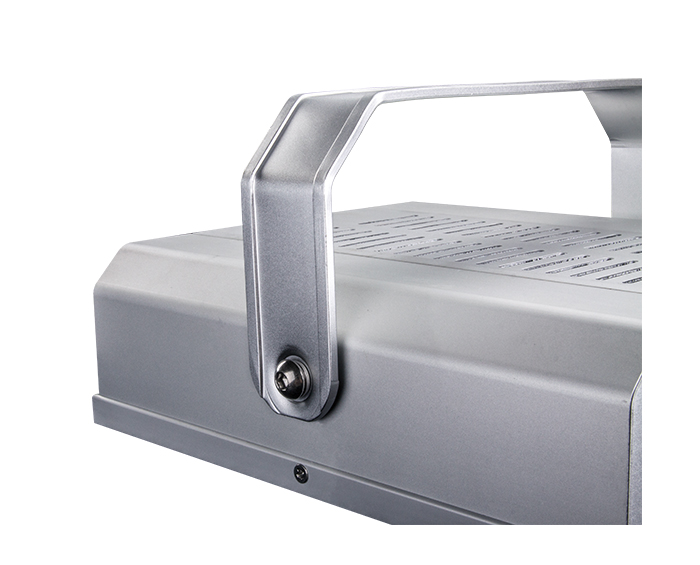

5. Various applications with different mounting Accessories.

6. Multiple lighting control options are available, e.g. DALI, 1-10V, motion sensor.

7. Designed to last at least 100, 000 hours at L70.

8. Multiple lighting distributions are available.


Specifications

ModelZGSM-GCD180H6B
LED BrandLumileds LUXEON 3030/5050
Driver BrandMeanwell HLG series
Normal Wattage180W
LED Module Quantity3 modules
Input Voltage100-240/277/347/480VAC
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency125-155 lm/w
Lamp Rated Lumen output22500-27900 lm (Lumen tolerance +/- 5%)
Color Rendering Index70 (80 is optional)
Color Temperature3000K, 4000K, 5000K, or 5700K
Photometric Type60,90,110 degrees
Optimal Operating Temperature25℃
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100,000 hours -L70, @25 ºC (77 ºF)
BodyStretching Aluminum
CoverPC lens
RatingIP66 IK10
Protection Class I ( Class II optional)
CertificationCE, ROHS, LM80
Dimming Options1-10V or DALI or PWM or Timer
Control OptionsMotion sensor or Smart control
Color OptionsSilver
Warranty7 years

FAQ

How many lights do I need for a warehouse?

Use 100 watts of High Bay lights and separate them every 8-14 feet (8 for high brightness and 14 for plenty). For example, 6x3 mode is 18 lights for basic lighting or 7x3 (or 6x4/8x3, depending on wiring) for 21-24 lights for medium brightness levels. 32 of 8x4 will be very high brightness.

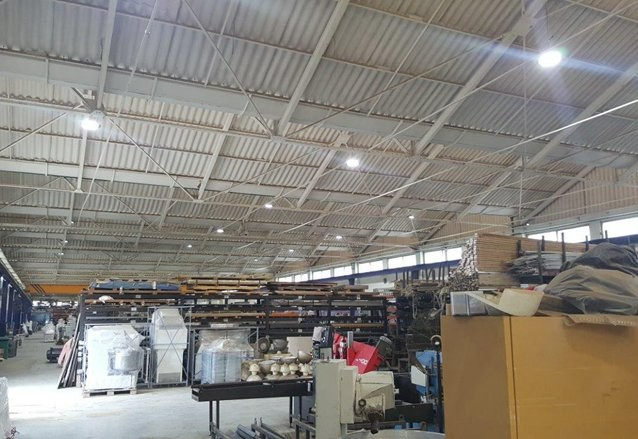

How do you light a warehouse?

Color temperature can have a huge impact on productivity and employee safety. Bright, clear white light between 4000K and 5000K is the optimal color temperature for the warehouse. If your lumen output is too hot, employees will be drowsy, less productive, and unable to see shelves and labels clearly.
