Modular Design LED High Bay Light

Home  /  Products / LED High Bay Light / Modular Design LED High Bay Light
  • 200w led warehouse lighting
  • 200w led warehouse lighting
  • 200w led warehouse lighting
  • 200w led warehouse lighting

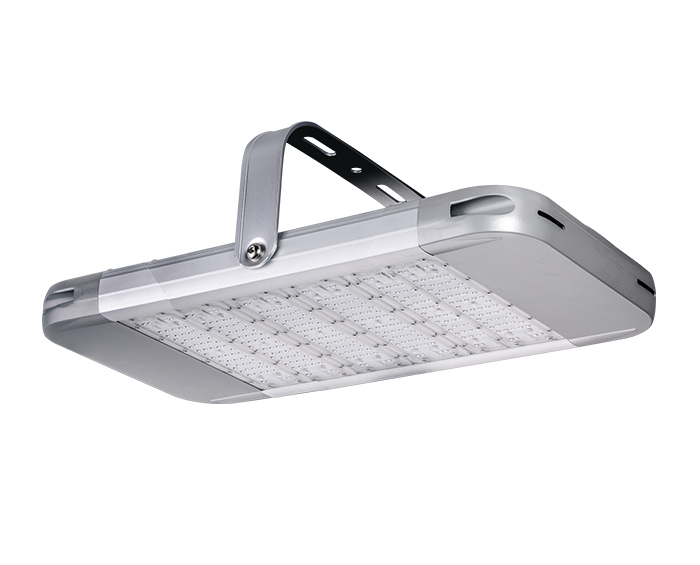

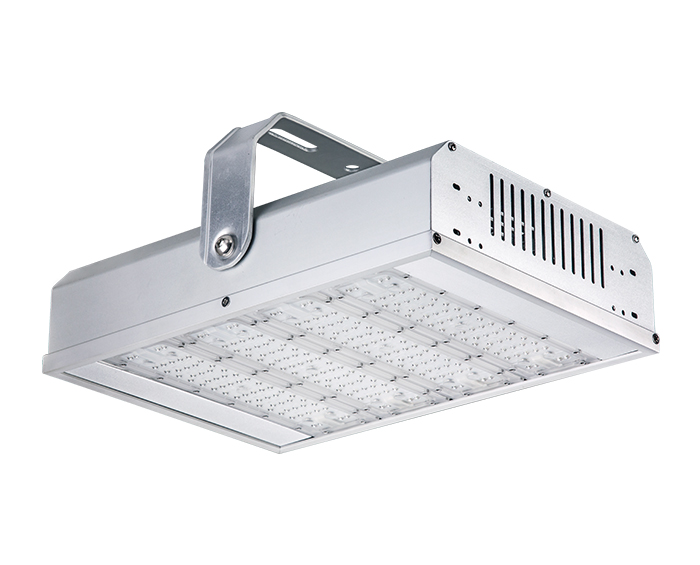

200w led warehouse lighting

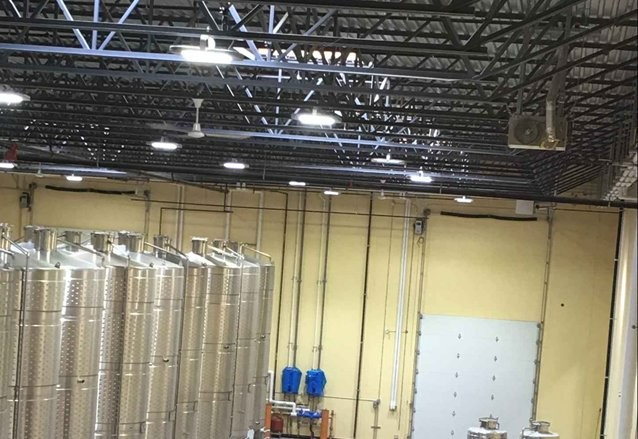

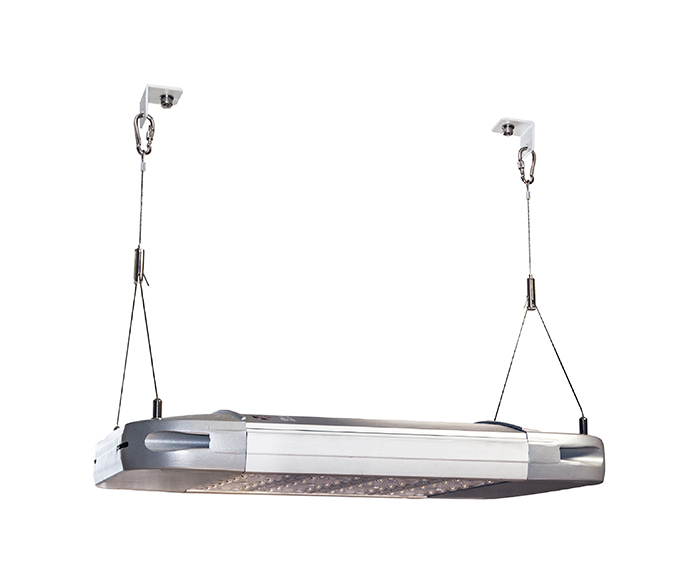

200w led warehouse lighting, There are suspended installation, bracket installation, and boom installation. The modular design facilitates your maintenance and saves you maintenance costs. Mainly used in warehouses, workshops, garages, billboards, areas, buildings, and Repair Workshop.

PRODUCT DESCRIPTION

Key Features

1. Wide power range: 40W~360W.

2. Special circuit design, single LED damage won't affect others' normal work.

3. Modular design for easy installation, replacement, and maintenance.

4. High Lumen output up to 165lm/ w with high-quality LED chips.

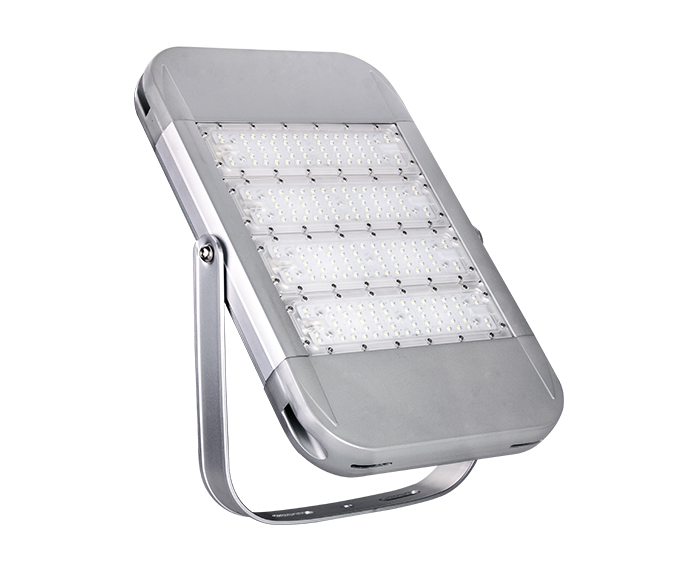

5. Various applications with different mounting Accessories.

6. Multiple lighting control options are available, e.g. DALI, 1-10V, motion sensor.

7. Designed to last at least 100, 000 hours at L70.

8. Multiple lighting distributions are available.


Specifications

ModelZGSM-GCD200H5
LED BrandLumileds LUXEON 3030/5050
Driver BrandMeanwell HLG series
Normal Wattage200W

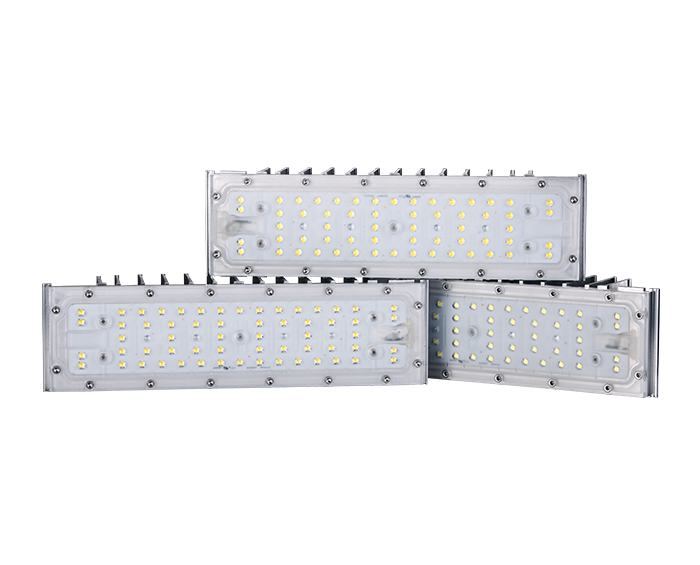

LED Module Quantity4 modules
Input Voltage100-240/277/347/480VAC
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency130-160 lm/w
Lamp Rated Lumen output26000-32000 lm (Lumen tolerance +/- 5%)
Color Rendering Index70 (80 is optional)
Color Temperature3000K, 4000K, 5000K or 5700K
Photometric Type60,90,110 degrees
Optimal Operating Temperature25℃
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100,000 hours -L70, @25 ºC (77 ºF)

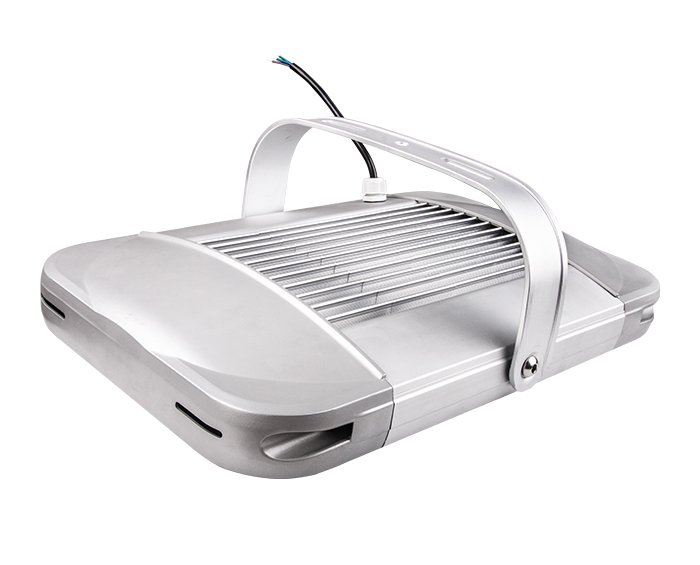

BodyDie-cast Aluminum Housing
CoverPC lens
RatingIP66 IK10
Protection Class I ( Class II optional)
CertificationCE, ROHS, LM80
Dimming Options1-10V or DALI or PWM or Timer
Control OptionsMotion sensor or Smart control
Color OptionsSilver
Warranty7 years


FAQ

How many lux is needed for the warehouse?

Large-scale lighting design

As for warehouses, 12464-1 stipulates that spaces for continuous use should be illuminated to 200 lux where little perceived detail is required. The ground level of the manned passage must be at least 150 lux.


Recommended light levels for different types of workspaces

ActivityIlluminance (lx, lumen/m2)
Dark common areas in the environment20 - 50
Simple positioning for short-term visits50 - 100
Areas with traffic and corridors, stairs, escalators, moving walkways, Elevators, Storage space100
A work area that performs visual tasks only occasionally100 - 150
Warehouses, residences, theaters, archives, loading and unloading areas150
Coffee lounge, technical facilities, ball mill area, pulp mill, waiting room200
Easy office work250
Classroom300
General office work, computer work, study library, grocery store, showroom, laboratory, checkout area, kitchen, auditorium500
Supermarket, mechanical workshop, office landscape750
Normal drawing work, detailed mechanical workshop, operating room1000
Detailed drawing work, very detailed mechanical work, electronic workshop, testing and adjustment1500 - 2000
