LED High Bay Light Project In Croatia

The shipyard workshop lighting project in Croatia was finished in 2014. To replace old 400W HPS lamps, we recommended modular designed 160W HB series LED High Bay Lights. This solution not only help to make the shipyard brighter, but also save energy by more than 60%. The brighter lighting environment makes it safer for these employees to work in it. We chose 5000K for these LED high bay lights, because it's also called daylight white. It's similar with the color of daylight, which could make eyes of workers more confirtable to see during working.


Product Details

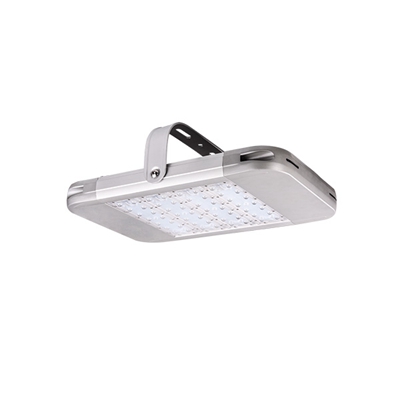

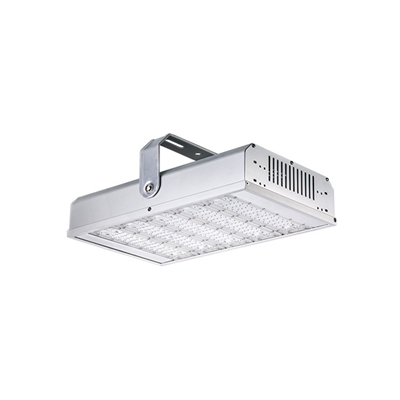

Product: 160W LED High Bay Light,

Model No.: ZGSM-GCD160HB,

LED: Lumileds TX

Driver: Meanwell

CCT: 4000K

Optics: 90 degrees & 110 degrees

QTY: 122 Units


Video

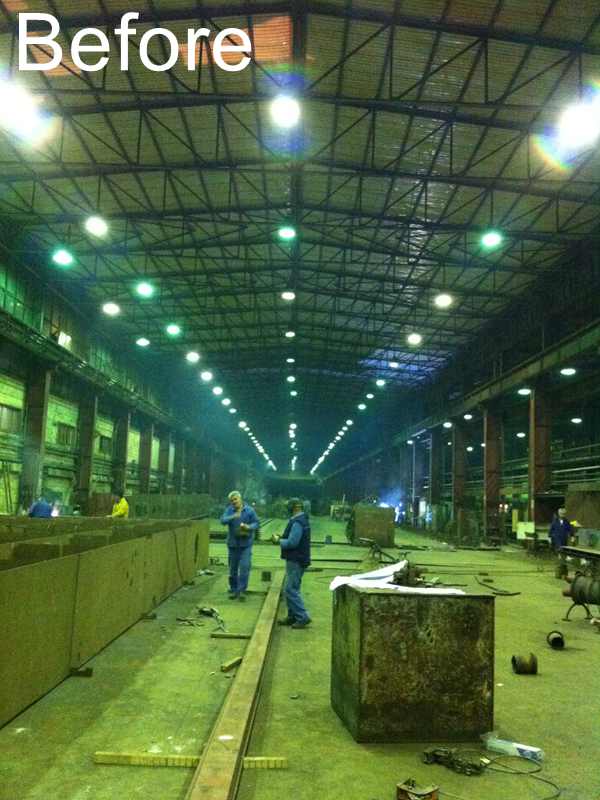

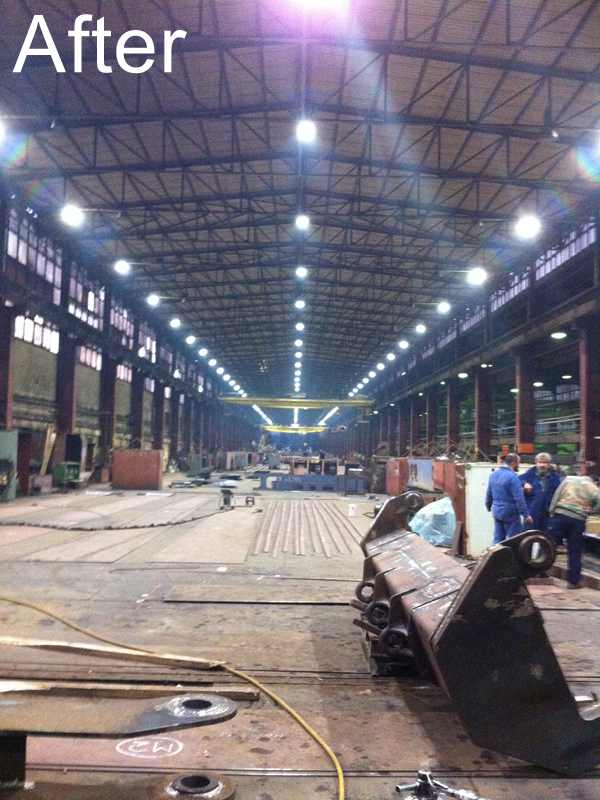

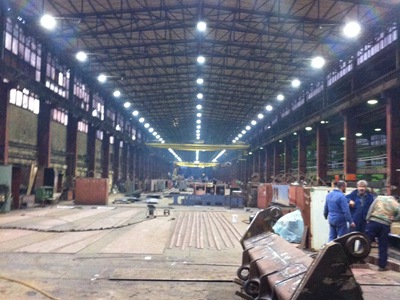

Project Photos


LED High Bay Light Project In CroatiaLED High Bay Light Project In Croatia


Specification


ModelZGSM-GCD160HB
LED BrandLumileds LUXEON® TX
Driver BrandMeanwell HLG series
Normal Wattage160W
LED Module Quantity4 modules
Input Voltage100-240/277/347/480VAC
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency>110 lm/w
Lamp Rated Lumen output17,600 lm (Lumen tolerance +/- 5%)
Color Rendering IndexRa>70
Color Temperature3000K, 4000K, 5000K, or 5700K
Photometric Type60, 90, 110 degrees
Optimal Operating Temperature25℃
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100,000 hours -L70, @25 ºC (77 ºF)
BodyStretching Aluminum
CoverPC lens
RatingIP66 IK10
Protection Class I ( Class II optional)
CertificationCE, ROHS, GS, CB, UL, cUL, DLC, LM-79
Dimming Options1-10V or DALI or PWM or Timer
Control OptionsMotion sensor or Smart control
Color OptionsSilver
Warranty7 years


Download


Installation Manual_HighBay&FloodLight&TunnelLight_HB.pdf

Data Sheet_HighBay&Flood&TunnelLight_HB.pdf


Related Products


LED High Bay Light Project In CroatiaLED High Bay Light Project In CroatiaLED High Bay Light Project In Croatia
120W LED Bay Lights

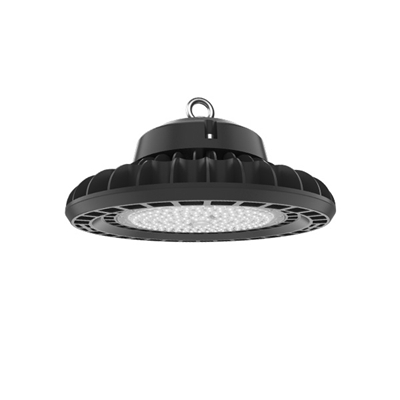

300W LED Bay Lights100W UFO LED High Bay Lights
LED High Bay Light Project In CroatiaLED High Bay Light Project In CroatiaLED High Bay Light Project In Croatia

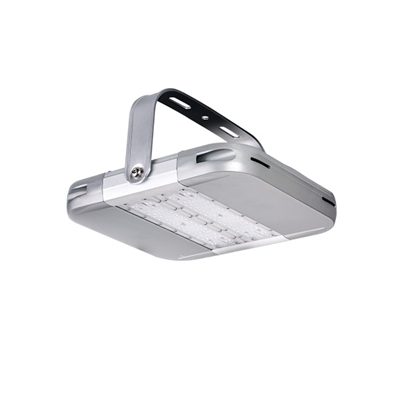

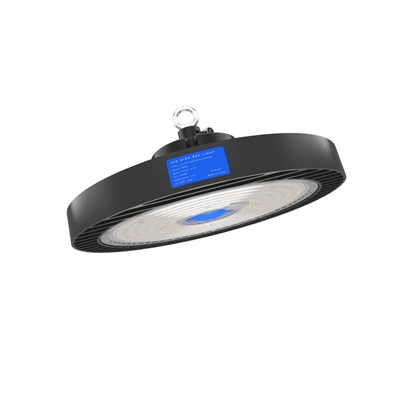

100W Modular Design Low Bay LightingIP66 IK10 160w UL High Bay Light150 Watt UFO High Bay LED Light


Related Projects


LED High Bay Light Project In CroatiaLED High Bay Light Project In CroatiaLED High Bay Light Project In Croatia

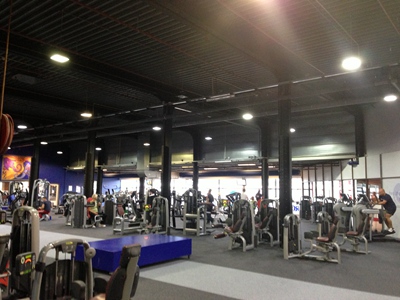

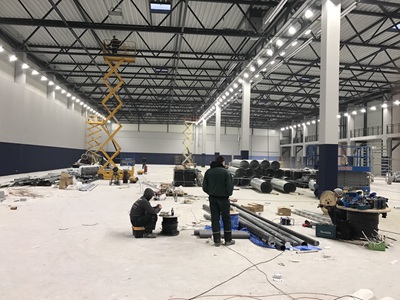

LED High Bay Light Project in Hungary

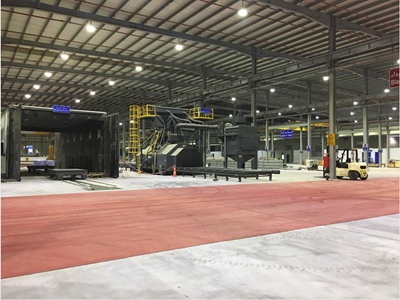

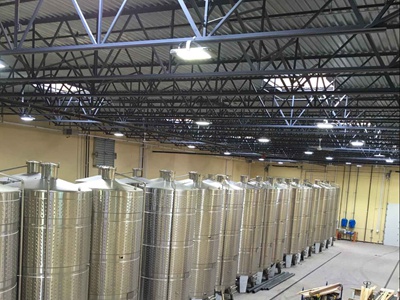

LED High Bay Light Project in UAELED High Bay Light Project in Bulgaria
LED High Bay Light Project In CroatiaLED High Bay Light Project In CroatiaLED High Bay Light Project In Croatia

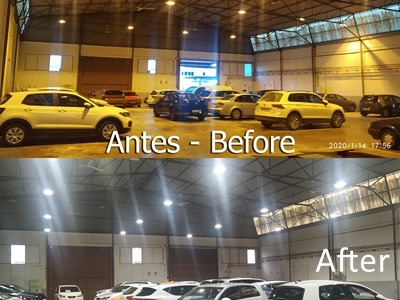

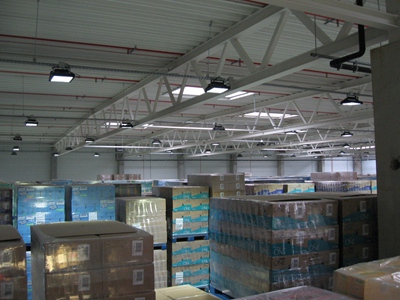

LED High Bay Light Project in France
LED High Bay Light Project in NetherlandsLED High Bay Light Project in Canada


Related Blogs


LED High Bay Light Project In CroatiaLED High Bay Light Project In CroatiaLED High Bay Light Project In Croatia
Why Does High Bay Light Use LED?Guide to Buy Led High Bay LightThe Installation Distance Of LED High Bay Light
LED High Bay Light Project In CroatiaLED High Bay Light Project In CroatiaLED High Bay Light Project In Croatia

Interpret The Precautions For The Use

Of LED High Bay Light In The Workshop

What Is a High Bay Light

and What Is Its Purpose?

How To Prevent LED High Bay Light From

Being Damaged By Lightning?


People Also Ask


  1. Does turning LED lights on and off shorten their life?

    Turning an LED Bay Light on and off has no impact on its lifespan. While the more frequently a fluorescent light is turned on and off, the shorter its lifespan becomes. LED lifetime is unaffected. That's one of the reasons why the whole world are replacing fluorescent lights by LED lights.


  2. How do you replace metal halide with LED?

    Depending on how the existing lighting configuration is configured, there are a variety of approaches to retrofit lighting systems with LEDs. In many circumstances, replacing the existing fixture with a new LED fixture that produces a comparable lumen output is the simplest and most basic solution.

    In other cases, reconfiguring a complete lighting system plan to effectively update to LED technology may be necessary. There are a few cases when an LED retrofit kit can be used to update an existing fixture, but this requires some electrical knowledge to execute successfully.


  3. How far apart should high bay lights be installed?

    For bright light, a spacing of 15 feet can be utilized at a height of 20 feet, and for average light, an 18-foot spacing should be used. You can go for a 20-foot spacing between the lights at 30 feet height to get a brighter light. For regular lighting, however, a 25-foot separation is sufficient.
