LED High Bay Light

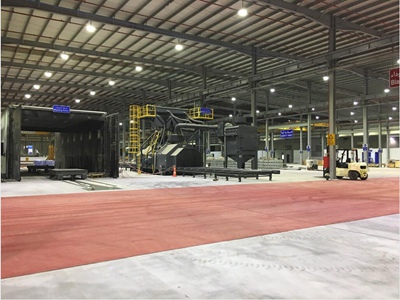

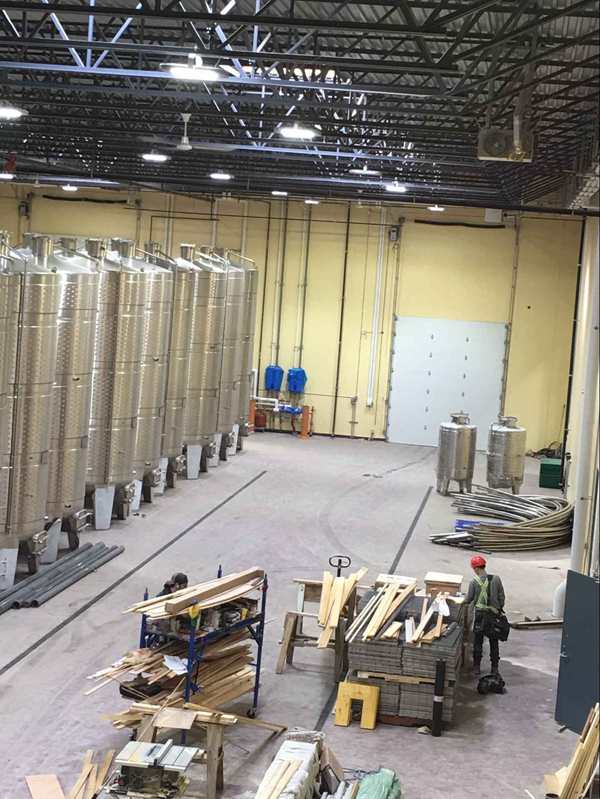

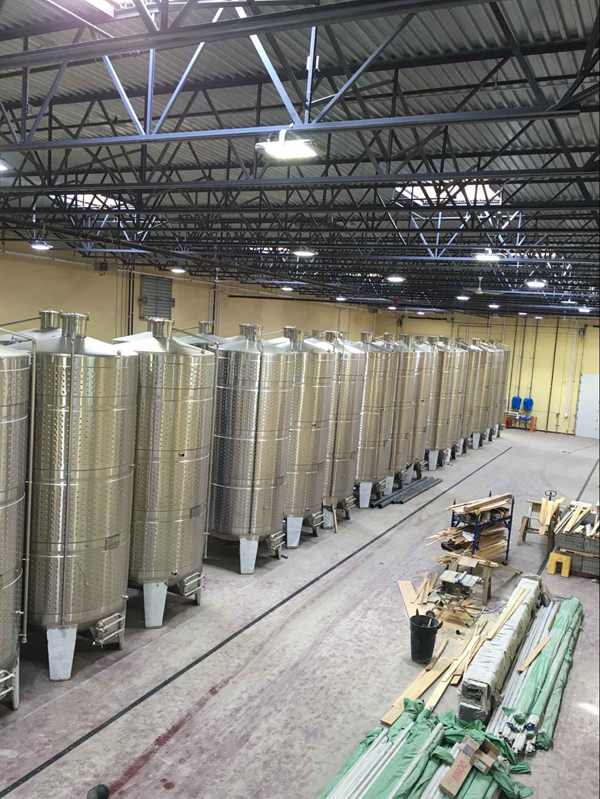

LED high bay lighting project in Canada, finished in 2016. We recommended 200W H series LED high bay light to replace 500W old HPS lamps. H Series high bay LED lights are designed and manufactured by ZGSM. It has a high luminous efficacy of more than 140lm/W, which could help to save more than 60% energy after replacing old lamps. What's more, H series high bay lights have passed UL and DLC. It could be sold and applied in the USA and Canada with confidence.

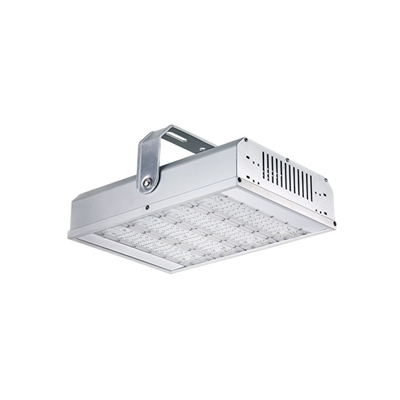

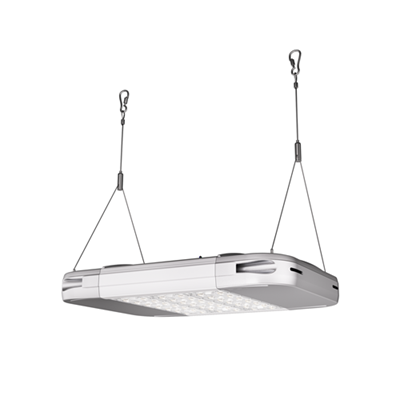

200w LED High Bay Light, Model: ZGSM-GCD200H, 5700K, 90degrees, 43pcs in total
| Model | ZGSM-GCD200H |
| LED Brand | Lumileds LUXEON® TX |
| Driver Brand | Meanwell HLG series |
| Norminal Wattage | 200W |
| LED Module Quantity | 5 modules |
| Input Voltage | 100-240/277/347/480VAC |
| Power Efficiency | >90% |
| Power Factor | >0.95 |
| Lamp Rated Luminous Efficiency | >110 lm/w |
| Lamp Rated Lumen output | 22000 lm (Lumen tolerance +/- 5%) |
| Color Rendering Index | Ra>70 |
| Color Temperature | 3000K, 4000K, 5000K or 5700K |
| Photometric Type | 60,90,110 degrees |
| Optimal Operating Temperature | 25℃ |
| Storage Temperatures | -40°C~50°C |
| Working Environment | Between-40°C~+50°C, 10%~90%RH |
| Total Harmonic Distortion | < 10% |
| Lumen Maintenance | > 100,000 hours -L70, @25 ºC (77 ºF) |
| Body | Die-cast aluminum Housing |
| Cover | PC lens |
| Rating | IP66 IK10 |
| Protection | Class I ( Class II optional) |
| Certification | CE,ROHS,GS,CB,UL,cUL,DLC,LM-79 |
| Dimming Options | 1-10V or DALI or PWM or Timer |
| Control Options | Motion sensor or Smart control |
| Color Options | Silver |
| Warranty | 7 years |
Installation Manual_HighBay&FloodLight_H.pdf
Data Sheet_HighBay&FloodLight_H.pdf
1. What is LED high bay light?
High bay LED lights are designed for higher ceilings, usually 20 to 45 feet, and provide adequate light intensity to be diffused across wide areas or concentrated on specific locations.
2. How many pcs LED high bay lights do we need?
It depends on the application places and your requirements. Pls kindly contact us and inform us of more details, such as type and size of application place, average lux. We will provide you with the best solution with suitable quantity and wattage.
3. Can we apply LED High Bay Lights to the garage?
Yes, our H Series LED High Bay Light could be used for both indoor lighting and outdoor lighting. IP66 waterproof design makes it no need to worry about the rain. PC lenses of different beam angles could meet the lighting requirements of different lighting areas.
