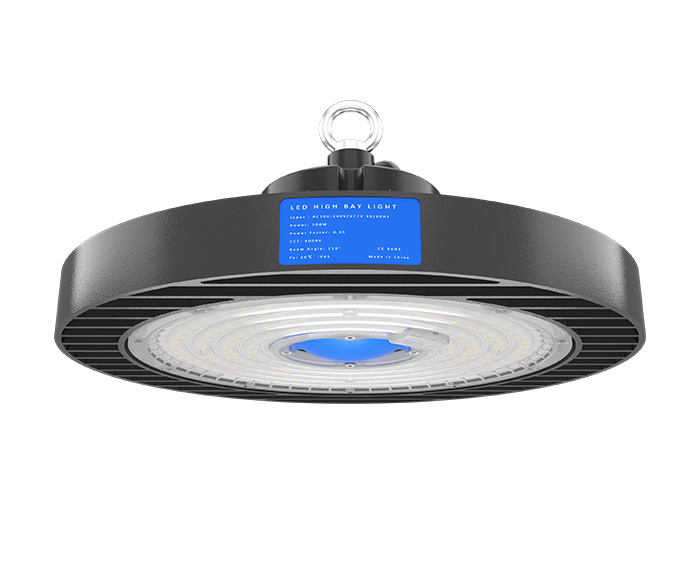

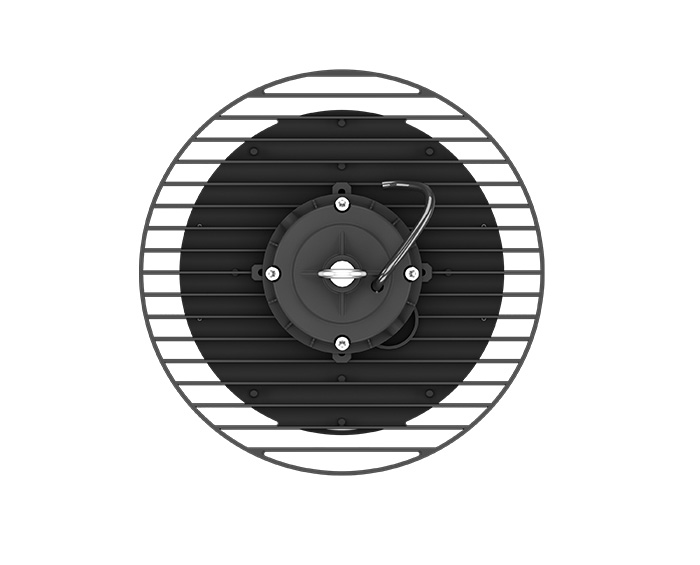

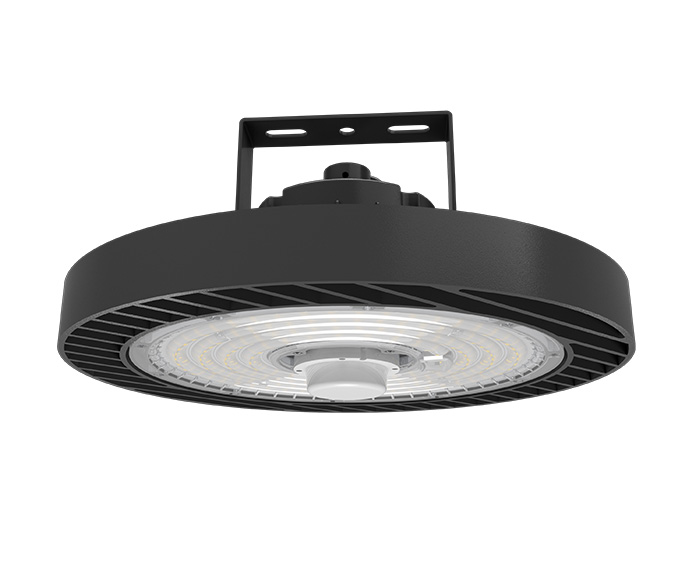

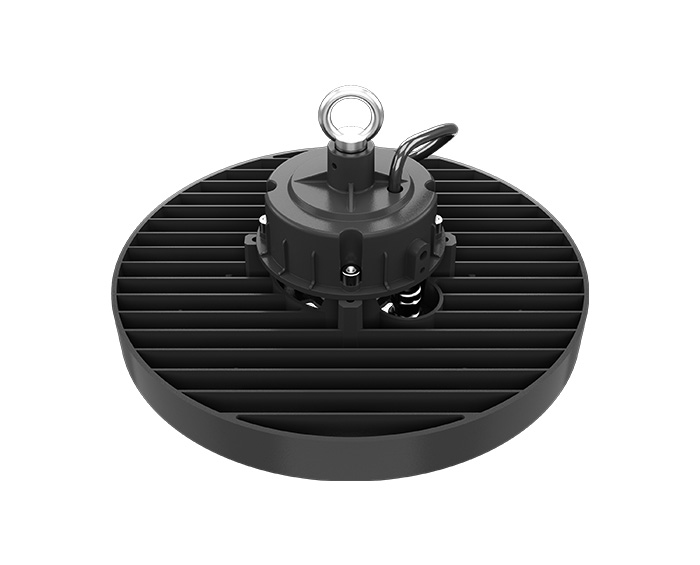

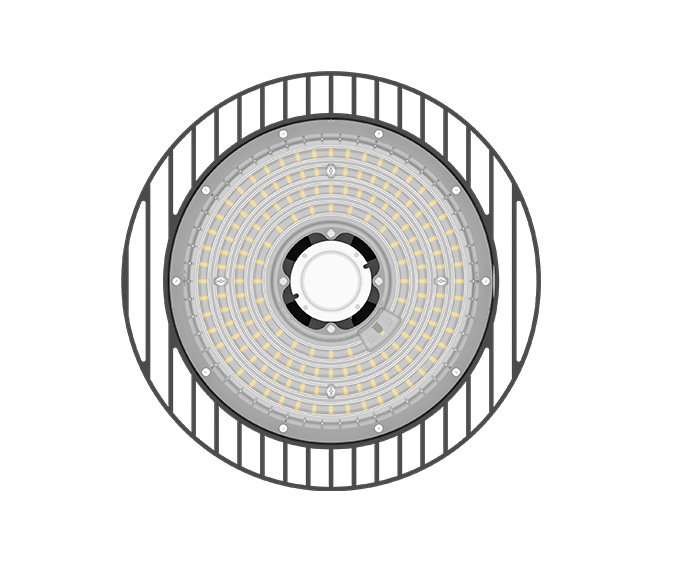

190LM/W High Bay Light
1. Wide power range: 100W~200W
2. Luminaire efficacy: Up to 190 lm /w
3.70% energy saving, short ROI period
4.Up to 50, 000hrs @ L70, low maintenance cost
5. Durability, suitable for dry and wet applications
6. Versatile in mounting with wall-mounted, loop hanging, steel chain hanging
7.RoHS compliant, environmentally friendly, no mercury or lead, 100% recyclable
8.5 years warranty
9. Multiple lighting distributions available
10.CE/ RoHS/ IK08/IP66
Model | ZGSM-HB09-200M |
LED Brand | LUMILEDS 3030 or 2835 |
Driver Brand | MOSO Driver |
Normal Wattage | 200W |
Input Voltage | 100-240/277VAC |
Power Efficiency | >90% |
Power Factor | >0.95 |
Lamp Rated Luminous Efficiency | 145-190lm/w |
Lamp Rated Lumen output | 29000-38000 lm (Lumen tolerance +/- 5%) |
Color Rendering Index | 70 (80 is optional) |
Color Temperature | 4000K or 5000K |
Photometric Type | 60,90 or 110 degrees |
Optimal Operating Temperature | 25℃ |
Storage Temperatures | -40°C~50°C |
Working Environment | Between-40°C~+50°C, 10%~90%RH |
Total Harmonic Distortion | < 10% |
Lumen Maintenance | > 100,000 hours -L70, @25 ºC (77 ºF) |
Body | Die casting aluminum |
Cover | PC LENS |
Rating | IP65, IK10 |
Protection | Class I |
Certification | CE, ROHS, LM80 |
Dimming Options | Non-Dimming (Default) /0-10V /Zigbee Wireless Dimming |
Control Options | PIR /MOTION sensor |
Color Options | Black |
Warranty | 5 years |
LED high bay lights are superior to HID lamps for a number of reasons, such as high-pressure sodium lamps and metal halide lamps. These benefits are: LED lights are a more efficient choice for industrial lighting. LEDs use half the energy of an HID bulb to provide the same amount of light.
UFO LED Miner Lamp is a UFO disc-shaped LED luminaire system with a flat monolithic aluminum housing and specially configured optics to optimize light distribution in a given area without relying on bulky reflectors.
Warehouses typically use one of two types of lamps: linear fluorescent lamps or metal halide lamps. Although fluorescent lamps and metal halides are improved over incandescent bulbs, they still have issues such as disposal hazards, short lifespan, and low luminous efficiency when directly compared to LEDs.
