Tool-less LED Street Light

Home  /  Products / LED Street Light / Tool-less LED Street Light
  • Motion Sensor Street Light 120W
  • Motion Sensor Street Light 120W
  • Motion Sensor Street Light 120W
  • Motion Sensor Street Light 120W
  • Motion Sensor Street Light 120W

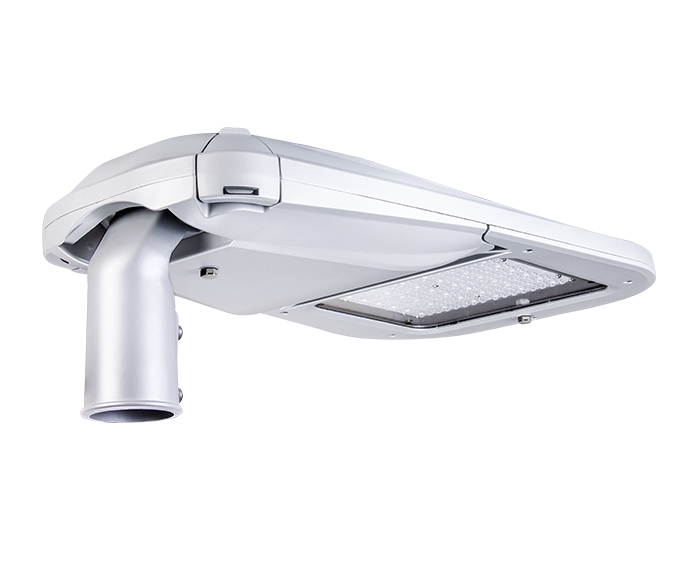

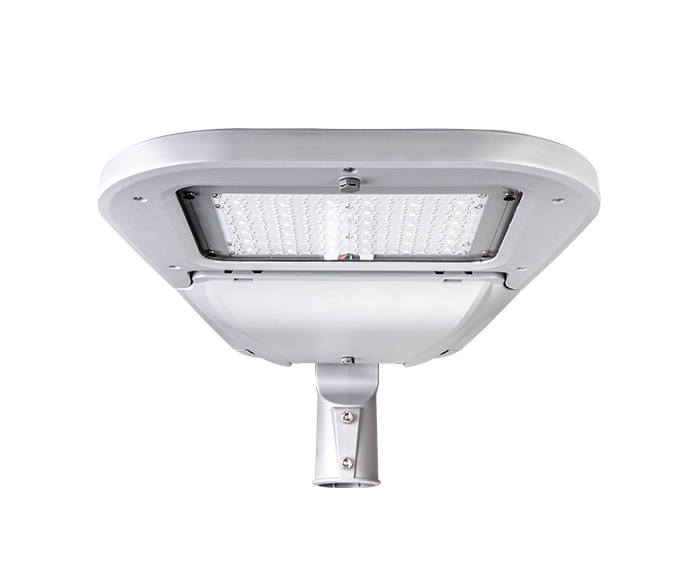

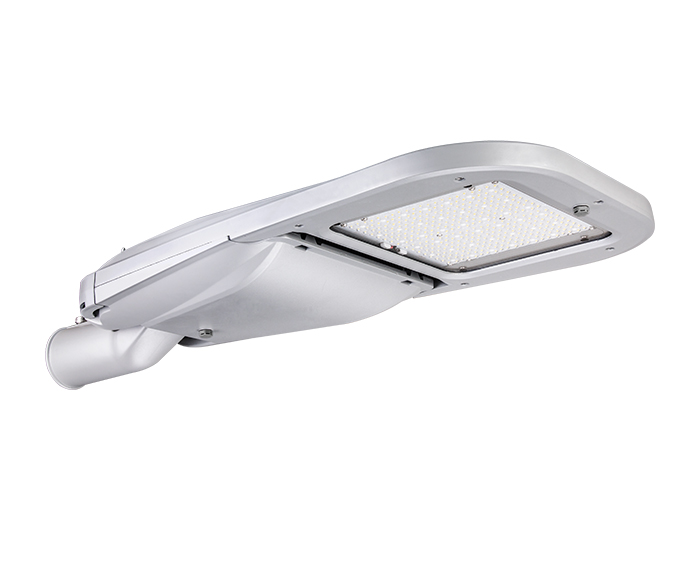

Motion Sensor Street Light 120W

Motion Sensor Street Light features a modern exterior design, it offers a variety of lighting control options such as DALI, 1-10V, photocells, and motion sensors. Implement a smart motion sensor street lighting control system that automatically activates when a car or pedestrian is found in the area. Save management costs for you and achieve green lighting.

PRODUCT DESCRIPTION

Key Features

1. Wide power range: 25W~200W.

2. Special circuit design, single LED damage won't affect others' normal work.

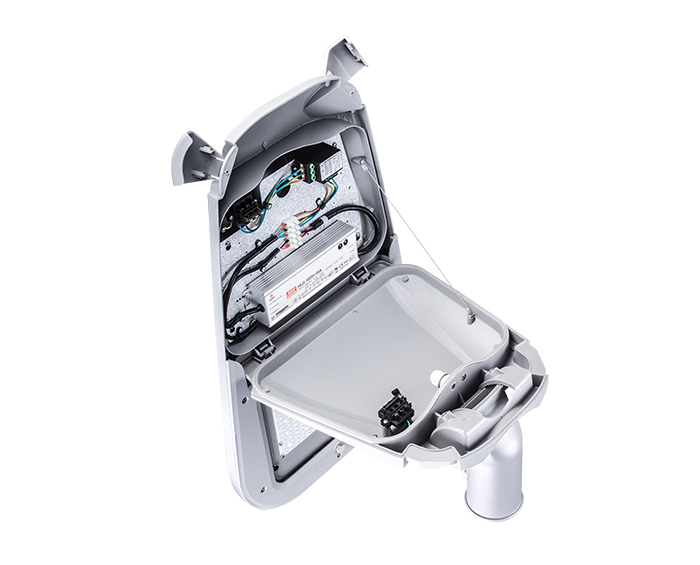

3. Tool-less open for easy installation, replacement, and maintenance.

4. Power-off protection makes the power automatically off when the fixture is opened.

5. Smooth body would greatly diminish dust accumulation and bird droppings heap up.

6. Level bubble makes it easy for the installer to adjust the position of the lamp.

7. High Lumen output up to 150lm/ w with high-quality LED chips.

8. Pass the 1000-hour salt spray test.

9. Vertical and horizontal installation are both available, adjustable by ±15° in both directions.

10. Multiple lighting control options are available, e.g. DALI, 1-10V, photocell, and motion sensor.

11. Designed to last at least 100, 000 hours at L70.

12. Multiple lighting distributions are available.

13.ENEC/ CB/ CE/ RoHS/ IK08 /IP66 /LM79

14. 7 years limited warranty available.


Specifications

ModelZGSM-LD120KL
LED BrandLUMILEDS® LUXEON 3030 or 5050
Driver BrandMeanwell HLG series/ Inventronics/ Inventronics
Normal Wattage120W
LED Chip Quantity3030: 192pcs 5050: 96pcs
Input Voltage100-240/277VAC
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency130-150 lm /w
Lamp Rated Lumen output15600-18000 lm (Lumen tolerance +/- 5%)
Color Rendering Index70(80 optional)
Color Temperature3000K or 4000K or 5000K or 5700K
Photometric TypeType I Medium; Type II Medium; Type III Medium
Optimal Operating Temperature25℃
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100,000 hours -L70, @25 ºC (77 ºF)
Wind IndexForce 12
Body and Shell MaterialsDie-cast aluminum;Tempered Glass
Pole Fitter Diameter60mm ( 50mm optional)
RatingIP66 IK08
Protection Class I ( Class II optional)
SPD10KV (20KV optional)
CertificationCE, ENEC,CB,ROHS,LM-80,LM79,ISTMT,IP66,IK08
Dimming Options1-10V or DALI or PWM or Timer
Control OptionsPhotocell or Motion sensor or Smart control
Color OptionsDeep grey or Light grey
Warranty7 years


FAQ

How do street light sensors work?

Active infrared sensors emit low-intensity infrared energy to specific areas to detect vehicles. When this energy is interrupted by the presence of the vehicle, the sensor sends a pulse to the traffic light to change the light.


What is a smart street light?

Smart street lights are public lighting fixtures that combine technologies such as cameras, photosensitive photocells, and other sensors to introduce real-time monitoring capabilities.


What are the advantages of smart street lights?

Smart street lights contribute to more livable cities by helping to improve safety and reduce congestion. Reduce energy costs. Smart street lights manage electricity more efficiently than simple LED luminaires, resulting in even more cost savings. Increase revenue opportunities.


Do motion sensor lights need to be switched on and off?

Since motion detector lights are created without requiring you to toggle the switch to turn on, you don't have to have a motion detector light without having a switch. However, having a switch connected to your lamp can extend the functionality of your lamp.
