Tool-less LED Street Light

Home  /  Products / LED Street Light / Tool-less LED Street Light
  • Full die cast housing 90w Tool-less Street Light Housing
  • Full die cast housing 90w Tool-less Street Light Housing
  • Full die cast housing 90w Tool-less Street Light Housing
  • Full die cast housing 90w Tool-less Street Light Housing
  • Full die cast housing 90w Tool-less Street Light Housing

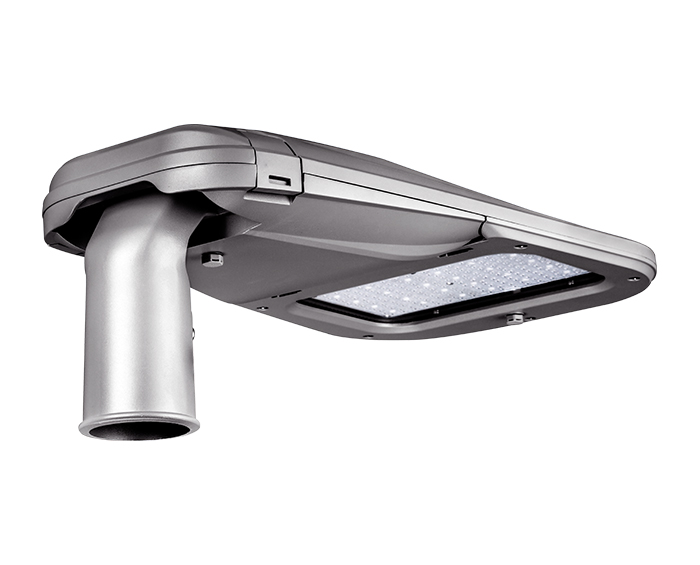

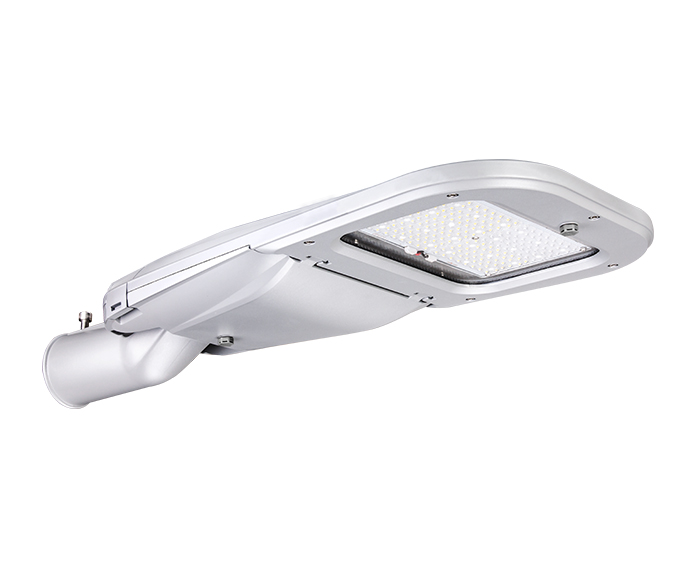

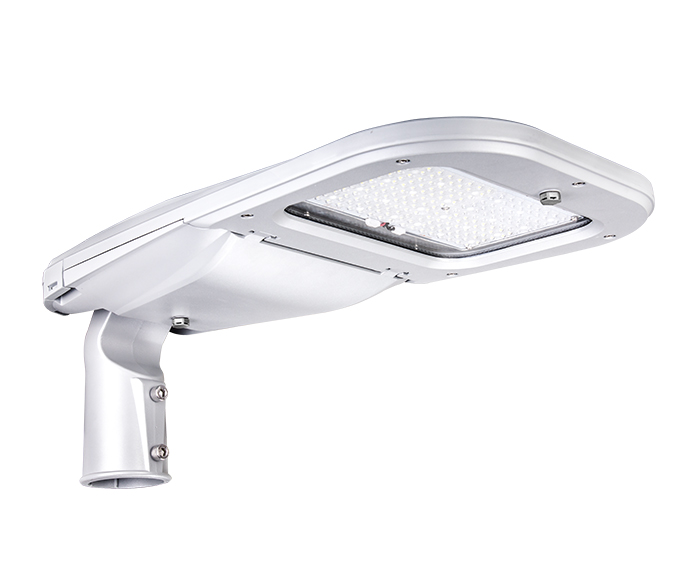

Full die cast housing 90w Tool-less Street Light Housing

Aluminum die casting has proven to be an ideal method for making various parts of street light housing with a variety of materials. Die casting operations guarantee dimensional accuracy, the finished product requires little or no machining, and the many properties of aluminum make it an excellent metal for designing die castings.

PRODUCT DESCRIPTION

Key Features

1. Wide power range: 25W~200W.

2. Special circuit design, single LED damage won't affect others' normal work.

3. Tool-less open for easy installation, replacement, and maintenance.

4. Power-off protection makes the power automatically off when the fixture is opened.

5. Smooth body would greatly diminish dust accumulation and bird droppings heap up.

6. Level bubble makes it easy for the installer to adjust the position of the lamp.

7. High Lumen output up to 150lm/ w with high-quality LED chips.

8. Pass the 1000-hour salt spray test.

9. Vertical and horizontal installation are both available, adjustable by ±15° in both directions.

10. Multiple lighting control options are available, e.g. DALI, 1-10V, photocell, and motion sensor.

11. Designed to last at least 100, 000 hours at L70.

12. Multiple lighting distributions are available.

13. ENEC/ CB/ CE/ RoHS/ IK08 /IP66 /LM79

14. 7 years limited warranty available.


Specifications

ModelZGSM-LD90KM
LED BrandLUMILEDS® LUXEON 3030 or 5050
Driver BrandMeanwell HLG series/ Inventronics
Normal Wattage90W
LED Chip Quantity3030: 144pcs 5050: 72pcs
Input Voltage100-240/277VAC
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency130-150 lm /w
Lamp Rated Lumen output11700-13500 lm (Lumen tolerance +/- 5%)
Color Rendering Index70(80 optional)
Color Temperature3000K, 4000K, 5000K, or 5700K
Photometric TypeType I Medium; Type II Medium; Type III Medium
Optimal Operating Temperature25℃
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100,000 hours -L70, @25 ºC (77 ºF)
Wind IndexForce 12
Body and Shell MaterialsDie-cast aluminum; Tempered Glass
Pole Fitter Diameter60mm ( 50mm optional)
RatingIP66 IK08
Protection Class I ( Class II optional)
SPD10KV (20KV optional)
CertificationCE, ENEC, CB, ROHS, LM80, LM79, IP66, IK08, ISTMT
Dimming Options1-10V or DALI or PWM or Timer
Control OptionsPhotocell or Motion sensor or Smart control
Color OptionsDeep grey or Light grey
Warranty7 years


FAQ

What is a die-cast light?

Lighting die casting produces non-toxic and lightweight aluminum lamps. They are also non-corrosive and ideal for outdoor use. Die-cast aluminum, which imitates cast iron, is particularly sought after by street or outdoor lights, but they can also be made into exquisite chandeliers and wall lamps.


What's the difference between die and cast?

The biggest and most obvious difference between the mold and the sand casting process is the material used to form the mold. Die casting uses metal molds, while sand casting uses molds made of sand.


Why is it called die casting?

Due to the use of molds, the process is called die casting. Molds are steel molds that are mainly manufactured by CNC machining, into which you can inject liquid metal. It has two halves: a fixed half, fixed to a continuous caster, and a movable ejector half.


Why is aluminum used in die casting?

Advantages of aluminum die castings

Aluminum can also withstand the highest operating temperatures of all die-cast alloys. In addition, cast aluminum is versatile and corrosion-resistant; it maintains high dimensional stability through thin walls and can be used in almost any industry.
