Tool-less LED Street Light

Home  /  Products / LED Street Light / Tool-less LED Street Light
  • Full Die Cast Housing 60w LED Street Light
  • Full Die Cast Housing 60w LED Street Light
  • Full Die Cast Housing 60w LED Street Light
  • Full Die Cast Housing 60w LED Street Light
  • Full Die Cast Housing 60w LED Street Light

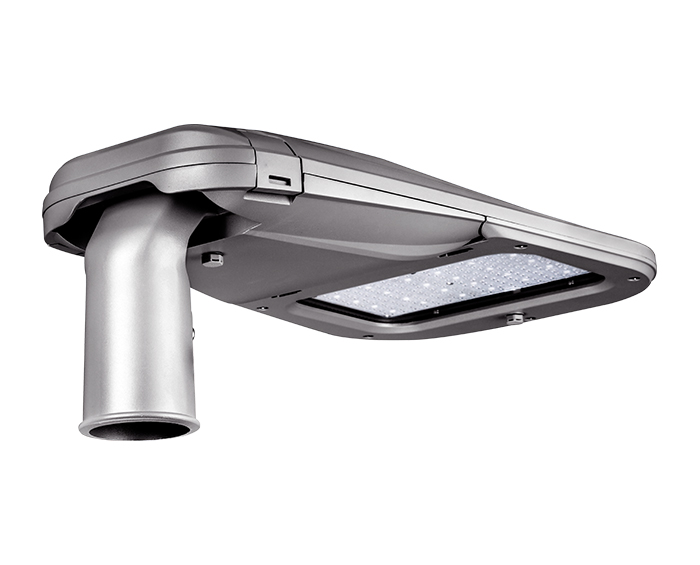

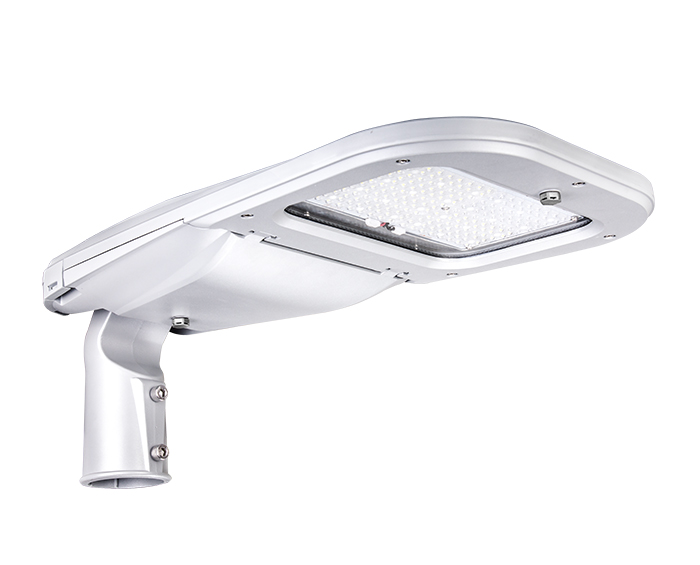

Full Die Cast Housing 60w LED Street Light

Full die-cast Housing 60w LED Street Light is designed for residential and local streets, main roads, intersections, crosswalks, alleys, and sidewalks. The tool-less opening design facilitates installation and maintenance, Vertical and horizontal installation are both available and adjustable by ±15° in both directions, which makes LED street lights could illuminate the right area when installation.

PRODUCT VIDEO

PRODUCT DESCRIPTION

Key Features

1. Wide power range: 25W~200W.

2. Special circuit design, single LED damage won't affect others' normal work.

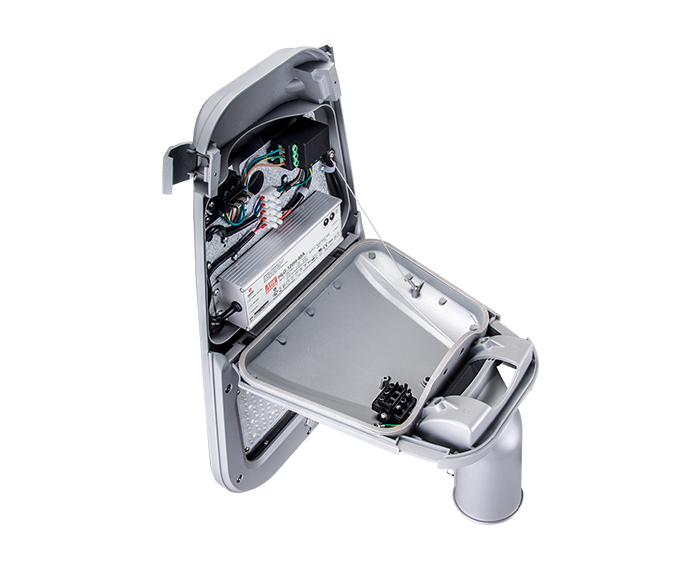

3. Tool-less open for easy installation, replacement, and maintenance.

4. Power-off protection makes the power automatically off when the fixture is opened.

5. Smooth body would greatly diminish dust accumulation and bird droppings heap up.

6. Level bubble makes it easy for the installer to adjust the position of the lamp.

7. High Lumen output up to 150lm/ w with high-quality LED chips.

8. Pass the 1000-hour salt spray test.

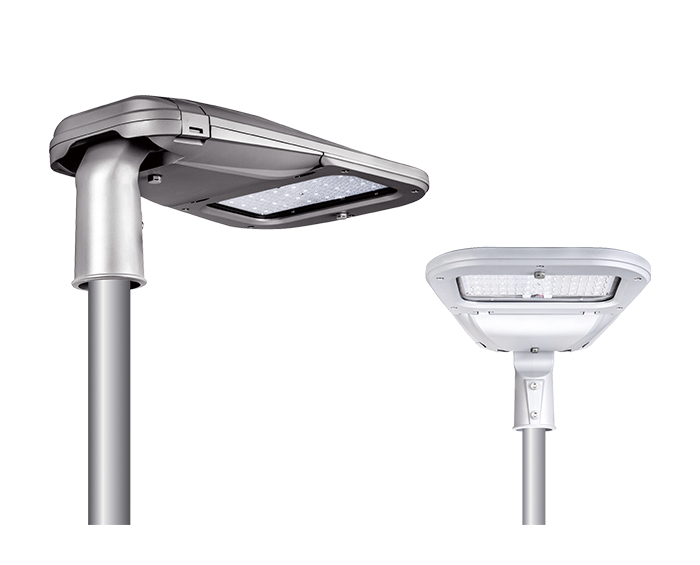

9. Vertical and horizontal installation are both available, adjustable by ±15° in both directions.

10. Multiple lighting control options are available, e.g. DALI, 1-10V, photocell, and motion sensor.

11. Designed to last at least 100, 000 hours at L70.

12. Multiple lighting distributions are available.

13. ENEC/ CB/ CE/ RoHS/ IK08 /IP66 /LM79

14. 7 years limited warranty available.


Specifications

ModelZGSM-LD60KM
LED BrandLUMILEDS® LUXEON 3030 or 5050
Driver BrandMeanwell HLG series/ Inventronics
Normal Wattage60W
LED Chip Quantity3030: 96pcs 5050: 48pcs
Input Voltage100-240/277VAC
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency130-150 lm /w
Lamp Rated Lumen output7800-9000 lm (Lumen tolerance +/- 5%)
Color Rendering Index70(80 optional)
Color Temperature3000K or 4000K or 5000K or 5700K
Photometric TypeType I Medium; Type II Medium; Type III Medium
Optimal Operating Temperature25℃
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100,000 hours -L70, @25 ºC (77 ºF)
Wind IndexForce 12
Body and Shell MaterialsDie-cast aluminum; Tempered Glass
Pole Fitter Diameter60mm ( 50mm optional)
RatingIP66 IK08
Protection Class I ( Class II optional)
SPD10KV (20KV optional)
CertificationCE, ENEC,CB,ROHS,LM-80,LM79,ISTMT,IP66,IK08
Dimming Options1-10V or DALI or PWM or Timer
Control OptionsPhotocell or Motion sensor or Smart control
Color OptionsDeep grey or Light grey
Warranty7 years

FAQ

1. Why is aluminum used in die casting?

Aluminum die-cast alloys are lightweight and have high dimensional stability for complex part geometries and thin walls. Aluminum has good corrosion resistance and mechanical properties as well as high thermal and electrical conductivity, making it a good alloy for die casting.


2. How to choose a street lamp?

Consumers should not buy products based on the energy consumed (watts) but should consider how much light (lumens) they provide us with. Wattage is a measure of a light bulb's energy consumption, not the amount of light it emits. Energy-saving bulbs use fewer watts to emit the same brightness (lumens).

ZGSM has a pre-sales team including sales and lighting experts. If you don't know how to choose LED lighting products, welcome to contact us for professional advice.


3. Is there an industry standard for street lighting?

For the design, manufacture, and distribution of products, there are standards that have been established by international and regional standardization bodies like CIE, IES, and CEN that are widely regarded as industry best practices. The LED lights manufacured by ZGSM are CE, RoHS, CB, UL, DLC, SAA, ENEC certified. The lighting solutions we provide meet the requirements of these standard.
