180w Aluminum Die Casting LED Street Lamp

Q: 2. What are the advantages of smart street lighting systems?

Smart street lights can help monitor traffic flow, parking, crosswalks, seismic activity, or changes in the atmosphere. They can be equipped with speakers to alert people to dangerous situations or conditions, or cameras to help police solve cases or verify garbage collection and other activities.

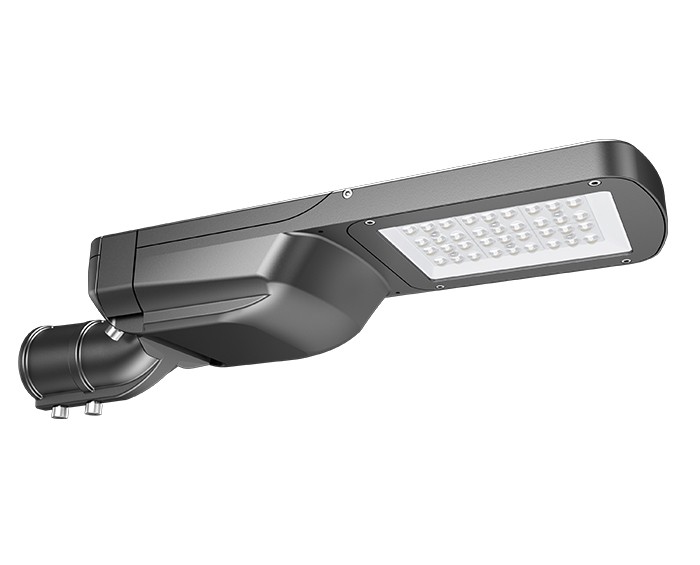

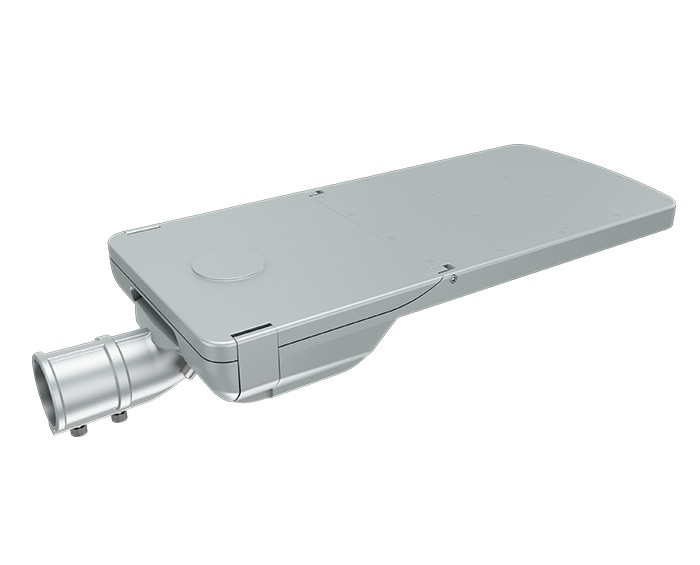

180w Aluminum Die Casting Street Lamp is a modern design of urban lighting street lights. This aluminum LED street light has high efficacy, high lumen output, and also supports horizontal and vertical mounted, suitable for different light poles. We have a variety of accessories to choose from, and can equip intelligent control to our Rifle series LED Street Lamps.

Inquire Now Produit suivant

PRODUCT VIDEO

PRODUCT DESCRIPTION

Key Features

1.70% energy saving, short ROI period

2. Up to 100, 000hrs @ L70, low maintenance cost

3. World-class, approbated quality components (LEDs /Driver /etc.)

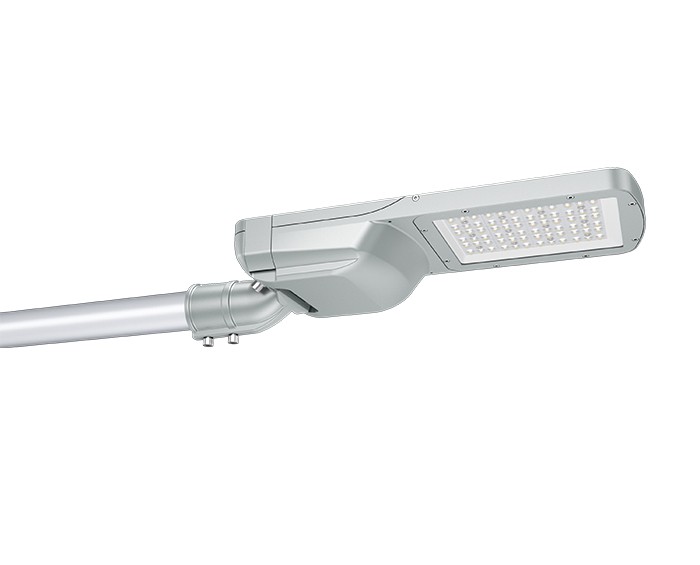

4. Support horizontal and vertical mounted, suitable for different light poles

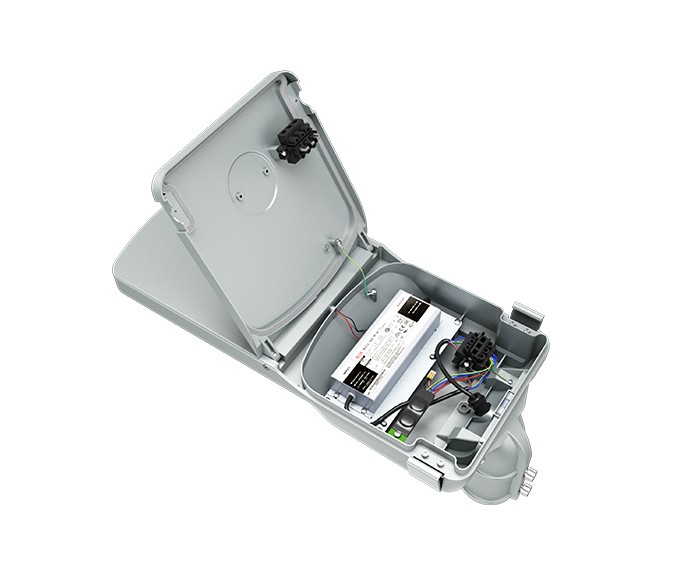

5. Tool-less opening of driver box, ease of maintenance

6. 5 years warranty

7. CE, RoHS, CB, ENEC, LM-79, LM-80, ISTMT, ISO9001, ISO14001 Certified for both Class I & Class II Version.

8. Accessories of Photocell, Motion Sensor, Smart Control System (LORA & ZIGBEE), NEMA Socket (3/5/7 Pin), ZHAGA Socket available for options.

Specifications

Model	ZGSM-ST17-180L
LED Brand	LUMILEDS 3030 OR 5050
Driver Brand	Inventronics /Other brands on request
Normal Wattage	180w
Input Voltage	100-240/277VAC
Power Efficiency	>90%
Power Factor	>0.95
Lamp Rated Luminous Efficiency	150-160lm/w
Lamp Rated Lumen output	27000-28800lm (Lumen tolerance +/- 5%)
Color Rendering Index	70 (80 is optional)
Color Temperature	3000K, 4000K, 5000K, 5700K
Photometric Type	Type II, Type III
Optimal Operating Temperature	25℃
Storage Temperatures	-40°C~50°C
Working Environment	Between-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion	< 10%
Lumen Maintenance	> 100,000 hours -L70, @25 ºC (77 ºF)
Body	High-pressure die-cast aluminum
Cover	Tempered glass
Rating	IP66, IK10
Protection	Class I (Default) /Class II
Certification	CE, RoHS, ENEC, CB, LM79, LM80, TM-21
Dimming Options	1-10V Dimming (Default) /Timer Dimming
Available on request	NEMA socket (3/5/7pins), ZHAGA socket, Short cap, Photocell, Motion sensor, Knife switch, NTC, OLC, Solar Compatible, DALI Dimming
Color Options	Gray (Default) /Black (available on request)
Warranty	5 years

FAQ

1. What is a street lamp used for?

Street lights, also known as street lights, illuminate roads, parking lots, sidewalks, and other public areas. They improve safety and driving safety by enhancing vision in low-light situations.

2. What are the advantages of smart street lighting systems?

Smart street lights can help monitor traffic flow, parking, crosswalks, seismic activity, or changes in the atmosphere. They can be equipped with speakers to alert people to dangerous situations or conditions, or cameras to help police solve cases or verify garbage collection and other activities.

3. What is a NEMA socket/connector?

NEMA means National Electrical Manufacturers Association in the USA. NEMA connectors are power plugs and receptacles used for AC mains electricity in North America and other countries that use the standards set by the US National Electrical Manufacturers Association. The voltage ratings for NEMA wire devices range from 125 to 600 volts and the current values range from 15 to 60 amperes (A) (V). For each combination of voltage, electric current carrying capacity, and grounding system, different permutations of contact blade widths, shapes, orientations, and dimensions result in non-interchangeable connections.
