LED Street Light Project in Australia

The bus station lighting project in Australia was finished in 2015. After DIALux lighting simulation, we provided a solution of 25pcs 65W H series LED street light fixtures with Meanwell drivers and Lumileds LED chips, mounted on 8-meter poles. The client are very satisfied with the lighting effect after replacement, which is bright and uniform. Our H series LED street light is SAA certified, perfectly match the Australian market. The LED lighting fixtures of ZGSM have been selling well in Australia for more than 15 years.


Products Details

65W LED Street Light, Model: ZGSM-LD65H, 4000K, 2M, Pole height=8m, total 25pcs


Video

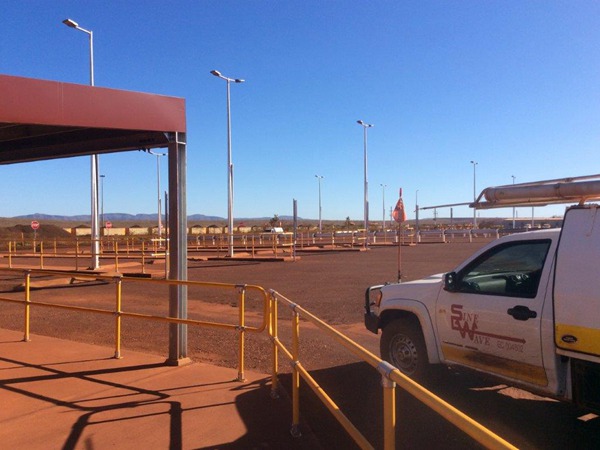

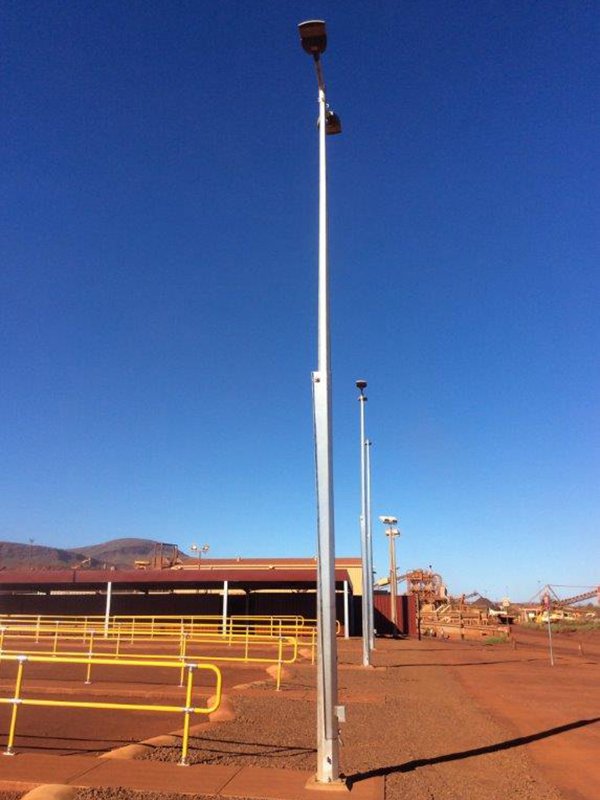

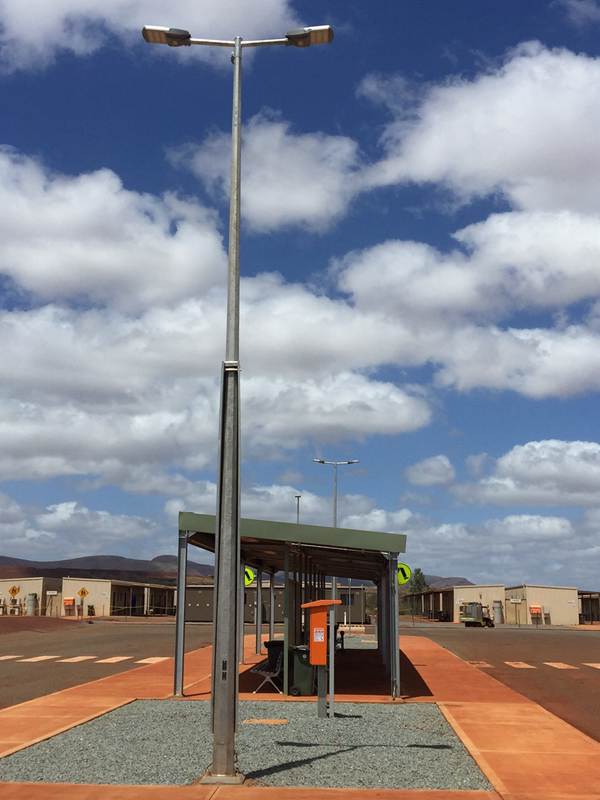

Project Photos


LED Street Light Project in AustraliaLED Street Light Project in Australia

LED Street Light Project in AustraliaLED Street Light Project in Australia


Specification


ModelZGSM-LD65H
LED BrandLumileds Luxeon TX
Driver BrandMeanwell or Inventronics
Normal Wattage65W
LED Module Quantity2 modules
Input Voltage100-240/277VAC/DC24V
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency>110lm/w
Lamp Rated Lumen output7150 lm (Lumen tolerance +/- 5%)
Color Rendering IndexRa>70
Color Temperature3000K, 4000K, 5000K, or 5700K
Photometric TypeType I Medium; Type II Medium; Type III Medium, TypeV, Short
Optimal Operating Temperature25°
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100000 hours -L70, @25 ºC (77 ºF)
Wind IndexForce 12
BodyDie-cast Aluminum Housing
CoverPC lens
Pole Fitter Diameter60mm ( 50mm optional)
RatingIP66 IK10
Protection Class I ( Class II optional)
SPD10KV (20KV optional)
CertificationCE, ROHS, GS, CB, UL, cUL, DLC, LM-79, LM80, SAA
Dimming Options1-10V or DALI or PWM or Timer
Control OptionsPhotocell or Motion sensor or Smart control
Color OptionsSilver or Black
Warranty7 years


Download


Installation Manual_StreetLight_H.pdf

Data Sheet_LEDStreetLight_H.pdf


Related Products


LED Street Light Project in AustraliaLED Street Light Project in AustraliaLED Street Light Project in Australia

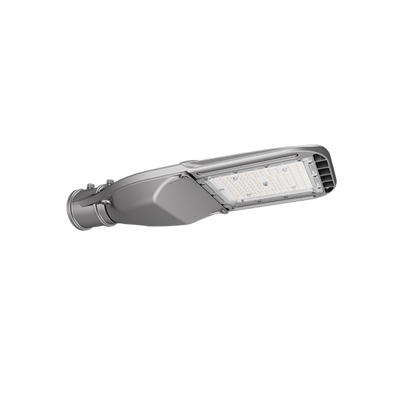

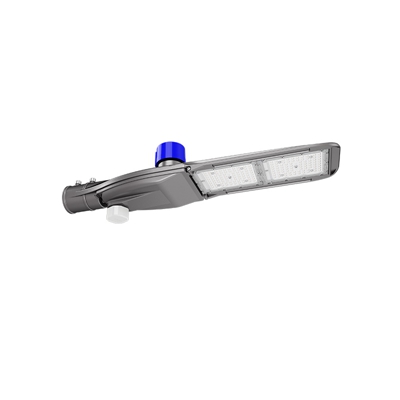

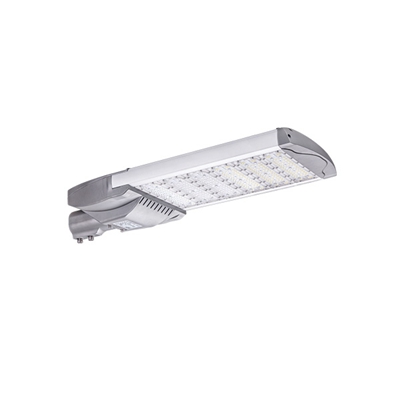

SAA Listed 65W Modular Design LED Highway Light25W Tool-less LED Street Light FixturesIP66 IK10 240W LED Street Light Fixtures
LED Street Light Project in AustraliaLED Street Light Project in AustraliaLED Street Light Project in Australia

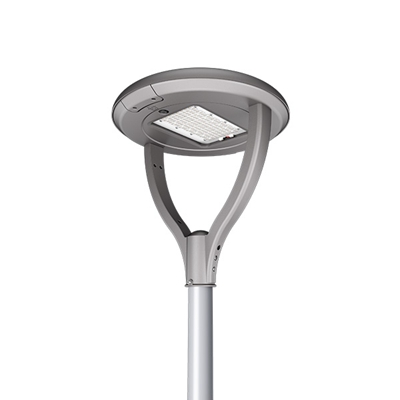

20w Economical LED Area LightsENEC 110w Economical LED Road Light120w Tool-less Outdoor Modern Street Lamp


Related Projects


LED Street Light Project in AustraliaLED Street Light Project in AustraliaLED Street Light Project in Australia

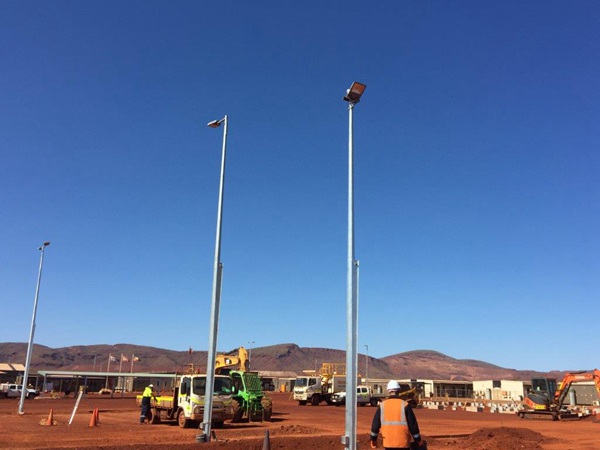

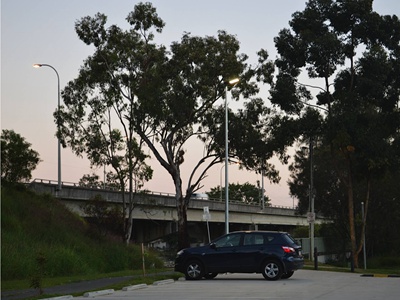

LED Parking Lot Light Project In Australia

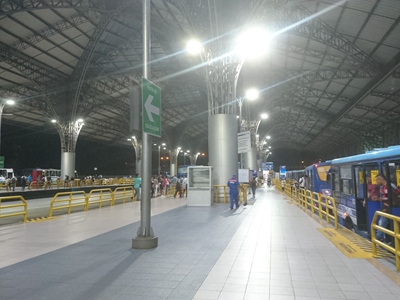

LED Bus Station Lighting Project in Ecuador

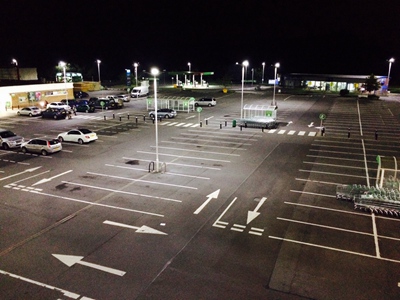

LED Parking Lot Light Project in UK
LED Street Light Project in AustraliaLED Street Light Project in AustraliaLED Street Light Project in Australia

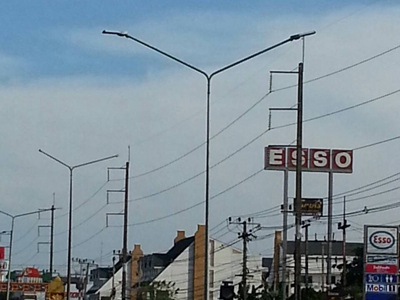

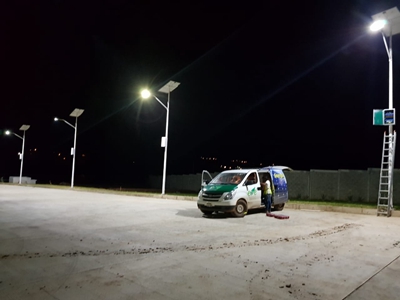

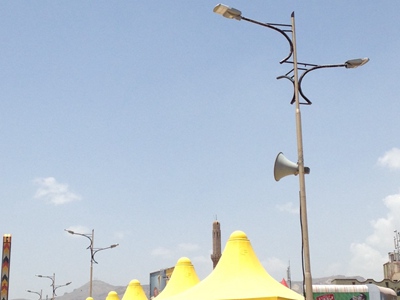

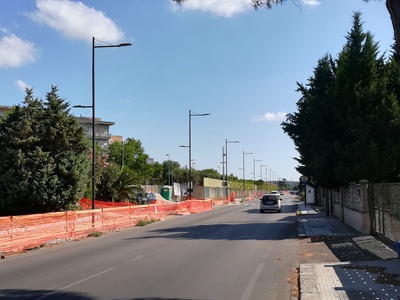

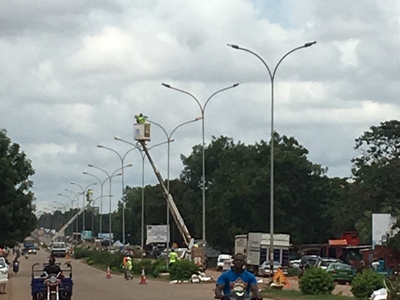

LED Street Light Project In DubaiLED Street Light Project In Burkina FasoLED Street Light Project In Thailand
