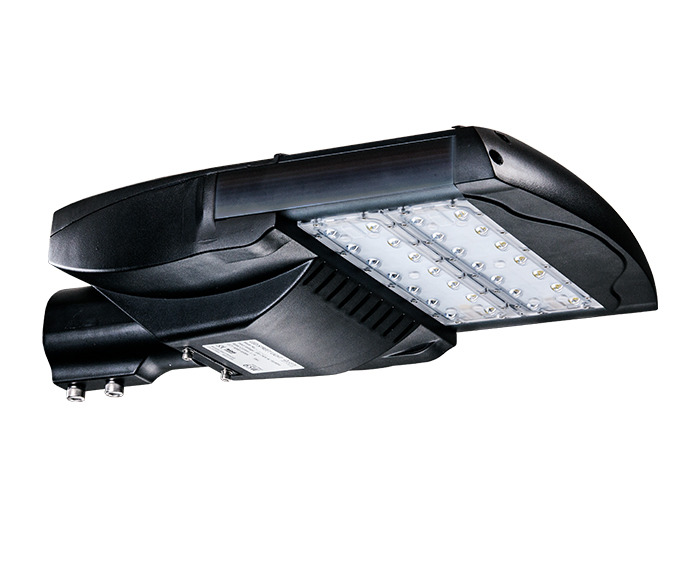

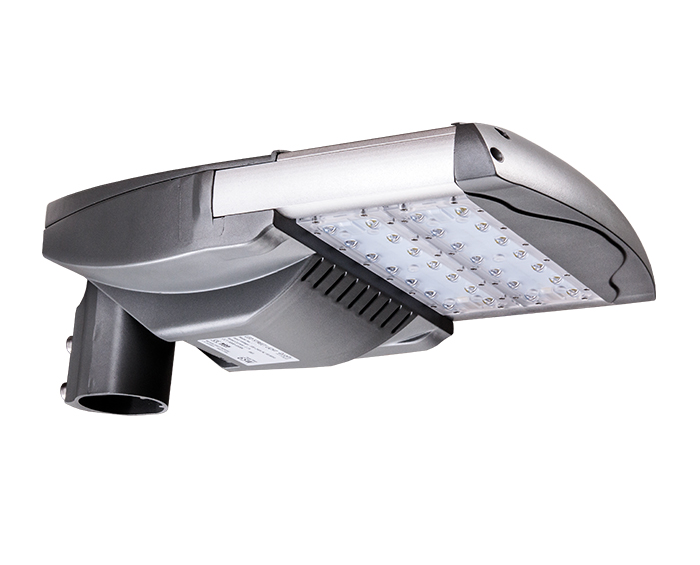

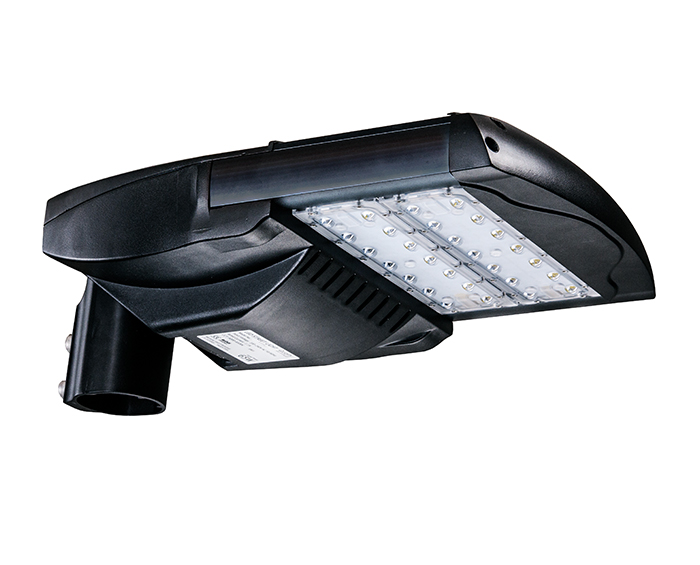

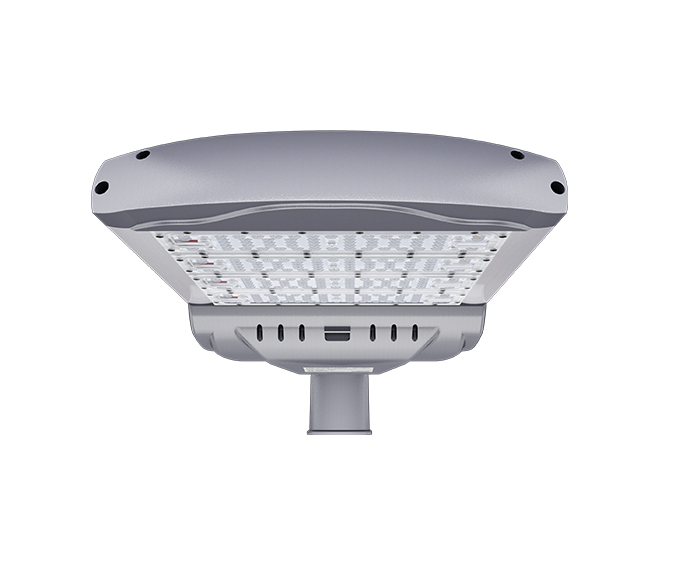

UL and DLC listed 65w Modular Design LED Highway Light

UL and DLC listed LED Highway Light for roads and highways. LED Highway Light illuminates the streets of your city in a safe and sustainable way. The modular design is not only conducive to the heat dissipation of the lamp but also convenient for maintenance.



Key Features

1. Wide power range: 35W~320W.

2. Special circuit design, single LED damage won't affect others' normal work.

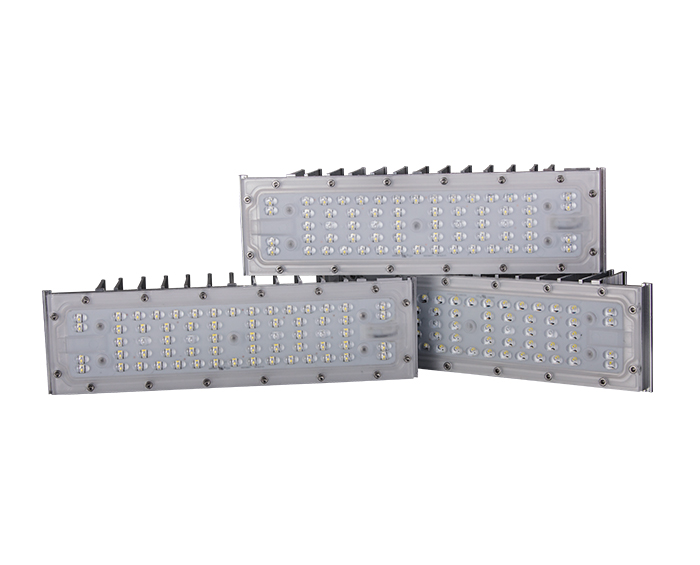

3. Modular design and tool-less open for easy replacement and maintenance.

4. Power-off protection makes the power automatically off when the fixture is opened (optional).

5. Level bubble makes it easy for the installer to adjust the position of the lamp.

6. Breather ensures air balance inside and outside of the driver box of the lamp.

7. High Lumen output up to 165lm/ w with high-quality LED chips.

8. 1000 hours salt spray test report.

9. Vertical and horizontal installation are both available, adjustable by ±15°in both directions.

10. Multiple lighting control options are available, e.g. DALI, 1-10V, photocell, and motion sensor.

11. Designed to last at least 100, 000 hours at L70.

12. Multiple lighting distributions are available.

13. CE, ROHS, GS, CB, LM80, FCC, IP66, IK10

14. 7 years warranty


LED BrandLumileds Luxeon TX
Driver BrandMeanwell or Inventronics
Normal Wattage65W
LED Module Quantity2 modules
Input Voltage100-240/277VAC/DC24V
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency>110lm/w
Lamp Rated Lumen output7150 lm (Lumen tolerance +/- 5%)
Color Rendering IndexRa>70
Color Temperature3000K, 4000K, 5000K, or 5700K
Photometric TypeType I Medium; Type II Medium; Type III Medium, TypeV, Short
Optimal Operating Temperature25°
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100000 hours -L70, @25 ºC (77 ºF)
Wind IndexForce 12
BodyDie-cast Aluminum Housing
CoverPC lens
Pole Fitter Diameter60mm ( 50mm optional)
RatingIP66 IK10
Protection Class I ( Class II optional)
SPD10KV (20KV optional)
CertificationCE, ROHS, GS, CB, UL, cUL, DLC, LM-79, LM80, SAA
Dimming Options1-10V or DALI or PWM or Timer
Control OptionsPhotocell or Motion sensor or Smart control
Color OptionsSilver or Black
Warranty7 years


1. How many lumens is a highway light?

How do you know energy efficiency when using the right LED lumens and watts?

ApplicationLumens Requirement
Landscape50-300 lumens
Street Lights for residential areas5000 lumens
Street Lights for roadways6,400-18,000 lumens
High mast for highways25,000-100,000 lumens

Specifying brightness in lumens makes more sense, helping you get the correct brightness you need by specifying the number of lumens you need for your LED outdoor lighting.

2. How many lumens does a driveway light need?

How Many Lumens Do You Need For a Driveway? A driveway can range from 1600 lumens in a small lane to 2400 lumens in a large lane. The lane needs to be safe, so make sure it's well lit. The motion sensor lights that come on when you walk to the car or drive are a great safe choice.

3. What does IP66 Mean?

IP code is defined by the International Electrotechnical Commission (IEC) under the international standard IEC 60529 which classifies and provides a guideline to the degree of protection provided by mechanical casings and electrical enclosures against intrusion, dust, accidental contact, and water. It is published in the European Union by the European Committee for Electrotechnical Standardization (CENELEC) as EN 60529.

IP66 means the enclosures of this products are able to protect against powerful water jets. Water projected in powerful jets (12.5 mm nozzle) against the enclosure from any direction shall have no harmful effects. Test duration: at least 3 minutes. Water volume: 100 litres per minute.

The LED lights with IP66, such as ZGSM Halo series LED street lights, could be applied to outdoor lightings without worrying about the rain.
