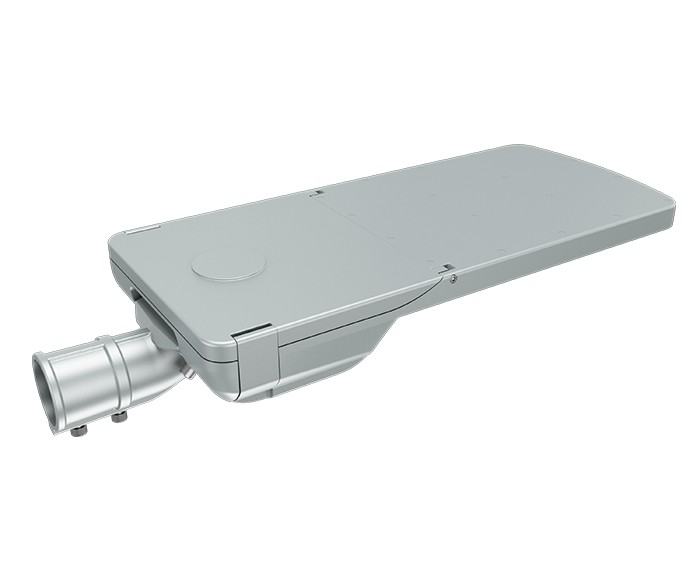

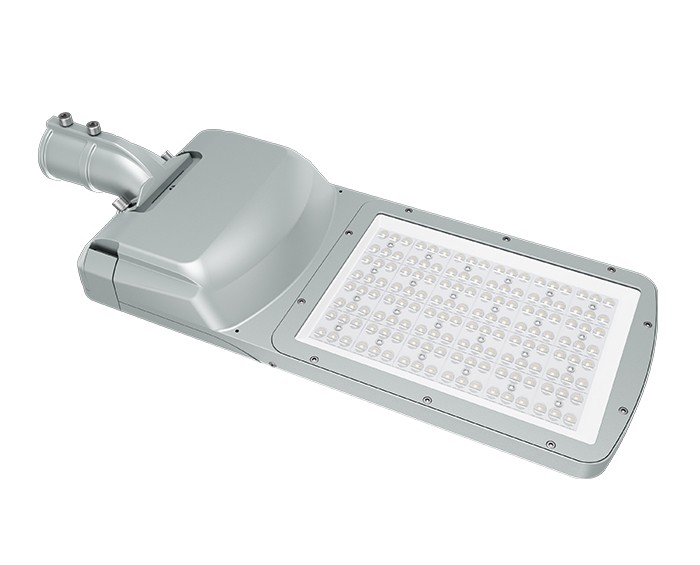

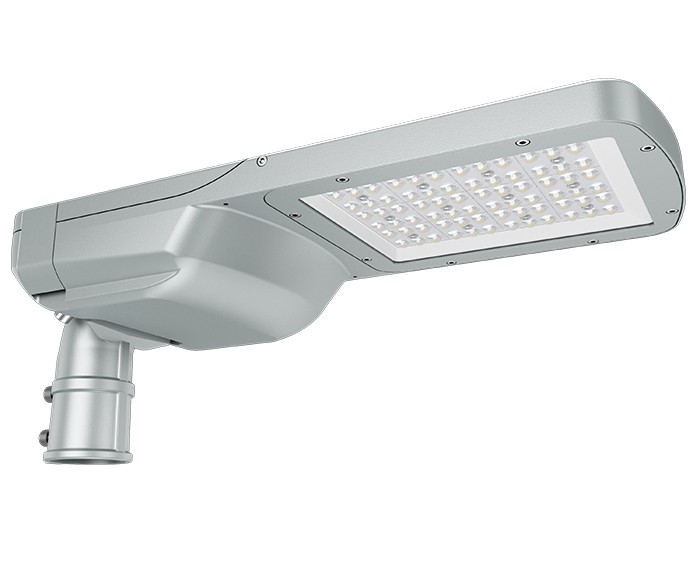

150 Watt LED Street Light With Motion Sensor

150 Watt LED street light with motion sensor is a new generation of high-efficiency LED low-glare design street light, combined with the latest management and intelligent lighting control system. Motion sensor street lights are one of the popular products with super high-cost performance.

PRODUCT VIDEO

PRODUCT DESCRIPTION

Key Features

1.70% energy saving, short ROI period

2. Up to 100, 000hrs @ L70, low maintenance cost

3. World-class, approbated quality components (LEDs /Driver /etc.)

4. Support horizontal and vertical mounted, suitable for different light poles

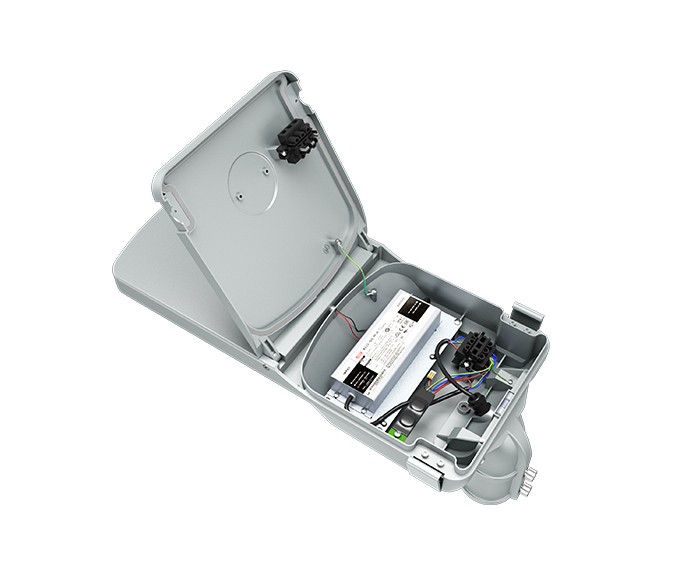

5. Tool-less opening of driver box, ease of maintenance

6. 5 years warranty

7. CE, RoHS, CB, ENEC, LM-79, LM-80, ISTMT, ISO9001, ISO14001 Certified for both Class I & Class II Version.

8. Accessories of Photocell, Motion Sensor, Smart Control System (LORA & ZIGBEE), NEMA Socket (3/5/7 Pin), ZHAGA Socket available for options.


Specifications

ModelZGSM-ST17-150L /ZGSM-ST17-150L+
LED BrandLUMILEDS 3030 or 5050
Driver BrandInventronics /Other brands on request
Normal Wattage150W
Input Voltage100-240/277VAC
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency150-165lm/w
Lamp Rated Lumen output22500-24750lm   (Lumen tolerance +/- 5%)
Color Rendering Index70 (80 is optional)
Color Temperature3000K, 4000K, 5000K, 5700K
Photometric TypeType II, Type III
Optimal Operating Temperature25
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C,   10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100,000 hours -L70, @25 ºC (77 ºF)
BodyHigh-pressure die-cast aluminum
CoverTempered glass
RatingIP66   IK10
Protection Class   I (Default) /Class II
CertificationCE, RoHS, ENEC, CB, LM79, LM80, TM-21
Dimming Options1-10V Dimming   (Default) /Timer Dimming
Available on requestNEMA socket (3/5/7pins), ZHAGA socket, Short cap, Photocell, Motion sensor, Knife   switch, NTC, OLC, Solar Compatible, DALI Dimming
Color OptionsGray (Default) /Black (available on request)
Warranty5   years

FAQ

1. How to reduce the glare of street lights?

To minimize discomfort, they recommend minimizing the amount of light that hits the eye and the brightness contrast between the street lights and the background, which can be achieved through the good optical design of the LED light unit and the careful placement of each street light.


2. What causes LED lights to strobe?

As you can see, LED blinking can have a variety of reasons and can occur in different situations. In most cases, it is caused by a dimmer, transformer, or wire. Only in rare cases can faulty LED lights themselves cause flickering problems.


3. What is a motion sensor?

A motion sensor is a device that recognizes physical movement on a product or in the surrounding area. Real-time physical and/or kinetic movements can be detected and recorded by it.

Another name for a motion sensor is a motion detector.

The motion sensors in LED lighting area are usually used for detecting passing persons or cars. When there are no persons or cars, the LED lights could work under energy-saving mode, for example 30% power. If there are persons or cars coming and detected by motion sensor, the motion sensor would turn the LED lights to 100% power automatically.
