LED Street Light

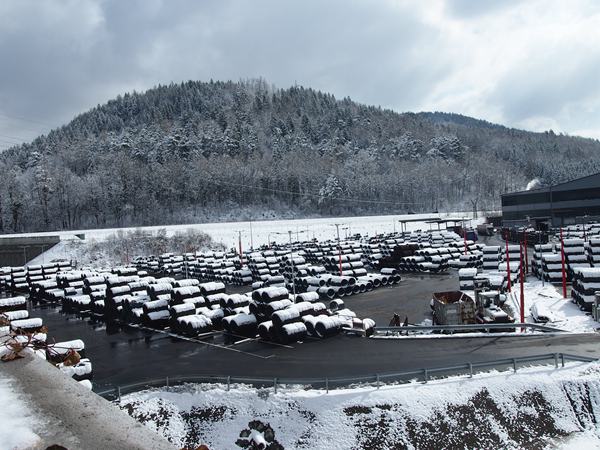

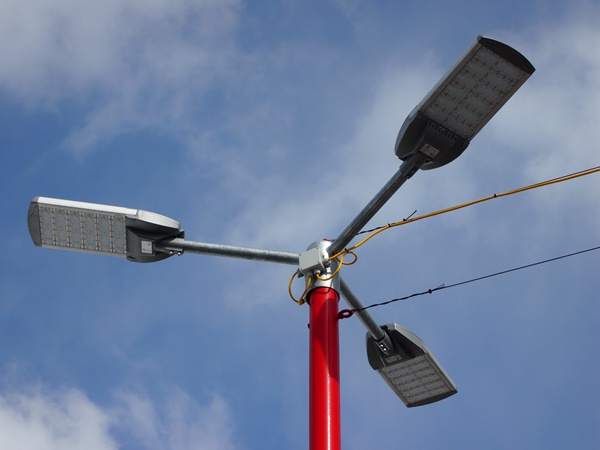

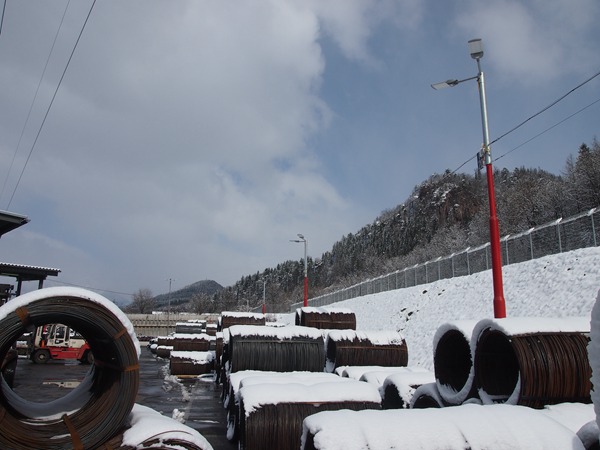

The wire factory yard lighting project in Austria was finished in April 2015. We recommended our clients select ZGSM 200W H series LED street light fixtures to replace the old 500W HPS (high-pressure sodium) lamps. This solution could not only save energy but also has a very high-cost performance. After these lamps were installed and put into use, the factory yard became much brighter and safer for workers to work here at night. Both our clients and workers are very pleased with the lighting effects of this project.

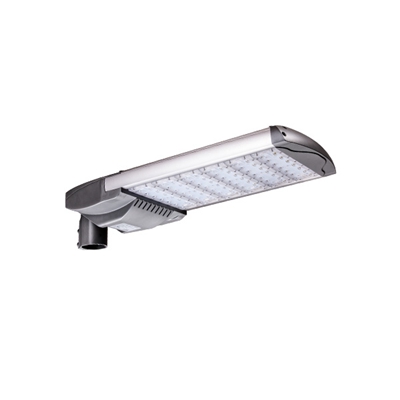

Products: 200W LED Street Light
Model No.: ZGSM-LD200H
LED: Lumileds
Driver: Meanwell
CCT: 4000K
Optics: Type 1S
QTY: 128 Units
| Model | ZGSM-LD200H |
| LED Brand | Lumileds Luxeon TX |
| Driver Brand | Meanwell or Inventronics |
| Normal Wattage | 200W |
| LED Module Quantity | 6 modules |
| Input Voltage | 100-240/277VAC |
| Power Efficiency | >90% |
| Power Factor | >0.95 |
| Lamp Rated Luminous Efficiency | >110lm/w |
| Lamp Rated Lumen output | 22000 lm (Lumen tolerance +/- 5%) |
| Color Rendering Index | Ra>70 |
| Color Temperature | 3000K, 4000K, 5000K, or 5700K |
| Photometric Type | Type I Medium; Type II Medium; Type III Medium, TypeV, Short |
| Optimal Operating Temperature | 25° |
| Storage Temperatures | -40°C~50°C |
| Working Environment | Between-40°C~+50°C, 10%~90%RH |
| Total Harmonic Distortion | < 10% |
| Lumen Maintenance | > 100000 hours -L70, @25 ºC (77 ºF) |
| Wind Index | Force 12 |
| Body | Die-cast Aluminum Housing |
| Cover | PC lens |
| Pole Fitter Diameter | 60mm ( 50mm optional) |
| Rating | IP66 IK10 |
| Protection | Class I ( Class II optional) |
| SPD | 10KV (20KV optional) |
| Certification | CE,ROHS,GS,CB,UL,cUL,DLC,LM-79,LM80,SAA |
| Dimming Options | 1-10V or DALI or PWM or Timer |
| Control Options | Photocell or Motion sensor or Smart control |
| Color Options | Silver or Black |
| Warranty | 7 years |
Installation Manual_StreetLight_H.pdf
Data Sheet_LEDStreetLight_H.pdf
 |  |  |
| LED Street Light Procurement Skills | ||
 |  |  |
| LED Street Light System Installation Process |
Color temperature is a crucial component of color appearance that determines how "warm" (yellowish) or "cool" (bluish) white light looks on paper. A warm light is approximately 2,700 degrees Kelvin (K), neutral white is approximately 4,000 K, and cold white is approximately 5,000 K or greater. Correlated Color Temperature, or CCT, is specified in degrees Kelvin. When compared to the enormous efficiency benefits made by switching from conventional incandescent to LED lights, the energy efficiency variations between colder and warmer color temperatures are very insignificant.
If you don't know which CCT to choose, pls contact us for professional advice?
It's critical to understand that a luminaire's 3G certification denotes its ability to sustain fundamental resonant frequency vibrations for 100,000 cycles in each plane (x, y, z). In light of the product's inherent resonance, this is meant to offer the worst-case scenario.
There is no need to worry about blue lights emitted by LED street lighting disrupting sleep. The blue light from LEDs is identical to that from other light sources, according to the US Department of Energy. The intensity of light at night is more crucial. The amount of light, the timing, and the duration of light exposure all have a role in the disruptive effect. LED street lighting produces light levels that are too low to alter hormone levels that regulate our sleep habit, according to research.
