ENEC and CB certified 25W Tool-less LED Street Light Fixtures

25w Tool-less LED Street Light Fixtures are similar to shoebox design, tool-free opening design, three specifications are available, can be installed horizontally and vertically, to meet different installation environments. The tool-less open design makes ZGSM K series LED street light fixture easy to maintain.

PRODUCT VIDEO

PRODUCT DESCRIPTION

Key Features

1. Wide power range: 25W~200W.

2. Special circuit design, single LED damage won't affect others' normal work.

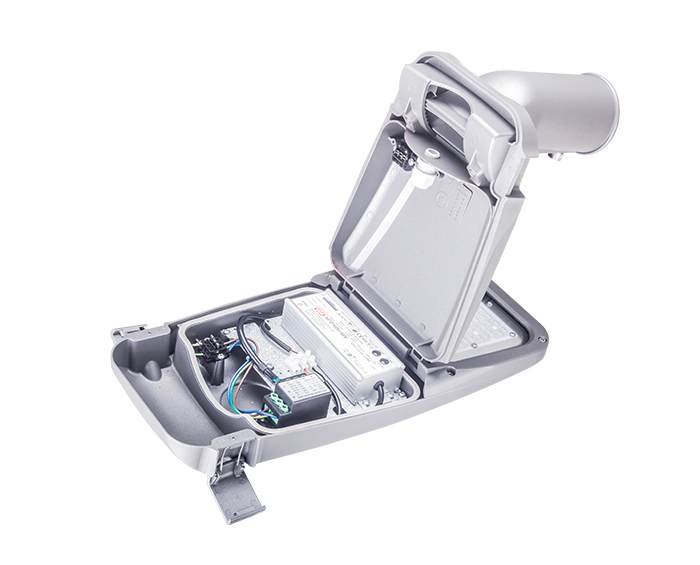

3. Tool-less open for easy installation, replacement, and maintenance.

4. Power-off protection makes the power automatically off when the fixture is opened.

5. Smooth body would greatly diminish dust accumulation and bird droppings heap up.

6. Level bubble makes it easy for the installer to adjust the position of the lamp.

7. High Lumen output up to 150lm/ w with high-quality LED chips.

8. Pass the 1000-hour salt spray test.

9. Vertical and horizontal installation are both available, adjustable by ±15° in both directions.

10. Multiple lighting control options are available, e.g. DALI, 1-10V, photocell, motion sensor.

11. Designed to last at least 100, 000 hours at L70.

12. Multiple lighting distributions are available.

13. ENEC/ CB/ CE/ RoHS/ IK08 /IP66 /LM79

14. 7 years limited warranty available.


Specifications

ModelZGSM-LD25KS
LED BrandLUMILEDS® LUXEON 3030 or 5050
Driver BrandMeanwell HLG series/ Inventronics
Normal Wattage25W
LED Chip Quantity3030: 48pcs 5050: 24pcs
Input Voltage100-240/277VAC
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency125-145 lm /w
Lamp Rated Lumen output3125-3625 lm (Lumen tolerance +/- 5%)
Color Rendering Index70(80 optional)
Color Temperature3000K, or 4000K, or 5000K, or 5700K
Photometric TypeType I Medium; Type II Medium; Type III Medium
Optimal Operating Temperature25℃
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100,000 hours -L70, @25 ºC (77 ºF)
Wind IndexForce 12
Body and Shell MaterialsDie-cast aluminum; Tempered Glass
Pole Fitter Diameter60mm ( 50mm optional)
RatingIP66 IK08
Protection Class I ( Class II optional)
SPD10KV (20KV optional)
CertificationCE, ENEC,CB ROHS,LM80,LM79,IP66 IK08,ISTMT
Dimming Options1-10V or DALI or PWM or Timer
Control OptionsPhotocell or Motion sensor or Smart control
Color OptionsDeep grey or Light grey
Warranty7 years

FAQ

1. What is a smart street light sensor?

Smart street lights are public lighting fixtures that combine technologies such as cameras, photosensitive photocells, and other sensors to introduce real-time monitoring capabilities.


2. Can you add sensors to outdoor lights?

The motion sensor that automatically turns on the outdoor lights is undoubtedly handy when you go home at night, and it illuminates the passage to the doorway. This addition will alleviate any concerns about intruders tracking you. Motion sensors turn on the lights at the right time when you need them.

More details about motion sensors or other accessories, pls contact us for professional support.


3. What are the benefits of LED solutions?

· Significant energy savings - more than 60% as compared to typical street lighting

· Good color rendering, which makes colors appear more natural.

· Long service life - up to 100,000 hours, resulting in lower maintenance costs.

· White light that is uniform and of good quality. LED lighting helps to make spaces safer by improving facial recognition for security and CCTV cameras.

· When light is not required, LEDs can be muted, resulting in extra energy savings. LEDs can also be networked and controlled remotely by connecting them to sensors and controls.
