LED Street Light Project In Italy

The city street lighting project in Italy was finished in 2019. After the DIALux lighting simulation, our clients purchased 100 units of 90W KM series and 156 units of 35W KS series cobra head designed LED street lights to work together. The 90W KM series street LED lights are used for street lighting and the 35W KS series are used for sidewalk lighting. This lighting solution could not only provide the best lighting effect but also save the most energy. All street lights in this project are equipped with Class II drivers to meet the requirements of double insulation. This client has cooperated with us for more than 5 years, retrofitting the street lighting of different cities in Italy.


Products Details

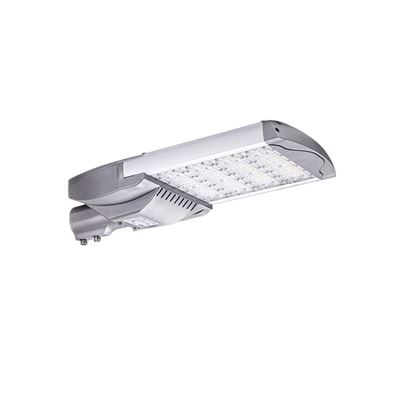

90W LED Street Light,Model:ZGSM-LD90KM,Lumileds 5050 LED chips and Inventronics Class II Driver, 2M, 4000K,100pcs;

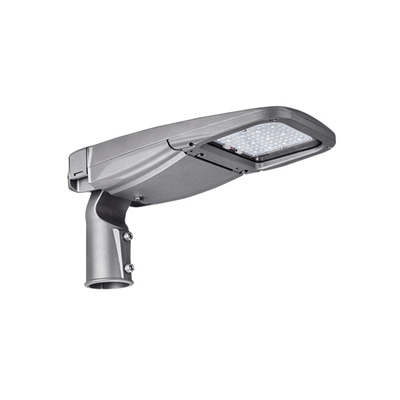

35W LED Street Light,Model:ZGSM-LD35KS,Lumileds 5050 LED chips and Inventronics Class II Driver, 2M, 4000K, 156pcs.


Video

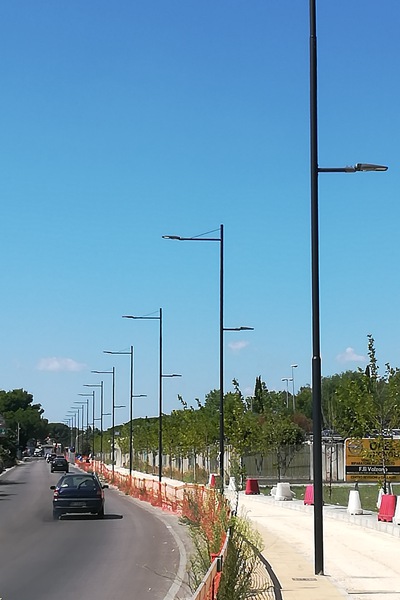

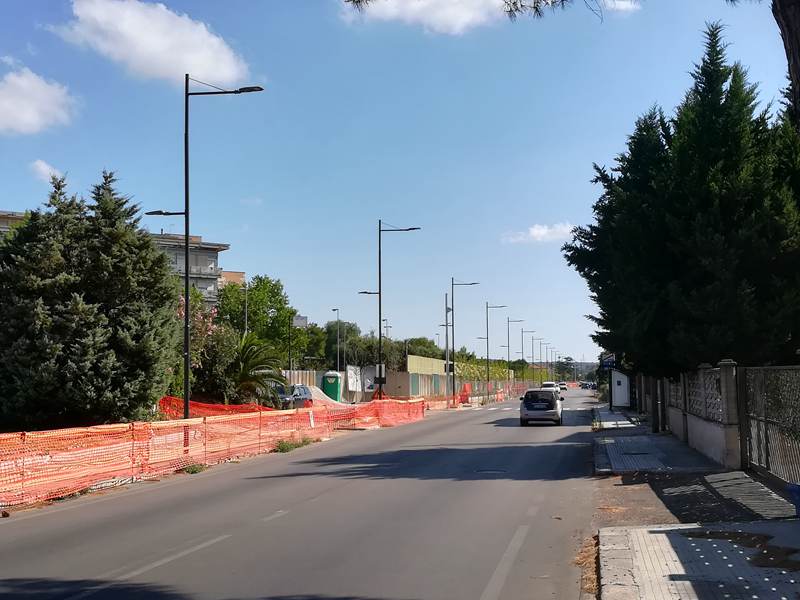

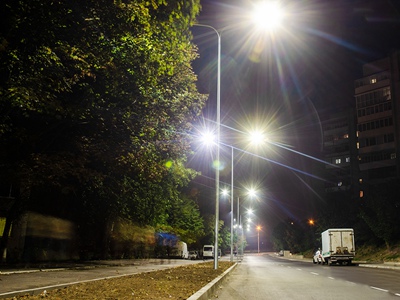

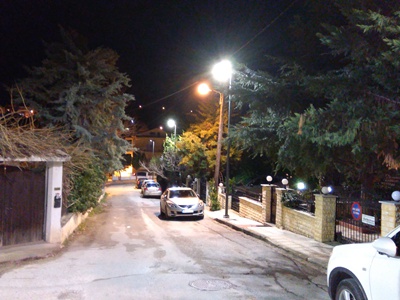

Project Photos


LED Street Light Project In ItalyLED Street Light Project In Italy


Specification


ModelZGSM-LD90KM
LED BrandLUMILEDS® LUXEON 3030 or 5050
Driver BrandMeanwell HLG series/ Inventronics
Normal Wattage90W
LED Chip Quantity3030: 144pcs 5050: 72pcs
Input Voltage100-240/277VAC
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency130-150 lm /w
Lamp Rated Lumen output11700-13500 lm (Lumen tolerance +/- 5%)
Color Rendering Index70(80 optional)
Color Temperature3000K, 4000K, 5000K, or 5700K
Photometric TypeType I Medium; Type II Medium; Type III Medium
Optimal Operating Temperature25℃
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100,000 hours -L70, @25 ºC (77 ºF)
Wind IndexForce 12
Body and Shell MaterialsDie-cast aluminum; Tempered Glass
Pole Fitter Diameter60mm ( 50mm optional)
RatingIP66 IK08
Protection Class I ( Class II optional)
SPD10KV (20KV optional)
CertificationCE, ENEC, CB, ROHS, LM80, LM79, IP66, IK08, ISTMT
Dimming Options1-10V or DALI or PWM or Timer
Control OptionsPhotocell or Motion sensor or Smart control
Color OptionsDeep grey or Light grey
Warranty7 years


Download


Installation Manual_StreetLight_K.pdf

Data Sheet_ StreetLight_ZGSM-LD35KS.pdf

Data Sheet_ StreetLight_ZGSM-LD90KM.pdf


Related Products


LED Street Light Project In ItalyLED Street Light Project In ItalyLED Street Light Project In Italy

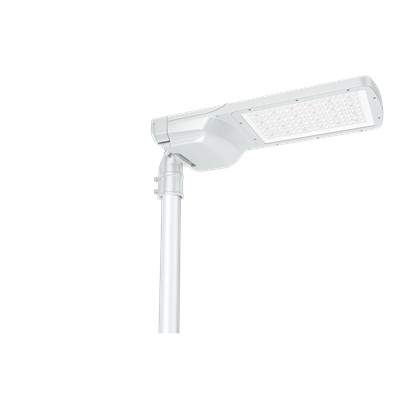

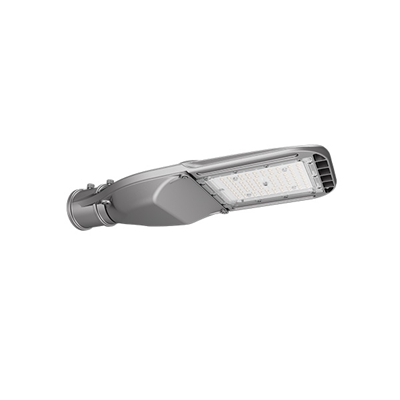

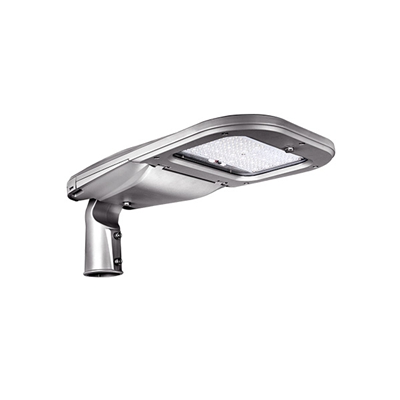

35W Tool-less Cobra Head Street LightFull Die Cast Housing 90w Tool-less Street Light240W Dimmable Commercial Street Lights
LED Street Light Project In ItalyLED Street Light Project In ItalyLED Street Light Project In Italy

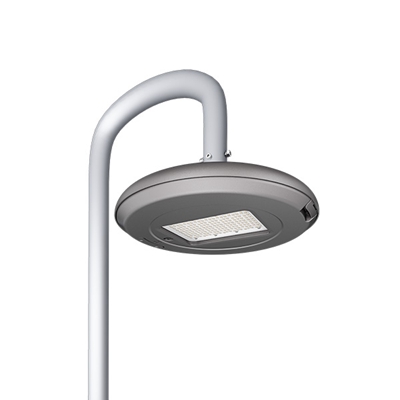

70W Hanging Street Lights100000 Hours Lifespan 200w Highway Street Lights20w Economical LED Area Lights


Related Projects


LED Street Light Project In ItalyLED Street Light Project In ItalyLED Street Light Project In Italy

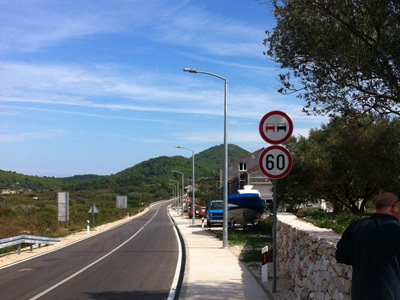

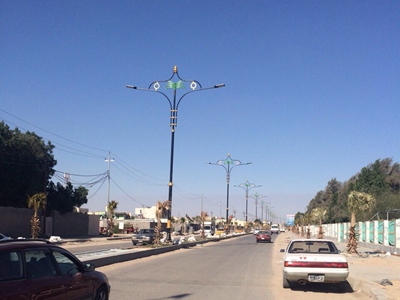

LED Street Light Project In Suadi ArabiaLED Street Light Project In GreeceLED Street Light Project In Croatia
LED Street Light Project In ItalyLED Street Light Project In ItalyLED Street Light Project In Italy
LED Street Light Project In IraqLED Street Light Project In Thailand
LED Street Light Project In Ukraine


Related Blogs


LED Street Light Project In ItalyLED Street Light Project In ItalyLED Street Light Project In Italy

Briefly Describe The Technical Requirements

Of LED Street Lights

In-Depth Analysis of Led Street LightsWill Led Street Lights Be Environmental Pollution?
LED Street Light Project In ItalyLED Street Light Project In ItalyLED Street Light Project In Italy

What Parameters Should I Pay Attention To

When Selecting LED Street Lights?

Correct Installation And Use Of Led Street Lights

Maintenance and Inspection

 of Street Lights is Important



People Also Ask


  1. What is  LED?

    LED means Light-emitting diodes. These are electronic components that use the passage of electrons within the diode's substance to directly transform electrical energy into light. LEDs are significant because they are starting to replace the majority of traditional light sources thanks to their efficiency and low energy consumption.


  2. What is color temperature and why is it important?

    Color temperature is expressed in Kelvin and is a mathematical calculation based on a light source's Spectral Power Distribution (SPD). It enables a large range of unique color combinations. Different combinations of Correlated Color Temperature (CCT) and Color Rendering Indexes (CRI) are available in LED lighting, which can have different impacts on eyesight. The color temperature is measured in degrees Kelvin, with a warm light (yellowish) being around 2700K, neutral white being approximately 4000K, and cool white (bluish) being around 5000K or more.

    Protecting the public with lighting that promotes alert drivers and a safe environment may be the greatest priority in many outdoor applications, to explain why it's necessary. In those circumstances, the suggested color temperature is used, taking into account the space and the people who will be using it.


  3. What is Class II?

    IEC protection Class II power supplies will have a two-wire power cord as opposed to a three-wire power cord with Safety Earth connection.The concentric square symbol or the words "Class II" or "double insulated" are frequently used to identify products having Class II insulation on safety labels.
