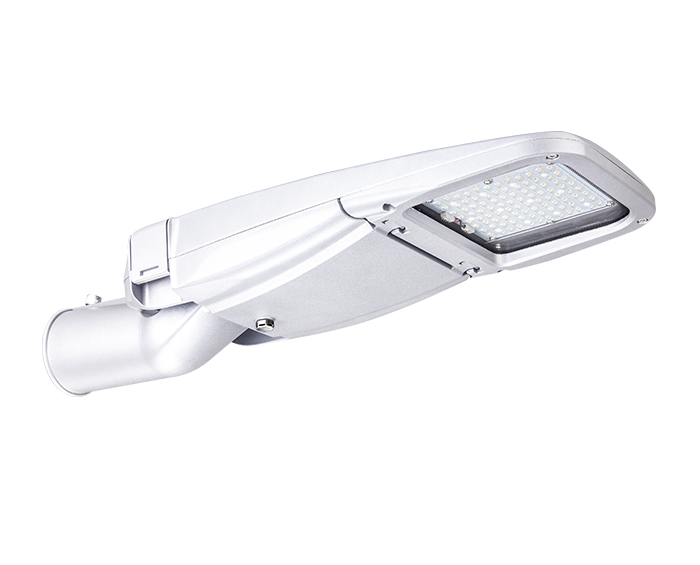

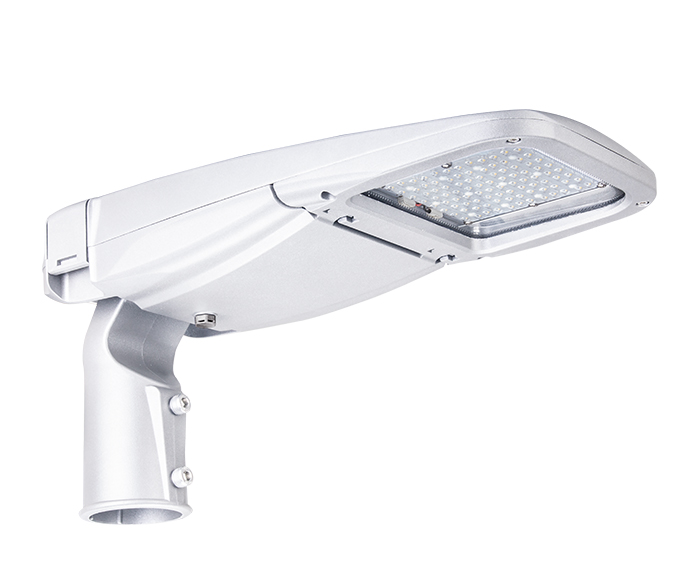

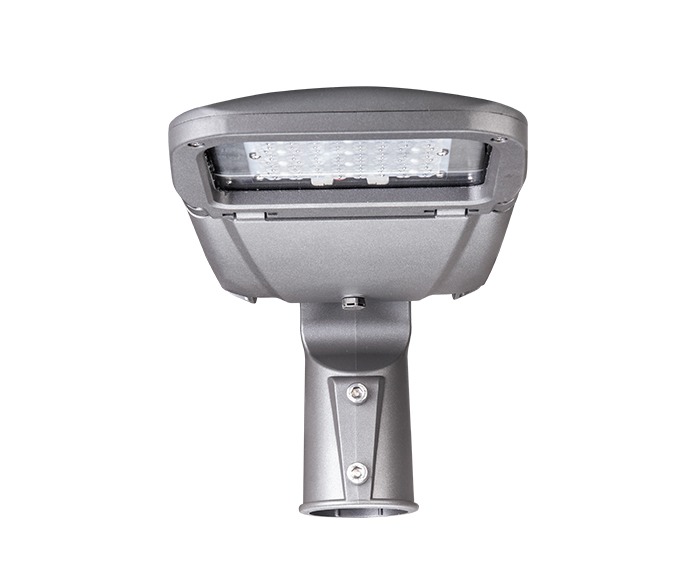

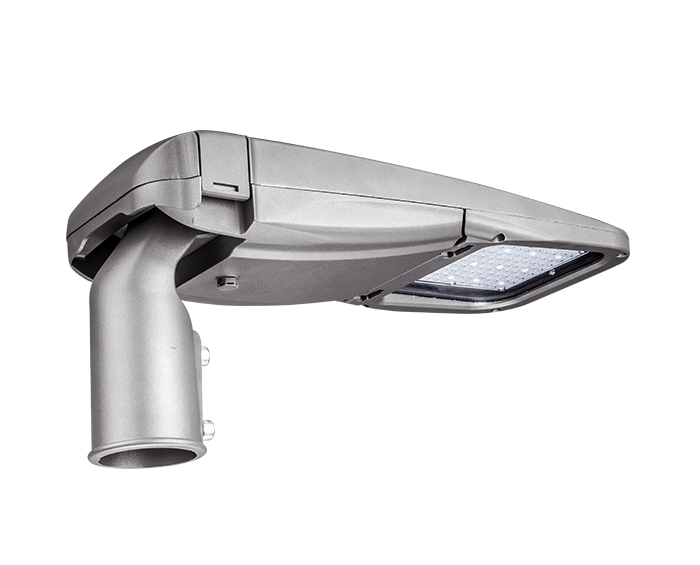

35w Tool-less Cobra Head Light

Cobra Head Light is sleek, modern design and cost-effective smart LED street light solution with tool-free replacement and easy maintenance. Widely used in highways, streets, viaducts, and industrial parks, cobra head street lights are suitable for energy management projects with a period of 7 years and above.

Inquire Now Produit suivant

PRODUCT VIDEO

PRODUCT DESCRIPTION

Key Features

1. Wide power range: 25W~200W.

2. Special circuit design, single LED damage won't affect others' normal work.

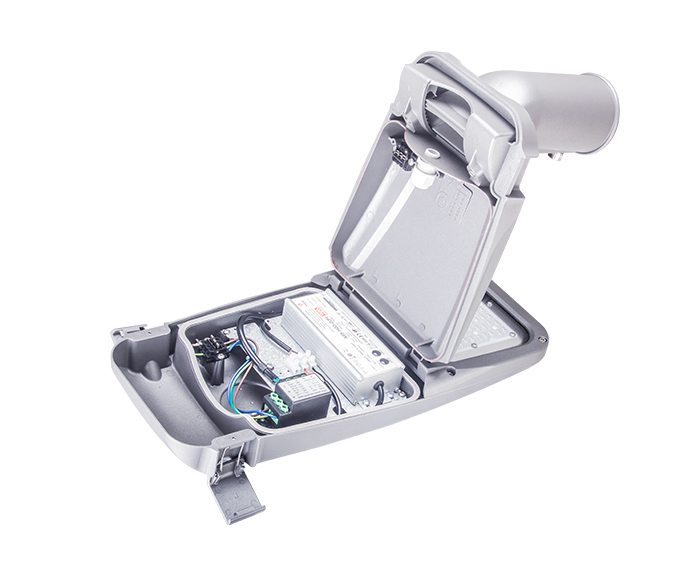

3. Tool-less open for easy installation, replacement, and maintenance.

4. Power-off protection makes the power automatically off when the fixture is opened.

5. Smooth body would greatly diminish dust accumulation and bird droppings heap up.

6. Level bubble makes it easy for the installer to adjust the position of the lamp.

7. High Lumen output up to 150lm/ w with high-quality LED chips.

8. Pass the 1000-hour salt spray test.

9. Vertical and horizontal installation are both available, adjustable by ±15° in both directions.

10. Multiple lighting control options are available, e.g. DALI, 1-10V, photocell, and motion sensor.

11. Designed to last at least 100, 000 hours at L70.

12. Multiple lighting distributions are available.

13. ENEC/ CB/ CE/ RoHS/ IK08 /IP66 /LM79

14. 7 years limited warranty available.

Specifications

Model	ZGSM-LD35KS
LED Brand	LUMILEDS® LUXEON 3030 or 5050
Driver Brand	Meanwell HLG series/ Inventronics
Normal Wattage	35W
LED Chip Quantity	3030: 72pcs 5050: 36pcs
Input Voltage	100-240/277VAC
Power Efficiency	>90%
Power Factor	>0.95
Lamp Rated Luminous Efficiency	125-145 lm /w
Lamp Rated Lumen output	4375-5075 lm (Lumen tolerance +/- 5%)
Color Rendering Index	70(80 optional)
Color Temperature	3000K, 4000K, 5000K, or 5700K
Photometric Type	Type I Medium; Type II Medium; Type III Medium
Optimal Operating Temperature	25℃
Storage Temperatures	-40°C~50°C
Working Environment	Between-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion	< 10%
Lumen Maintenance	> 100,000 hours -L70, @25 ºC (77 ºF)
Wind Index	Force 12
Body and Shell Materials	Die-cast aluminum; Tempered Glass
Pole Fitter Diameter	60mm ( 50mm optional)
Rating	IP66 IK08
Protection	Class I ( Class II optional)
SPD	10KV (20KV optional)
Certification	CE, ENEC, CB ROHS, LM80, LM79, IP66 IK08, ISTMT
Dimming Options	1-10V or DALI or PWM or Timer
Control Options	Photocell or Motion sensor or Smart control
Color Options	Deep grey or Light grey
Warranty	7 years

FAQ

1. What is a cobra headlight?

Cobra head street lights are pole-mounted outdoor luminaires that are mainly used for street and road lighting but can also be used for another general area lighting. Their unique "cobra head" design has been used for decades but has now updated its LED lighting technology.

2. Does the LED consume less power when dimming?

Dimming the LED light saves energy

Adjusting the dimmer doesn't waste energy like traditional incandescent or fluorescent lamps do when turned on and off. With LEDs, the amount of light you dim or brighten is an indicator of how many wattages and energy you use.

3. How long do LED street lights last?

About 15 to 20 years.

LEDs use up to 50% less energy than standard sodium bulbs and can last for 15 to 20 years. There are also some surprising advantages. Better street lighting may make it easier to use public transit by reducing the feeling of danger and increasing visibility on the roads.
