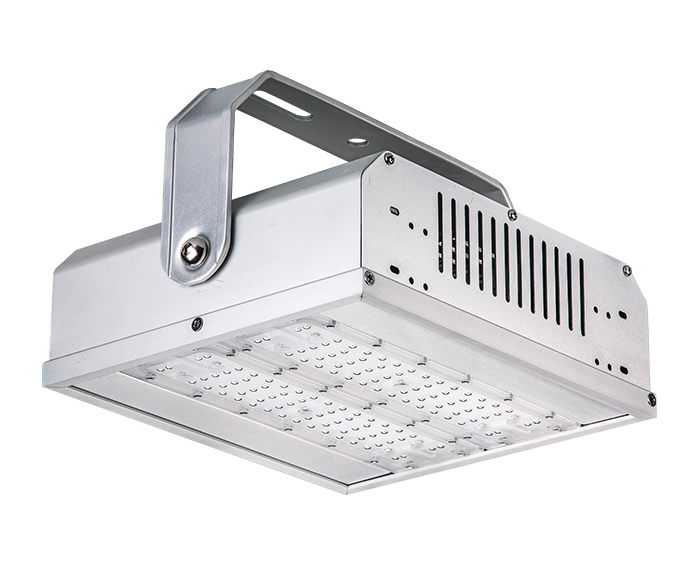

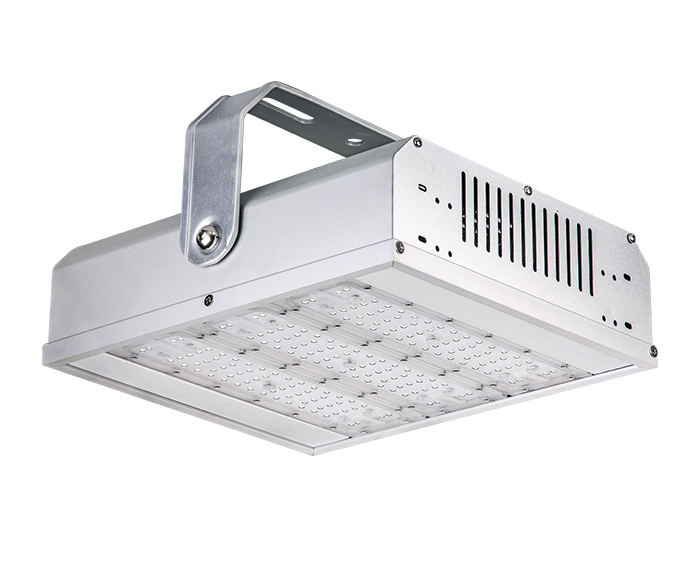

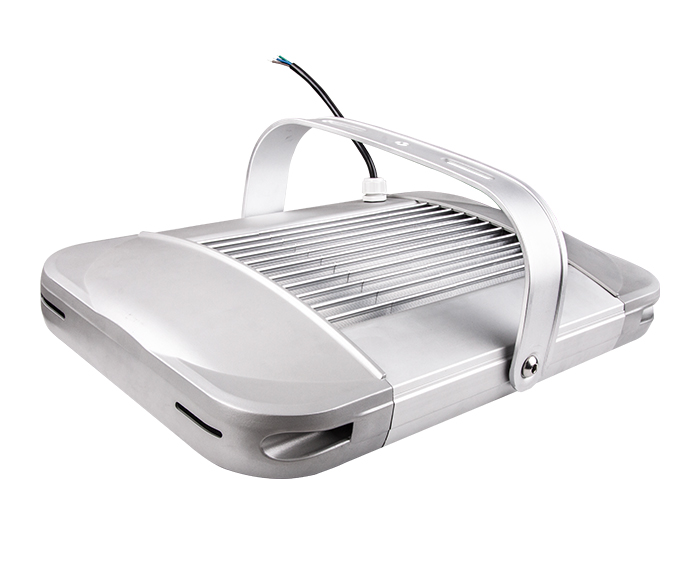

High efficiency 240w Modular design led high bay lighting

Series H5 LED High Bay Light

Model:

ZGSM-GCD240H5

Application:

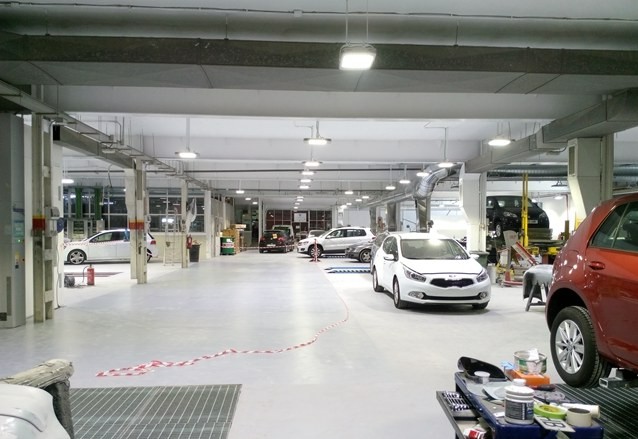

Warehouse | Workshop | Garage | Billboard | Area | Building | Repair Workshop


Share:
PRODUCT DESCRIPTION

Key Features

What are high-bay lights?

As their name suggests, high-bay lights are used to light up rooms with high ceilings. That normally indicates ceilings ranging from 20 feet to around 45 feet. Low-bay lights, on the other hand, are used for ceilings 20 feet as well as under. Because a high-ceiling place has even more room to fill, a high-bay necessarily is an effective light that can illuminate a huge area.


LED high-bay lights main parameters:

1. Wide power range: 40W~360W.

2. Special circuit design, single LED’s damage won't affect others' normal work.

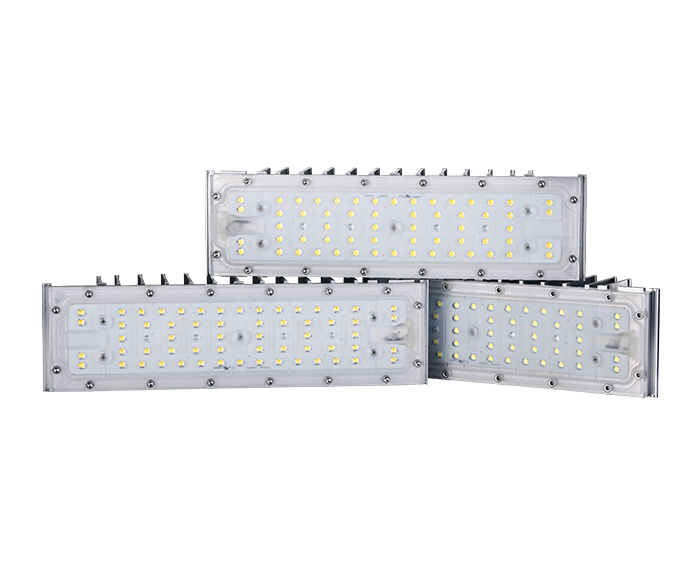

3. Modular design for easy installation, replacement and maintenance.

4. High Lumen output up to 165lm/ w with high quality LED chips.

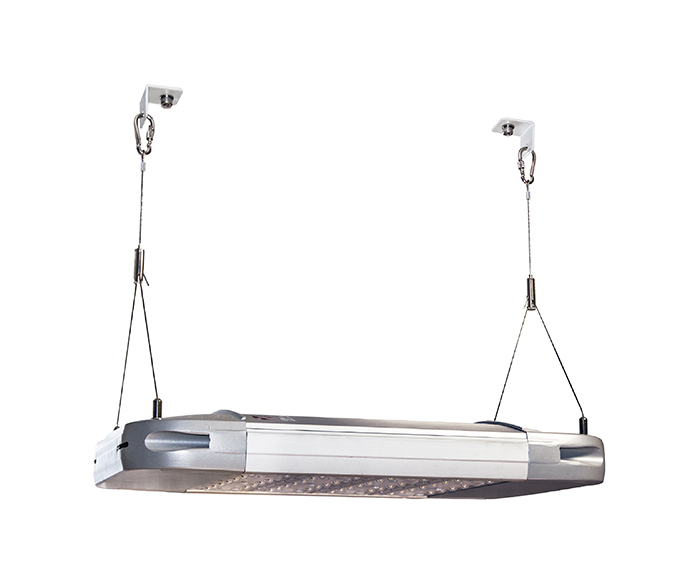

5. Various applications with different mounting Accessories.

6. Multiple lighting control options are available, e.g. DALI, 1-10V, motion sensor.

7. Designed to last at least 100, 000 hours at L70.

8. Multiple lighting distributions are available.


Specifications

Modular design led high bay lighting technical parameter:

ModelZGSM-GCD240H5
LED BrandLumileds LUXEON 3030/5050
Driver BrandMeanwell HLG series
Norminal Wattage240W
LED Module Quantity5 modules
Input Voltage100-240/277/347/480VAC
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency130-160 lm/w
Lamp Rated Lumen output31200-38400 lm (Lumen tolerance +/- 5%)
Color Rendering Index70 (80 is optional)
Color Temperature3000K, 4000K, 5000K or 5700K
Photometric Type60,90,110 degrees
Optimal Operating Temperature25℃
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100,000 hours -L70, @25 ºC (77 ºF)
BodyDie-cast aluminum Housing
CoverPC lens
RatingIP66 IK10
Protection Class I ( Class II optional)
CertificationCE,ROHS,LM80
Dimming Options1-10V or DALI or PWM or Timer
Control OptionsMotion sensor or Smart control
Color OptionsSilver
Warranty7 years


Packing Details

High Efficiency LED Light Packing:

Fixture Dimension585 x340 x156 mm
Fixture Weight7.0 kg /15.4 lbs
Packing Dimension635 x365 x160 mm
Packing Weight8.1 kg /17.9 lbs

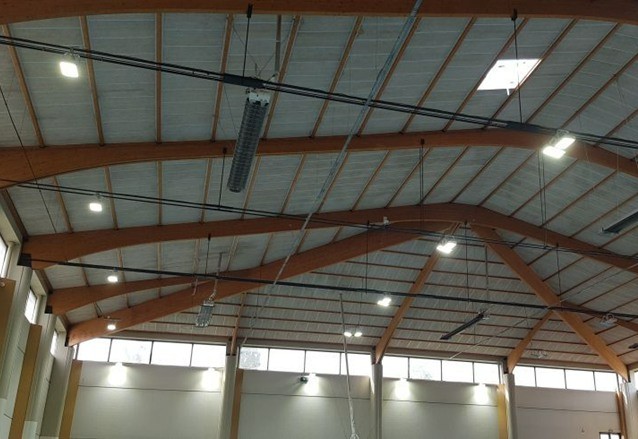

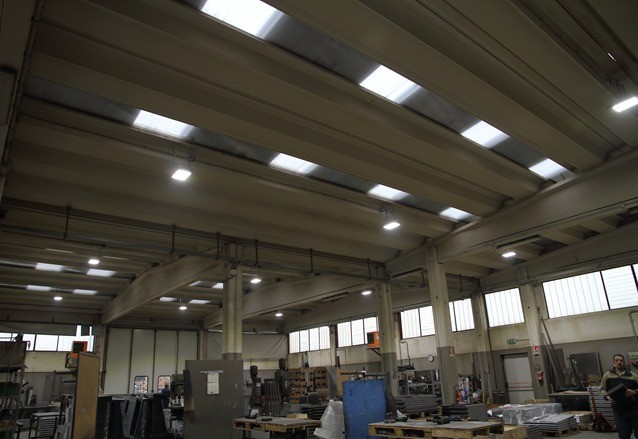

LED High Bay Light Applications:

Different sectors and centers call for high bay lighting. Several of the most typical are:

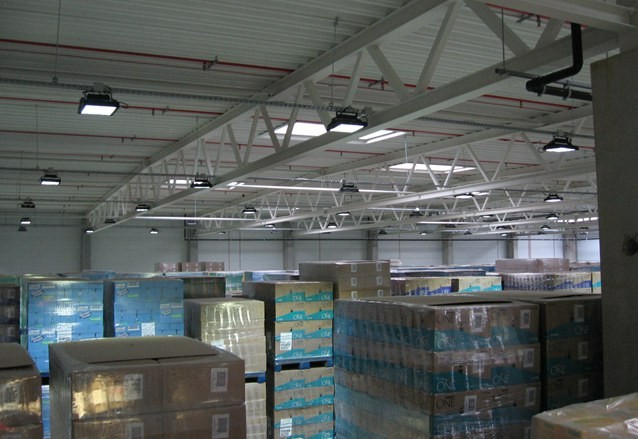

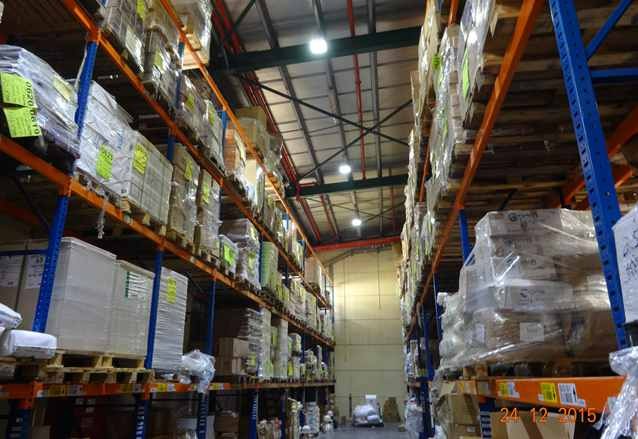

Warehouses

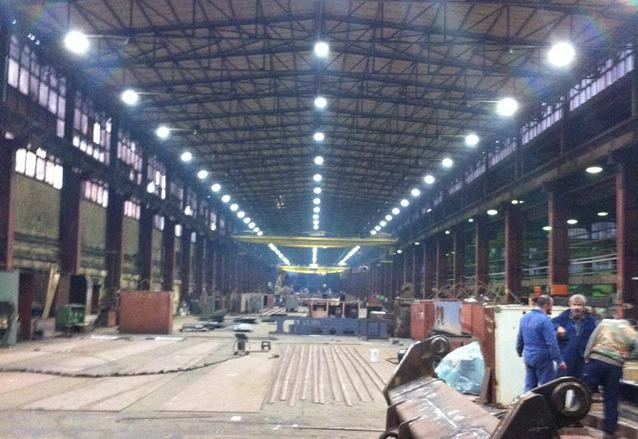

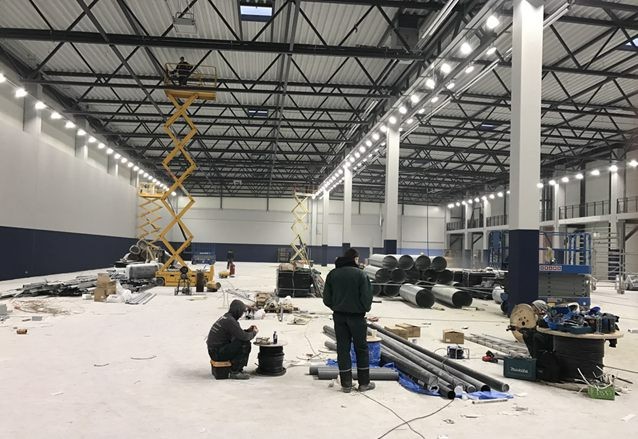

Industrial facilities (read more regarding Industrial LED lights right here).

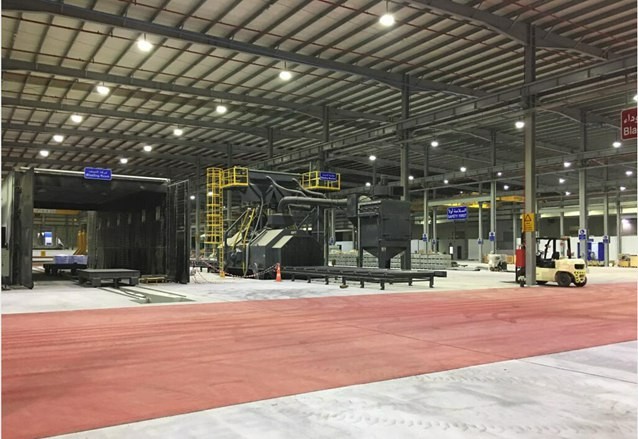

Manufacturing centers.

Institution and college gymnasiums.

Metropolitan facilities like community centers or recreation centers.

Commercial applications like department stores.
