LED High Bay Light Project In UAE

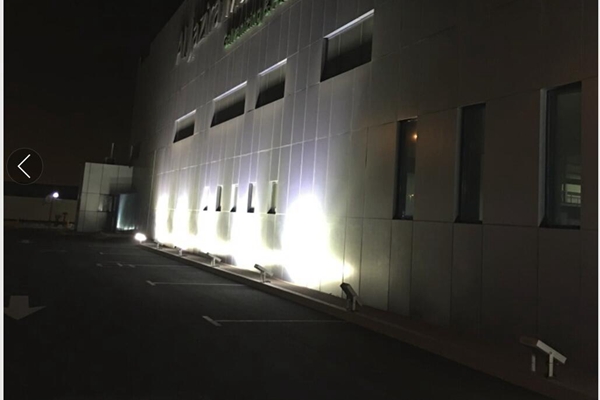

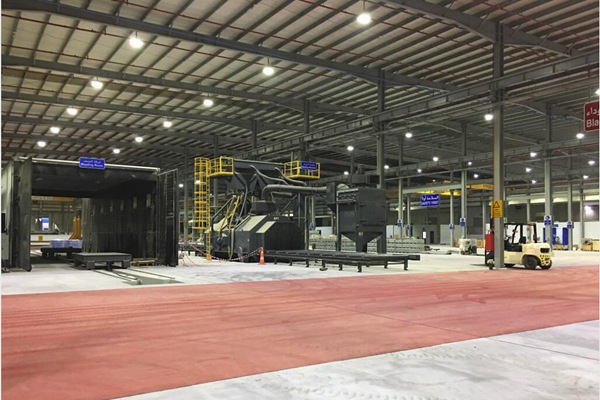

Metal Industrial factory lighting project in the UAE, which was finished in 2017. This project adopts H series LED high bay light and HB series LED flood light to illuminate both the interior and exterior. More than 340pcs 160W, 200W, and 240W H series high bay LED lights are suspended mounted indoors to light the factory's interior. About 60 pcs 160W HB series flood LED lights were bracket mounted on the outdoor ground to light the exterior of the factory. All these high bay lights and floodlights were equipped with 110 degree beam angle optic lenses to make the lighting result more uniform. The good high bay lighting can not only enhance the image of the factory but also make the production safer.


Products Details


160W LED High Bay Light, Model: ZGSM-GCD160H 5700K 110degrees, Lumileds TX, Meanwell Driver 40pcs

200W LED High Bay Light, Model: ZGSM-GCD200H 5700K 110degrees, Lumileds TX, Meanwell Driver 200pcs

240W LED High Bay Light, Model: ZGSM-GCD240H 5700K 110degrees, Lumileds TX, Meanwell Driver 100pcs

160W LED Flood Light, Model: ZGSM-FGD160HB 5700K 110degrees, Lumileds TX, Meanwell Driver 60pcs


Video

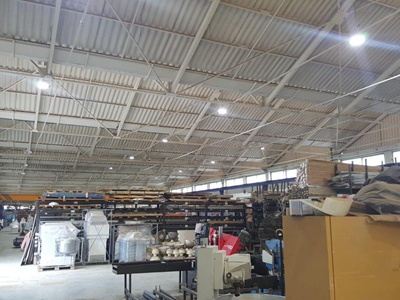

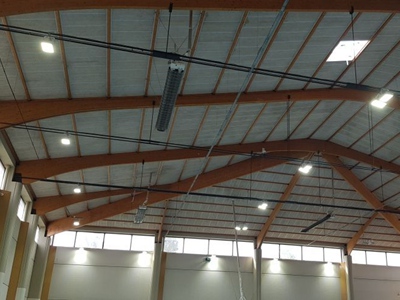

Project Photos


LED High Bay Light Project In UAELED High Bay Light Project In UAE


Specification


ModelZGSM-GCD200H
LED BrandLumileds LUXEON® TX
Driver BrandMeanwell HLG series
Normal Wattage200W
LED Module Quantity5 modules
Input Voltage100-240/277/347/480VAC
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency>110 lm/w
Lamp Rated Lumen output22000 lm (Lumen tolerance +/- 5%)
Color Rendering IndexRa>70
Color Temperature3000K, 4000K, 5000K, or 5700K
Photometric Type60,90,110 degrees
Optimal Operating Temperature25℃
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100,000 hours -L70, @25 ºC (77 ºF)
BodyDie-cast Aluminum Housing
CoverPC lens
RatingIP66 IK10
Protection Class I ( Class II optional)
CertificationCE,ROHS,GS,CB,UL,cUL,DLC,LM-79
Dimming Options1-10V or DALI or PWM or Timer
Control OptionsMotion sensor or Smart control
Color OptionsSilver
Warranty7 years


Download


Installation Manual_HighBay&Flood&TunnelLight_H.pdf

Installation Manual_HighBay&FloodLight&TunnelLight_HB.pdf

Data Sheet_HighBay&Flood&TunnelLight_H.pdf

Data Sheet_HighBay&Flood&TunnelLight_HB.pdf


Related Products


LED High Bay Light Project In UAELED High Bay Light Project In UAELED High Bay Light Project In UAE

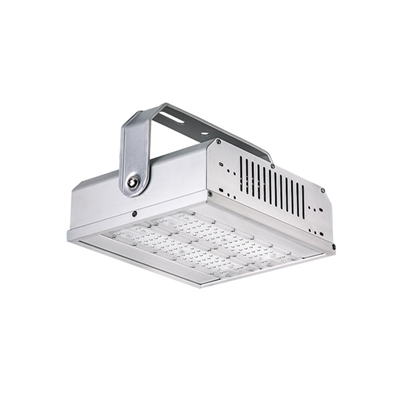

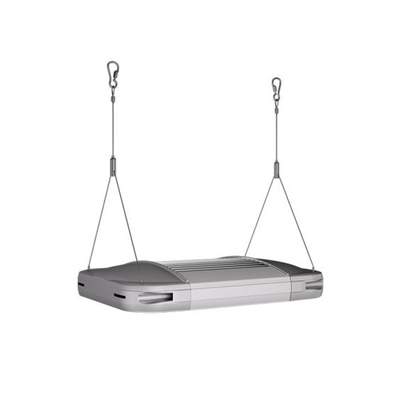

IP66 IK10 80W UL Certified Industrial LED LightingSuspended 120W High Bay LED Lighting

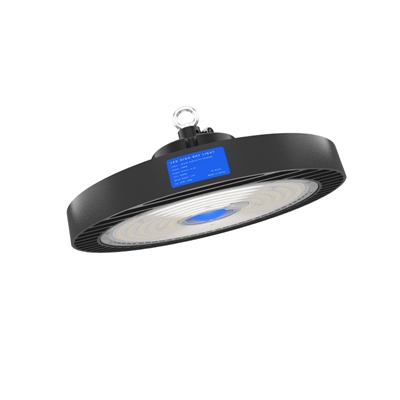

CE RoHS 200W UFO LED High Bay Light
LED High Bay Light Project In UAELED High Bay Light Project In UAELED High Bay Light Project In UAE

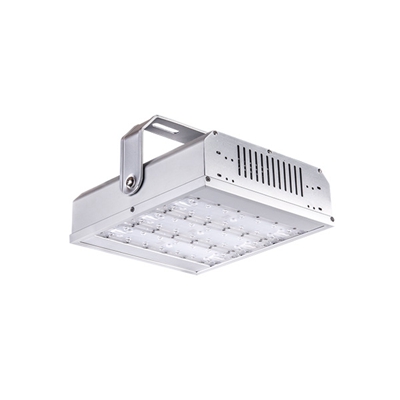

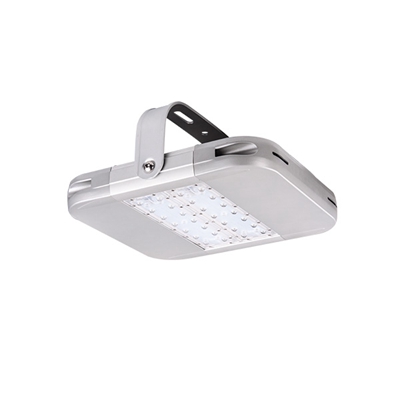

DLC Listed 120W UL Certified High Bay Lighting120W Modular Design High Bay LED LightUFO High Bay 150W With Smart Motion Sensor


Related Projects

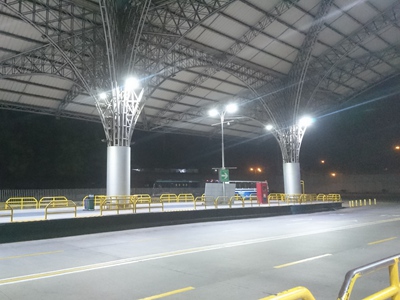

LED High Bay Light Project In UAELED High Bay Light Project In UAELED High Bay Light Project In UAE

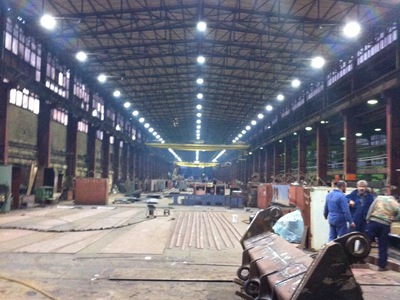

LED High Bay Light Project In HungaryLED High Bay Light Project In Bulgaria

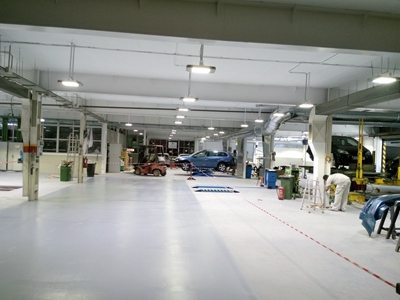

LED High Bay Light Project In France
LED High Bay Light Project In UAELED High Bay Light Project In UAELED High Bay Light Project In UAE

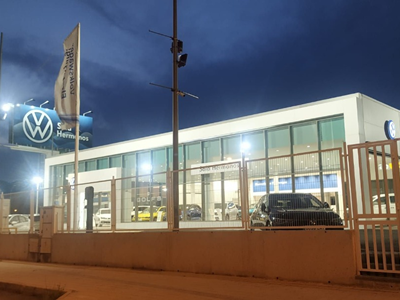

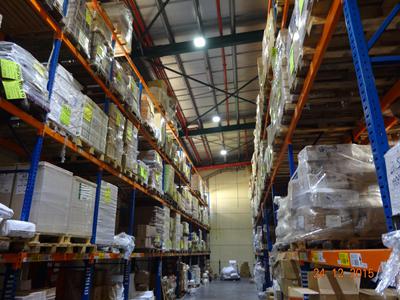

LED High Bay Light Project In NetherlandsLED High Bay Light Project In CanadaLED High Bay Light Project In Croatia


Related Blogs


LED High Bay Light Project In UAELED High Bay Light Project In UAELED High Bay Light Project In UAE
Guide to Buy Led High Bay LightWhy Does Led Use High Bay Light?Advantages of LED high bay light
LED High Bay Light Project In UAELED High Bay Light Project In UAELED High Bay Light Project In UAE

What Is The Installation Distance

Of LED High Bay Light?

Interpret The Precautions For The Use Of

LED High Bay Light In The Workshop

How To Prevent LED High Bay Light From

Being Damaged By Lightning?


People Also Ask


1. Where can you use high bay lights?

When a vast indoor space requires illumination, high bay lighting is usually the best option. Consider areas such as manufacturing plants, gymnasiums, warehouses, enormous department shops, factories, and more; these structures are often large and span a considerable amount of vertical and horizontal space.


2. How do you dim high bay lights?

Using a conventional 1-10V or 0-10V dimmer and attaching the particularly defined pair of dimming wires to the corresponding low voltage LED Dimmer Switch, LED High Bay Lights can be dimmed from 10% to 100% brightness.


3. What is the difference between LED high bay lights and LED low bay lights?

Reflectors or lenses are used in low bay lighting fixtures to disperse light and reduce glare. To make the light flow down to the floor, a high bay light fixture requires specific reflectors made of aluminum or prismatic components to scatter the light and illuminate shelves and other higher objects.
