UL certified LED High Bay Light

Home  /  Products / LED High Bay Light / UL certified LED High Bay Light
  • IP66 IK10 UL Certified LED High Bay 200w
  • IP66 IK10 UL Certified LED High Bay 200w
  • IP66 IK10 UL Certified LED High Bay 200w
  • IP66 IK10 UL Certified LED High Bay 200w
  • IP66 IK10 UL Certified LED High Bay 200w

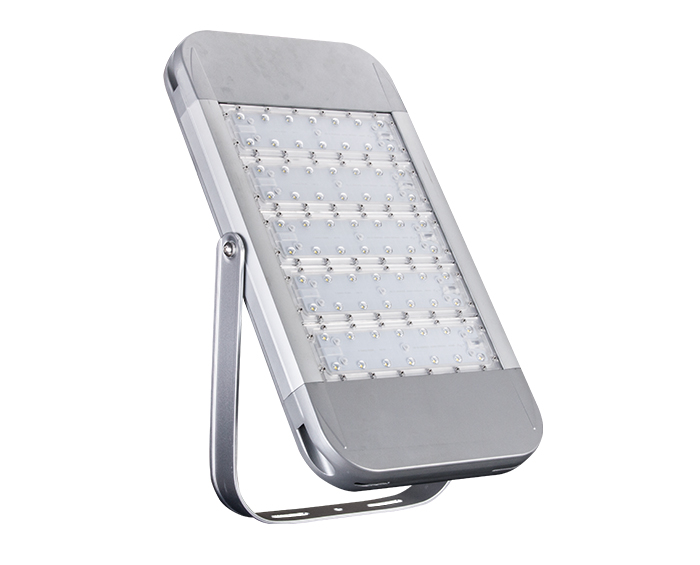

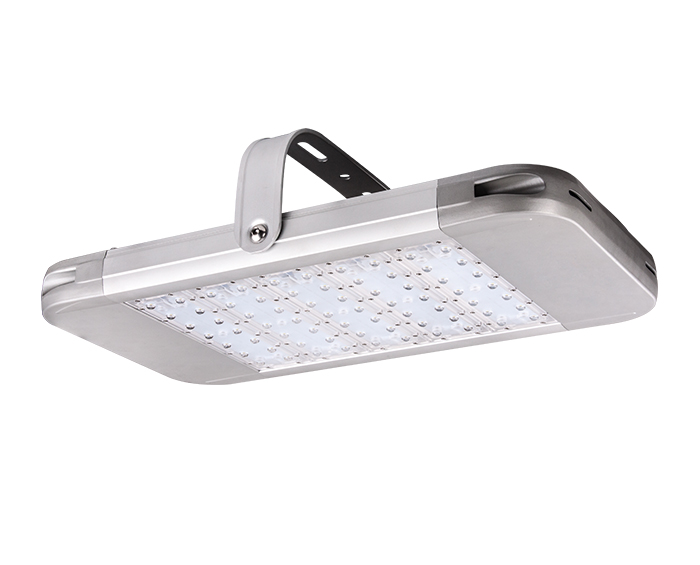

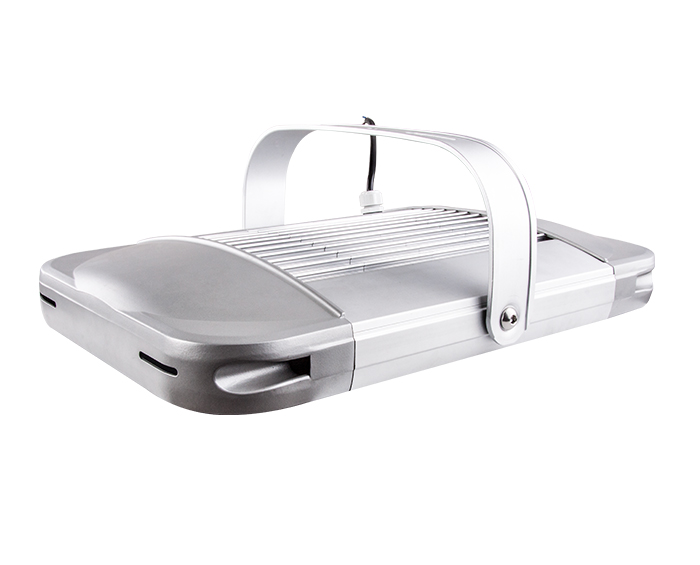

IP66 IK10 UL Certified LED High Bay 200w

LED High Bay 200w has CE, ROHS, GS, CB, UL, cUL, DLC, and LM-79 certification, and has passed the test of IP66, and IK10, there are square and round for you to choose, Motion sensor or Smart control optional, to meet different lighting needs.

PRODUCT DESCRIPTION

Key Features

1. Wide power range: 40W~360W.

2. Special circuit design, single LED damage won't affect others' normal work.

3. Modular design for easy installation, replacement, and maintenance.

4. High Lumen output up to 165lm/ w with high-quality LED chips.

5. Various applications with different mounting Accessories.

6. Multiple lighting control options are available, e.g. DALI, 1-10V, and motion sensor.

7. Designed to last at least 100, 000 hours at L70.

8. Multiple lighting distributions are available.


Specifications

ModelZGSM-GCD200H

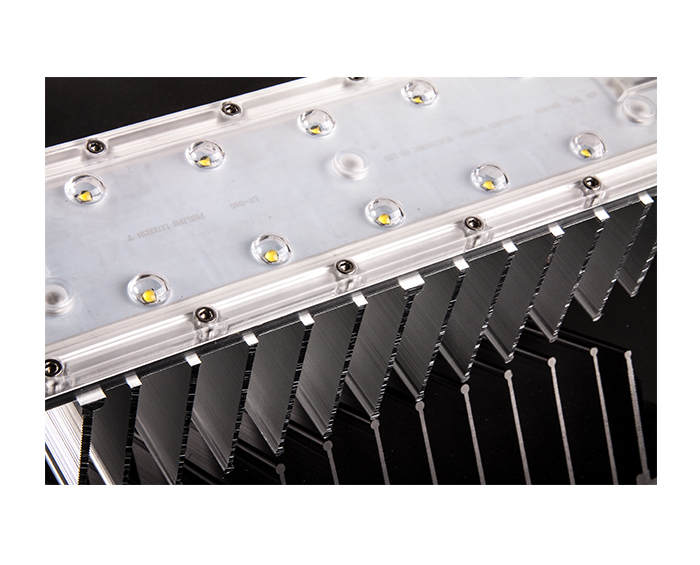

LED BrandLumileds LUXEON® TX

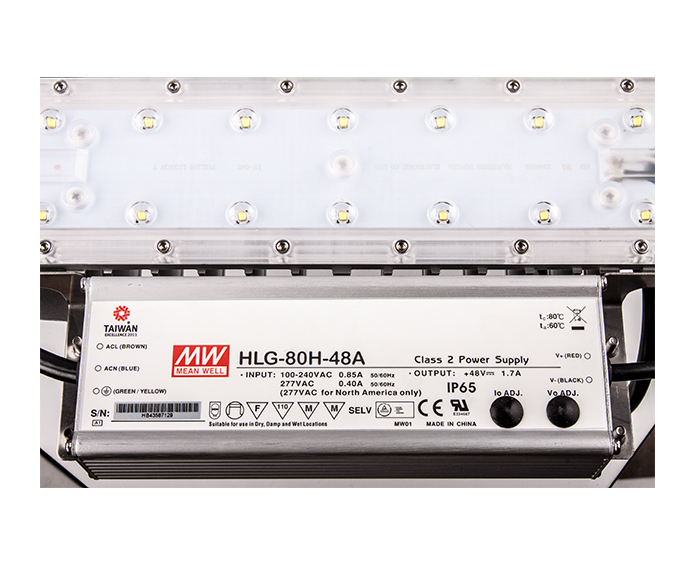

Driver BrandMeanwell HLG series
Normal Wattage200W
LED Module Quantity5 modules
Input Voltage100-240/277/347/480VAC
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency>110 lm/w
Lamp Rated Lumen output22000 lm (Lumen tolerance +/- 5%)
Color Rendering IndexRa>70
Color Temperature3000K, 4000K, 5000K, or 5700K
Photometric Type60,90,110 degrees
Optimal Operating Temperature25℃
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100,000 hours -L70, @25 ºC (77 ºF)
BodyDie-cast Aluminum Housing
CoverPC lens
RatingIP66 IK10
Protection Class I ( Class II optional)
CertificationCE,ROHS,GS,CB,UL,cUL,DLC,LM-79
Dimming Options1-10V or DALI or PWM or Timer
Control OptionsMotion sensor or Smart control
Color OptionsSilver
Warranty7 years

FAQ

Different Types of High Bay Lights

High Bay lights are very powerful and are designed to meet the unique requirements of large areas. Metal halide (MH) lamps and high-pressure sodium (HPS) lamps have been the first choice for many years. These lamps use very different techniques compared to traditional incandescent or fluorescent lamps. One side effect of the technology is that the most effective shapes for MH and HPS lamps are round or circular. This shape optimizes the service life of the lamp and maximizes the amount of light in a particular direction.

Advances in lighting technology have led to more modern types of luminaires suitable for high-bay applications. In particular, industrial LED lamps are now generally superior to MH and HPS lamps in most respects, including maintenance costs, energy efficiency, and lighting quality. They have the added advantage of being suitable for a variety of shapes, not just the rounds where MH and HPS lamps are restricted. The most common additive shape for industrial LED lights is rectangular or bar-shaped, where the lights are arranged in a linear shape, increasing coverage and uniformity.


What is the difference between a low and high bay light?

High-bay lighting features a deep reflector used to direct the light down from a high ceiling. High-bay fixtures also produce a diffused light, which helps to reduce glare. Low-bay lighting has a shallower reflector plus a lens, which diffuses the light outwards from a lower ceiling.
