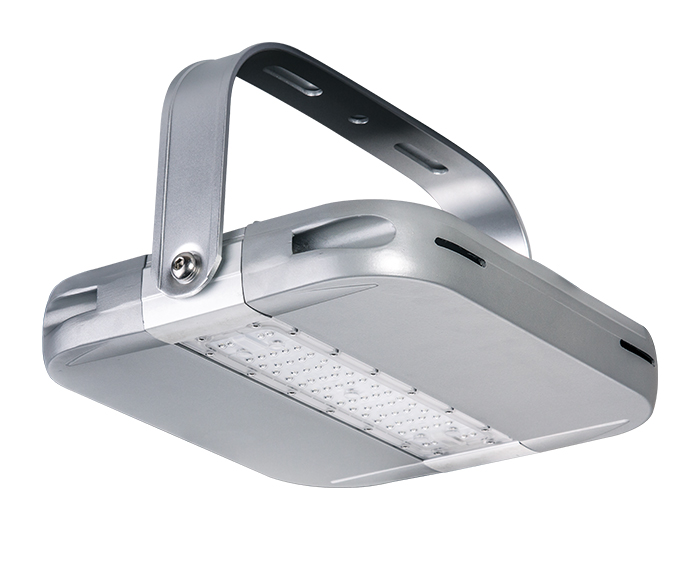

50w Modular Design LED High Bay Light

LED High Bay Light is an Ideal Alternative to metal halide luminaires; Ideal for installation in warehouses, factories, museums, stadiums, and large open areas. Various applications with different mounting Accessories. We also have other led lamps with modular designs, welcome to purchase.

PRODUCT DESCRIPTION

Key Features

1. Wide power range: 40W~360W.

2. Special circuit design, single LED damage won't affect others' normal work.

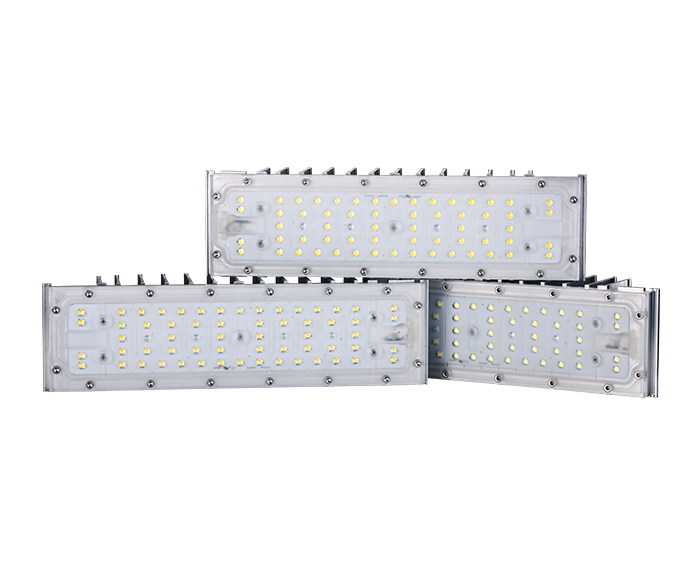

3. Modular design for easy installation, replacement, and maintenance.

4. High Lumen output up to 165lm/ w with high-quality LED chips.

5. Various applications with different mounting Accessories.

6. Multiple lighting control options are available, e.g. DALI, 1-10V, and motion sensor.

7. Designed to last at least 100, 000 hours at L70.

8. Multiple lighting distributions are available.


Specifications

ModelZGSM-GCD50H5
LED BrandLumileds LUXEON 3030/5050
Driver BrandMeanwell HLG series
Normal Wattage50W
LED Module Quantity1 module
Input Voltage100-240/277/347/480VAC
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency130-160 lm/w
Lamp Rated Lumen output6500-8000 lm (Lumen tolerance +/- 5%)
Color Rendering Index70 (80 is optional)
Color Temperature3000K, 4000K, 5000K, or 5700K
Photometric Type60,90,110 degrees
Optimal Operating Temperature25℃
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100,000 hours -L70, @25 ºC (77 ºF)
BodyDie-cast Aluminum Housing
CoverPC lens
RatingIP66 IK10
Protection Class I ( Class II optional)
CertificationCE, ROHS, LM80
Dimming Options1-10V or DALI or PWM or Timer
Control OptionsMotion sensor or Smart control
Color OptionsSilver
Warranty7 years

FAQ

What is an LED high bay light?

LED high bay lights are designed for tall ceilings (typically 20 to 45 feet) and provide enough light intensity to disperse over large areas or highly concentrated on critical points. With so many options on the market, deciding which lighting fixture best illuminates your space can be daunting.


How to choose industrial high bay lights?

You can easily choose one according to the height of the high bay lamps installed. Different heights have different wattages: 10-15 feet – this height is ideal for lamps from 10,000 to 15,000 lumens. 15-20 feet – This height is ideal for lamps from 16,000 to 20,000 lumens.


What is the difference between high bay and low bay?

High shed/low shed is a lighting term used to describe the correct shed lamp required for the appropriate ceiling height. In general, high bay lights are suitable for any large area with a ceiling height greater than 20 feet. In return, low-shed luminaires are used in large rooms with ceiling heights between 12 and 20 feet.
