LED High Bay Light Project In Lebanon

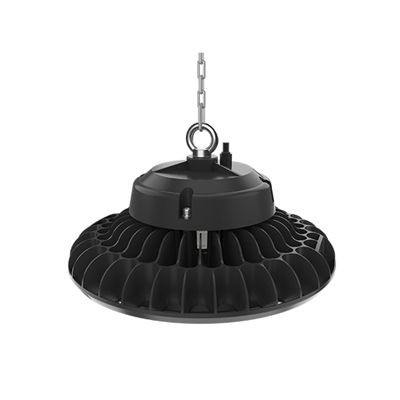

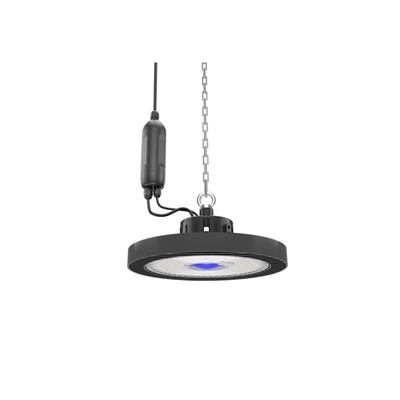

The factory workshop lighting project in Lebanon was finished in 2016. The client purchased 120 units of 160W UFO type LED high bay lights with 140lm/W to replace 400W metal halide lamps. After installing these new UFO high bay LED lights, the energy consumption of lighting has been reduced by more than 60%. The brighter and more comfortable workshop has greatly improved the productivity and safety of workers. The ring on the light is used for attaching the metal chain. By choosing the corresponding chain length, we can easily install the UFO high bay light at the height we need. This installation way makes our LED UFO high bay lights easily to be mounted in warehouses, workshops, gyms, garages, factories, and so on.


Products Details

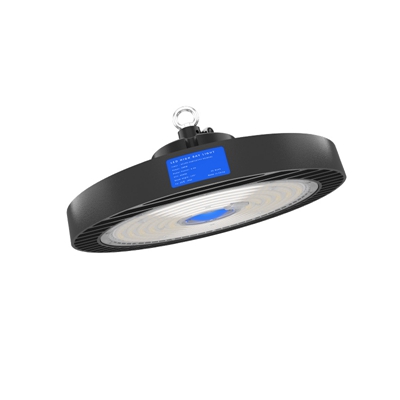

160W UFO LED High Bay Light, Model: ZGSM-UFO160M, 5700K, 110degrees,120pcs


Video

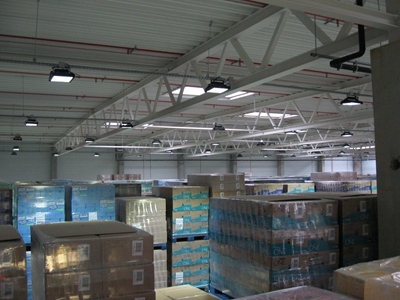

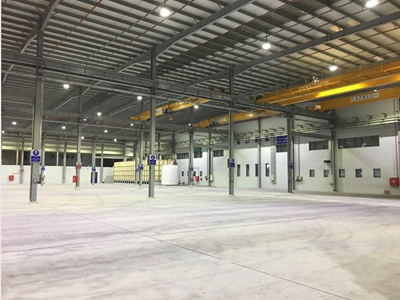

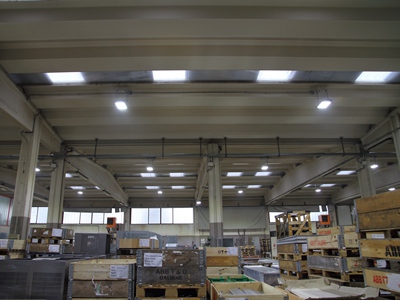

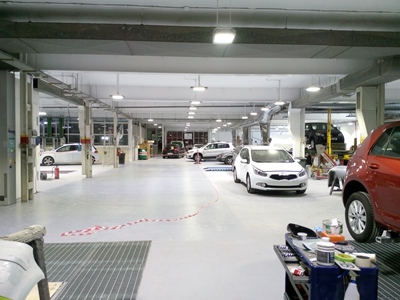

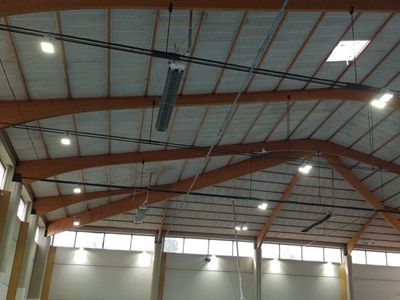

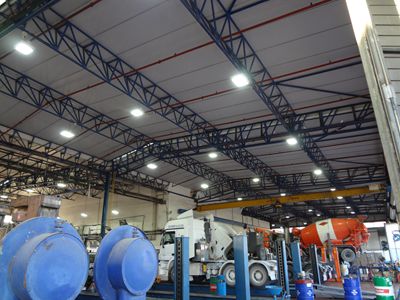

Project Photos


LED High Bay Light Project In LebanonLED High Bay Light Project In Lebanon


Specification


ModelZGSM-UFO160M
LED BrandLumileds LUXEON 3030/5050
Driver BrandMeanwell HBG series
Normal Wattage160W
LED  Quantity3030: 240pcs 5050: 122pcs
Input Voltage100-240/277VAC
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency140-155 lm/w
Lamp Rated Lumen output22400-24800 lm (Lumen tolerance +/- 5%)
Color Rendering Index70 (80 is optional)
Color Temperature3000K, 4000K, 5000K or 5700K
Photometric Type60,110 degrees
Optimal Operating Temperature25℃
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100,000 hours -L70, @25 ºC (77 ºF)
BodyDie-cast Aluminum Housing
Cover110°-Tempered glass;60°-PC lens
RatingIP65 IK08
Protection Class I
CertificationCE, ROHS, LM80
Dimming Options1-10V or DALI or PWM or Timer
Control OptionsMotion sensor or Smart control
Color OptionsBlack
Warranty5 years


Download


Installation Manual_HighBayLight_M.pdf

Data Sheet_BayLight_M.pdf


Related Products


LED High Bay Light Project In LebanonLED High Bay Light Project In LebanonLED High Bay Light Project In Lebanon

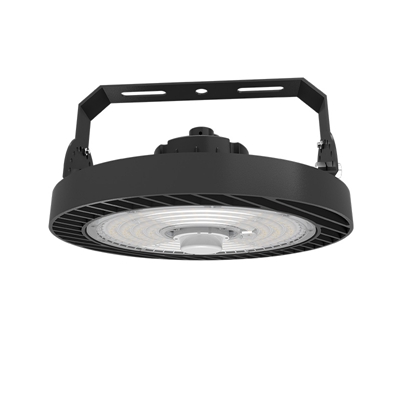

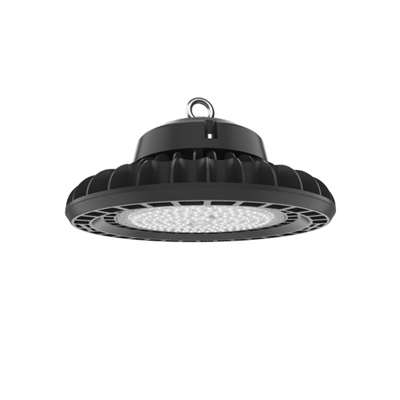

100W UFO LED Bay Lights160W UFO High Bay Light200W UFO Type LED Light
LED High Bay Light Project In LebanonLED High Bay Light Project In LebanonLED High Bay Light Project In Lebanon
100W LED UFO Industrial High Bay Light150 Watt UFO High Bay LED LightCE RoHS 200W UFO LED High Bay Light


Related Projects


LED High Bay Light Project In LebanonLED High Bay Light Project In LebanonLED High Bay Light Project In Lebanon

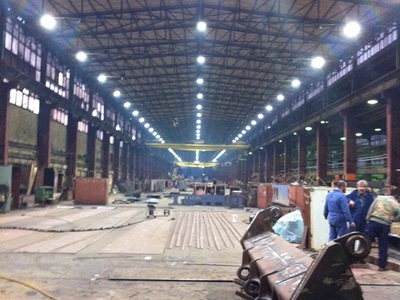

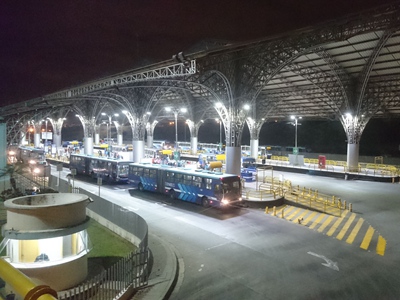

LED High Bay Light Project In HungaryLED High Bay Light Project In UAE
LED High Bay Light Project In Bulgaria
LED High Bay Light Project In LebanonLED High Bay Light Project In LebanonLED High Bay Light Project In Lebanon

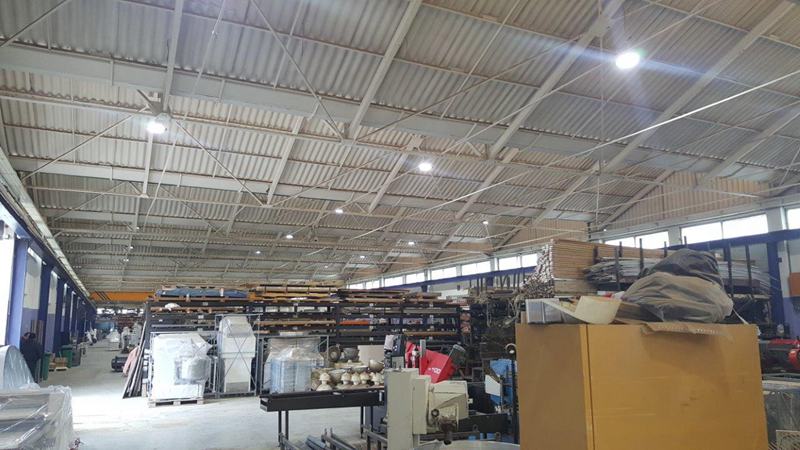

LED High Bay Light Project In ItalyLED High Bay Light Project In IsraelLED High Bay Light Project In Spain


Related Blogs


LED High Bay Light Project In LebanonLED High Bay Light Project In LebanonLED High Bay Light Project In Lebanon
Advantages of LED high bay lightHow To Choose A Good LED High Bay Light?What Is a High Bay Light and Its Purpose?
LED High Bay Light Project In LebanonLED High Bay Light Project In LebanonLED High Bay Light Project In Lebanon

How to replace and repair

industrial workshop lights?

Interpret The Precautions For The Use

 Of LED High Bay Light In The Workshop

What Is The Installation Distance

Of LED High Bay Light?


People Also Ask


1. What does UFO mean on LED lights?

UFO LED high bay lights are LED lights with a UFO-like form that are mostly used for commercial or industrial illumination, such as those in warehouses, factories, garages, shopping centers, etc. They can cast light over huge areas.


2. How do you wire dimmable UFO high bay LED lights?

Use a dimmer to connect two dimming cables if the LED high bay lights you bought can be dimmed. Lepro LED high bay lights, for instance, can be dimmed between 1 and 10 volts. The gray cable stands for dimming down (–), whereas the purple cable indicates dimming up (+).


3. How many pcs LED high bay lights do we need?

It depends on the application places and your requirements. Pls kindly contact us and inform us of more details, such as type and size of application place, average lux. We will provide you with the best solution with suitable quantity and wattage.
