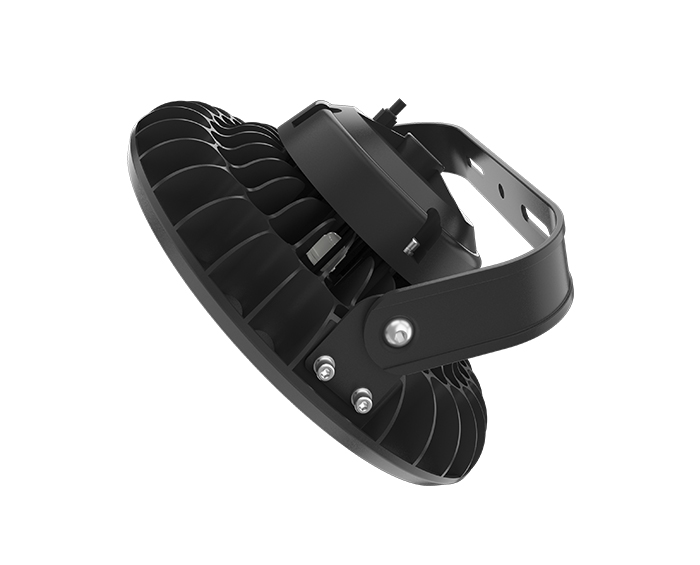

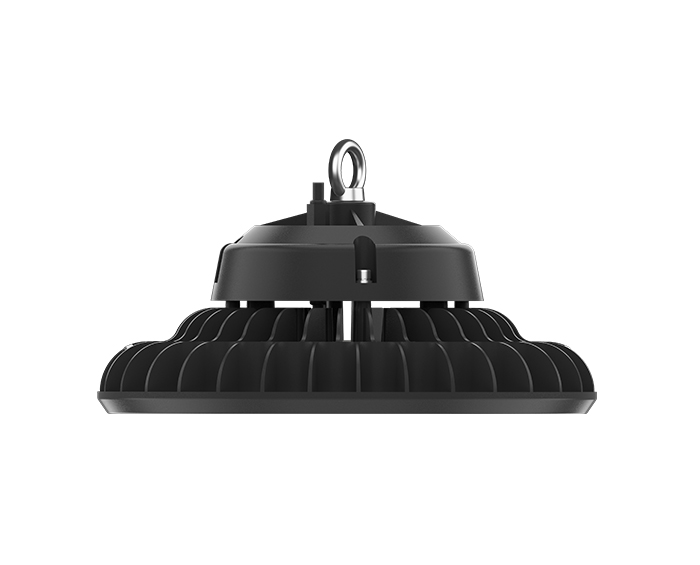

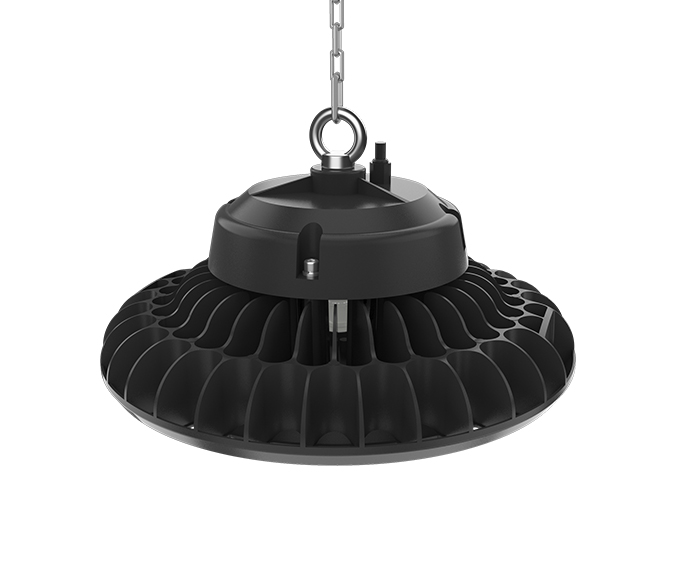

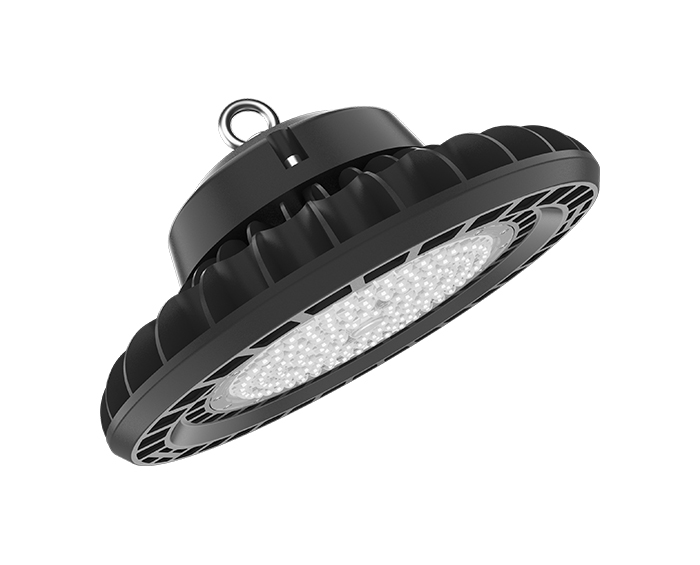

UFO Type LED High Bay Light
160W UFO High Bay Light is the latest indoor or outdoor industrial LED lighting fixture, using a high-quality SMD 3030 chip as a light source. Surface mounting can be done by hanging from wires or via brackets. Mainly used in industrial lighting places, such as warehouses, workshops, factories, supermarkets, etc.
1. Wide power range: 100W~200W.
2. Special circuit design, single LED damage won't affect others' normal work.
3. High Lumen output up to 155lm/ w with high-quality LED chips.
4. Variety applications with different mounting Accessories.
5. Multiple lighting control options are available, e.g. DALI, 1-10V, and motion sensor.
6. Designed to last at least 100, 000 hours at L70.
7. Multiple lighting distributions are available.
Model | ZGSM-UFO160M |
LED Brand | Lumileds LUXEON 3030/5050 |
Driver Brand | Meanwell HBG series |
Normal Wattage | 160W |
LED Quantity | 3030: 240pcs 5050: 122pcs |
Input Voltage | 100-240/277VAC |
Power Efficiency | >90% |
Power Factor | >0.95 |
Lamp Rated Luminous Efficiency | 140-155 lm/w |
Lamp Rated Lumen output | 22400-24800 lm (Lumen tolerance +/- 5%) |
Color Rendering Index | 70 (80 is optional) |
Color Temperature | 3000K, 4000K, 5000K or 5700K |
Photometric Type | 60,110 degrees |
Optimal Operating Temperature | 25℃ |
Storage Temperatures | -40°C~50°C |
Working Environment | Between-40°C~+50°C, 10%~90%RH |
Total Harmonic Distortion | < 10% |
Lumen Maintenance | > 100,000 hours -L70, @25 ºC (77 ºF) |
Body | Die-cast Aluminum Housing |
Cover | 110°-Tempered glass;60°-PC lens |
Rating | IP65 IK08 |
Protection | Class I |
Certification | CE, ROHS, LM80 |
Dimming Options | 1-10V or DALI or PWM or Timer |

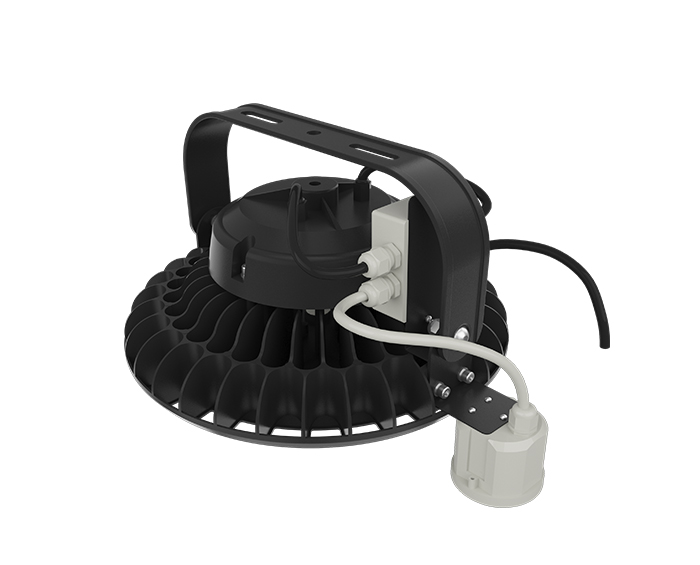

Control Options | Motion sensor or Smart control |
Color Options | Black |
Warranty | 5 years |
ZGSM LED high bay light can use conventional 1-10V or 0-10V dimmers to adjust brightness from 10% to 100% and connect specially designated dimming pairs to compatible low-voltage LED dimming switches.
1-10V dimming uses a controlled DC voltage signal to change the brightness of the accessory. 1 is the lowest level and is usually 10% light output, 10 is the brightest, and 100% light output. The light output has a linear pattern between 1 and 10V, so 5 is about 50%.
