Modular Design LED High Bay Light

Home  /  Products / LED High Bay Light / Modular Design LED High Bay Light
  • 360w ​Modular Design Warehouse LED Lights
  • 360w ​Modular Design Warehouse LED Lights
  • 360w ​Modular Design Warehouse LED Lights
  • 360w ​Modular Design Warehouse LED Lights
  • 360w ​Modular Design Warehouse LED Lights

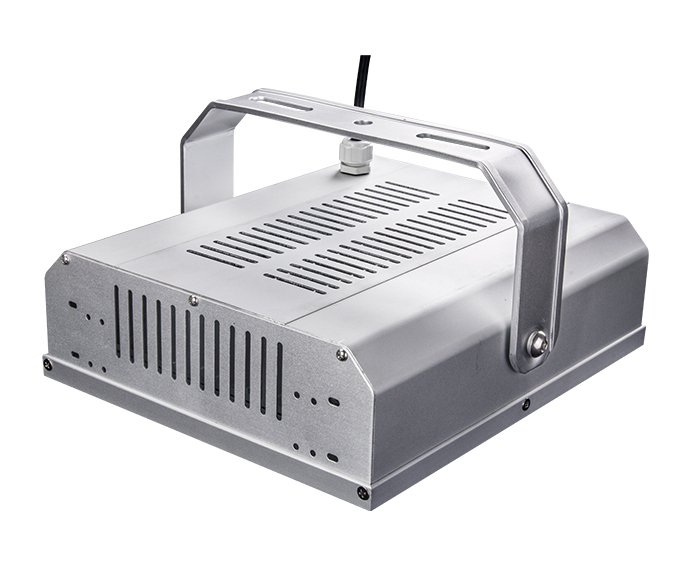

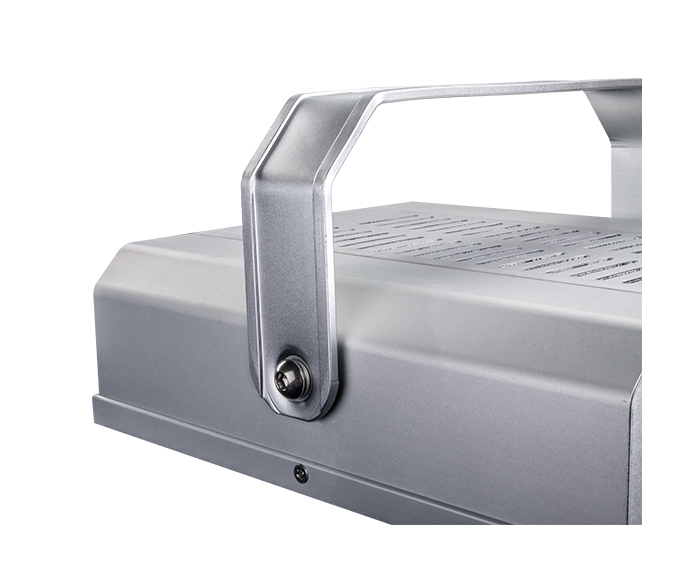

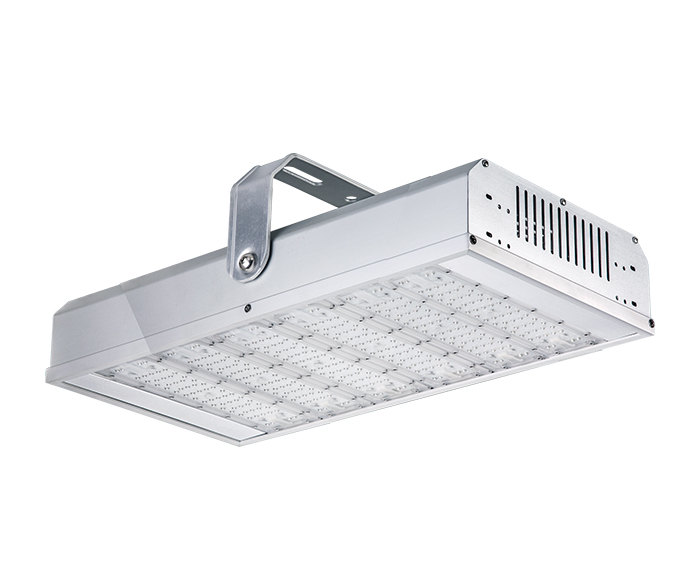

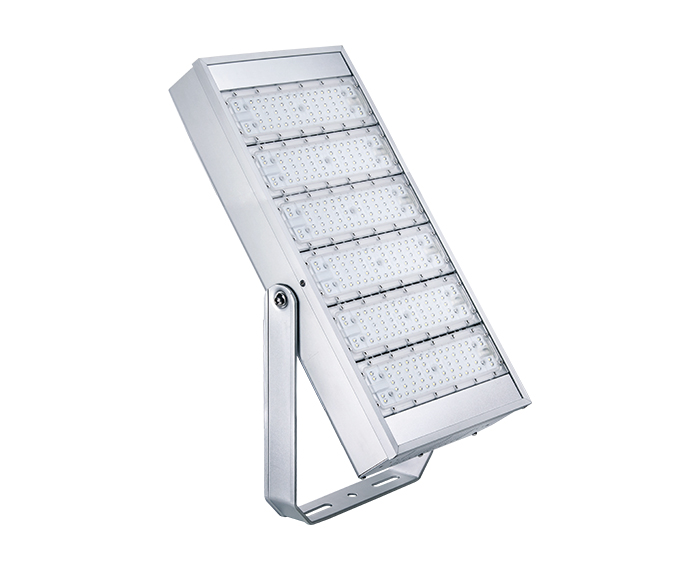

360w ​Modular Design Warehouse LED Lights

Modular design Warehouse LED Lights can be used in warehouses, workshops, garages, billboards, areas, and buildings. We can produce LED lights of various modular designs, such as warehouse modular LED street lights, LED flood lights, LED canopy lights, etc. Modular design saves your maintenance costs.

PRODUCT DESCRIPTION

Key Features

1. Wide power range: 40W~360W.

2. Special circuit design, single LED damage won't affect others' normal work.

3. Modular design for easy installation, replacement, and maintenance.

4. High Lumen output up to 165lm/ w with high-quality LED chips.

5. Various applications with different mounting Accessories.

6. Multiple lighting control options are available, e.g. DALI, 1-10V, and motion sensor.

7. Designed to last at least 100, 000 hours at L70.

8. Multiple lighting distributions are available.


Specifications

ModelZGSM-GCD360H6B
LED BrandLumileds LUXEON 3030/5050
Driver BrandMeanwell HLG series
Normal Wattage360W
LED Module Quantity6 modules
Input Voltage100-240/277/347/480VAC
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency125-155 lm/w
Lamp Rated Lumen output45000-55800 lm (Lumen tolerance +/- 5%)
Color Rendering Index70 (80 is optional)
Color Temperature3000K, 4000K, 5000K, or 5700K
Photometric Type60, 90,110 degrees
Optimal Operating Temperature25℃
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100,000 hours -L70, @25 ºC (77 ºF)
BodyStretching Aluminum
CoverPC lens
RatingIP66 IK10
Protection Class I ( Class II optional)
CertificationCE, ROHS, LM80
Dimming Options1-10V or DALI or PWM or Timer
Control OptionsMotion sensor or Smart control
Color OptionsSilver
Warranty7 years

FAQ

What is the best lighting for a warehouse?

Warehouses typically use one of two types of lamps: linear fluorescent lamps or metal halide lamps. The most versatile and energy-efficient option for lighting your warehouse is led luminaires. They use less energy than any other light source and emit comparable or even better lumen outputs.


How many lumens do I need for a warehouse?

For warehouses handling large items, the ideal lumen requirement is often around 10 lumens per square foot. For warehouses that store and handle smaller items, this number can be up to 30 lumens per square foot. For aisles, recommendations fall somewhere in between.
