Modular Design LED High Bay Light

Home  /  Products / LED High Bay Light / Modular Design LED High Bay Light
  • 300w LED Bay Lights
  • 300w LED Bay Lights
  • 300w LED Bay Lights
  • 300w LED Bay Lights
  • 300w LED Bay Lights

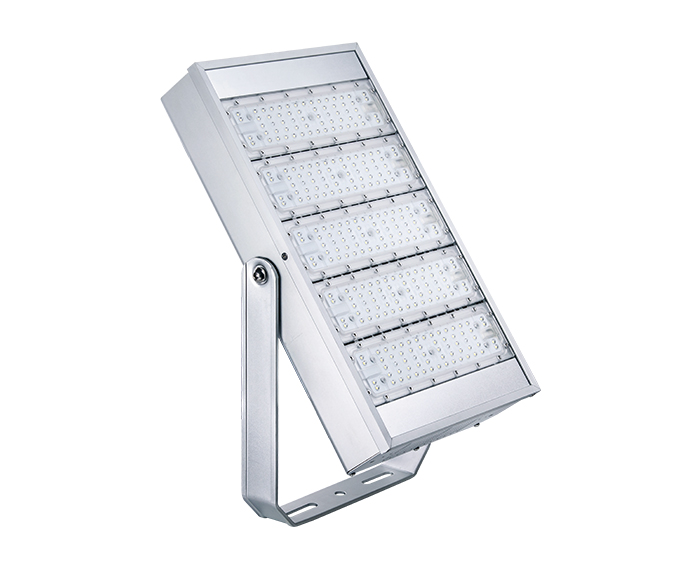

300w LED Bay Lights

The 300w LED bay light is an affordable way to get high-quality warehouse lighting for the toughest jobs, the flexible stand can adjust the angle you want. it can be installed in warehouses, workshops, garages, billboards, areas, buildings, etc.

PRODUCT DESCRIPTION

Key Features

1. Wide power range: 40W~360W.

2. Special circuit design, single LED damage won't affect others' normal work.

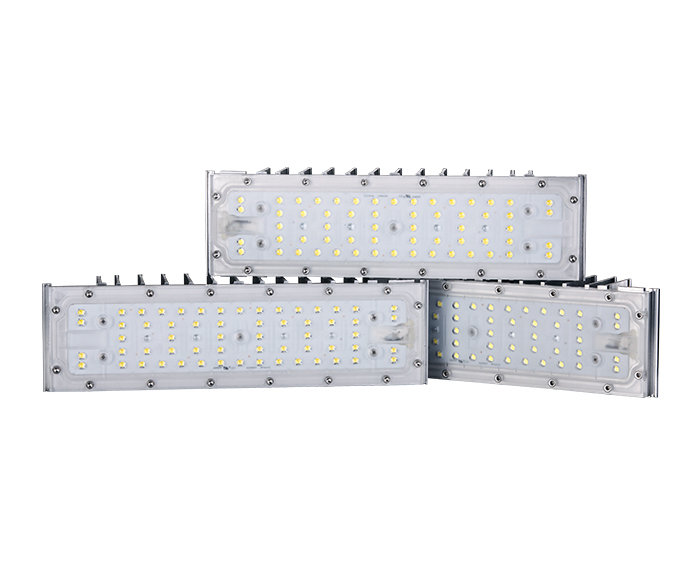

3. Modular design for easy installation, replacement, and maintenance

4. High Lumen output up to 165lm/ w with high-quality LED chips.

5. Various applications with different mounting Accessories.

6. Multiple lighting control options are available, e.g. DALI, 1-10V, motion sensor.

7. Designed to last at least 100, 000 hours at L70.

8. Multiple lighting distributions are available.


Specifications

ModelZGSM-GCD300H6B
LED BrandLumileds LUXEON 3030/5050
Driver BrandMeanwell HLG series
Normal Wattage300W
LED Module Quantity5 modules
Input Voltage100-240/277/347/480VAC
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency125-155 lm/w
Lamp Rated Lumen output37500-46500 lm (Lumen tolerance +/- 5%)
Color Rendering Index70 (80 is optional)
Color Temperature3000K, 4000K, 5000K or 5700K
Photometric Type60,90,110 degrees
Optimal Operating Temperature25℃
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100,000 hours -L70, @25 ºC (77 ºF)
BodyStretching Aluminum
CoverPC lens
RatingIP66 IK10
Protection Class I ( Class II optional)
CertificationCE, ROHS, LM80
Dimming Options1-10V or DALI or PWM or Timer
Control OptionsMotion sensor or Smart control
Color OptionsSilver
Warranty7 years

FAQ

What lighting methods are used in the High Bay Area?

High bay lighting uses common beam angles such as 60°, 90°, and 120°. Narrow beams help produce more focused beams of light, providing high illumination levels on the floor. In contrast, a wider beam angle allows for excellent light distribution in large open areas with lower roof heights.


Are LED store lights better than fluorescent lights?

LED workshop lights have a longer lifespan and higher efficiency than fluorescent lamps, but in most cases, with the same linear fluorescent lamp form factor, typically using very similar luminaire styles to provide 4 feet long.
