LED Street Light Project in Uruguay

The outdoor lighting project in Uruguay was finished in 2010. There are 130 units of 120W D series LED Street Lighting fixtures in this project. All these LED street lights were installed on 12-meter height poles, 1 pcs each pole. With this lighting solution, the lighting conditions of this park were greatly improved. Persons are satisfied with the lighting effect and feel pleasant walking here. As a OEM manufacturer focusing on designing and producing LED lights since 2005, ZGSM always aim to provide high-quality LED lighting fixtures to our clients. Most of the LED street lights in this project are still working well so far.


Products Details

120W LED Street Light, Model: ZGSM-LLD120WD, 6000K, Pole height=12m, 130pcs

(Note: D series LED street lights have been discontinued and replaced by H series.)


Video

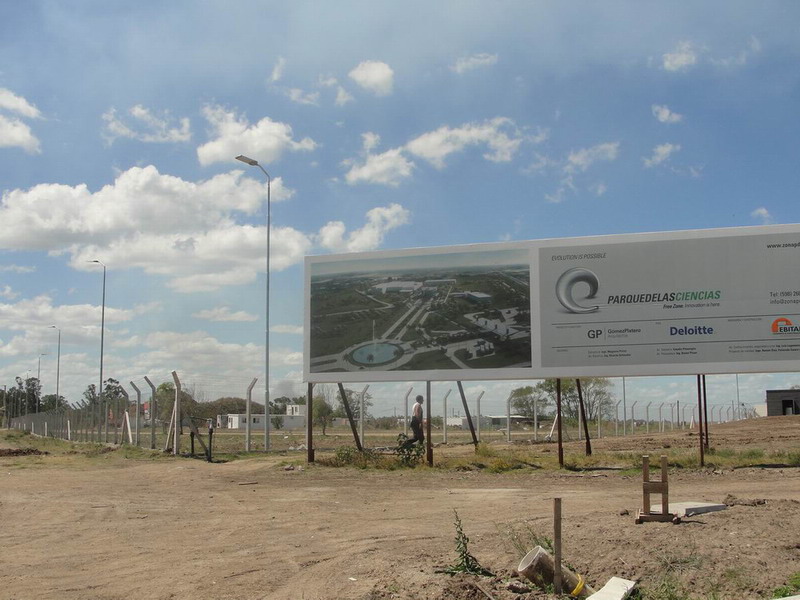

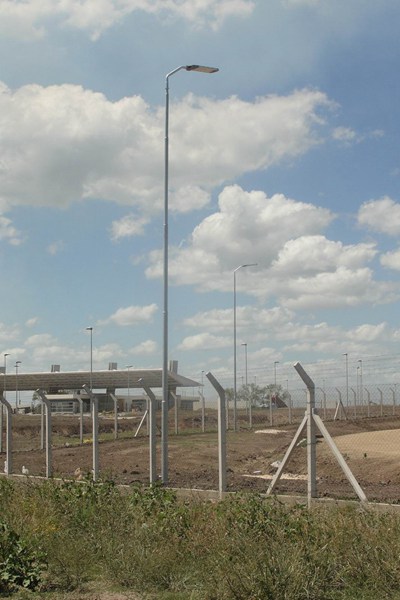

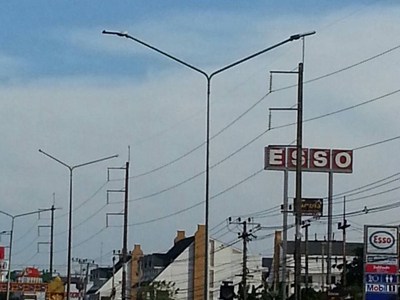

Project Photos


LED Street Light Project in UruguayLED Street Light Project in Uruguay


Specification


ModelZGSM-LD120H4
LED BrandLumileds 3030/5050
Driver BrandMeanwell or Inventronics
Normal Wattage120W
LED Module Quantity3 modules
Input Voltage100-240/277VAC/DC24V
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency140-165 lm/w
Lamp Rated Lumen output16800-19800 lm (Lumen tolerance +/- 5%)
Color Rendering Index70( 80 optional)
Color Temperature3000K, 4000K, 5000K, or 5700K
Photometric TypeType I Medium; Type II Medium; Type III Medium, TypeV, Short
Optimal Operating Temperature25°
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100000 hours -L70, @25 ºC (77 ºF)
Wind IndexForce 12
BodyDie-cast Aluminum Housing
CoverPC lens
Pole Fitter Diameter60mm ( 50mm optional)
RatingIP66 IK10
Protection Class I ( Class II optional)
SPD10KV (20KV optional)
CertificationCE,ROHS,ENEC,CB,LM80,LM79,FCC,IP66,IK10
Dimming Options1-10V or DALI or PWM or Timer
Control OptionsPhotocell or Motion sensor or Smart control
Color OptionsSilver or Black
Warranty7 years


Download


Installation Manual_StreetLight_H.pdf

Data Sheet_LEDStreetLight_H.pdf


Related Products


LED Street Light Project in UruguayLED Street Light Project in UruguayLED Street Light Project in Uruguay

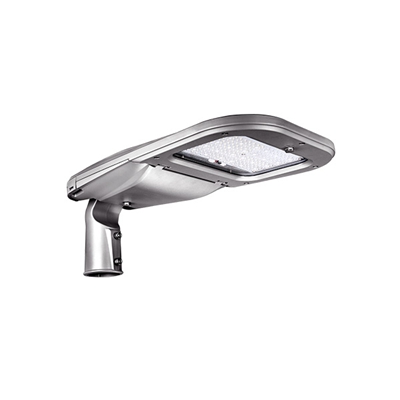

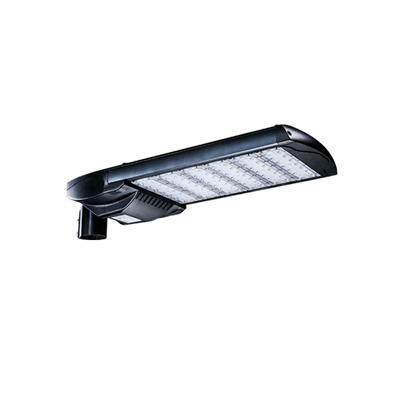

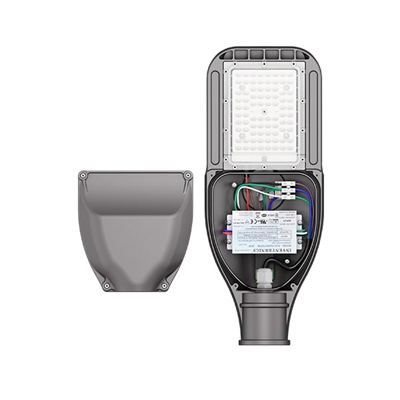

ENEC approved 120w LED Module Lights20w Economical LED Area LightsMotion Sensor Street Light 120W
LED Street Light Project in UruguayLED Street Light Project in UruguayLED Street Light Project in Uruguay

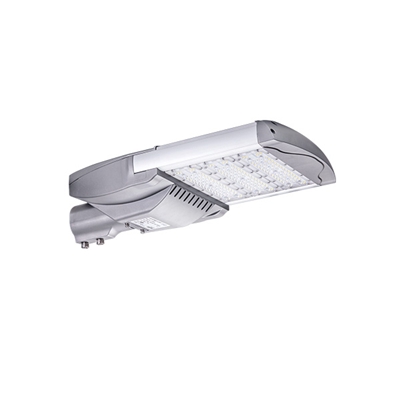

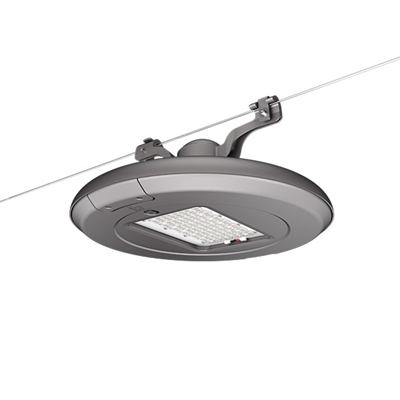

150w LED Street Light56w Suspended LED Street Lighting Fixtures

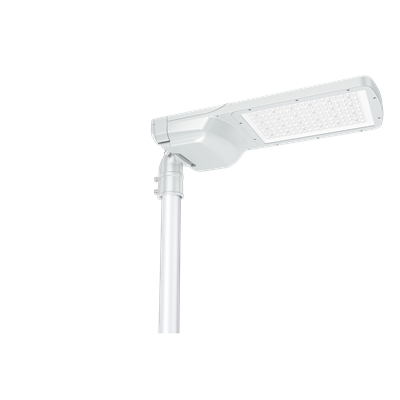

240w Class II Modular Design Street Luminaires


Related Projects


LED Street Light Project in UruguayLED Street Light Project in UruguayLED Street Light Project in Uruguay

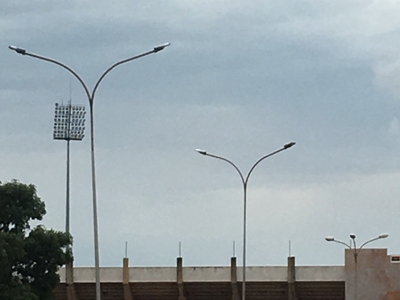

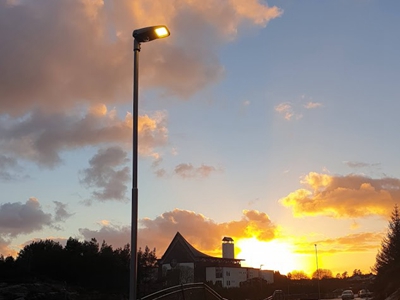

LED Street Light Project In Burkina Faso

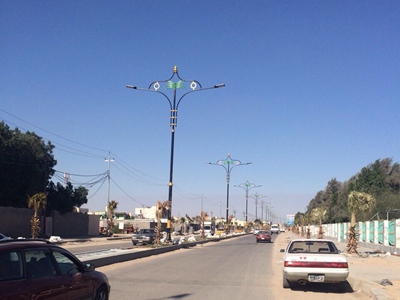

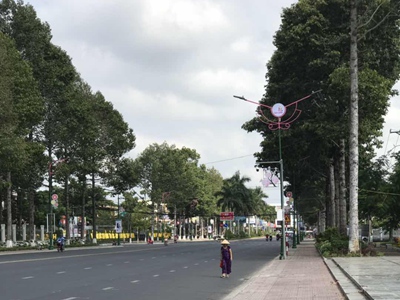

LED Street Light Project In DubaiLED Street Light Project In Thailand
LED Street Light Project in UruguayLED Street Light Project in UruguayLED Street Light Project in Uruguay

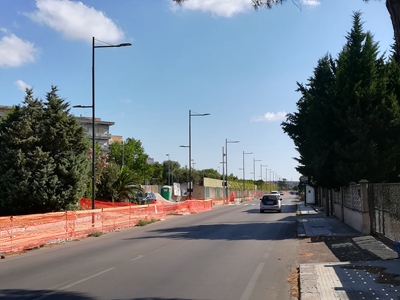

LED Street Light Project In IraqLED Street Light Project In Italy

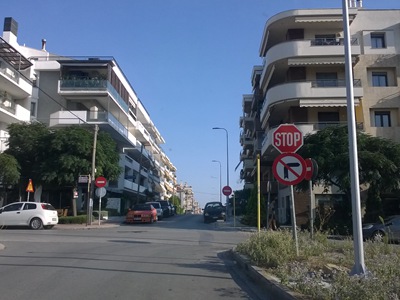

LED Street Light Project In Greece


Related Blogs


LED Street Light Project in UruguayLED Street Light Project in UruguayLED Street Light Project in Uruguay

Purchasing LED Street Lights

Must Know These Points

Briefly Describe The Technical Requirements

Of Led Street Lights

The Reason For The Rapid Development

Of LED Street Light

LED Street Light Project in UruguayLED Street Light Project in UruguayLED Street Light Project in Uruguay

Principle And Characteristics Of

High Power White LED Street Light

Compare The Advantages And

Disadvantages Of LED Street Lights

LED Street Light System Installation Process


People Also Ask


  1. How can optics and controls help mitigate any negative impacts of public light?

    Controls for ZGSM lighting solutions, such as dusk-to-dawn sensors, can automatically dim or turn off the luminaires depending on the time of day, lowering both energy usage and any adverse environmental effects. Our solutions also include shields to reduce sidelight and uplight as well as, most crucially, "optics" to lessen glare regardless of how much blue light or what color temperature (e.g., 3,000K vs. 4,000K) they produce.


  2. What are the benefits of LED solutions?


    · Significant energy savings - more than 60% as compared to typical street lighting

    · Good color rendering, which makes colors appear more natural.

    · Long service life - up to 100,000 hours, resulting in lower maintenance costs.

    · White light that is uniform and of good quality. LED lighting helps to make spaces safer by improving facial recognition for security and CCTV cameras.

    · When light is not required, LEDs can be muted, resulting in extra energy savings. LEDs can also be networked and controlled remotely by connecting them to sensors and controls.


  3. How do LED street lights work?

    In comparison to traditional street lights, which typically include a reflector on the rear side of a high-pressure sodium lamp, most LED street lights have a lens on the LED panel that is designed to cast its light in a rectangular pattern.
