LED Street Light

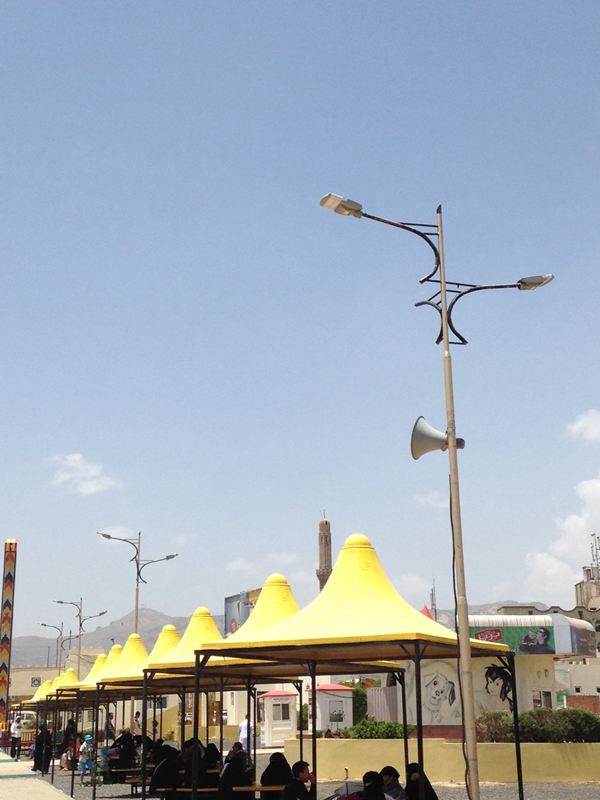

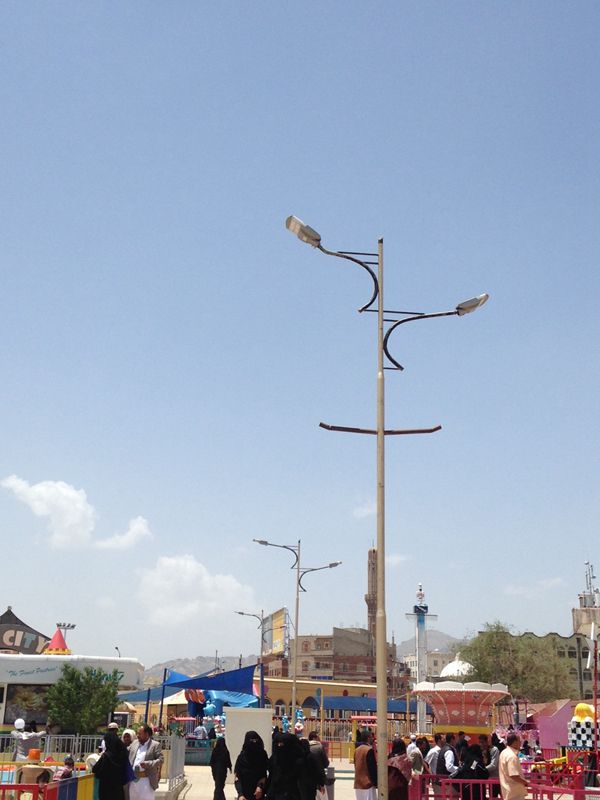

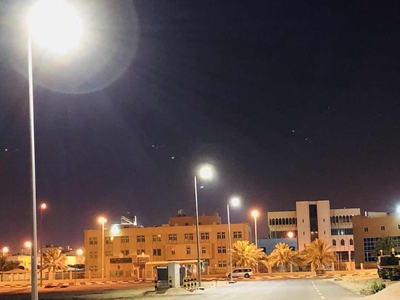

The amusement park lighting project in Dubai was completed in 2013. The client chose 40pcs of 65W H series LED Roadway Lights, which were equipped with high efficacy Lumileds LED chips. The reasonable heat sink design of H series LED street lights could not only keep ventilation but also avoid laceration. The rated operating temperature is -40°C to 50°C, no problem working in a hot environment like Dubai. The improved lighting conditions make the park brighter and safer. Our clients are satisfied with the result.

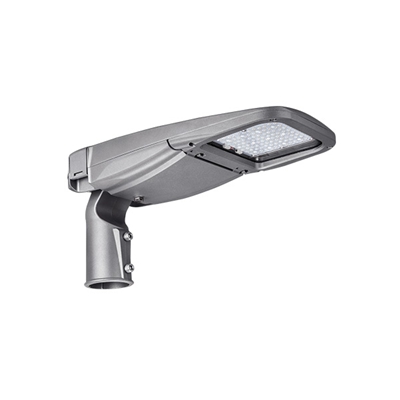

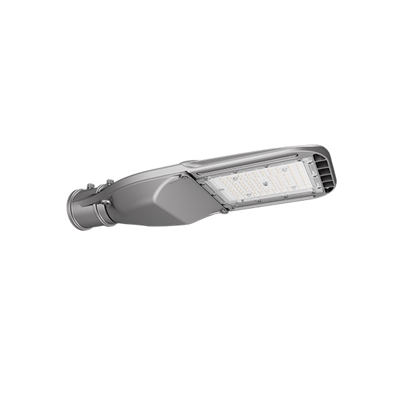

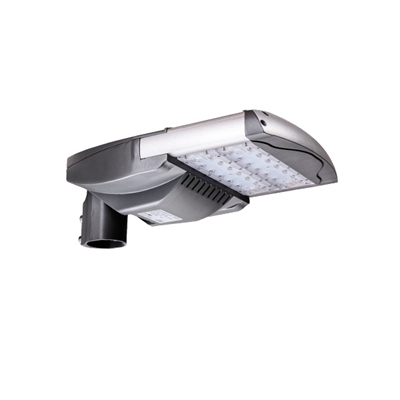

Product: 65W LED Street Light
Model No.: ZGSM-LD65H
LED: Lumileds
Driver: Meanwell
CCT: 6000K
Optics: Type 1S
QTY: 40 Units
| Model | ZGSM-LD65H |
| LED Brand | Lumileds Luxeon TX |
| Driver Brand | Meanwell or Inventronics |
| Normal Wattage | 65W |
| LED Module Quantity | 2 modules |
| Input Voltage | 100-240/277VAC/DC24V |
| Power Efficiency | >90% |
| Power Factor | >0.95 |
| Lamp Rated Luminous Efficiency | >110lm/w |
| Lamp Rated Lumen output | 7150 lm (Lumen tolerance +/- 5%) |
| Color Rendering Index | Ra>70 |
| Color Temperature | 3000K, 4000K, 5000K, or 5700K |
| Photometric Type | Type I Medium; Type II Medium; Type III Medium, TypeV, Short |
| Optimal Operating Temperature | 25° |
| Storage Temperatures | -40°C~50°C |
| Working Environment | Between-40°C~+50°C, 10%~90%RH |
| Total Harmonic Distortion | < 10% |
| Lumen Maintenance | > 100000 hours -L70, @25 ºC (77 ºF) |
| Wind Index | Force 12 |
| Body | Die-cast Aluminum Housing |
| Cover | PC lens |
| Pole Fitter Diameter | 60mm ( 50mm optional) |
| Rating | IP66 IK10 |
| Protection | Class I ( Class II optional) |
| SPD | 10KV (20KV optional) |
| Certification | CE, ROHS, GS, CB, UL, cUL, DLC, LM-79, LM80, SAA |
| Dimming Options | 1-10V or DALI or PWM or Timer |
| Control Options | Photocell or Motion sensor or Smart control |
| Color Options | Silver or Black |
| Warranty | 7 years |
Installation Manual_StreetLight_H.pdf
Data Sheet_LEDStreetLight_H.pdf
 |  |  |
| 65W Modular Design LED Highway Light | 150w Cobra Head LED Street Light | 150w LED Street Light |
 |  |  |
| ENEC Economical 50w LED Street Light | 35w Tool-less Cobra Head Light | 120W Tool-less Outdoor Modern Street Lamp |
 |  |  |
 |  |  |
| LED Street Light System Installation Process | LED Street Light Procurement Skills | Light Source Of LED Street Lamp |
LED means Light-emitting diodes. These are electronic components that use the passage of electrons within the diode's substance to directly transform electrical energy into light. LEDs are significant because they are starting to replace the majority of traditional light sources thanks to their efficiency and low energy consumption.
Color temperature is a crucial component of color appearance that determines how "warm" (yellowish) or "cool" (bluish) white light looks on paper. A warm light is approximately 2,700 degrees Kelvin (K), neutral white is approximately 4,000 K, and cold white is approximately 5,000 K or greater. Correlated Color Temperature, or CCT, is specified in degrees Kelvin. When compared to the enormous efficiency benefits made by switching from conventional incandescent to LED lights, the energy efficiency variations between colder and warmer color temperatures are very insignificant.
